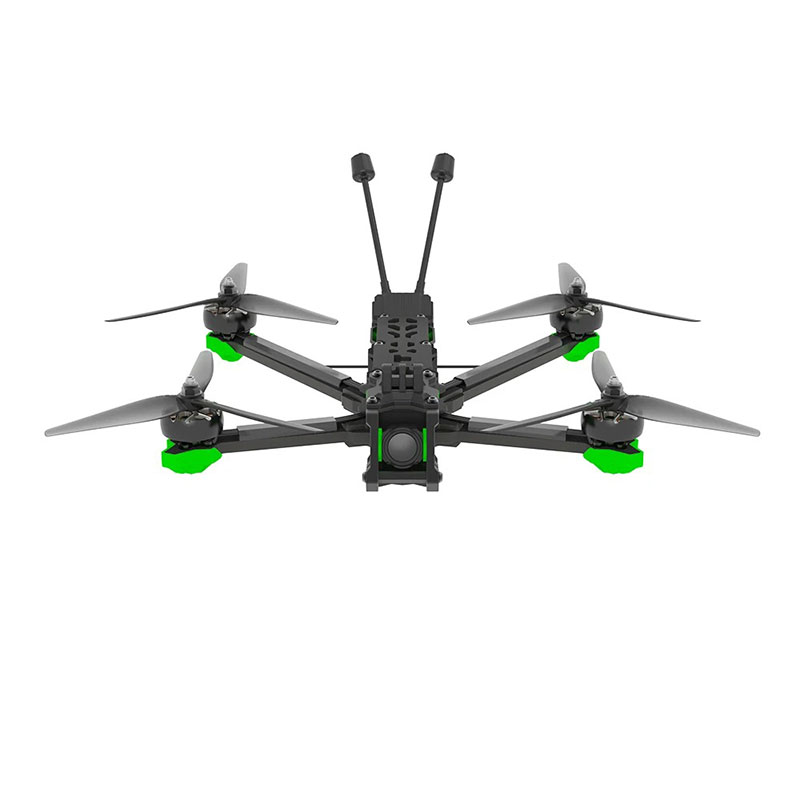

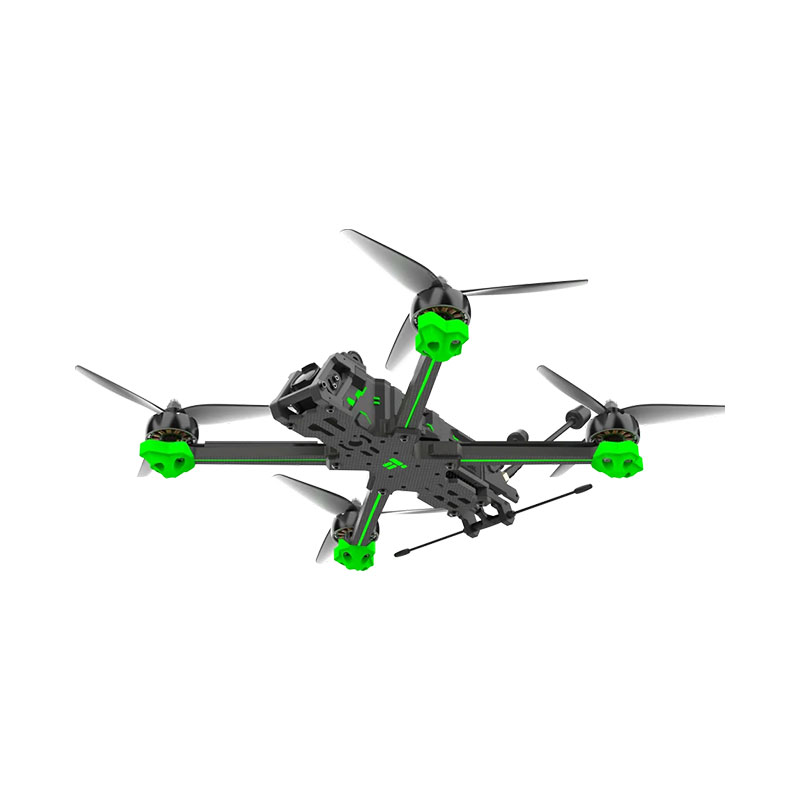

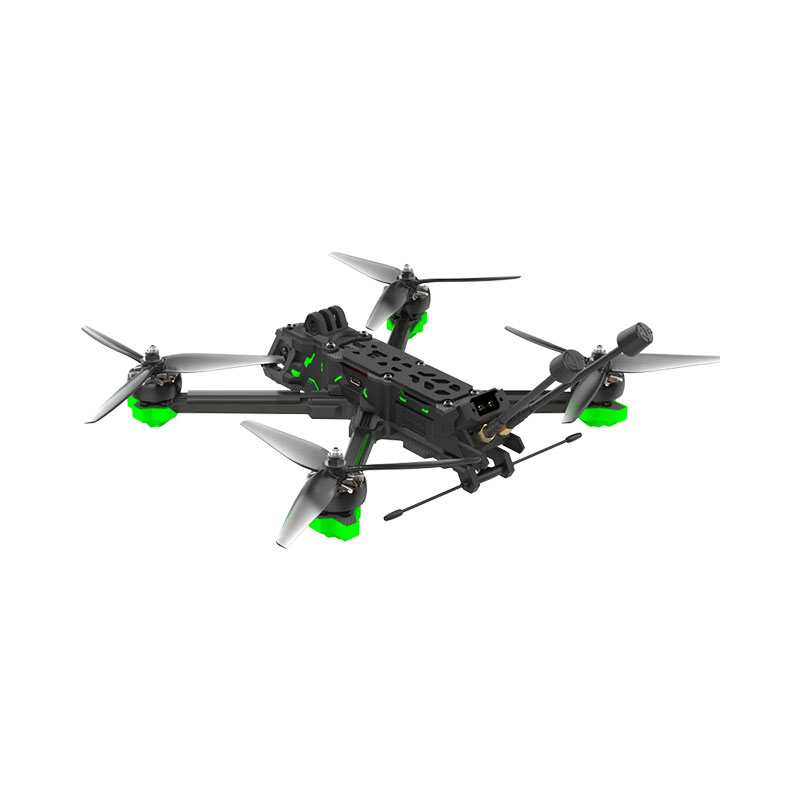

iFlight Nazgul Evoque F6D V2 Analog 6S BNF ExpressLRS 2.4GHz

Description

The iFlight Nazgul Evoque F6D V2 Analog 6S BNF ExpressLRS 2.4GHz redefines FPV drones with unmatched durability and performance. Powered by XING2 motors and a redesigned frame, it ensures smooth flights, longer battery life, and superior crash resistance. Experience immersive 4K visuals via DJI O3 HD technology, paired with advanced heat dissipation and anti-spark protection. Designed for enthusiasts, it’s the ultimate blend of efficiency, innovation, and flight precision.

Features:

• Smooth and Powerful XING2 Motors: The latest upgrade of our bestseller XING motors, no compromises taken! Durable unibell (one-piece bell) technology, strong titanium alloy shaft with reinforced bell joint, crash resistant 7075 aluminum bell, smooth and long-lasting Japanese NSK bearings, center slotted N52H curved arc magnets and our XING O-ring bushing gap protection.

• Latest Nazgul Frame for Maximum Protection: The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.

• DJI O3 HD Air Unit Low-Latency digital transmission: Up to 10 km video transmission range, enjoy a crisp and smooth real-time view in your goggles, even in environments with interference. (Source DJI)

• 4K Stabilized Video with 155° Ultra-Wide Angle: Together with high-grade imaging performance, it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)

• Secured Battery Plug with Anti-Spark Filter: Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.

• Specially Designed Heatsink for DJI O3 HD Air Unit: Improved cooling performance for the high power draw of the DJI O3 video transmitter. We’ve added a custom CNC heatsink for excellent heat dissipation without overheating, even on high power levels.

Specifications:

• Product Name: Evoque F6 V2 HD
• FC: BLITZ Mini F722 Flight Controller
• ESC: BLITZ Mini E55 4-IN-1 2-6S 55A ESC
• Video Transmission: DJI O3 Air Unit
• Frame wheelbase: 255mm (Squashed X) / 262 mm (DeadCat)
• Motor: XING2 2506 1500KV motors
• Prop: HQ 6×2.5×3 propellers
• Weight: 480/485grams
• Dimensions (L×W×H): 196×164×36mm (Squashed X) / 209×162×36mm (DeadCat)
• Diagonal Distance: 120 mm
• Max Speed: 180 km/h
• Maximum Takeoff Altitude: 3200 m
• Max Hover Time: Approx. 8 mins
• Max Flight Distance: 5 km
• Max Wind Speed Resistance: Level 7
• Operating Temperature Range: -10° to 40° C (14° to 104° F)
• Antennas: Dual Antennas
• GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Video Transmission:

• Product Name: DJI O3 Air Unit
• Weight: Approx. 36.4 grams（headband included）
• Communication Bandwidth： Max 40 MHz
• FOV (single screen): 155°
• Communication Frequency：2.400-2.4835 GHz (RX only)  /  5.725-5.850 GHz (RX and TX)
• End-to-End Latency
• With DJI FPV Goggles V2:
• 810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
• 810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
• With DJI Goggles 2:
• 1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
• 1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.
• Max Video Transmission Bitrate: 50 Mbps
• Max Video Transmission Range：10 km (FCC), 2 km (CE), 6 km (SRRC)
• Operating Temperature Range: -10º to 40º C (14° to 104° F)
• Power Input: 7.4-26.4 V
• Audio Transmission: N/A

Package Includes:

• 1 x Evoque F6 6S HD BNF
• 2 x Antennas
• 1 x Battery pad
• 2 x propeller(Pairs)
• 2 x Battery strap
