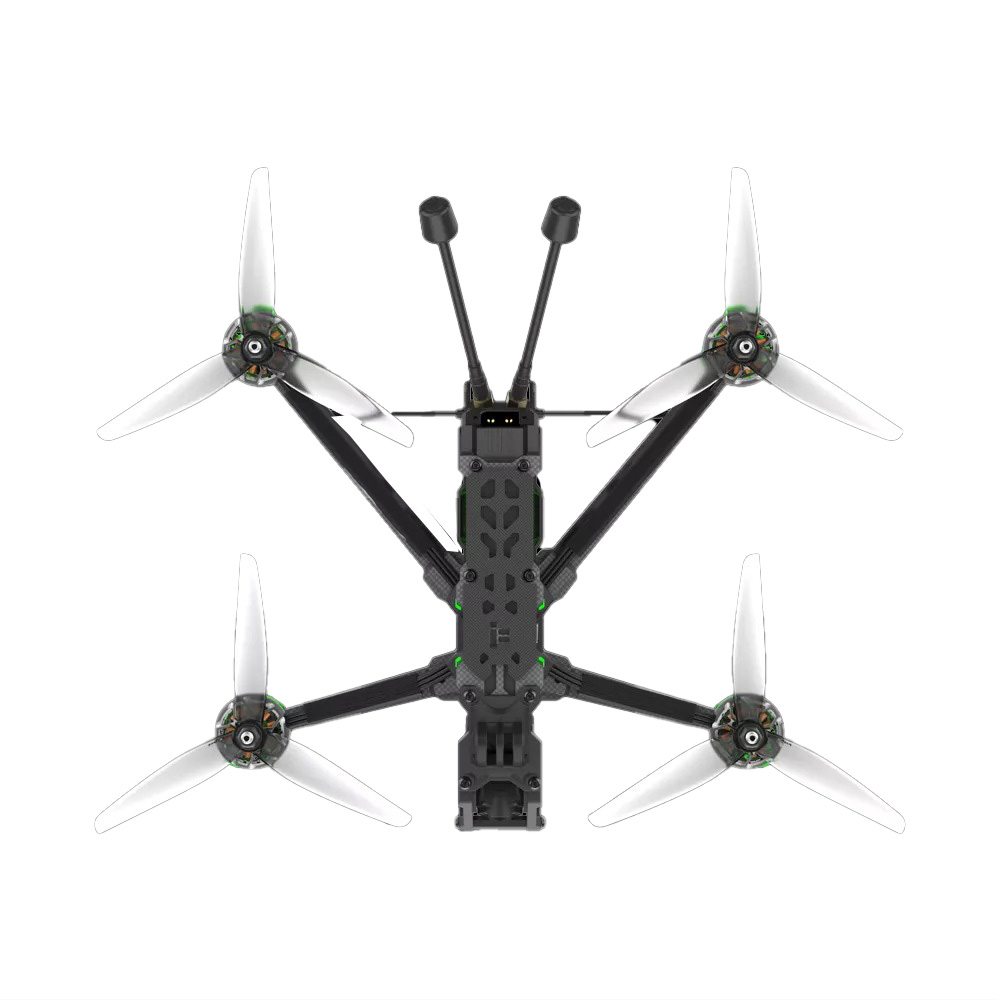

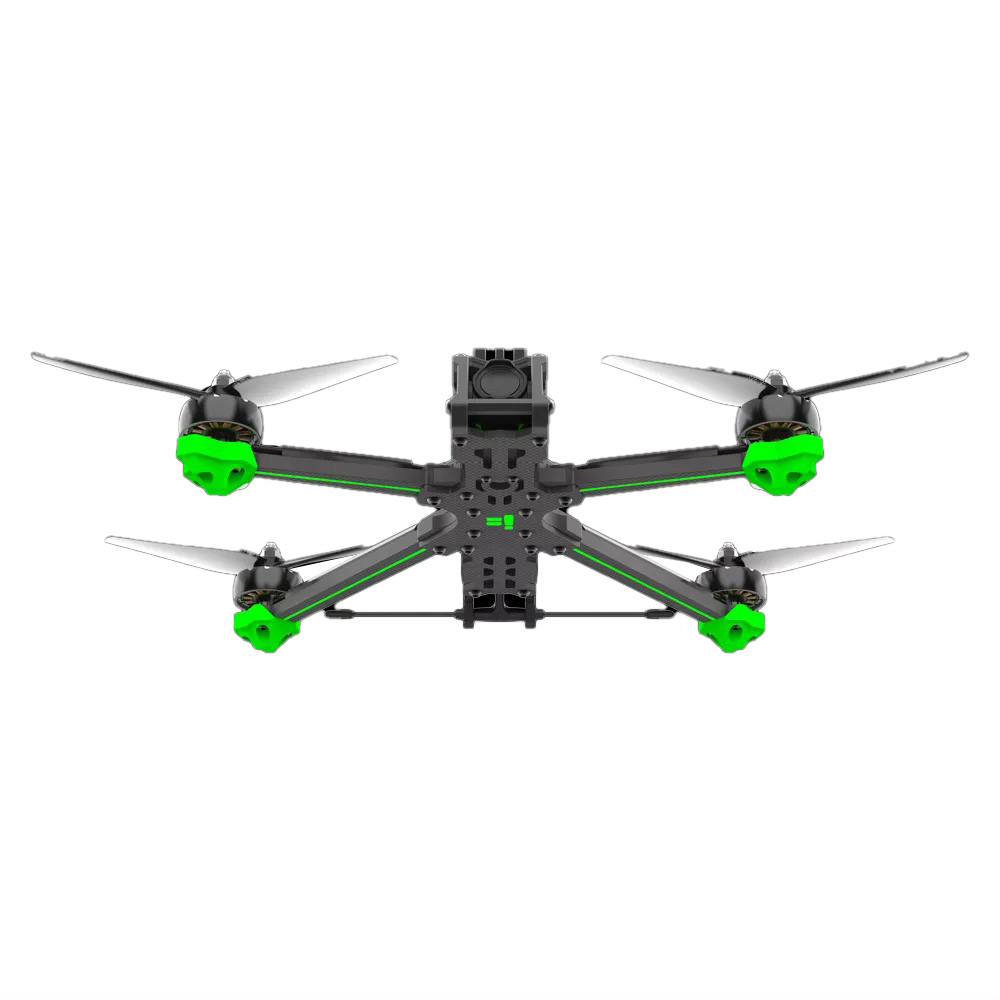

iFlight Nazgul Evoque F6D V2 DJI O3 Air Unit PNP incl GPS

Description

Pre Order – More stock due late December/early January

iFlight Nazgul Evoque F6D V2 DJI O3 Air Unit Plug-and-Play (PNP) version to select your own receiver

Our best pre-built drone just got better! Another breakthrough in FPV visuals from DJI with our upgraded frame and electronics. A new standard of Bind-And-Fly drones that are simple to get started with but the durability and performance for enthusiasts. Welcome to the iFlight experience!

KiwiQuads also stocks a Bind-and-Fly (BNF) ExpressLRS version: iFlight Nazgul Evoque F6D V2 DJI O3 Air Unit BNF ExpressLRS

Features:

Smooth and Powerful XING2 Motors

The latest upgrade of our bestseller XING motors, no compromises taken! Durable unibell (one-piece bell) technology, strong titanium alloy shaft with reinforced bell joint, crash resistant 7075 aluminum bell, smooth and long-lasting Japanese NSK bearings, center slotted N52H curved arc magnets and our XING O-ring bushing gap protection.

Latest Nazgul Frame for Maximum Protection

The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.

DJI O3 HD Air Unit Low-Latency Digital Transmission

Up to 10 km video transmission range, enjoy a crisp and smooth real-time view in your goggles, even in environments with interference. (Source DJI)

4K Stabilized Video with 155° Ultra-Wide Angle

Together with high-grade imaging performance, it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)

Secured Battery Plug with Anti-Spark Filter

Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.

Specially Designed Heatsink for DJI O3 HD Air Unit

Improved cooling performance for the high power draw of the DJI O3 video transmitter. We’ve added a custom CNC heatsink for excellent heat dissipation without overheating, even on high power levels.

Specifications:

• Product Name: Evoque F6 V2
• FC: BLITZ Mini F722 Flight Controller
• ESC: BLITZ Mini E55 4-IN-1 2-6S 55A ESC
• Video Transmission: DJI O3 Air Unit
• Frame wheelbase: 262 mm (DeadCat)
• Motor: XING2 2506 motors
• Prop: 6 inch propellers
• Weight：475grams
• Takeoff Weight：Approx. 680 g
• Dimensions (L×W×H)：180×180×80 mm
• Diagonal Distance：120 mm
• Max Speed：130 Km/h (Manual Mode)
• Maximum Takeoff Altitude：5000 m
• Max Hover Time：Approx. 8 mins
• Max Flight Distance：5 km
• Max Wind Speed Resistance：100 Km/H (Level 5)
• Operating Temperature Range：-10° to 40° C (14° to 104° F)
• Antennas：Dual Antennas
• Includes GPS!

ELECTRONICS

FC //BLITZ mini F722 Flight Controller

• Firmware target: IFRC-IFLIGHT_BLITZ_F722
• Barometer: DPS310
• LED controller: Yes
• MCU: STM32 F722
• Beeper pad: Yes
• Gyro: BMI270

ESC // BLITZ E55 4-IN-1 2-6S 55A ESC

• Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
• Target:   IFLIGHT_BLITZ_G2
• Supports 2-6S Lipo input
• Current sensor: Yes
• Constant: 55 Amps
• Current rate: 200
• Burst: 60 Amps
• MCU： G071

• Product Name：DJI O3 Air Unit
• Communication Frequency：2.400-2.4835 GHz (RX only)  /  5.725-5.850 GHz (RX and TX)
• Communication Bandwidth： Max 40 MHz
• Live View Quality and Latency
• With DJI FPV Goggles V2:
  • 810p/120fps Video Transmission Quality: The video transmission latency is lower than 28 ms.
  • 810p/60fps Video Transmission Quality: The video transmission latency is lower than 40 ms.
• With DJI Goggles 2:
  • 1080p/100fps Video Transmission Quality: The video transmission latency is as low as 30 ms.
  • 1080p/60fps Video Transmission Quality: The video transmission latency is as low as 40 ms.
• Max Video Transmission Bitrate：50 Mbps
• Max Video Transmission Range：10 km (FCC), 2 km (CE), 6 km (SRRC)Audio Transmission：N/A

Included Components and Parts

• 1 x Evoque F6D 6S HD PNP
• 2 x Antennas
• 1 x Battery pad
• 2 x propeller(Pairs)
• 2 x Battery strap

Reccomended Batteries:

• CNHL 6S 100C 1300mAh
• CNHL 6S 100C 1500mAh
• GNB Battery 22.2V 120C 1300mAh 6S
• GNB Battery 22.2V 130C 1500mAh 6S

Spares:

• Props:
  • HQProp DP 6×2.5×3 Grey (Set of 4) 5mm
  • HQProp DP 6x3x3 V1S Propellers (2 Colours)

Note:

All iFlight BNFs are tested before shipment to guarantee the highest quality.

If you still encounter a problem after receiving your shipment, please immediately contact KiwiQuads or iFlight customer support at [email protected] or www.iflightrc.freshdesk.com
