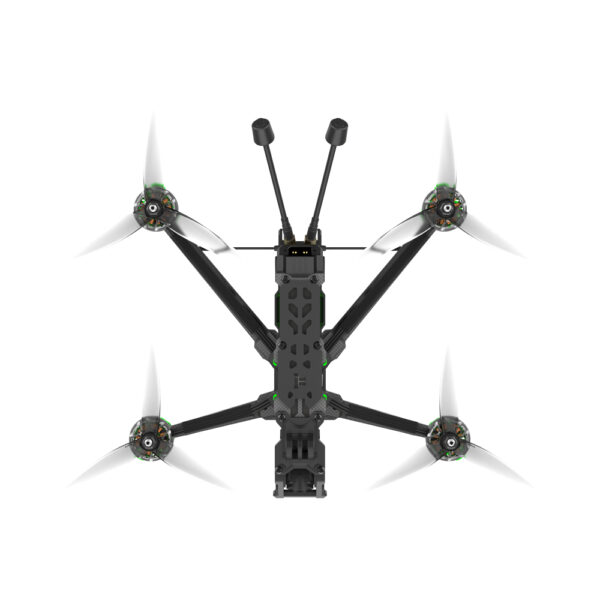

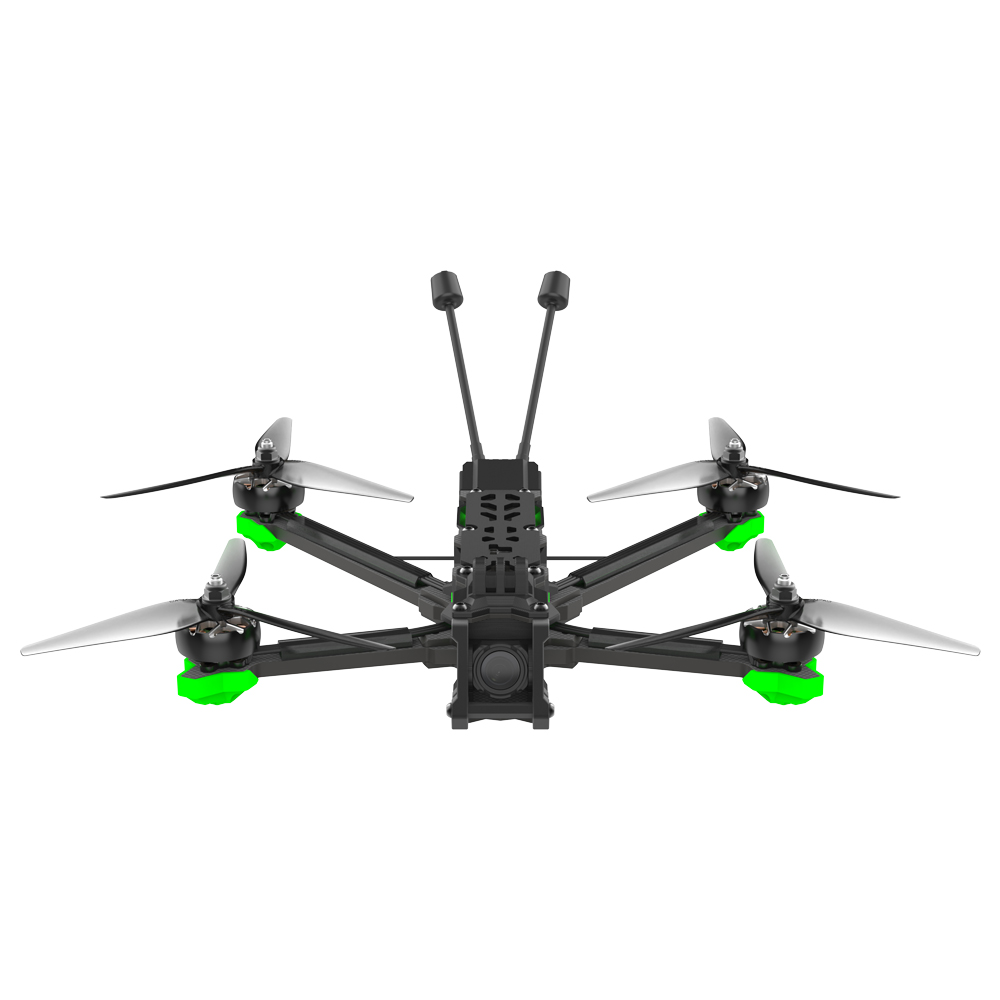

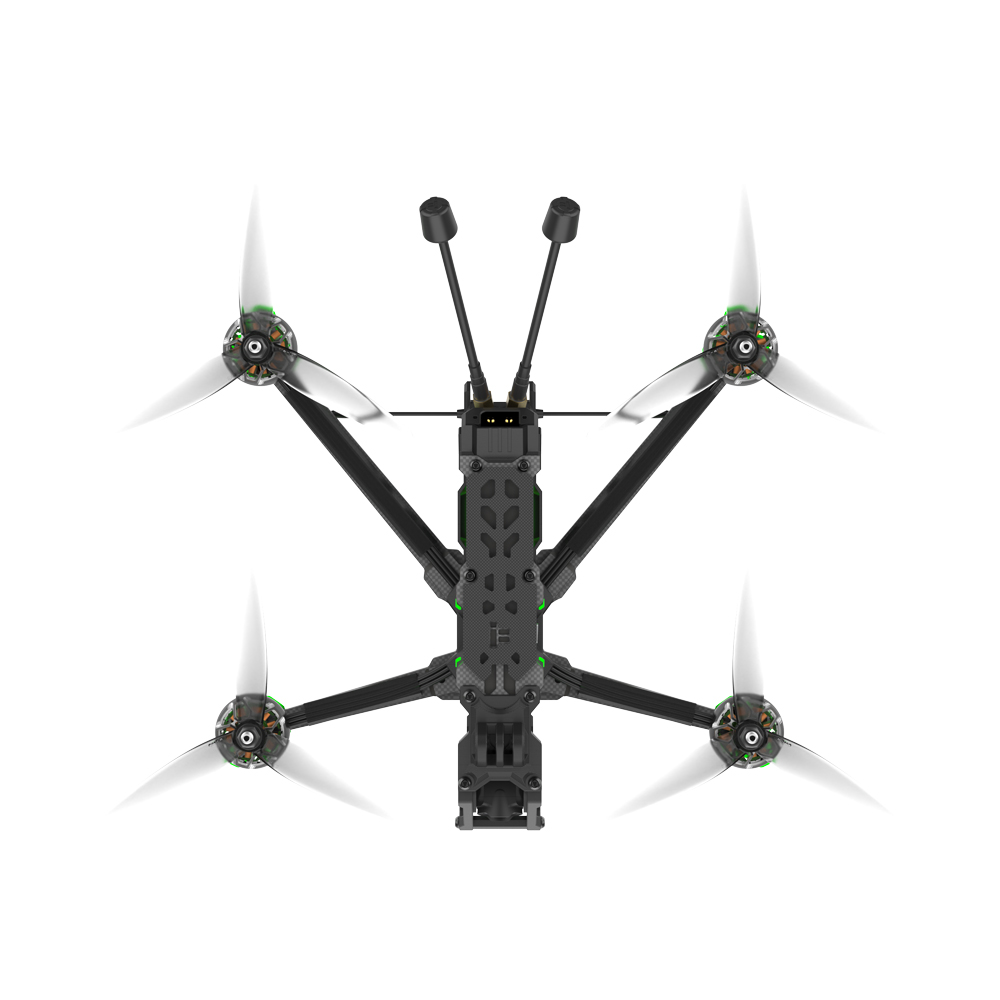

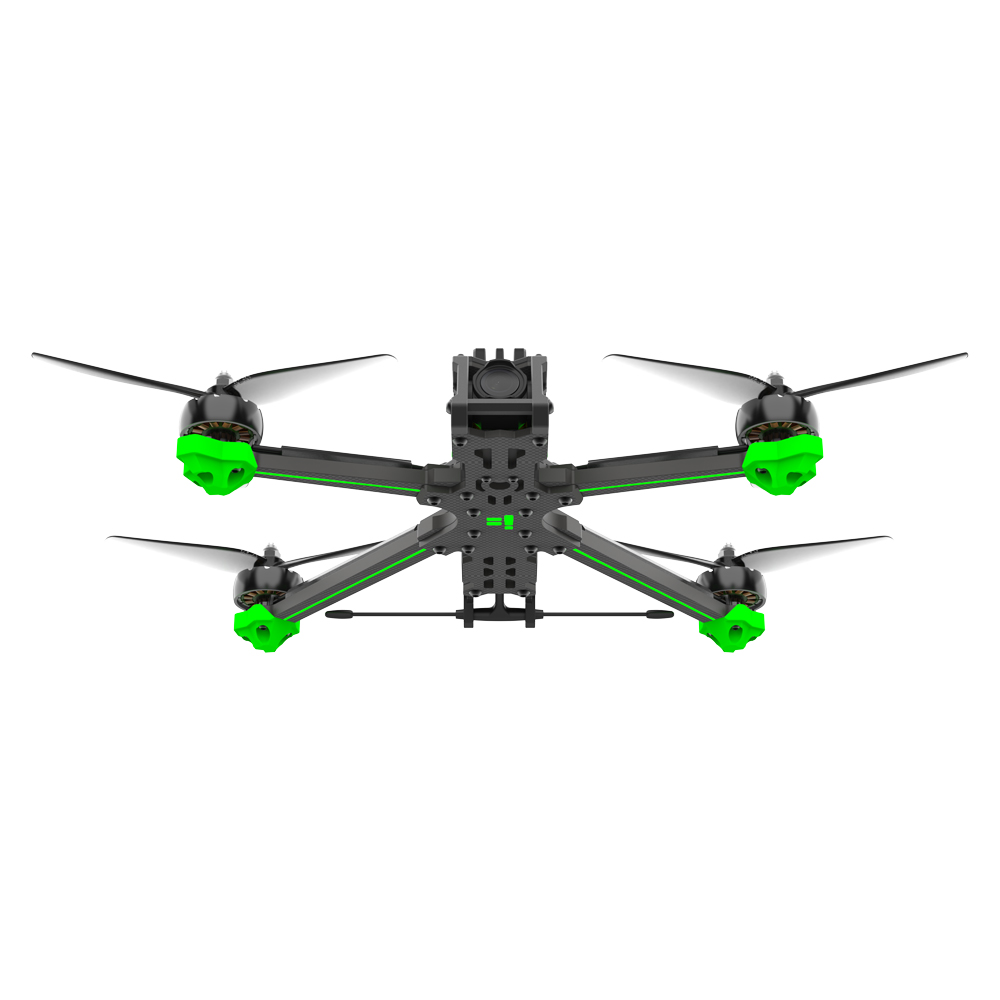

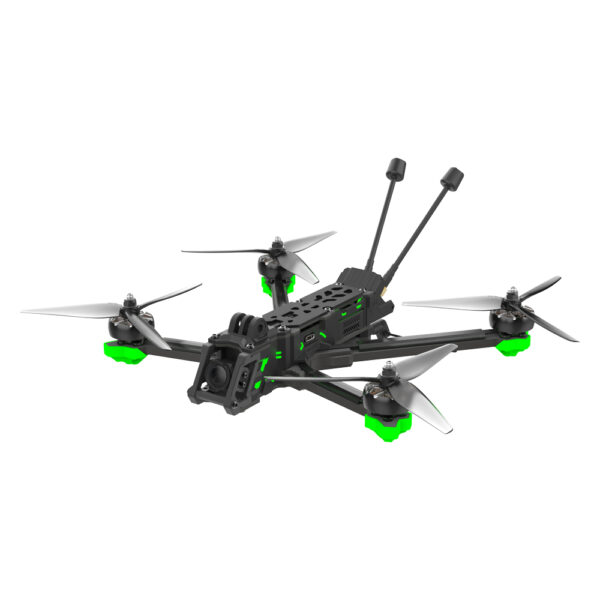

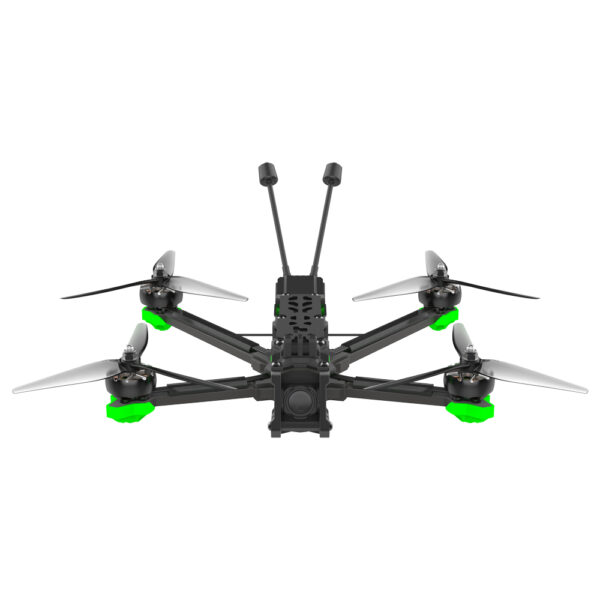

iFlight Nazgul Evoque F6D V2 O4 Freestyle Drone BNF Crossfire

Description

Pre-Order info: our stock is in transit and we are expecting it to arrive around 27th Jan.

Note this version is TBS Crossfire option. We also have:

• BNF BNF DJI (also known as PNP) option: iFlight Nazgul Evoque F6D V2 O4 Freestyle Drone BNF DJI
• BNF ExpressLRS 2.4GHz: iFlight Nazgul Evoque F6D V2 O4 Freestyle Drone BNF ExpressLRS 2.4G

Our premier 6-inch pre-built drone is now upgraded with DJI’s cutting-edge FPV technology. This Bind-And-Fly drone combines ease of use with enthusiast-grade durability and performance, offering extended flight times thanks to a larger battery and efficient lower KV motors. Featuring the DJI O4 Pro Air Unit with a 1.1/1.3-inch sensor and 155° ultra-wide angle, it delivers stunning 4K stabilized video and real-time up to 1080p/100fps transmission for an unparalleled flying experience. Welcome to the next level of FPV adventure with iFlight.

Features:

Smooth and Powerful XING2 Motors: The latest upgrade of our bestseller XING motors, no compromises taken! Durable unibell (one-piece bell) technology, strong titanium alloy shaft with reinforced bell joint, crash resistant 7075 aluminum bell, smooth and long-lasting Japanese NSK bearings, center slotted N52H curved arc magnets and our XING O-ring bushing gap protection.

Latest Nazgul Frame for Maximum Protection: The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.

DJI O4  HD Air Unit, Enhanced Perception: DJI O4 video transmission’s enhanced stability lets you fully immerse yourself in each flight and provides greater safety. It boasts up to 13 km of maximum video transmission distance, a transmission latency as low as 24 ms, 1080p/100fps high-definition image quality, and a maximum transmission bitrate of 60Mbps. (Source DJI)

4K Stabilized Video with 155° Ultra-Wide Angle: Together with high-grade imaging performance, it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)

Secured Battery Plug with Anti-Spark Filter: Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.

Specifications:

• Product Name: Evoque F6 V2 O4 HD
• FC: BLITZ Mini F722 Flight Controller
• ESC: BLITZ Mini E55 4-IN-1 2-6S 55A ESC
• Video Transmission: DJI O4 Pro Air Unit
• Frame wheelbase: 262±2mm (DeadCat)
• Motor: XING2 2506 1500KV motors
• Prop: HQ 6×2.5×3 propellers
• Weight: 485±5g(DeadCat)
• Takeoff Weight: Approx.710±5g (With 6S 1480mAh)
• Dimensions (L×W×H): 209*162*36±2mm
• Diagonal Distance: 120 mm
• Max Speed: 180 km/h
• Maximum Takeoff Altitude: 3200 m
• Max Hover Time: Approx. 8.5 mins (No load With 6S 1480mAh)
• Max Flight Distance: 5 km
• Max Wind Speed Resistance: Level 7
• Operating Temperature Range: -10° to 40° C (14° to 104° F)
• Antennas: Dual Antennas
• GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Video Transmission:

• Product Name: DJI O4 Pro Air Unit
• Image Sensor: 1/1.3-inch
• Lens: FOV: 155°
• ISO: 100-25600
• Video Resolution: Max 4K@120fps
• Video Format: MP4, Max Video Bitrate: 130Mbps
• Color Mode: Standard/D-Log M
• Stabilization: Super Stabilization 3.0+ (RockSteady 3.0+)/ Stabilization Function Off (Supports Gyroflow)
• Live View Quality: 1080P@100fps
• Operating Frequency: 5.170-5.250 GHz  & 5.725-5.850 GHz
• Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))
• Communication Bandwidth: Max 60 MHz
• Antenna: Dual antennas
• Internal Memory: 4GB
• Supported SD cards: microSD cards (max. 512GB)

Compatibility:

• DJI Goggles 3 / DJI Goggles N3+ DJI FPV Remote Controller 3
• DJI Goggles 2 / DJI Goggles Integra+ DJI FPV remote control 2
• (Or another Radio to match the RX in the Drone)

The flight control firmware needs to be configured to support the SBUS protocol so that the DJI FPV remote controller can be used.

• 1 x Evoque F6 6S O4 HD BNF Crossfire
• 2 x Antennas
• 1 x Battery pad
• 2 x propeller(Pairs)
• 1 x Battery strap

Recommended (not included) Batteries:

• Value Pack: CNHL 6S 100C 1500mAh
• GNB 160c: GNB Battery 22.2V 160C 1530mAh 6S
• Long Range Li-Ion Pack: Auline Li-Ion Battery 6S 22.2V 3000mAh VTC6
• Premium Performance Pack: Tattu R-Line Version 5.0 22.2V 150C 1480mAh 6S Battery

Recommended (not included) Propellers:

• HQProp DP 6×2.5×3 Grey (Set of 4) 5mm
• Gemfan Hurricane 6045 3-Blade Propeller (2 Colours)
