Description

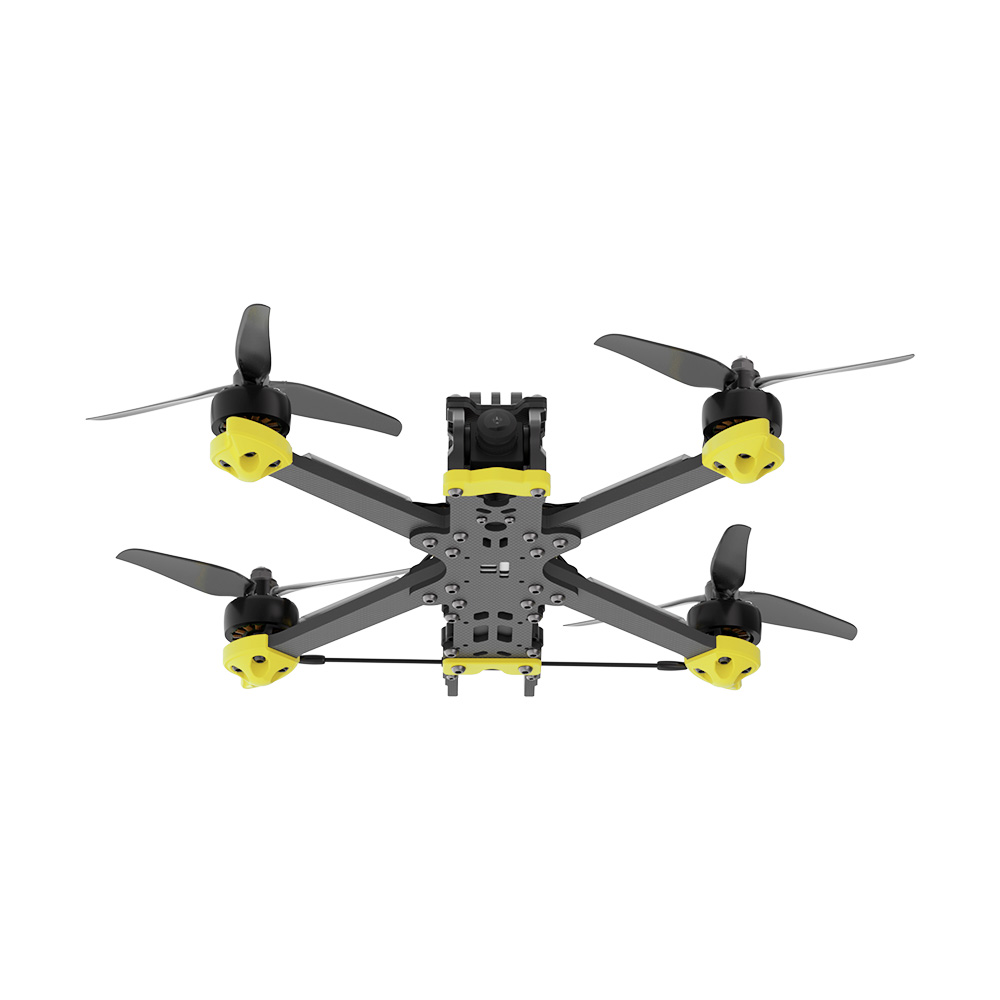

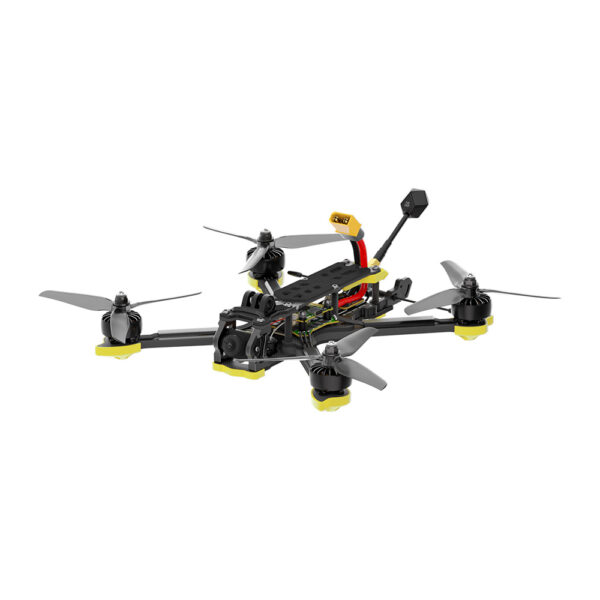

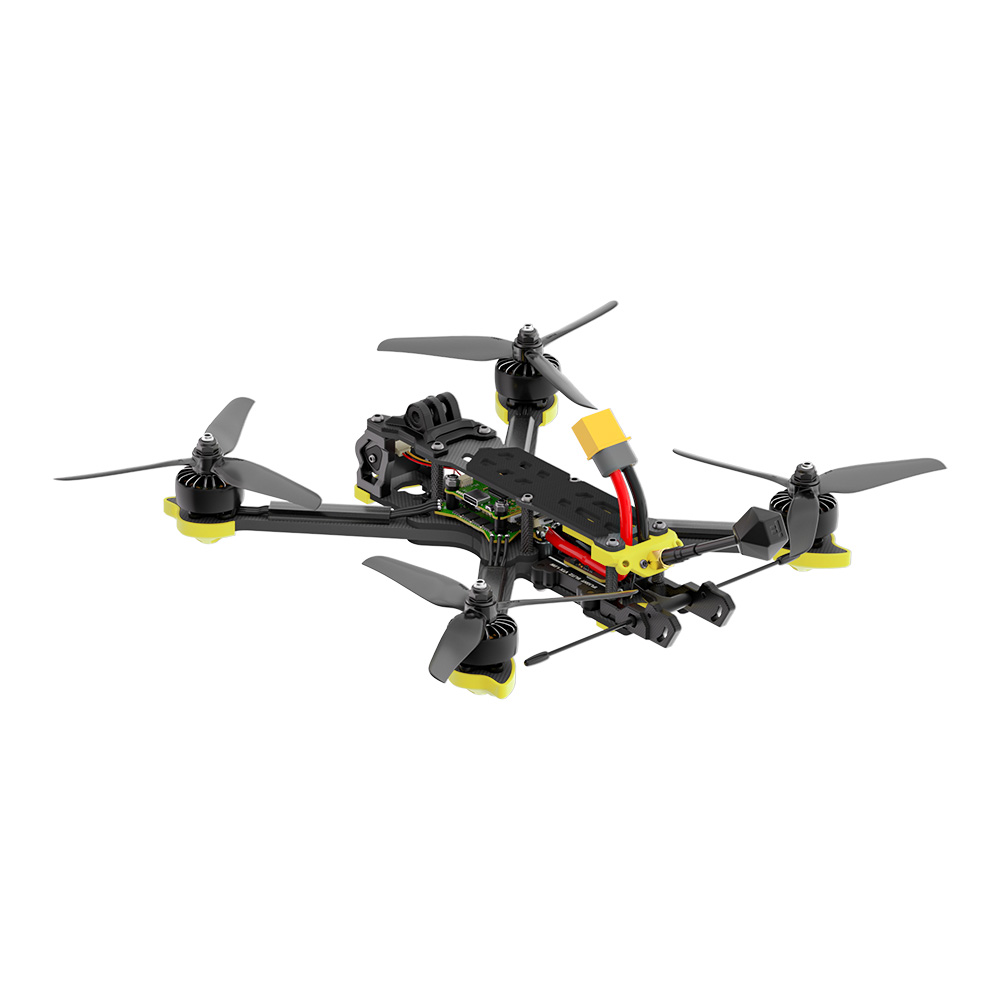

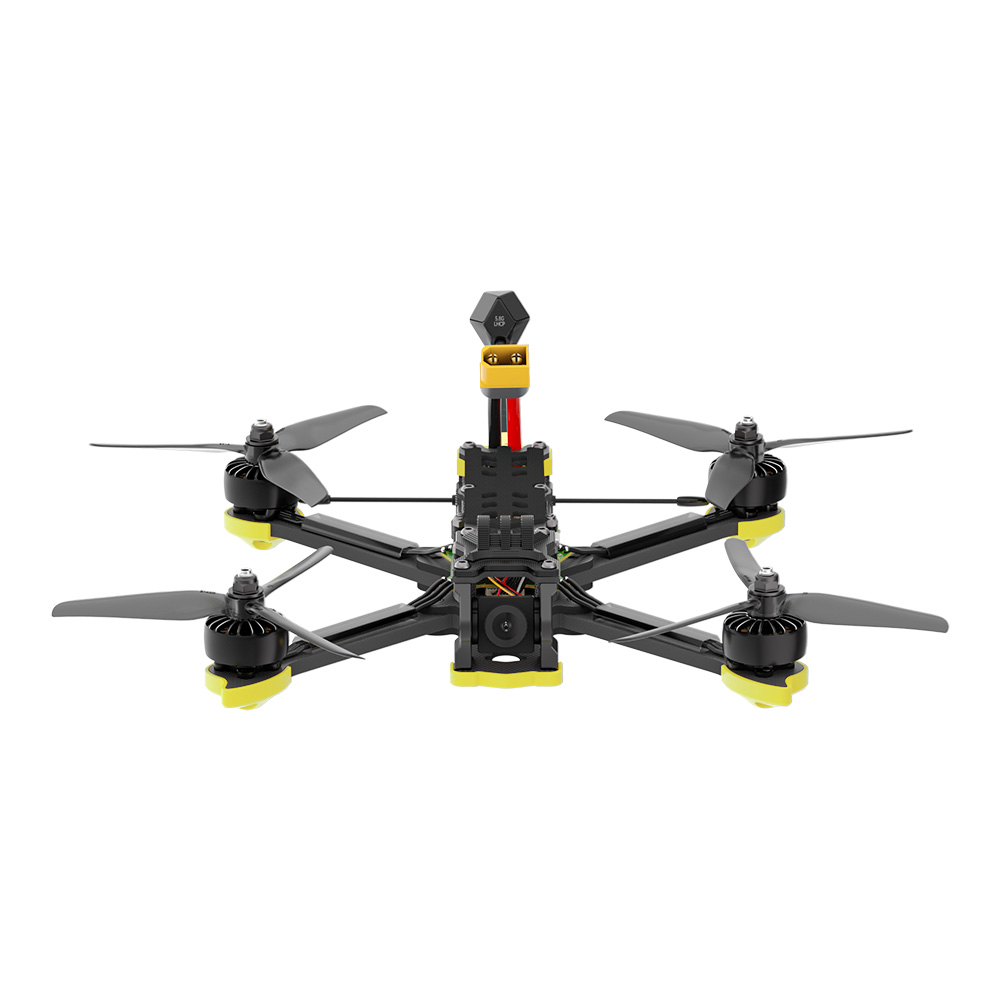

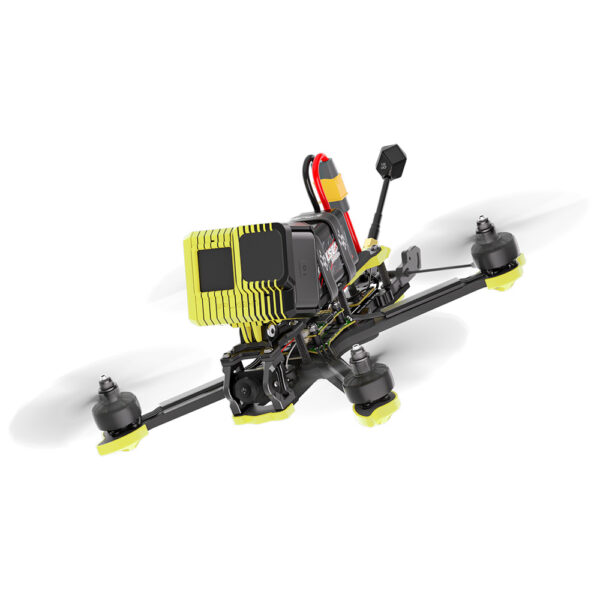

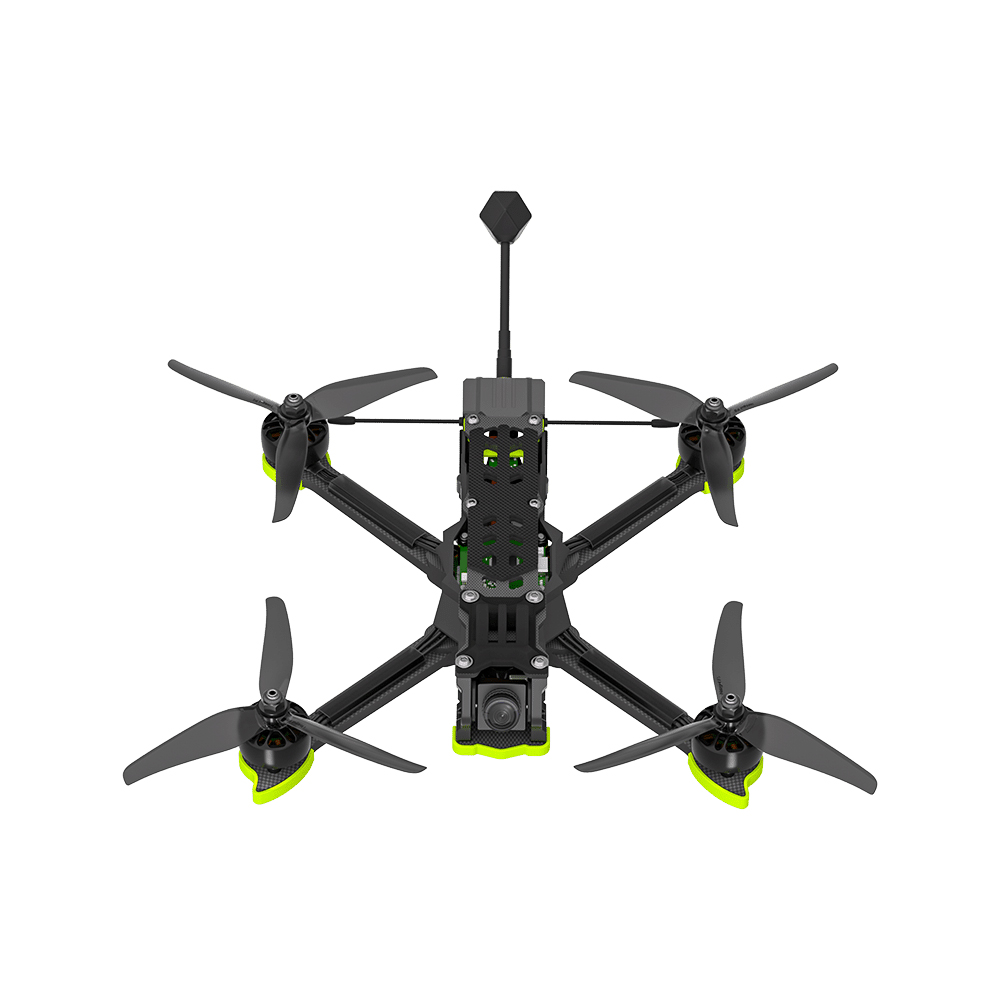

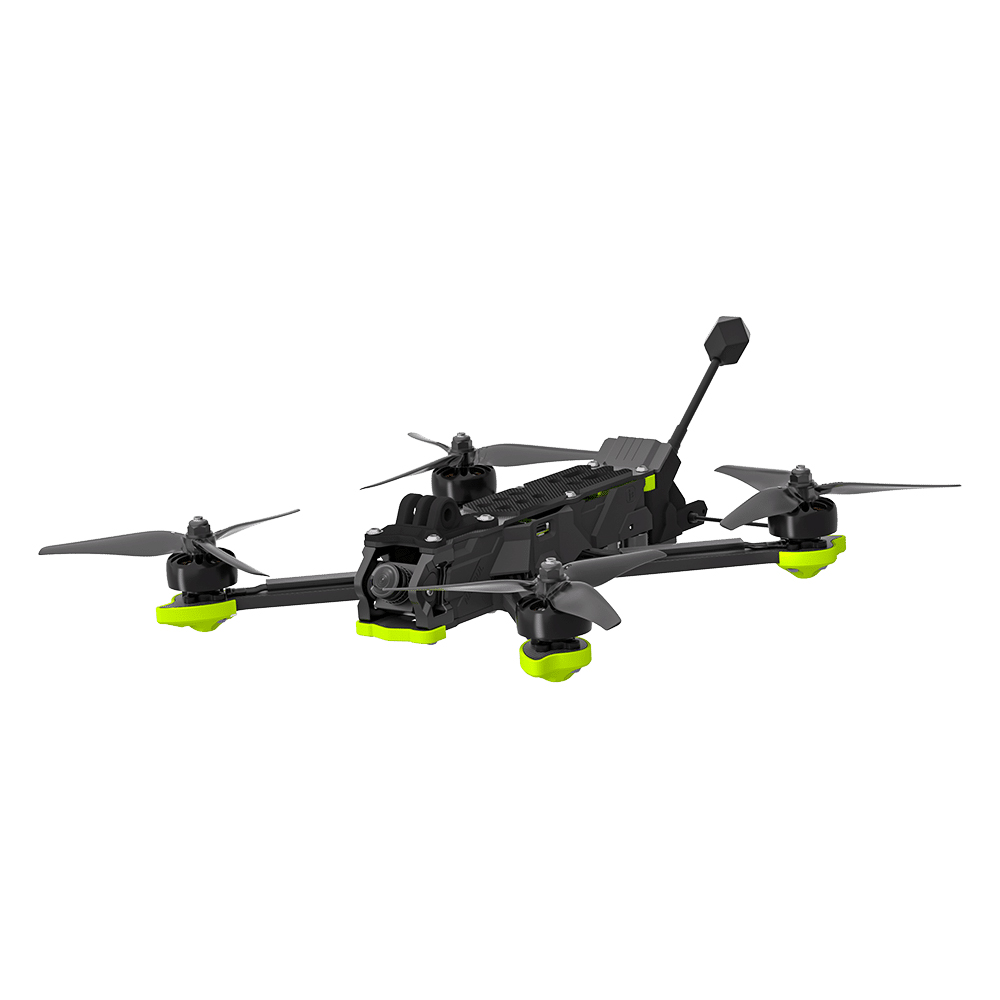

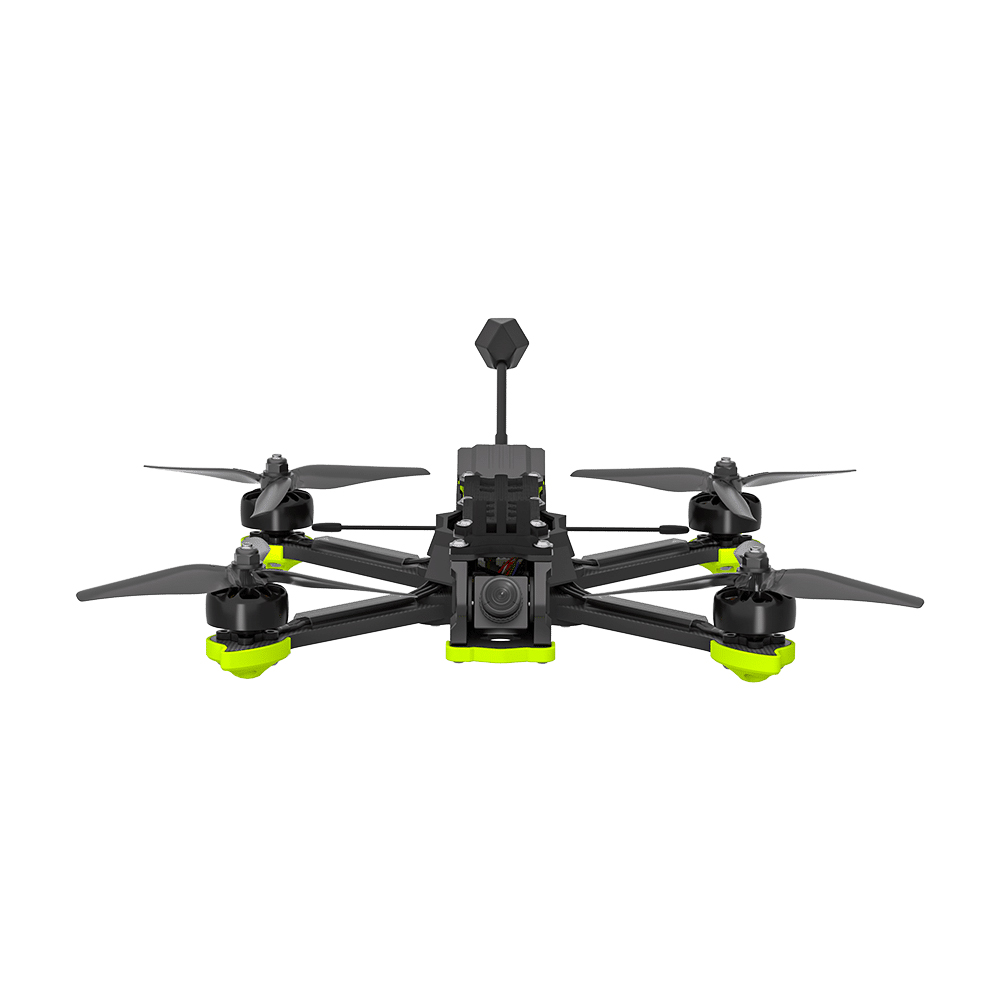

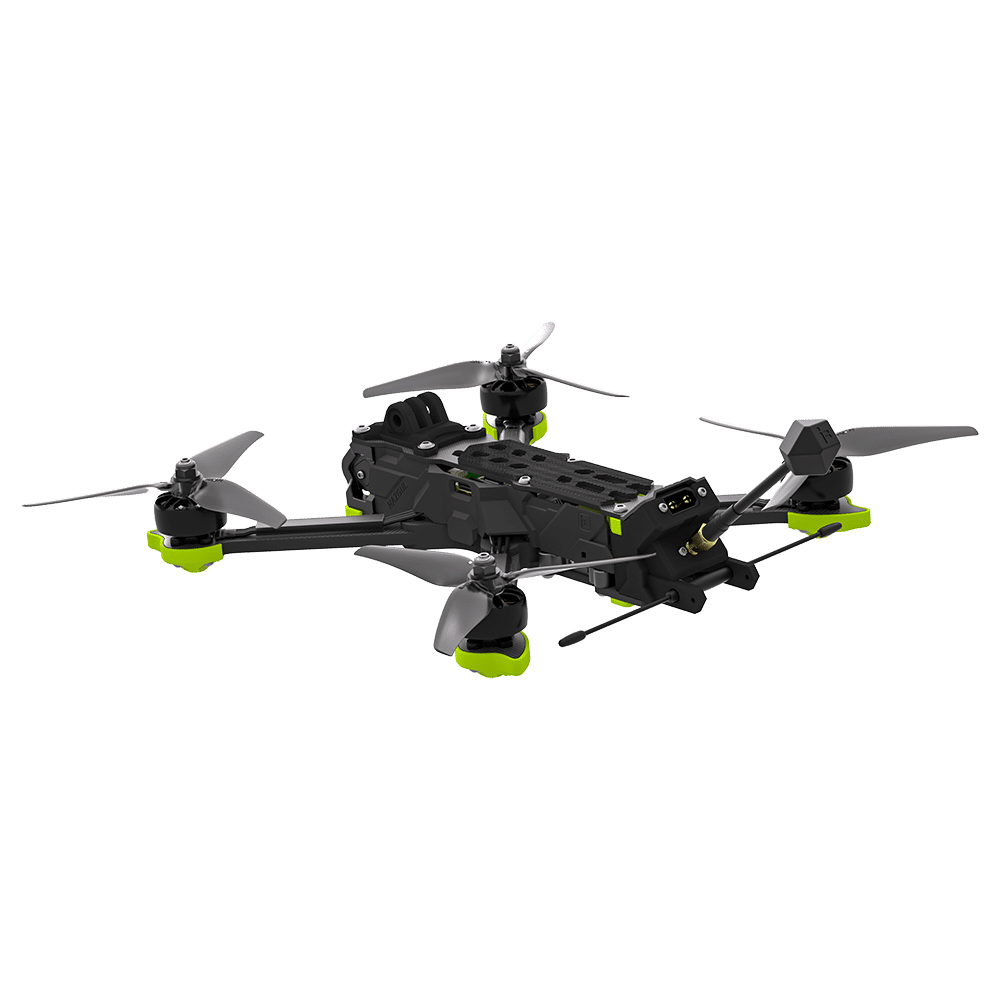

The Nazgul XL5 ECO 6S Analog freestyle drone has excellent performance with reliability and versatility. Featuring a lightweight carbon fiber and aluminum build, it ensures durability and clear video output. Elevate your aerial footage with the Nazgul XL5 ECO’s advanced technology and customizable options.

Features

• Professionally Built & Tuned: A Bind-and-Fly drone that’s ready for action right out of the box.
• Powerful 6S Freestyle Performance: Equipped with XING-E Pro 2207 1800KV motors and a 55A ESC.
• Extreme-Range 1.6W Analog VTX: A high-power BLITZ video transmitter for a crystal-clear, long-range signal.
• Anti-Spark Filter: Protects electronics and extends the life of your XT60 connectors, essential for 6S.
• ELRS 2.4GHz Receiver Installed: Comes ready to bind with the popular and reliable ExpressLRS radio protocol.
• Durable Nazgul ECO Frame: A robust True-X frame with a 245mm wheelbase designed for 5-inch propellers.

Specifications

• Product Name: Nazgul XL5 ECO V1.1 6S Analog
• FC: BLITZ ATF435 Flight Controller
• ESC: BLITZ E55S 4-IN-1 55A ESC
• Video Transmission: BLITZ 1.6W VTX
• Frame Wheelbase: 245mm
• Motor: XING-E Pro 2207 1800KV
• Propeller: Nazgul F5 Propellers
• Receiver: ELRS 2.4GHz
• Weight: 427g

Video Transmission:

• Product Name: BLITZ 5.8G 1.6W VTX
• Output Power: PIT/25mW/400mW/800mW/1600mW
• Input Volts: 7-34V(2-8S)
• Working Current: 25.2V，≤pit @20mA，≤25mw@65mA，≤400mw@130mA，≤800mw@150mA，≤1600mw@250mA
• Transmission fre: 40CH(A-B-E-F-R)
• Antenna Interface: MMCX
• Mounting Hole: 30.5×30.5/Φ3mm
• Weight: 18.9g (Antenna not included)
• Dimensions: 38.5×38.5mm

Package Includes

• 1 x Nazgul XL5 ECO 6S V1.1 Analog BNF
• 1 x Antenna
• 2 x Battery Pads
• 2 x Nazgul F5 Propeller Pairs
