iFlight Nazgul5 V3 O3 Air Unit Frame Kit
by iFlight
$134.99
Hurry! Only 1 left in stock
Ships from our Tauranga warehouse
Description

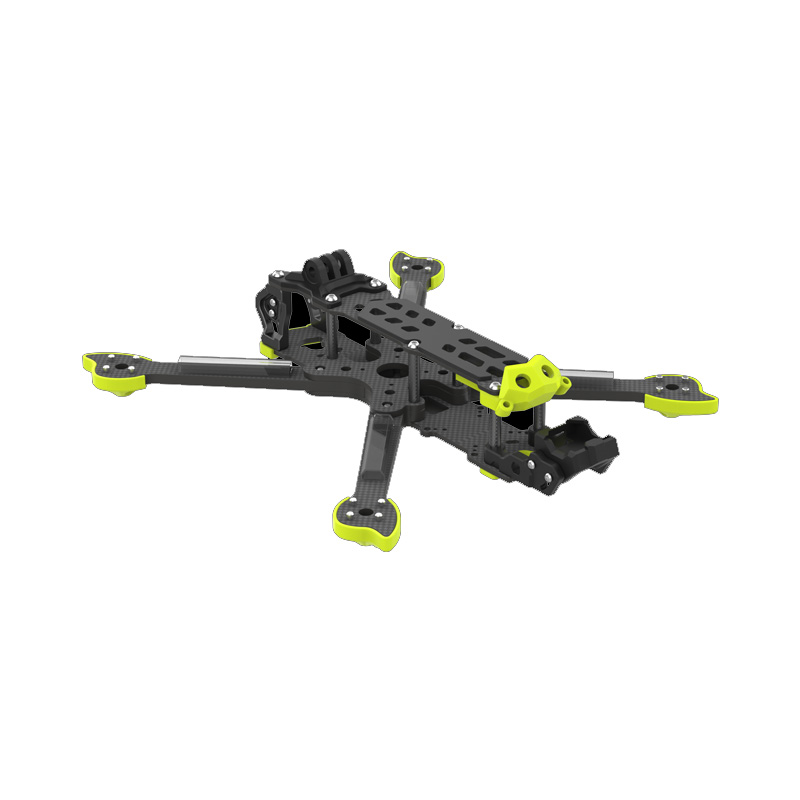

The iFlight Nazgul5 V3 frame is a 5″ freestyle frame. Made from a super-stiff carbon for minimum resonance and recommended 2207 motors for maximum 5″ prop control.
Features:
- 5″ version also fits 5.1″ style propellers
- Fits both 30.5×30.5 and 20×20 stacks
- Compatible with DJI O3 HD System
- 5mm arm design for more durability
- Popular True-X configuration
- LED illuminated Logo
- TPU crash-guards
- Easy-Swap arms
Specifications:
- Product Name:Nazgul5 V3 Frame Kit
- Wheelbase: 245mm
- Frame Dimension: L173*W173*H36.5 mm
- Frame Body Dimension: 36.5mm
- Arm Thickness: 5mm
- Bottom Plate Thickness: 3mm
- Top Plate Thickness: 2.5mm
- Upper Plate Thickness: 3mm
- Camera Plate Thickness: 3mm
- Motor Mounting:16x16mm
- VTX Mounting:30.5*30.5 φ3mm / 25*25 φ1.6mm / 20*20 φ2mm
- Weight: 500grams (Included no TPU Parts)
Includes:
- 1 x Nazgul5 V3 Frame Kit
- 1 x GoPro TPU Base Mount
- 1 x Screw Bag
- 4 x TPU Armguard
- 1 x Bottom Plate Front Protection TPU
- 1 x Bottom Plate Rear Protection TPU
- 1 x Anti-slip Battery Pad
- 4 x Motor Wire Shield Tube
- 2 x Battery Strap(20*250mm)
