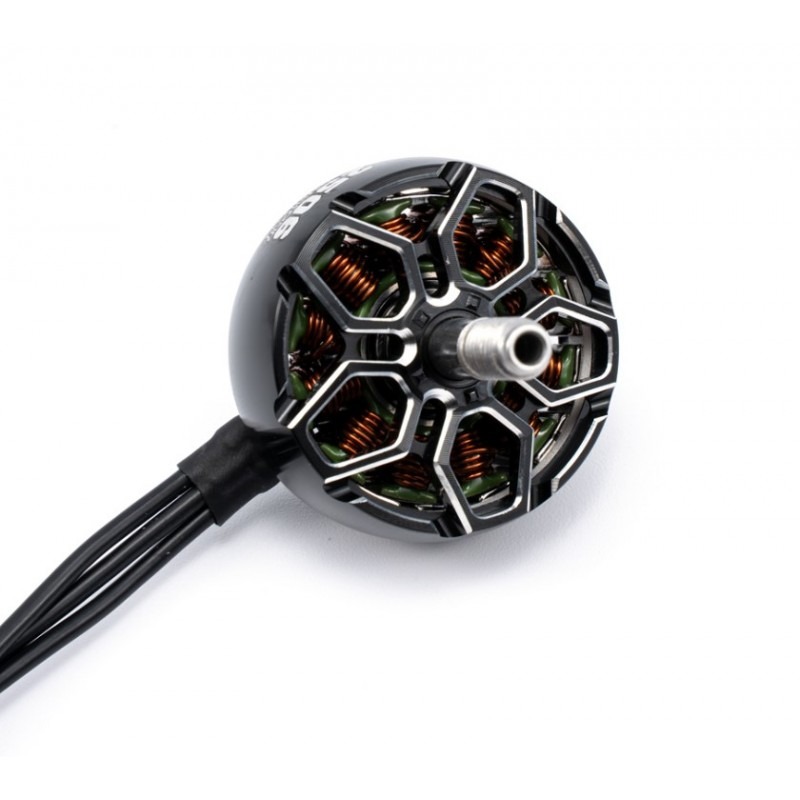

iFlight XING2 2506 FPV Motor 1500Kv/1850Kv

Please note Motors of the same Kv can be used together, the different models are just colour:

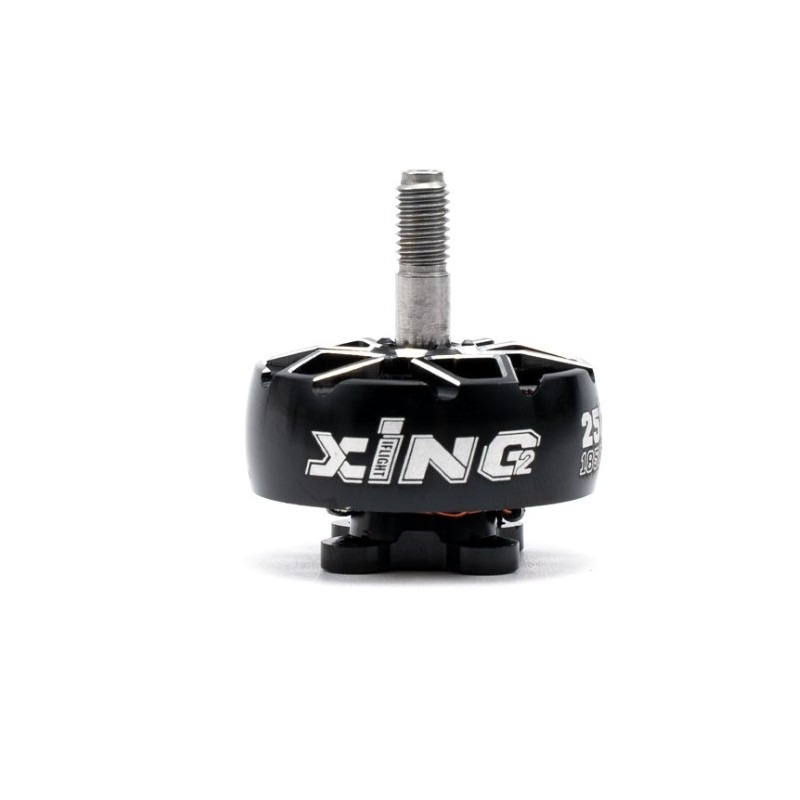

• 1500_Black = black motor with white logo

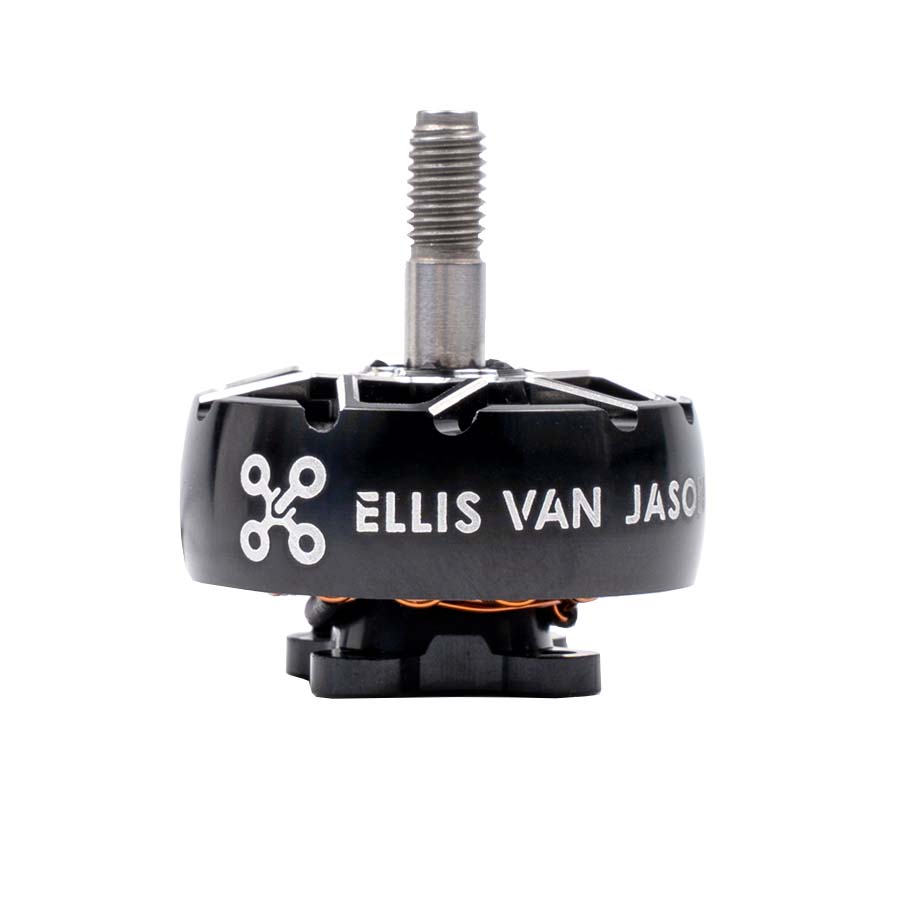

• 1500_BOB57 = black motor with Ellis Van Jason logo for BOB57 Quad.
• 1850_Black = black motor with white logo

The smooth, reliable and powerful iFlight XING motors were upgraded and we achieved an even higher standard in our manufactory as well as better performance than ever before. New center slotted N52H curved arc magnets were introduced to drastically reduce response time of the motor! Maybe the biggest bottleneck of our FPV flight controller is the motor due to it’s translation delay of it braking and accelerating. XING2 motors offer faster response to translate your PID loop quicker and get that locked-in feeling you were always looking for!

Due to the high quality materials used and the durable joint of bell and shaft, we were able to reduce the magnet air gap and stator lamination to a minimum. The smaller the air gap is, the lower that reluctance and the higher the magnetic flux (which is the magnetic analog of current) causing more efficiency and higher power!

Early 2018 we started to put o-rings on the top of our bearings between motor bell and stator. This acts as an absorber if your bell or shaft has gone through crashing and keeps the bearing gap tight to reduce all those vibrations induced by high rpms! It can also reduce the axial impact force just enough to keep your bearings smooth and quiet. All our experience, high quality 7075 bells, O-ring bearing protection and all the other features you’ve just seen on your original XING series are still inbuilt in a new shape and design!

Features:

• 5mm titanium alloy shaft, our strongest prop shaft ever!
• Crash resistant 7075 aluminum bell

• Smooth and long-lasting NSK 10x4x4 bearings
• Center slotted N52H curved arc magnets
• XING O-ring bearing gap protection
• Motor wires protector
• Dynamically balanced

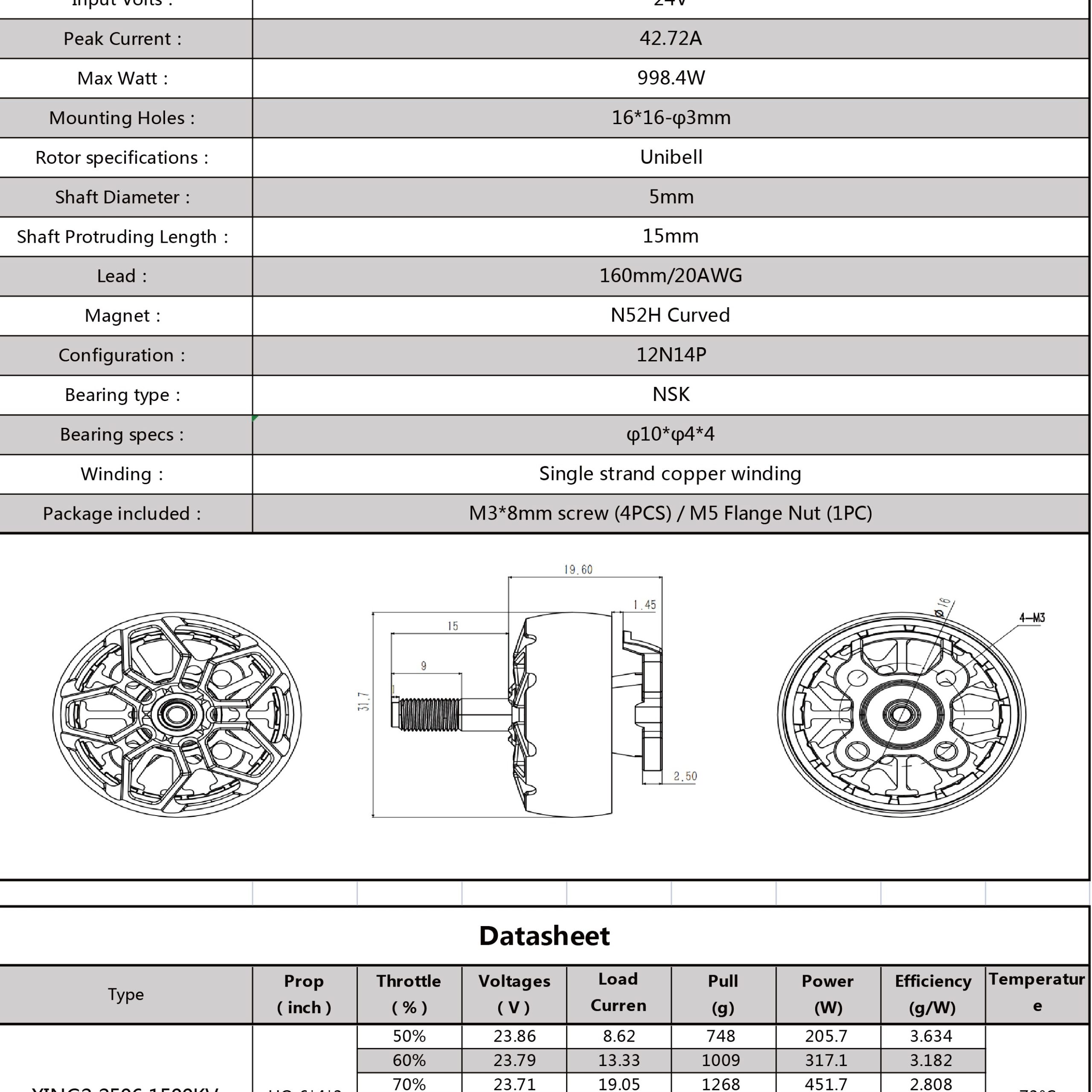

Specification:

• Model: XING2 2506
• KV: 1500/1850
• Configuration: 12N14P
• Shaft Diameter: 5mm
• Stator Diameter: 25mm
• Stator length: 6.5mm
• AWG: 18#
• Internal Resistance: 60mΩ
• Motor Dimensions (Dia.*Len): Φ31.8×19.7mm
• Weight with wires(g): 38.7g
• No.of Cells(Lipo): 3-6S
• Max Continuous Power 180s: 1205W
• Max Continuous Current 60s: 50.21A
• Cable length: 200mm
• Mounting Holes 16mm

Package includes:

• 1 x XING2 2506 Motor
• 6 x M3*8mm screws
• 1 x M5 Flanged Nylon Insert Lock Nut

NOTE: propeller does not include.
