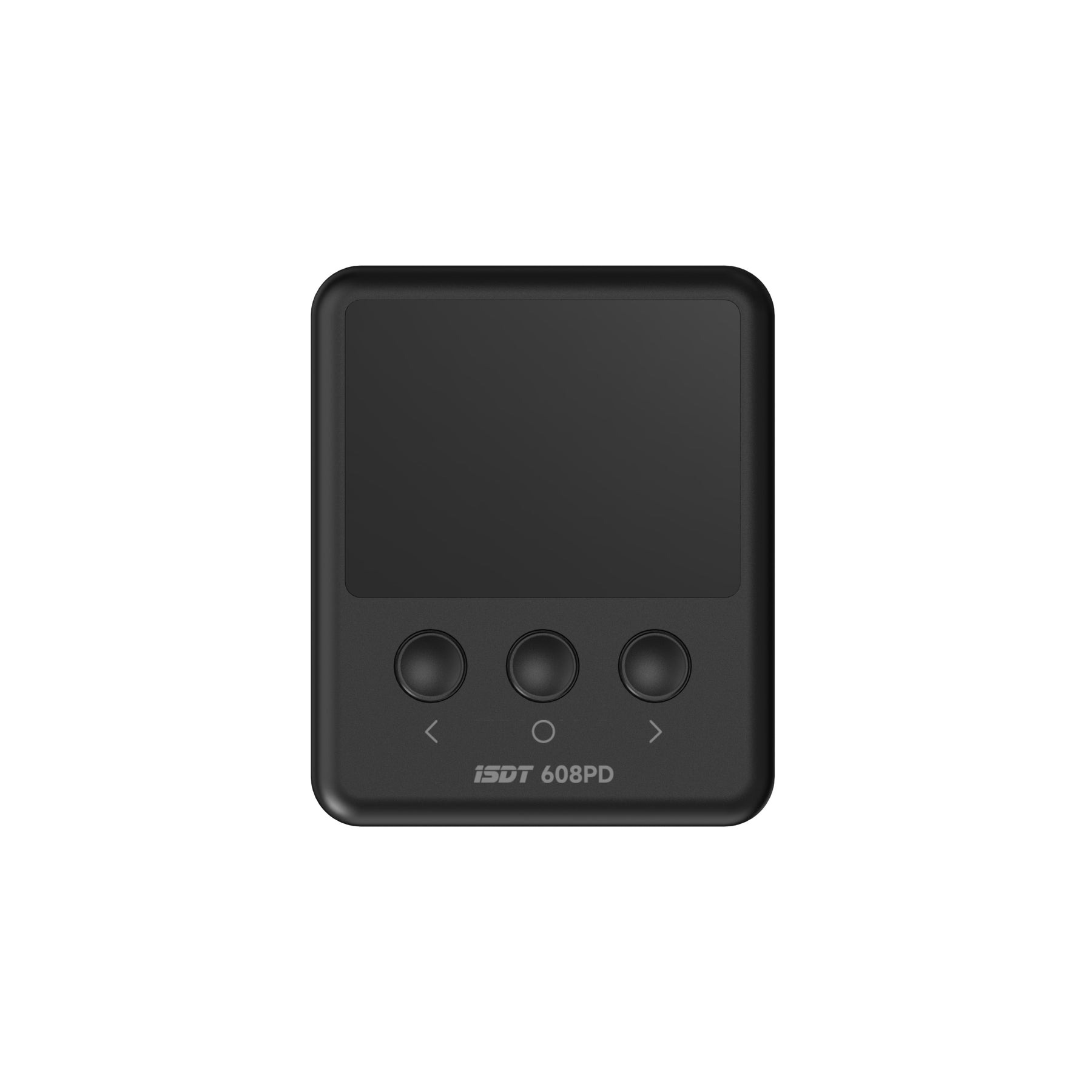

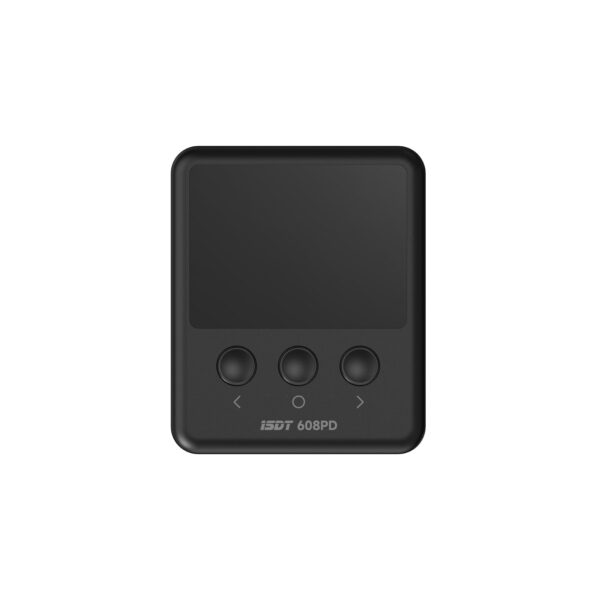

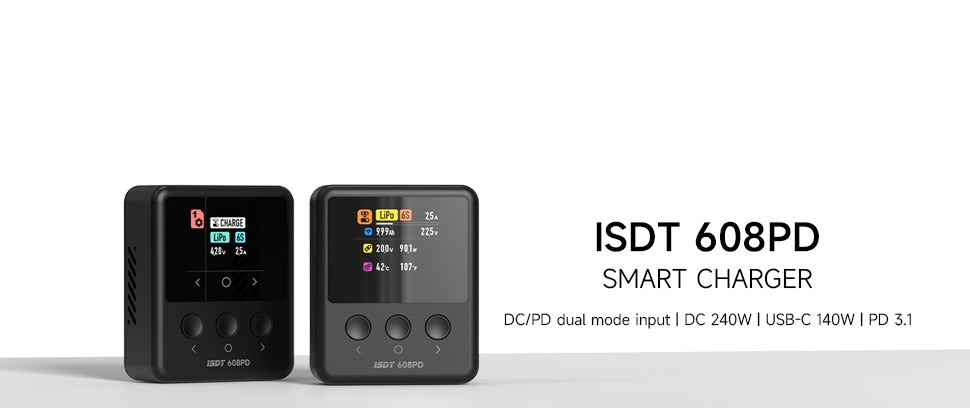

ISDT 608PD DC 240W Smart Charger with DC/USB Input

Description

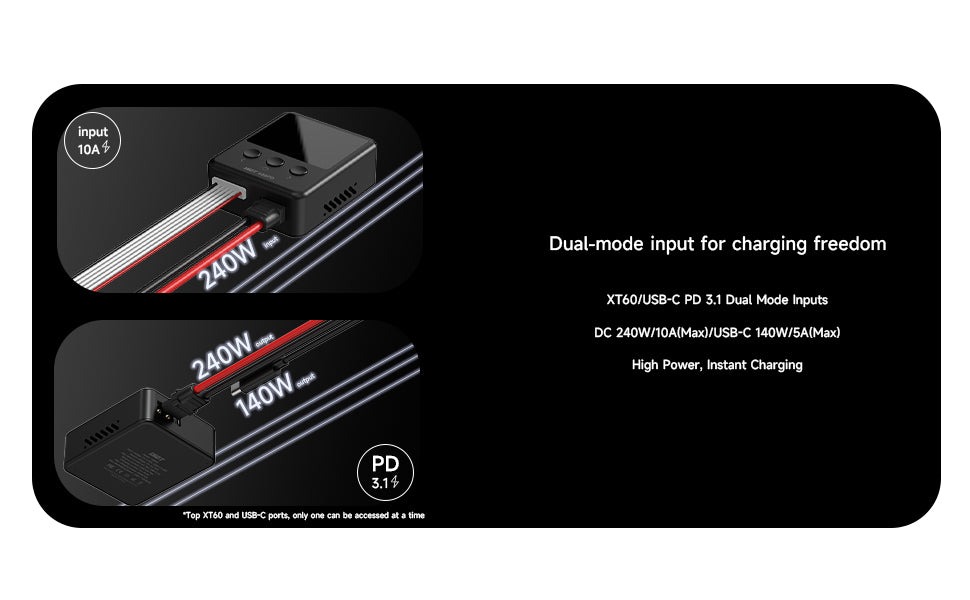

The ISDT 608PD DC 240W Smart Charger with DC/USB Input is a new generation pocket charger with dual-mode input, delivering 240W DC and 140W USB-C power. Featuring a powerful cooling system and universal compatibility, it supports charging and discharging for most batteries with intelligent battery management through an easy-to-use app.

Features

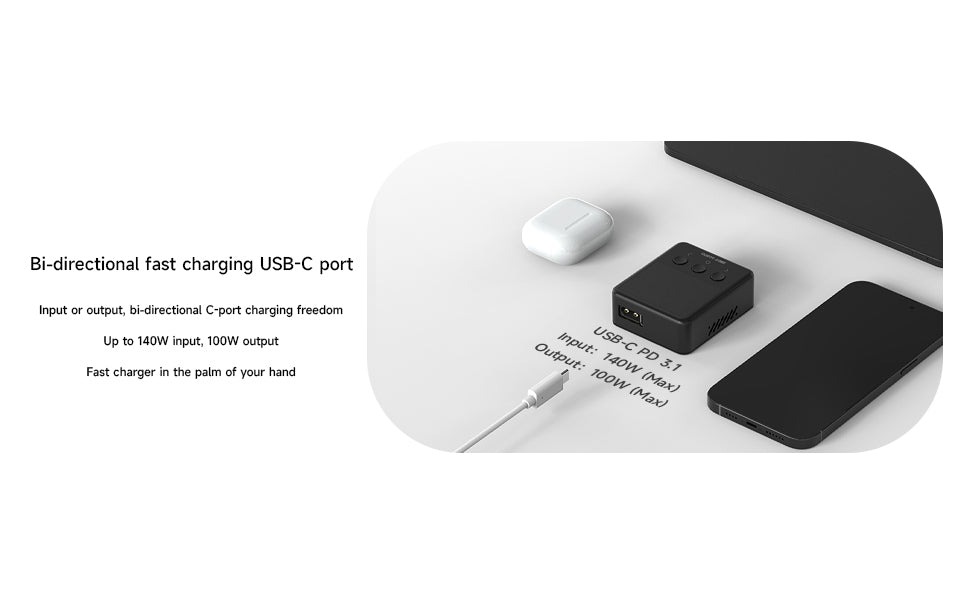

• New generation of pocket chargers: DC 240W high power/max 10A output with USB-C 140W/5A max output, meet your multi-scenario high power for LiPo battery charger needs.

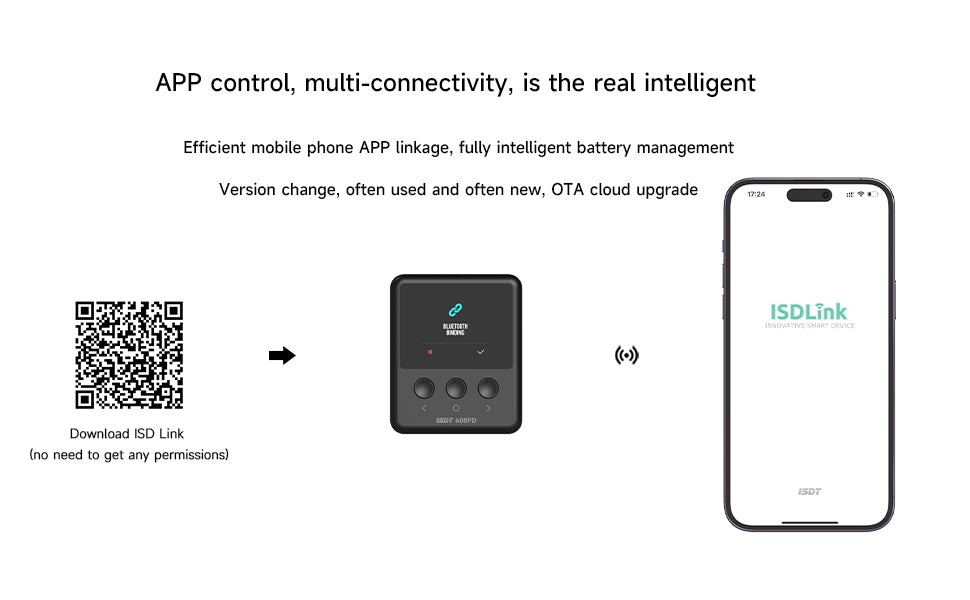

• Truly intelligent charger: Support APP connection, fully intelligent battery management, one-click view of battery parameters and charging status.

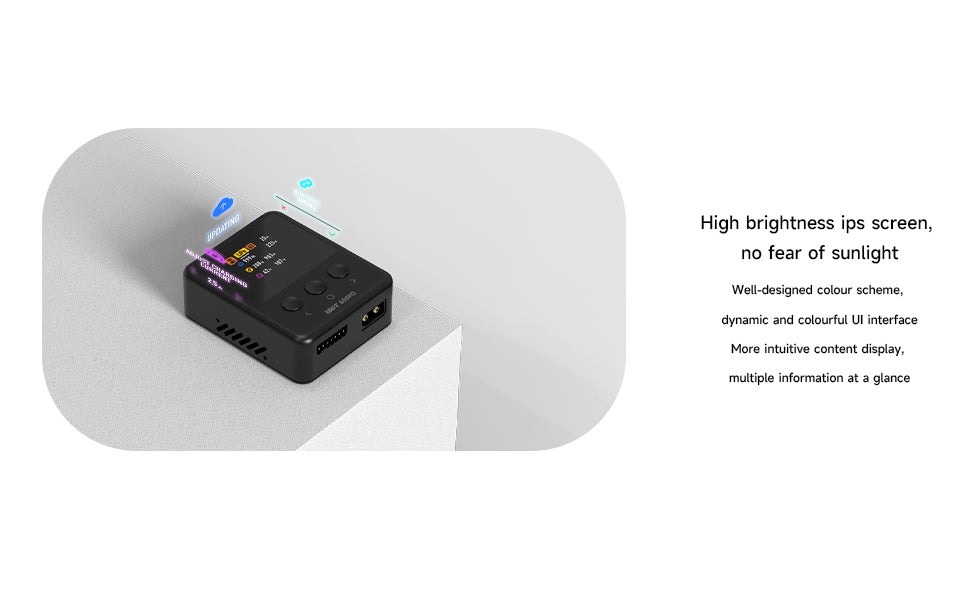

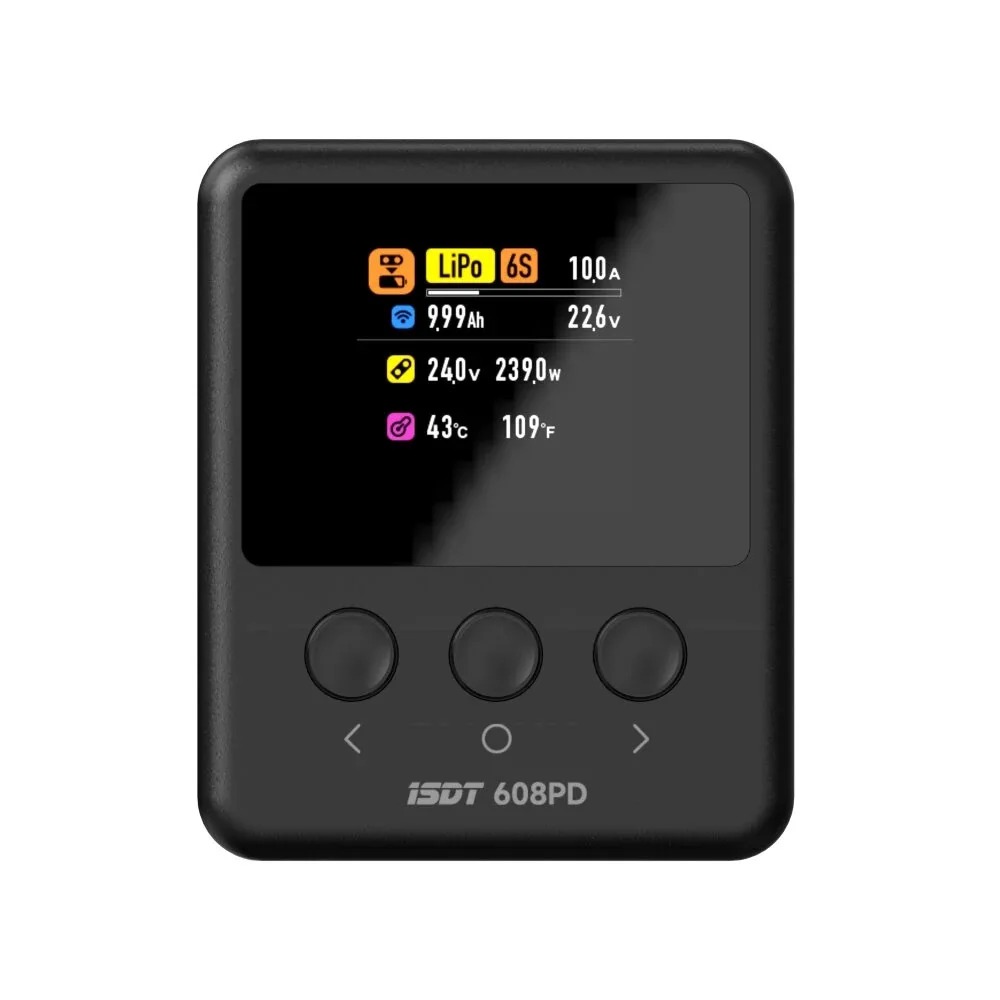

• IPS screen: Low power consumption, 2.4-inch IPS screen, automatic brightness adjustment, viewing angle 178°, clear and clear display, even in difficult environments or angles, even in strong sunlight.

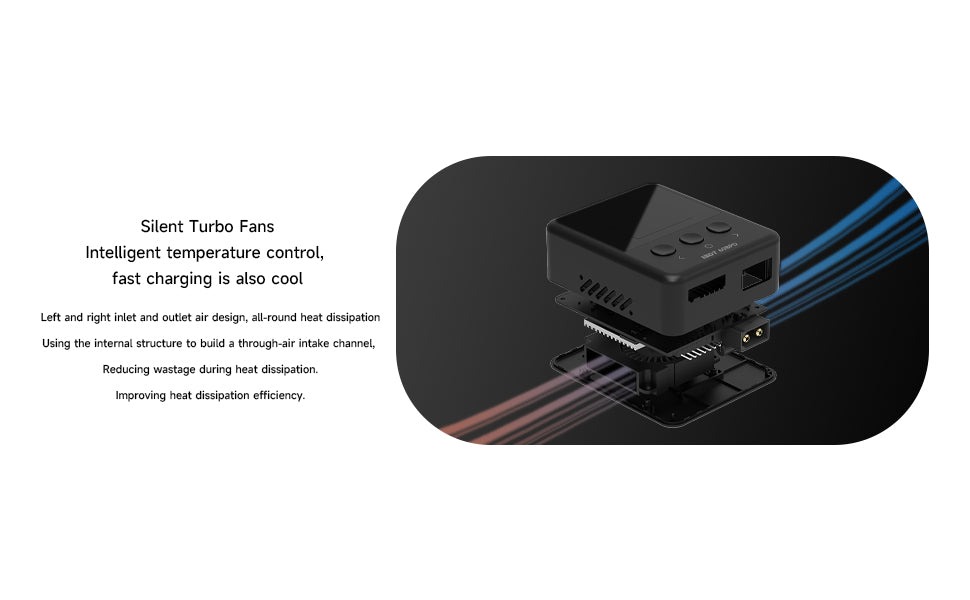

• Powerful cooling system: Advanced artistic cooling air duct, active design of the cross flow cooling air duct, initiator ball bearing fan, with precisely engineered aluminum alloy fins and hi-tech silicon heat conducting pad, construction of a highly efficient heat dissipation system.

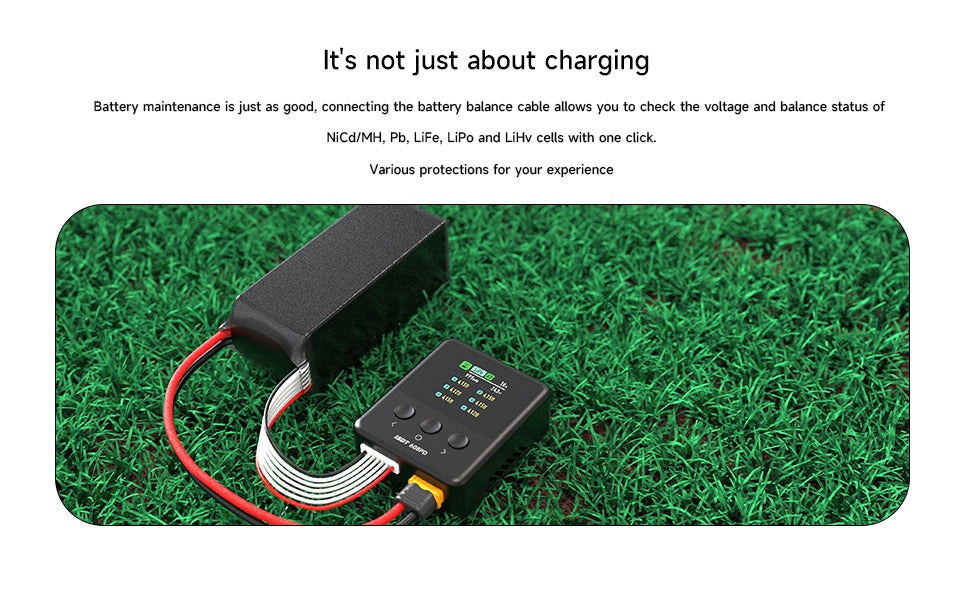

• Universal charger: Supports charging and discharging for most batteries, including LiFe, LiPo, LiHv (4.35V~4.50V) 1-6S/Pb 1-12S/NiMH 1-16S, etc.

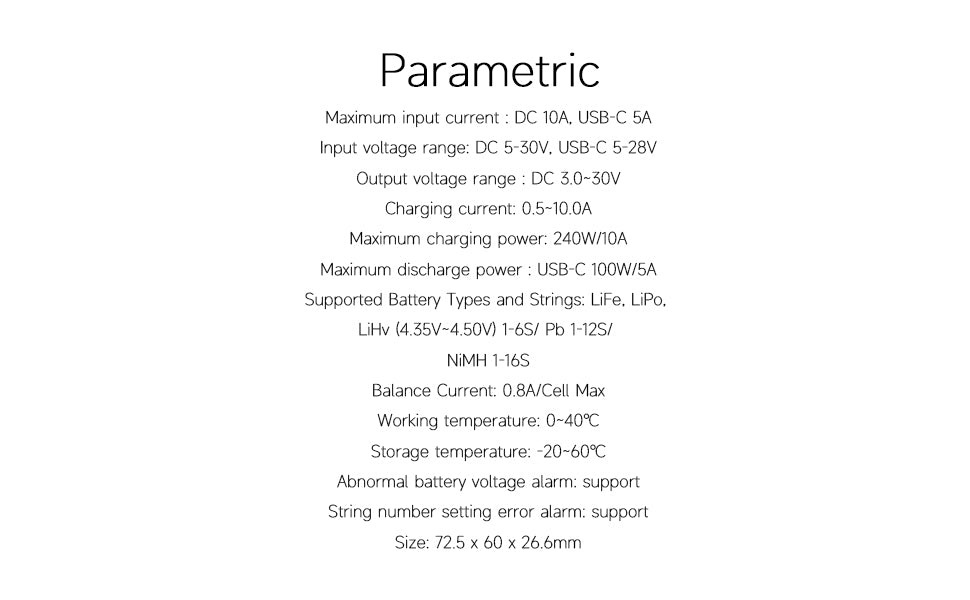

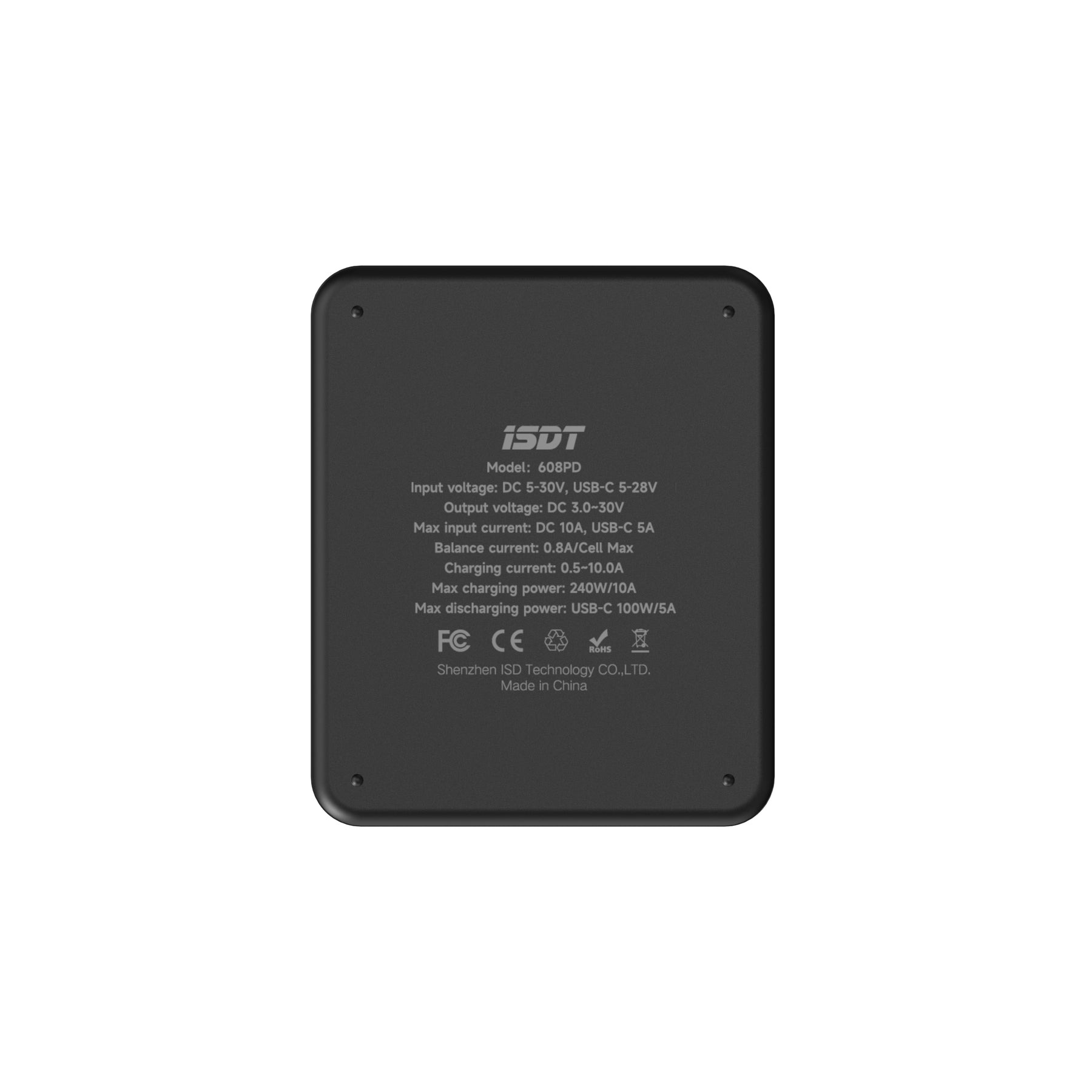

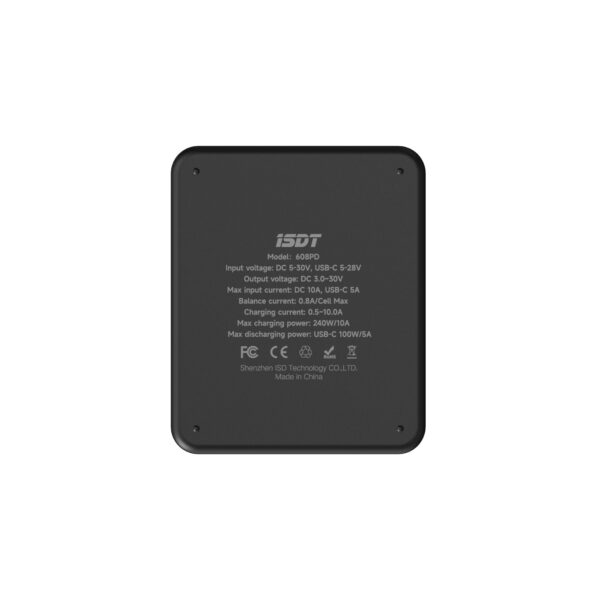

Specifications

• Brand: ISDT
• Product name: 608PD
• Maximum Input Current: DC 10A, USB-C 5A
• Input voltage range: DC 5-30V, USB-C 5-28V
• Output Voltage Range: DC 3.0~30V
• Charging Current: 0.5~10.0A
• Maximum charging power: 240W/10A,140W/5A
• Maximum Discharge Power: USB-C 100W/5A
• Support battery type and series: LiFe, LiPo, LiHv(4.35V~4.50V)1-6S/Pb 1-12S/NiMH 1-16S
• Balance Current: 0.8A/Cell Max
• Operating Temperature: 0~40℃ Storage Temperature: -20~60
• Abnormal battery voltage alarm: Support
• Alarm for string number setting error: Support
• Dimension: 72.5×60×26.6mm
• Weight: 85g(±10%)

Package Includes

• 1 x ISDT 608PD DC 240W Smart Charger with DC/USB Input
