ISDT BG-8S Smart Battery Checker and Balancer

by ISDT
5.00 out of 5
(3 customer reviews)
Exquisite and powerful the BG-8S smart battery checker fully supports ISDT BattGo technology, and provides a 260,000 colour display for checking battery voltages and balancing.

$68.99 $62.09

Hurry! Only 1 left in stock

Ships from our Tauranga warehouse
SKU: 1156 Categories: ,

Description

Smart Battery Checker – 260,000 color display visible under strong sunlight. Exquisite and powerful BG-8S smart battery checker fully support BattGO technology.

Make battery smarter – Cooperating with BattGO technology, only with XT60i connected and you can get full knowledge on detail parameters on your batter. Easy to read cells voltage, battery circulations, working parameters and fast set to your preferred settings.

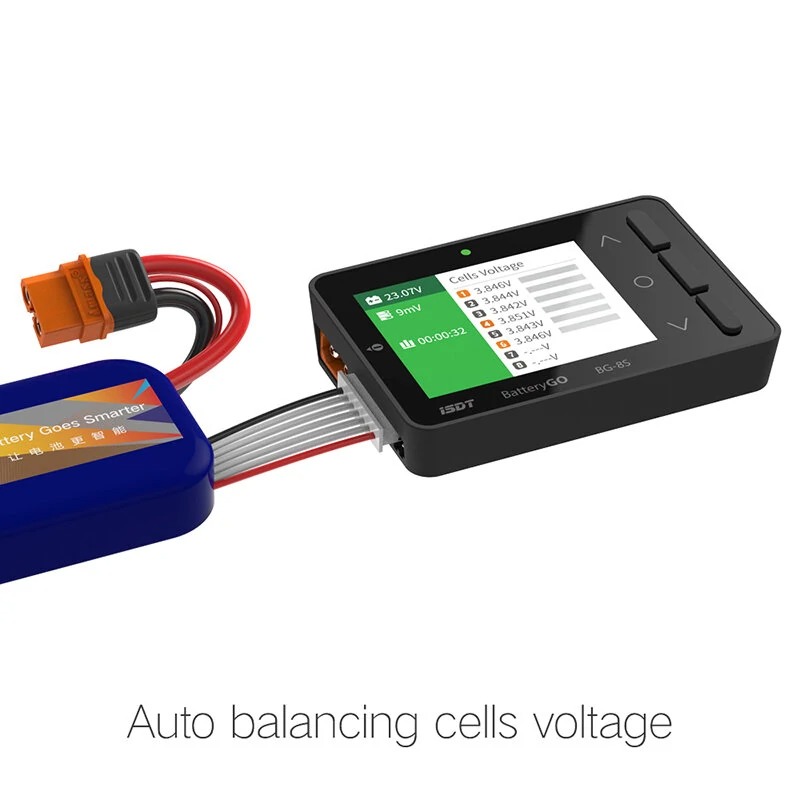

Auto balancing cells voltage – Advanced auto balancing algorithm, make sure every cell is well balanced. After completion auto into low power mode.

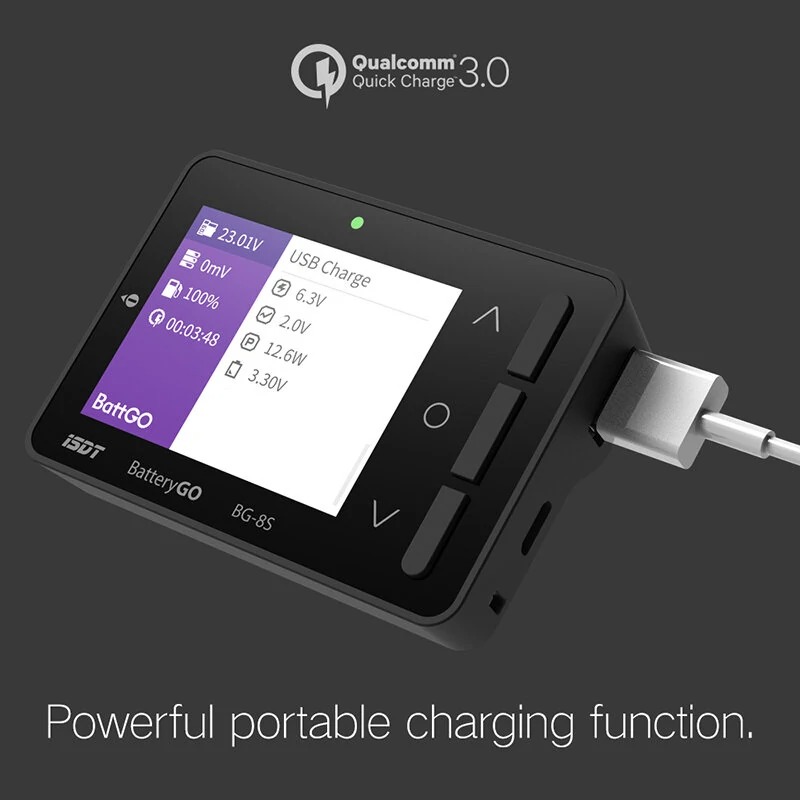

Powerful portable charging function – Connecting to your battery, BG-8S can become your power bank for mobile devices. Support Qualcom QC 2.0/3.0, compatible with BC1.2 and Apple devices. Maximum output 12V/2A.

Receiver signal test and protocol analysis – With standard 3 pin plug, BG-8S cab detect BEC output voltage. BG-8S also support multiple protocol analysis including PWM, PPM&S.BUS and etc. With future firmware upgrades more Protocol analysis will be supported.

Multiple measurement connections – Support XT60/XT60i, XH2.54 1-8s balance lead, XH2.54 3 pin, JST ETC to measure voltage. Support LiHv, LiPo, Lilon, LiFe, NiMh/Cd battery and BEC output measurements.

Support USB upgrade, multilanguage options – BG-8S has Micro USB port, easily connect to PC to perform firmware upgrades.

XT60i Meant for BattGo – BG-8S uses XT60i connector which was jointly developed by ISDT and Amass, support BattGO technology, and highly compatible with original XT60 plugs

Package Included – 1x ISDT BG-8S Smart Battery Checker



Specification:
Working voltage: 5.0V-36V
Input voltage: 0.8V-15V
Input voltage 2-8S: 0.8V-4.8V
Battery cells: 1-8S
Voltage measurement accuracy: ±[email protected]
Balancing cells accurancy: 〈0.005V
Support USB charging: QC 2.0/3.0, BC1.2, Maximum output 12V/2A
Suppport smart battery: Charging and discharging setting,
                                       read battery info and usage history.
Supported Batt.Type: LiHv(1-8S)/LiPo(1-8S)/LiFe(1-8S)
                                   Lilon(1-8S)/NiMH/Cd(1-10S)
Display: 2.4//320×240 260,000 color IPS LCD
Dimension: 80 x 55 x 19mm
Weight: 59g
Operating Temperature: 0-40°C
Working Humidity: 10%-90%RH( noncondensing )
Storage Temperature: -20-60°C
Storage Humidity: 5%-90%RH( noncondensing )
