Description

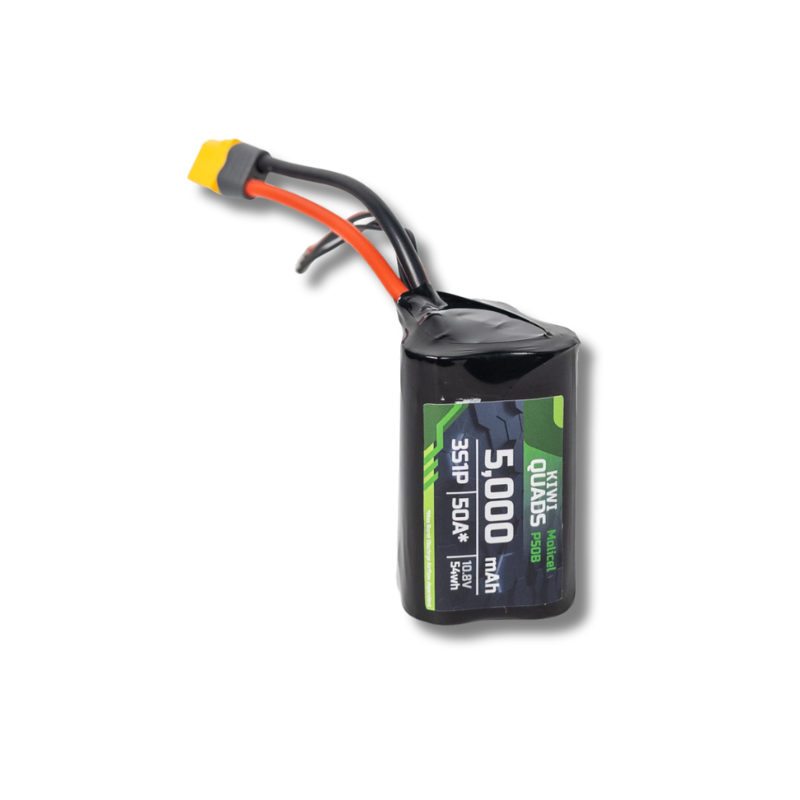

The KiwiQuads 21700 P50B 3S1P 5000mAh Li-Ion Pack delivers unmatched endurance and reliable power for demanding FPV flights. Built with premium Molicel P50B cells and a precise 3S1P configuration, it offers incredible capacity and consistent voltage output for longer, smoother runs. Whether you’re racing, cruising, or filming, this battery ensures maximum performance, stability, and confidence with every charge—making it the powerhouse your setup deserves.

Specifications

Electrical Specifications

• Capacity: 5000mAh
• Watt Hours: 54Wh
• Discharge Current: 30A, Airflow Determined
• Burst Current: 50A for 10 seconds, Airflow Determined

Charge Rate: 5A Airflow Determined

Voltage Parameters

• Max voltage: 12.6V pack, 4.2V per cell
• Min voltage: 7.65V pack, 2.55V per cell
• Storage voltage: 10.8V pack, 3.6-3.7V per cell
• Landing voltage: We recommend landing around 3.2V per cell, yes 2.55V is the theoretical minimum but leave yourself a buffer!

Mechanical Specifications

• Cell: Molicel P50B
• Configuration: 3S1P

Energy Density Specs

• Weight(±2g): 242g
• Cell Energy Density: 255Wh/kg
• Pack Energy Density: 223 Wh/kg

Connectors

• Balance Plug: JST-XH-7P
• Discharge Plug: XT60

Dimensions: 6.5cm x 4.3cm x 7.6cm (W x H x L)

Maximum Cell Temperature Range:–17C/0F – 80C/175F

Integration Notes

Battery should have access to constant airflow during use and during charging. Charge and discharge power and current rating is limited by the amount of airflow over the battery during flight. Cell skin temperature must remain below 80C during use

Package Includes

• 1 x KiwiQuads 21700 P50B 3S1P 5000mAh Li-Ion Pack
