Description

The KiwiQuads 21700 P50B 6S1P 5000mAh Li-Ion Pack delivers relentless power with ultra-high energy and power density, giving FPV pilots unmatched flight performance. With rapid charging, consistent 30A discharge, and intelligent airflow-dependent design, it pushes your drone to its limits while keeping temperatures under control. Designed for serious pilots who demand maximum output without compromise, this pack is the performance edge your aerial rig needs.

Specifications

Electrical Specifications

• Capacity: 5000mAh
• Watt Hours: 108Wh
• Discharge Current: 30A, Airflow Determined
• Burst Current: 50A for 10 seconds, Airflow Determined

Charge Rate: 5A Airflow Determined

Voltage Parameters

• Max voltage: 25.2V pack, 4.2V per cell
• Min voltage: 15.3V pack, 2.55V per cell
• Storage voltage: 21.6V pack, 3.6-3.7V per cell
• Landing voltage: We recommend landing around 3.2V per cell, yes 2.55V is the theoretical minimum but leave yourself a buffer!

Mechanical Specifications

• Cell: Molicel P50B
• Configuration: 6S1P

Energy Density Specs

• Weight(±2g): 455g
• Cell Energy Density: 255Wh/kg
• Pack Energy Density: 240Wh/kg

Connectors

• Balance Plug: JST-XH-7P
• Discharge Plug: XT60

Dimensions: 6.5cm x 4.3cm x 7.6cm (W x H x L)

Maximum Cell Temperature Range:-17C/0F – 80C/175F

Integration Notes

Battery should have access to constant airflow during use and during charging. Charge and discharge power and current rating is limited by the amount of airflow over the battery during flight. Cell skin temperature must remain below 80C during use

Package Includes

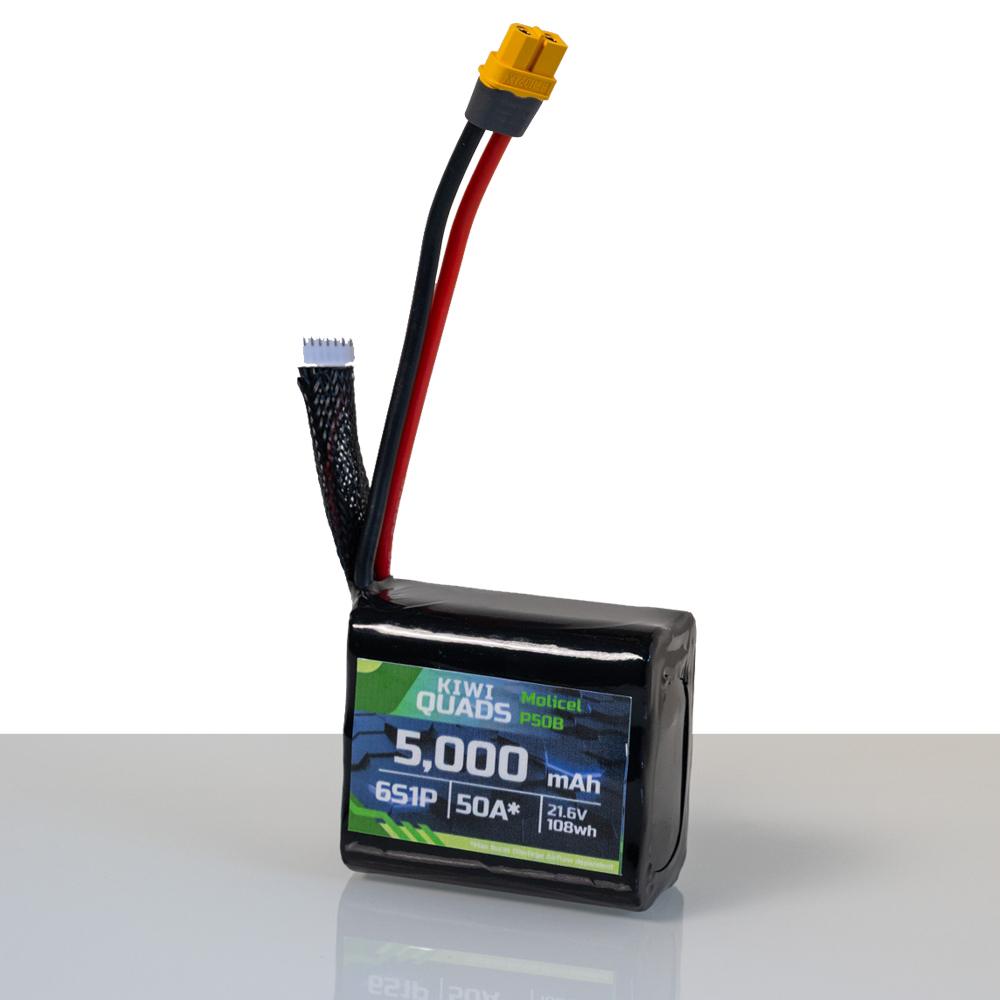

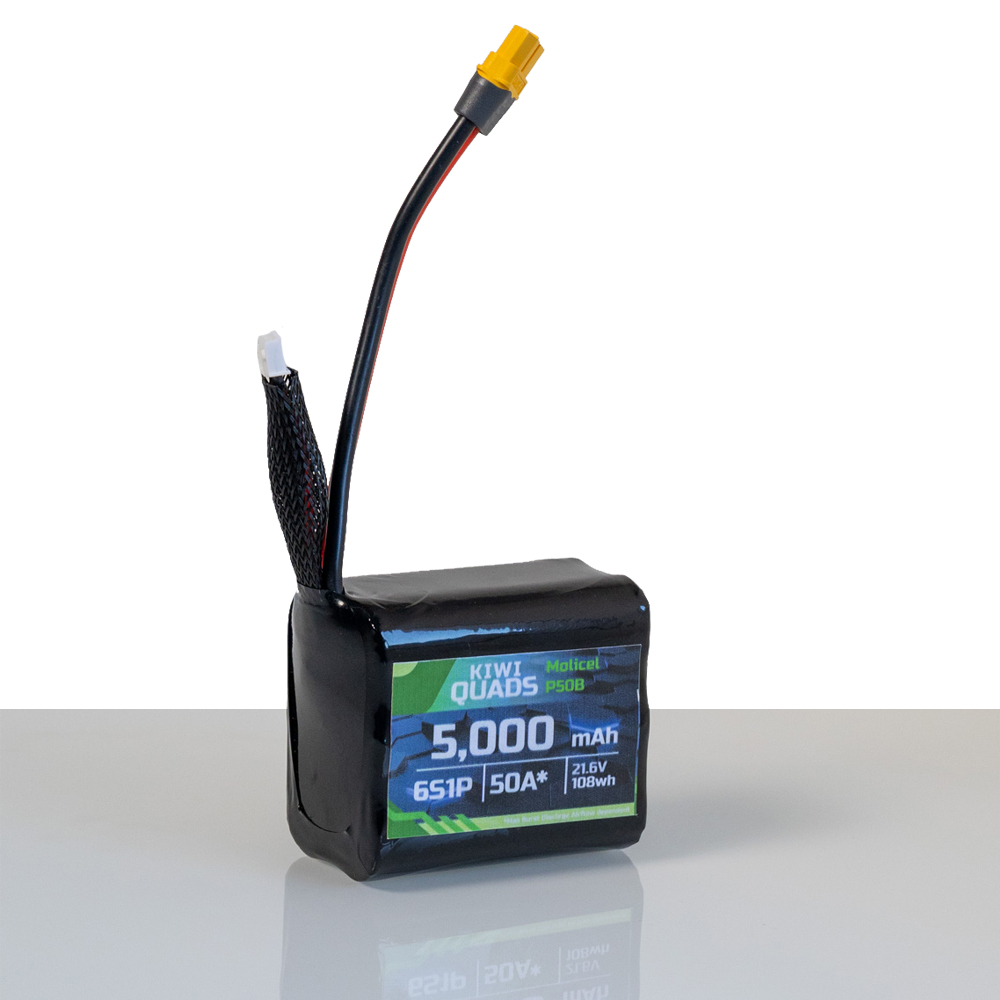

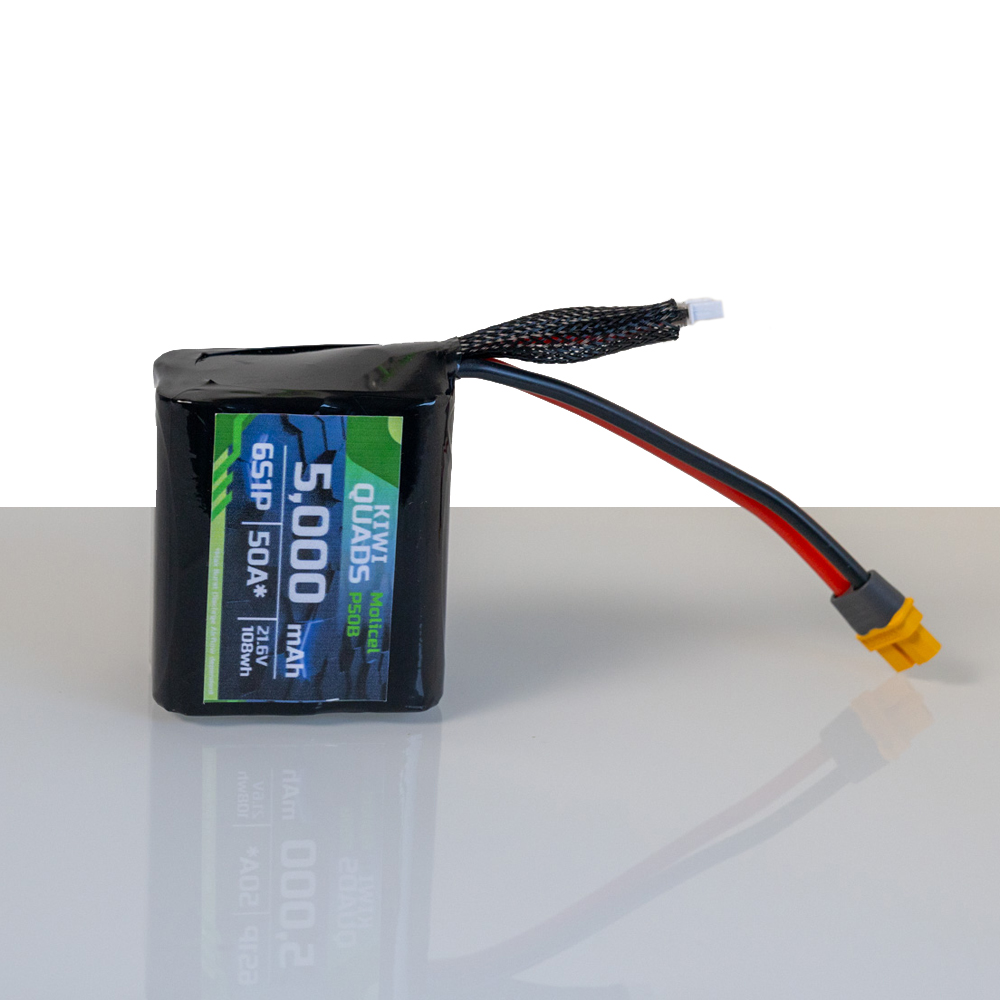

• 1 x KiwiQuads 21700 P50B 6S1P 5000mAh Li-Ion Pack
