Description

The KiwiQuads 21700 P50B 6S2P 10000mAh Li-Ion Pack delivers uncompromising power with 216Wh capacity, 50A continuous discharge, and up to 100A bursts. Built with premium Molicel P50B cells and optimized for high-drain performance, it offers exceptional energy density at just 900g. Designed for airflow-optimized setups, it ensures safe operation and rapid charging without overheating—powering your FPV adventures longer, faster, and smarter than ever before.

Specifications

Electrical Specifications

• Capacity: 10000mAh
• Watt Hours: 216Wh
• Cell Energy Density: 255Wh/kg
• Pack Energy Density: 240Wh/kg
• Discharge Current: 50A, Airflow Determined
• Burst Current: 100A for 10 seconds, Airflow Determined

Charge Rate: Upto 10A Airflow Determined

Voltage Parameters

• Max voltage: 25.2V pack, 4.2V per cell
• Min voltage: 15.3V pack, 2.55V per cell
• Storage voltage: 21.6V pack, 3.6V per cell
• Landing voltage: We recommend landing around 3.2V per cell, yes 2.55V is the theoretical minimum but leave yourself a buffer!

Mechanical Specifications

• Cell: Molicel P50B
• Configuration: 6S2P

Energy Density Specs

• Weight(±3g): 900g
• Cell Energy Density: 255Wh/kg
• Pack Energy Density: 248Wh/kg
• Pack Power Density: 1.39kW/kg

Connectors

• Balance Plug: JST-XH-7P
• Discharge Plug: XT60 or XT90

Dimensions: 4.3cm x 6.6cm x 15.6cm (H x W x L)

Maximum Cell Temperature Range: -17C/0F – 80C/175F

Integration Notes

Battery should have access to constant airflow during use and during charging. Charge and discharge power and current rating is limited by the amount of airflow over the battery during flight. Cell skin temperature must remain below 80C during use

Package Includes

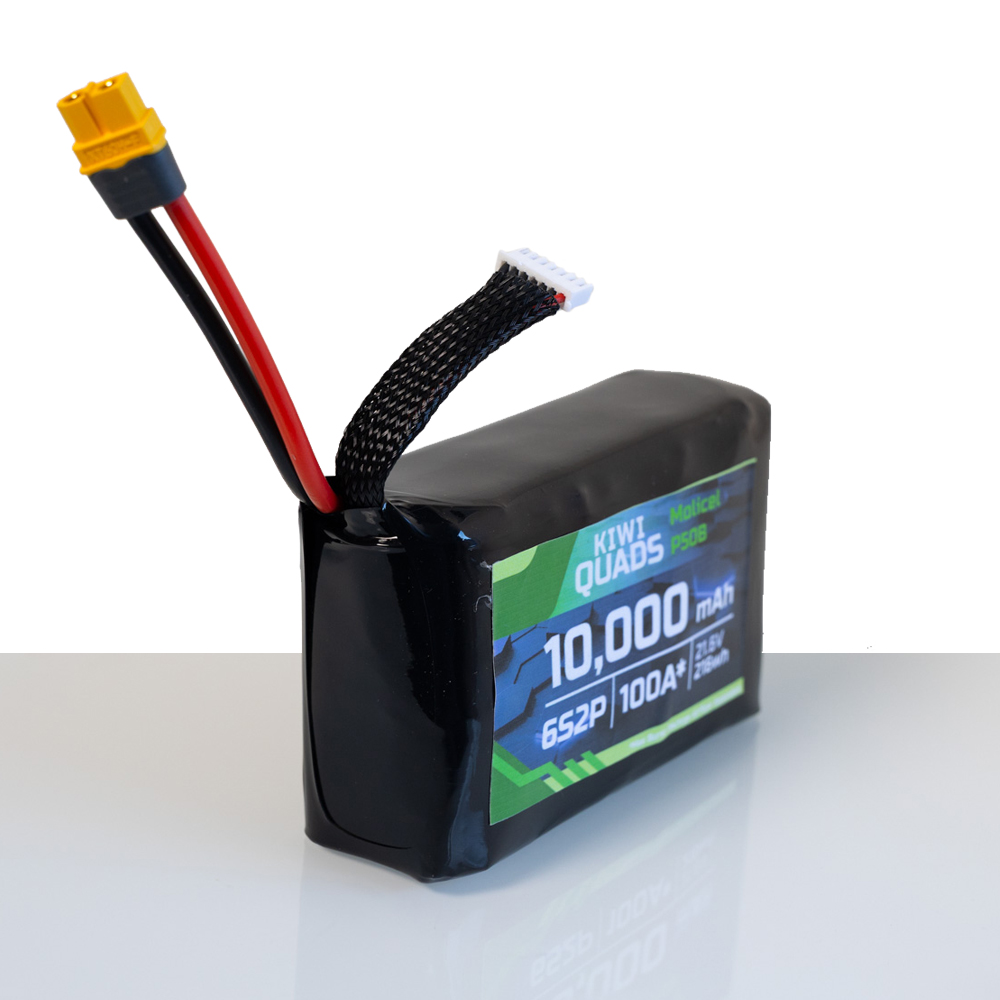

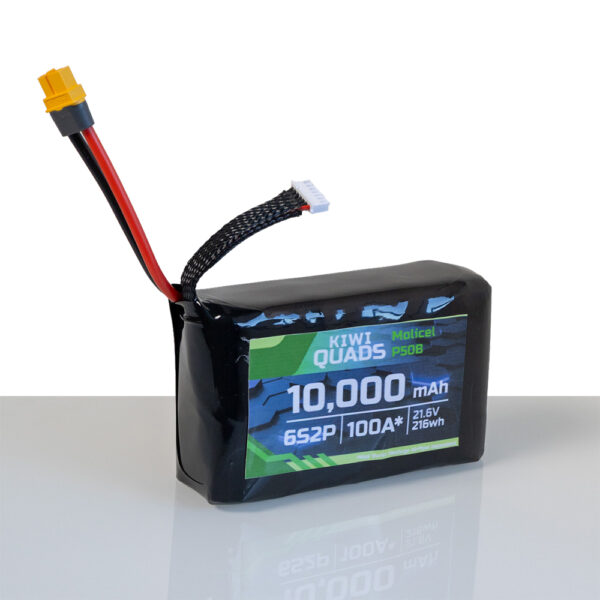

• 1 x KiwiQuads 21700 P50B 6S2P 10000mAh Li-Ion Pack
