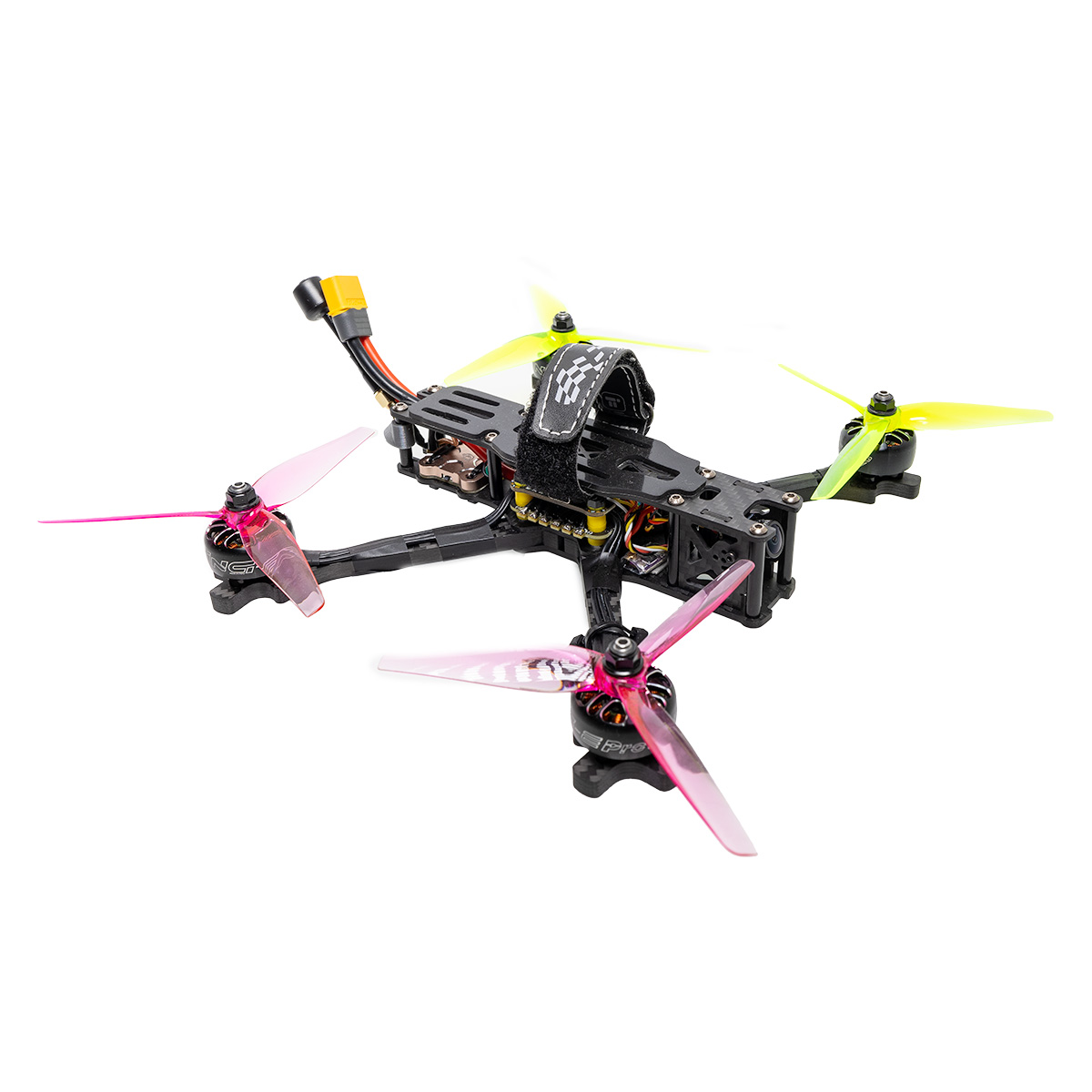

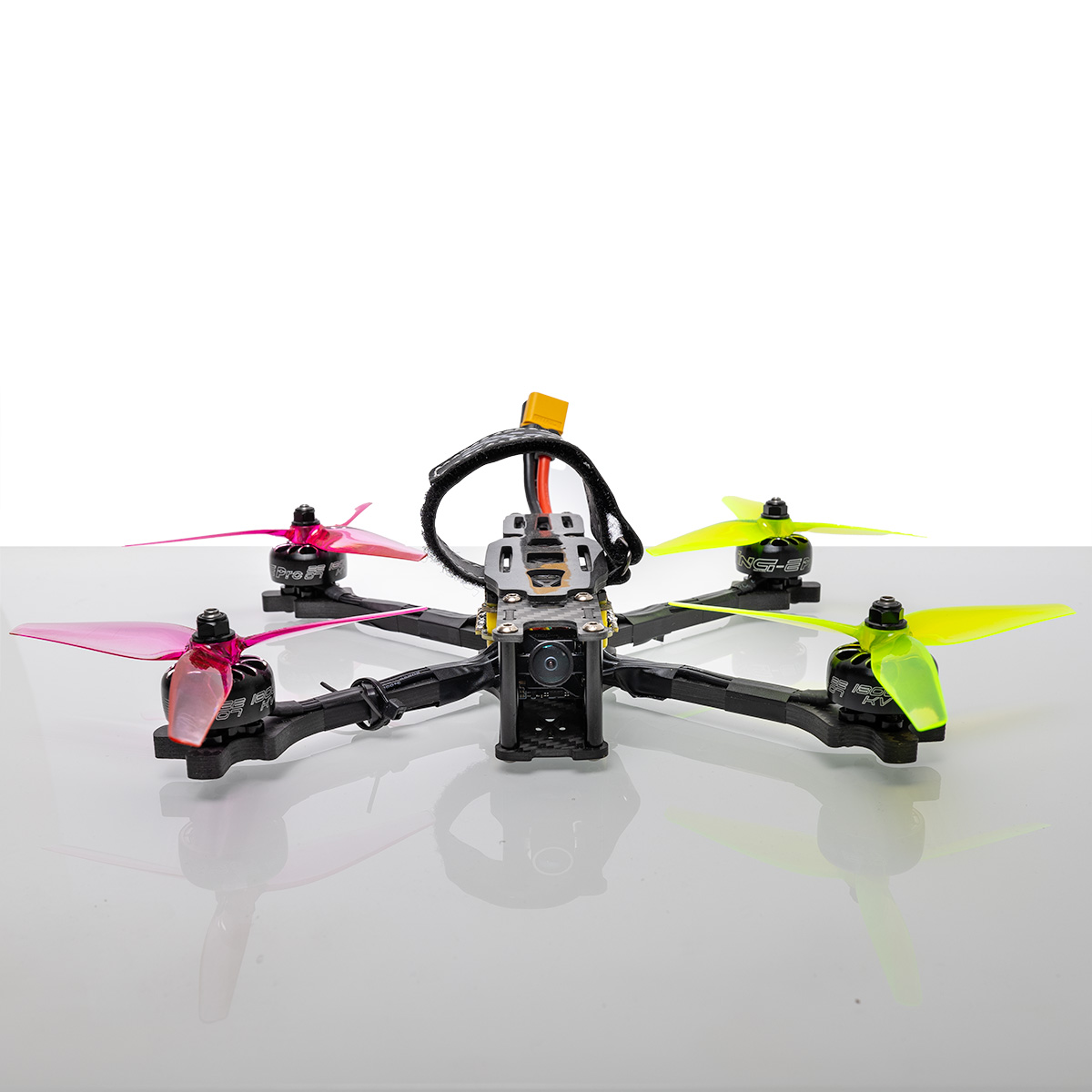

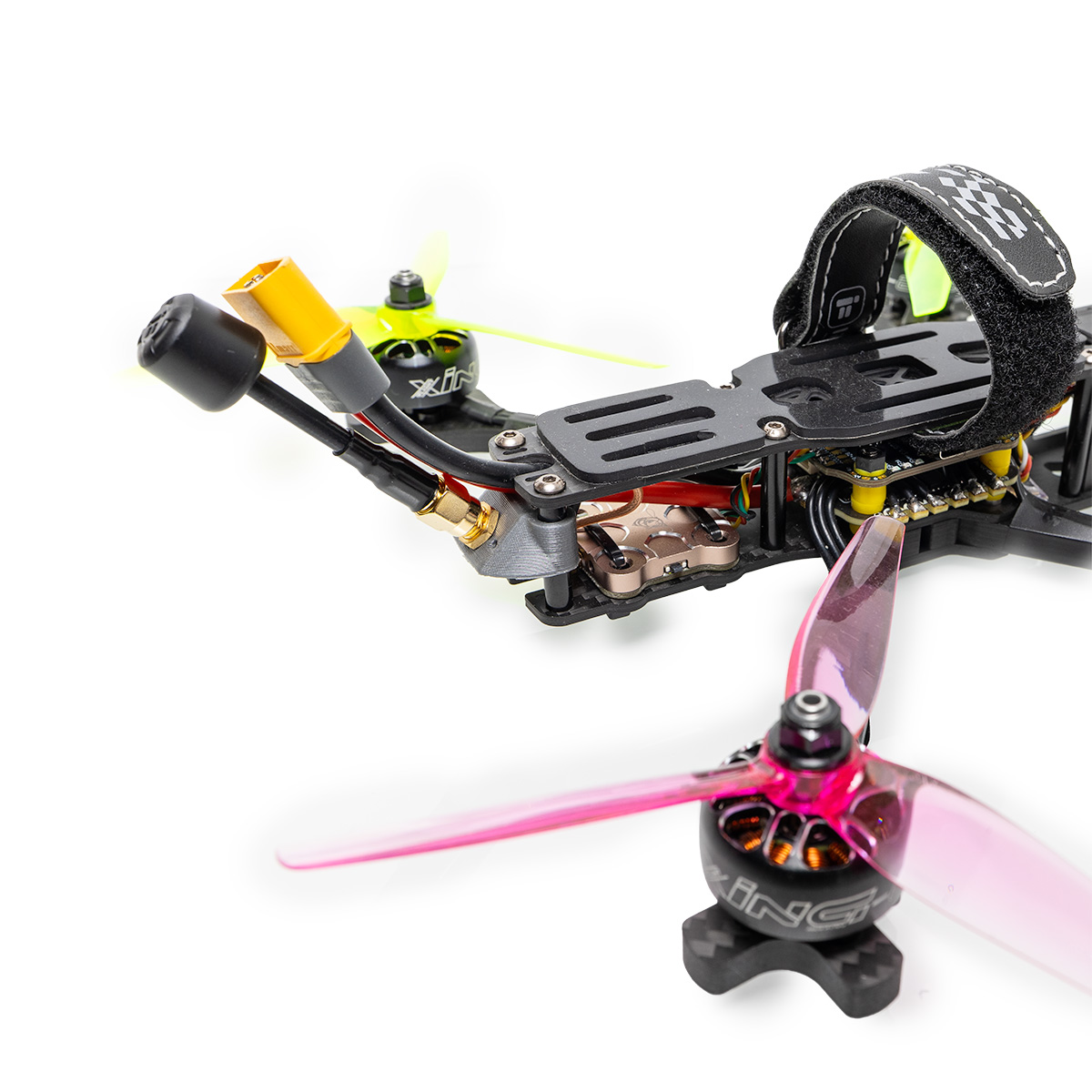

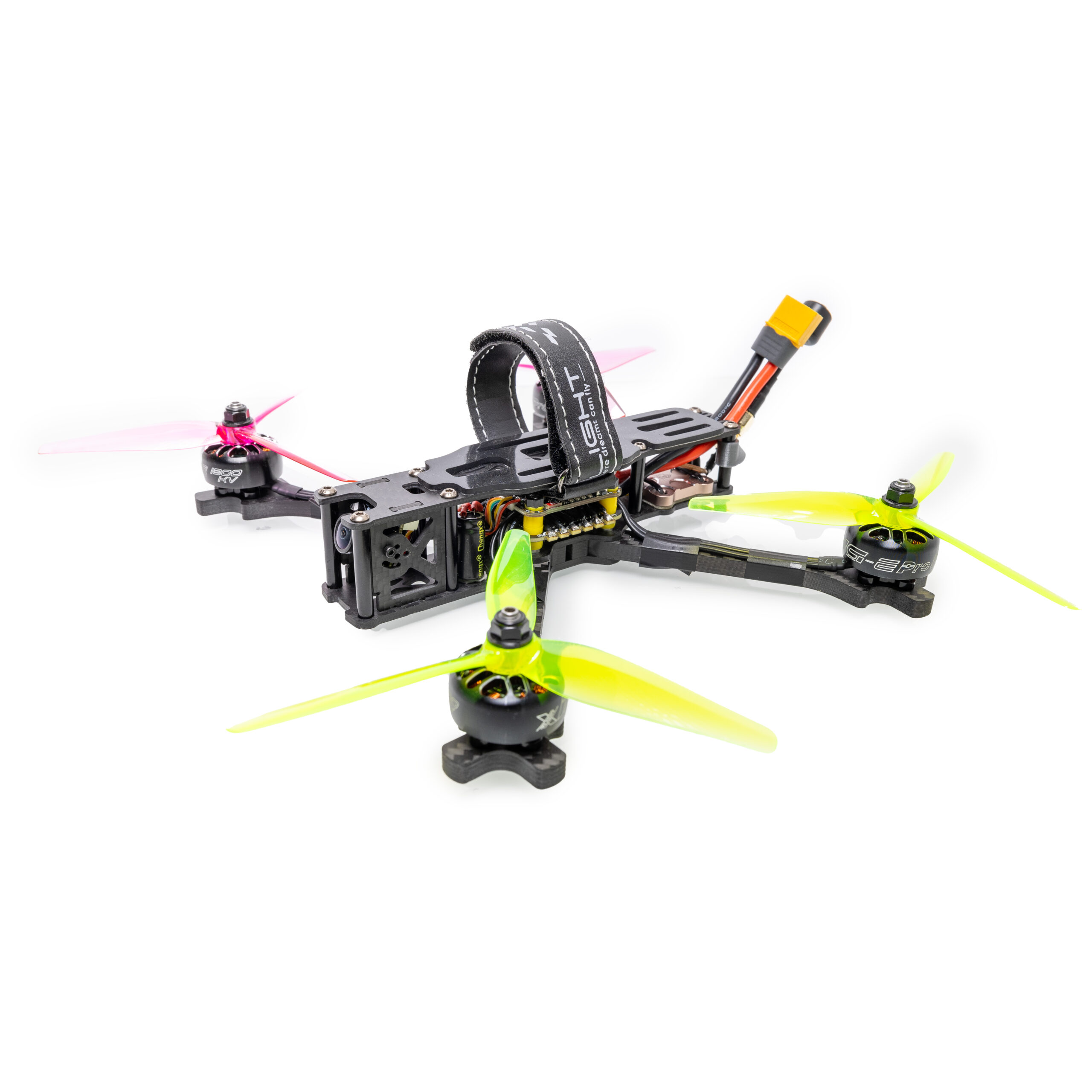

KiwiQuads Source One 5″ Racing Drone Build Kit – DJI HD Edition

Description

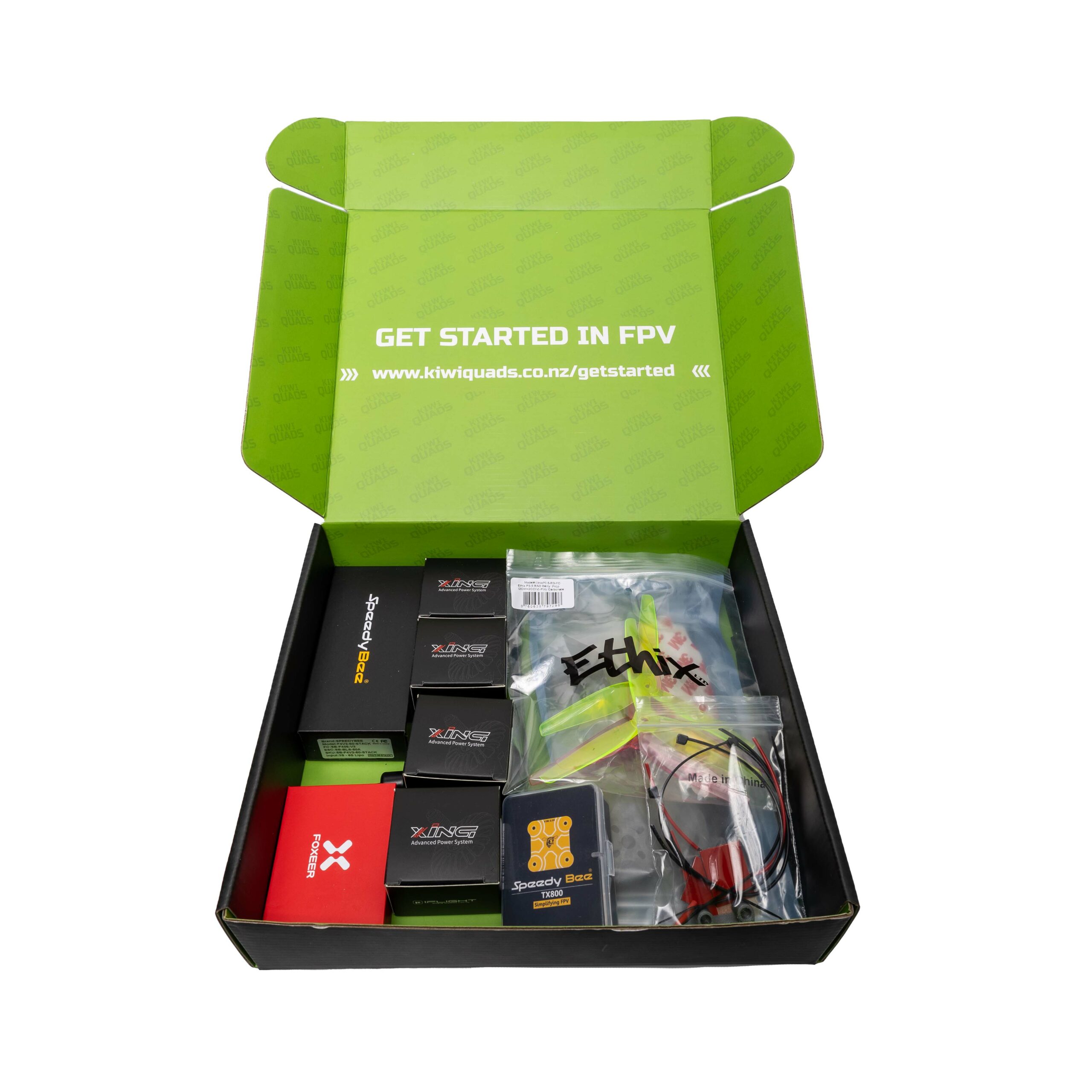

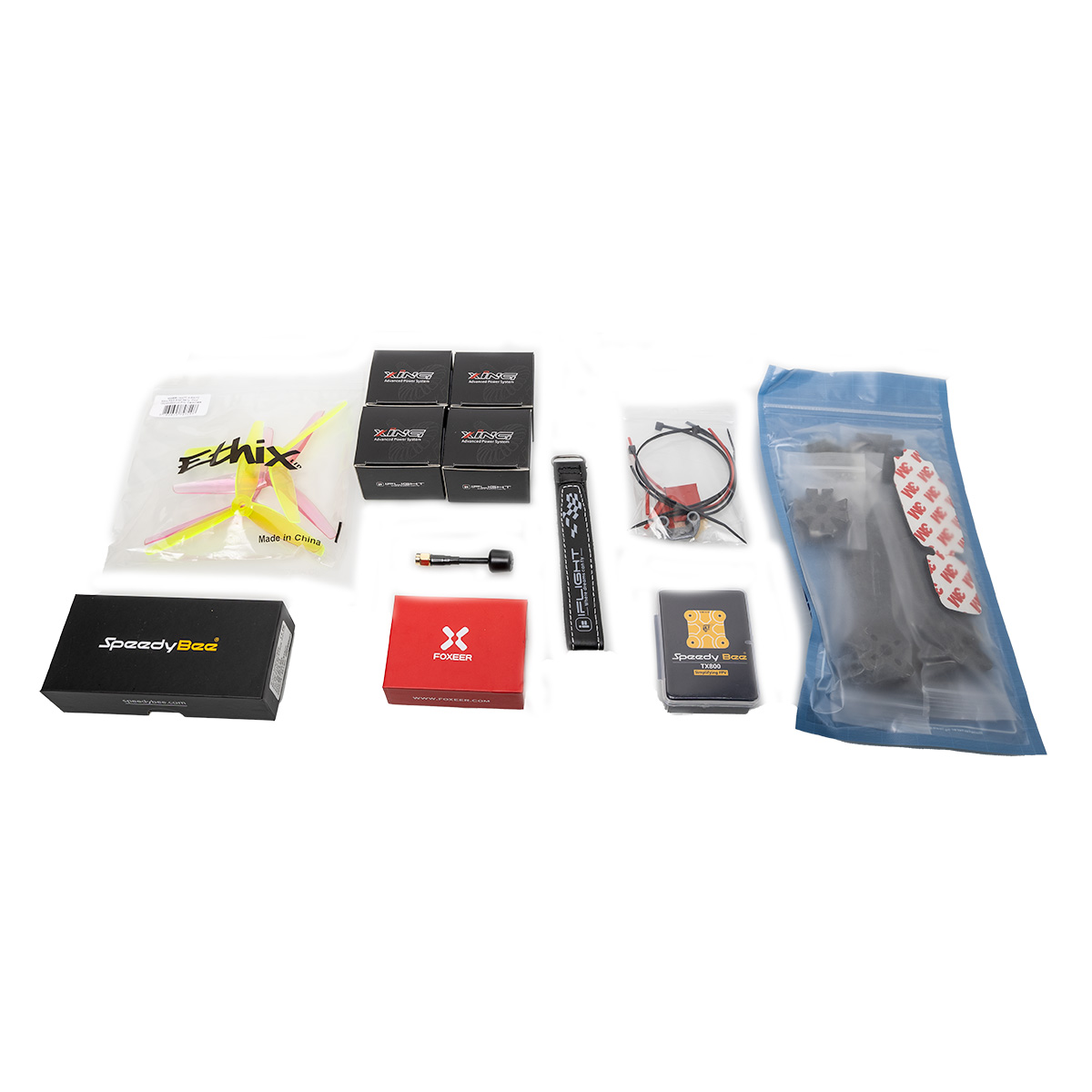

This build your own FPV drone package includes everything you’ll need to build your first FPV Drone! All included parts are high-quality from renowned brands and carefully selected to ensure reliability and a good starting base for your FPV career.

Note: this is the DJI Caddx Vista Nebula Pro Version!

Is this a good kit for beginners?

Yes! We’ve put together this model with beginners in mind. The components chosen for this build are suitable for any skill level. We’ve done the hard work and taken all the guessing out of putting together compatible parts. The package has been fully built, tested, tuned, and flown by us.  To assist with the builidng process KiwiQuads has put together:

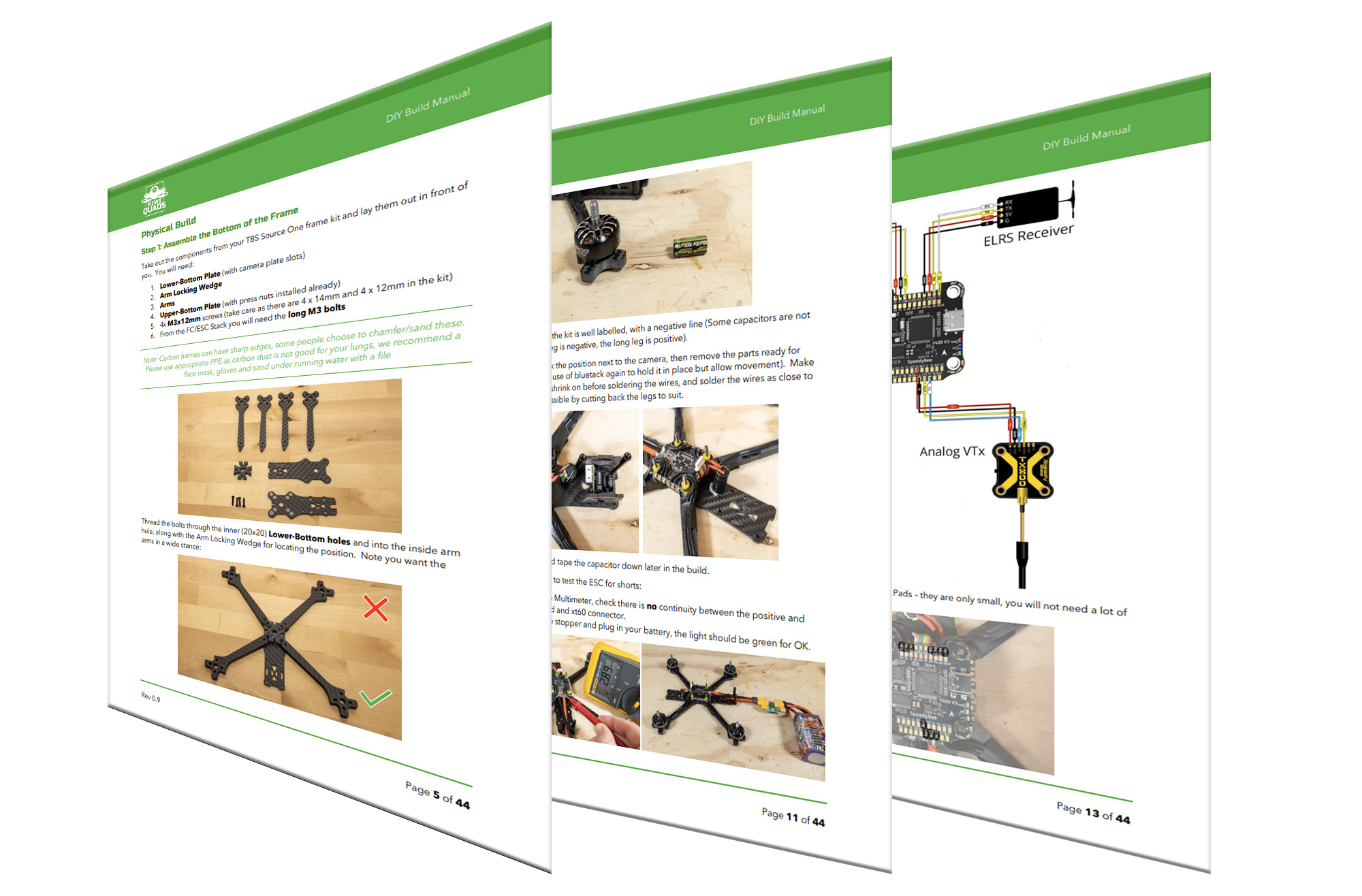

DIY Build Manual, detailed 44 page manual including photos, wiring diagrams, and betaflight walkthrough to guide your first build.  These step by step instructions include many tips and tricks to assist you and will be provided via email with your purchase.

We are also thrilled to share that Brodie Reed has also done a build video of out kit, following the manual step by step to help you with the build, you’ll notice the chapter markings lineup with the manual so you can easily swap back and forth between manual and video.

Consumable pack, most builds require Wire, Heatshrink, Cable Ties and 3M tape for mounting components.  As luck will have it, you’ll always be missing something bringing you build to a halt, but not with KiwiQuads build kit, you get all the consumables included in the kit saving time and money!

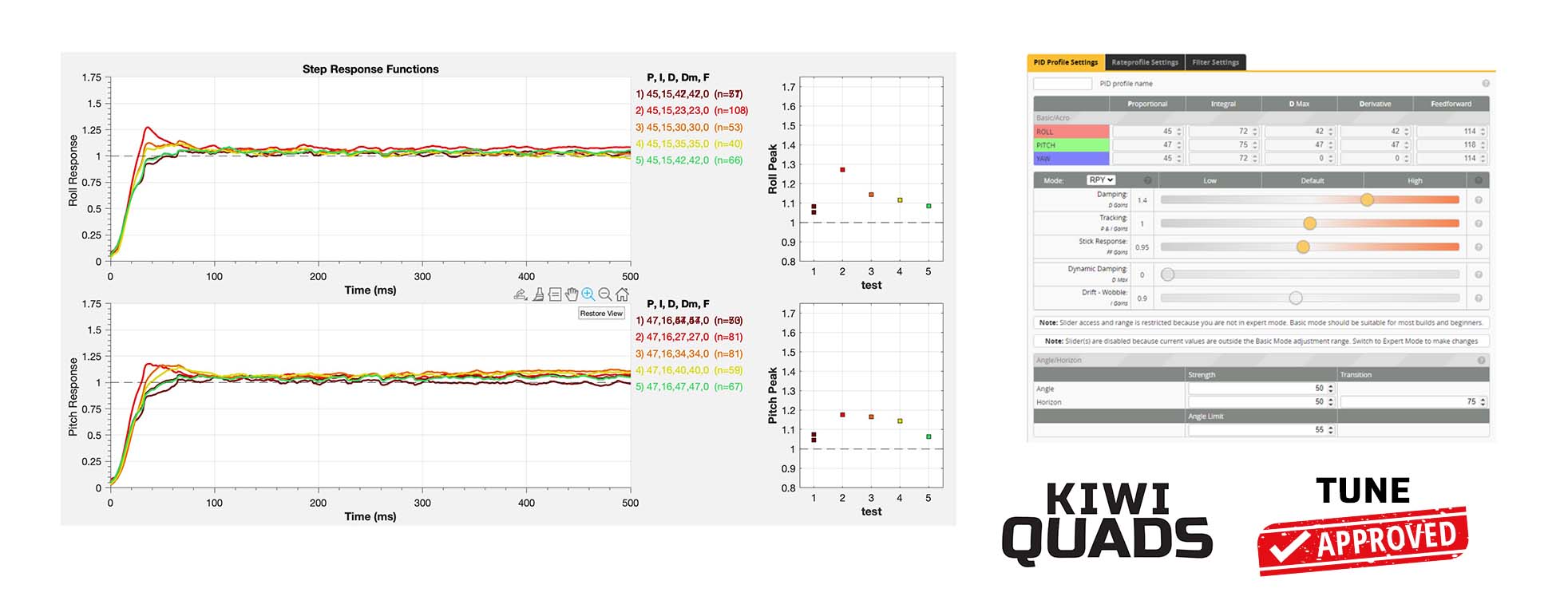

Professional Tune, we have taken the headache out of tuning the quad by completing a professional tune ourselves, not only will you build a modern fast freestyle quad but it will also fly fantastically well with this tune:

Features

• iFlight Tool Kit – iFlight 9-Piece Tool Kit with Soldering Iron
  • This includes all the tools needed to build the quad
  • The build photographed throughout this manual was built using the iFlight Toolkit exclusively – we provide TBS solder with the ToolKit.
  • (if you prefer a premium toolkit see below)

• TPU Upgrade kit – 3D Printed Source One V5 Accessory Kit
  • Add some colour to your quad with our TPU Upgrade kit

• Radio Receiver – You’ll need to add a Rx to connect to your Radio Transmitter, most popular options:

• • TBS Crossfire: TBS Crossfire Receiver Nano – Special Edition
  • TBS Tracer: TBS Tracer Nano Receiver
  • FRSky D8: RadioMaster R81 8CH SBUS 2.4GHz Nano Receiver
  • ExpressLRS (used in build manual): HappyModel TCXO ExpressLRS 2.4GHz EP1 Nano Receiver ELRS
  • Premium ExpressLRS: RadioMaster ExpressLRS 2.4GHz RP1 Nano Receiver

Do you have spare parts?

As linked above, we sell every component in this package individually if you do break anything while building or flying! This package was put together with tried and tested parts so fly hard and send it! In addition KiwiQuads has you covered with components that are broken down further such as:

• Flight Controller: SpeedyBee F405 V3 Flight Controller 30×30
• ESC: SpeedyBee 50A 3-6S BLHeli_S 4-in-1 ESC – 30×30
• Source One V5 Hardware: TBS Source One HD Frame Screw Set
• Replacment Frame Arms: TBS Source One V5 5-inch Frame 2 x Replacement Arms

What else do I need to get flying?

This package includes everything for the drone, but you’ll need some additional components to get up and flying. If you’re new to the FPV hobby, we’ve listed some recommended additional components below. You’ll need to get some key items including:

• Radio transmitter and receiver
• Batteries and Battery charger
• FPV Goggles
• Tools and Accesories

Please note KiwiQuads specialises in getting new pilots flying so feel free to get in touch to discuss a package for you via [email protected]

If you would prefer to purchase a more premium set of tools we would reccomend the following complete set:

• Tools: Ethix 9 Piece Tool Case for Drone Building
• Soldering:
  • Iron: TS101 Mini Soldering Iron (USB-C Cable)
  • Tip for large connectors: TS100/TS101 Soldering Iron Tip (Model C4)
  • Flux: TBS Soldering Flux Paste – 10mL
  • Solder (lifetime supply): TBS Solder – Premium Leaded Solder 100g (0.8mm)
• Ethix Prop Tool
