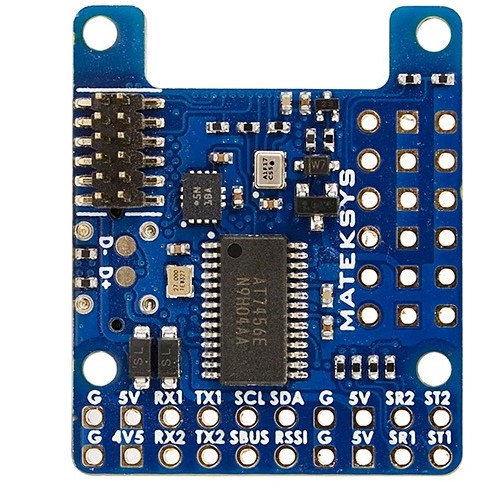

Mateksys F411-WTE Flight Controller

Description

Matek’s F411-WTE is the latest in its small form factor lineup of premier flight controllers made specifically for FPV wing aircraft. Loaded with an array of features and room for peripherals, this board lets you choose how you want to fly!

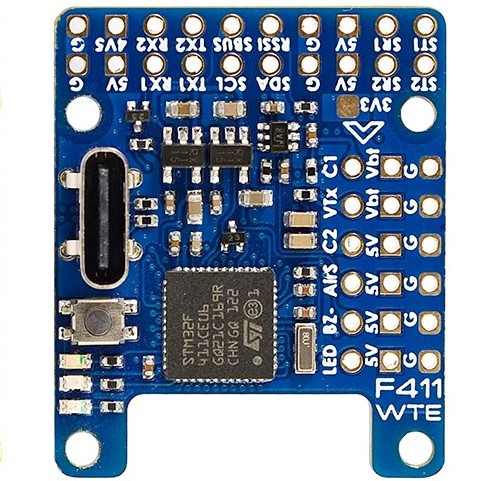

Specifications

• MCU: 100MHz STM32F411CEU6
• IMU: BMI270 (SPI)
• Baro: SPL06-001 (I2C)
• OSD: AT7456E (SPI)
• Blackbox: No
• 2x Uarts
• 2x Full Softserial
• 6x PWM outputs (2x Motors, 4x Servos)
• 1x I2C
• 4x ADC (VBAT, Current, RSSI, AirSpeed)
• 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
• Built in inverter on UART2-RX for SBUS input
• Switchable Dual Camera Inputs
• Vbat power ON/OFF switchable for VTX and camera
• PPM receiver: not supported

FC Firmware

INAV Target: MATEKF411TE ( INAV4.1 or newer)

Power

6~30V DC IN (2~6S LiPo)
132A Current Sense (Scale 250)
PDB/Current sense resistor: 90A continuous, 132A burst.
BEC 5V 1.5A for FC & Peripherals
BEC Vx 5A for servos, 5V/ 6V option
Vbat for VTX and camera (ON/OFF switchable)
LDO 3.3V 200mA
Battery Voltage Sensor: 1k:10k

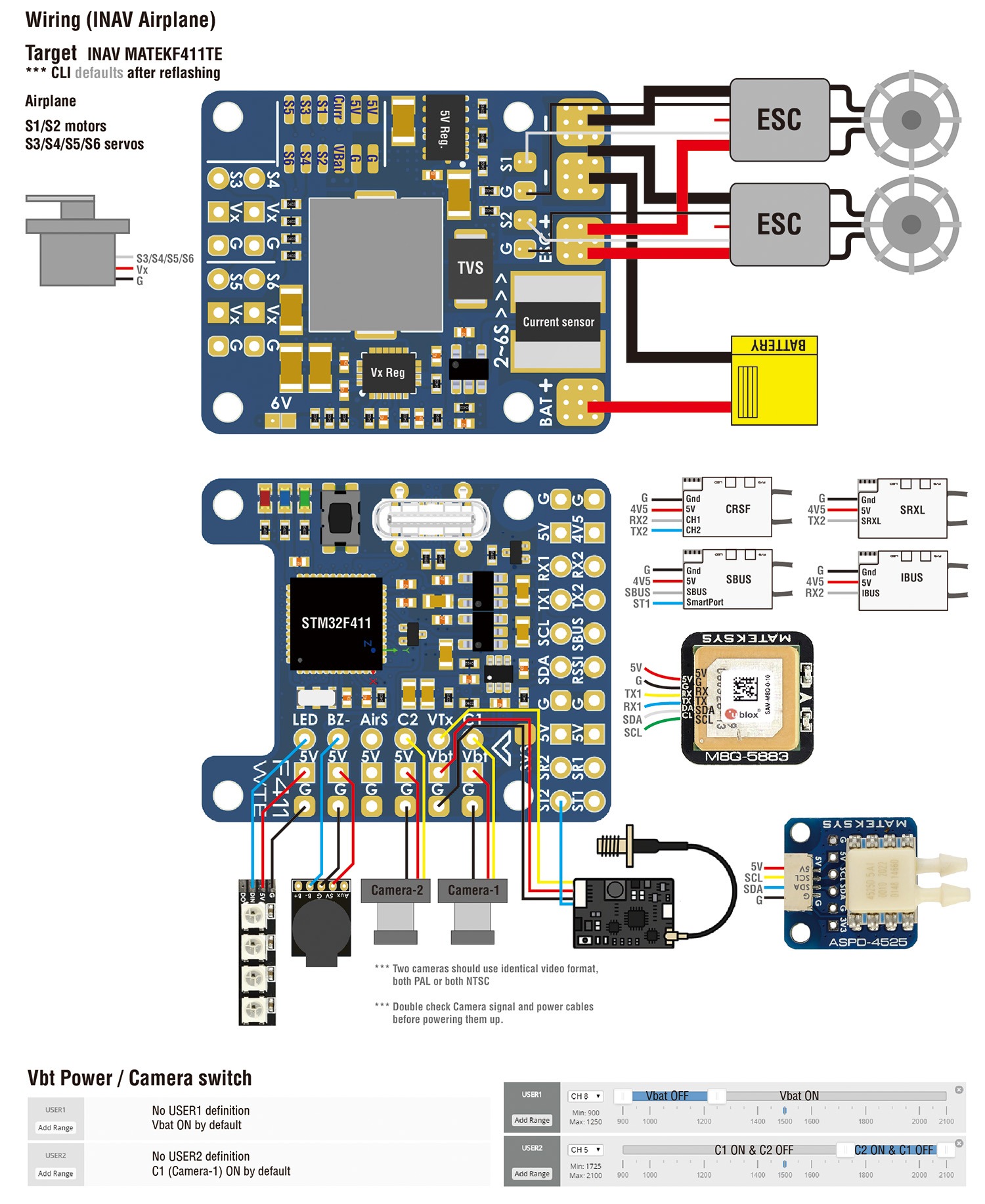

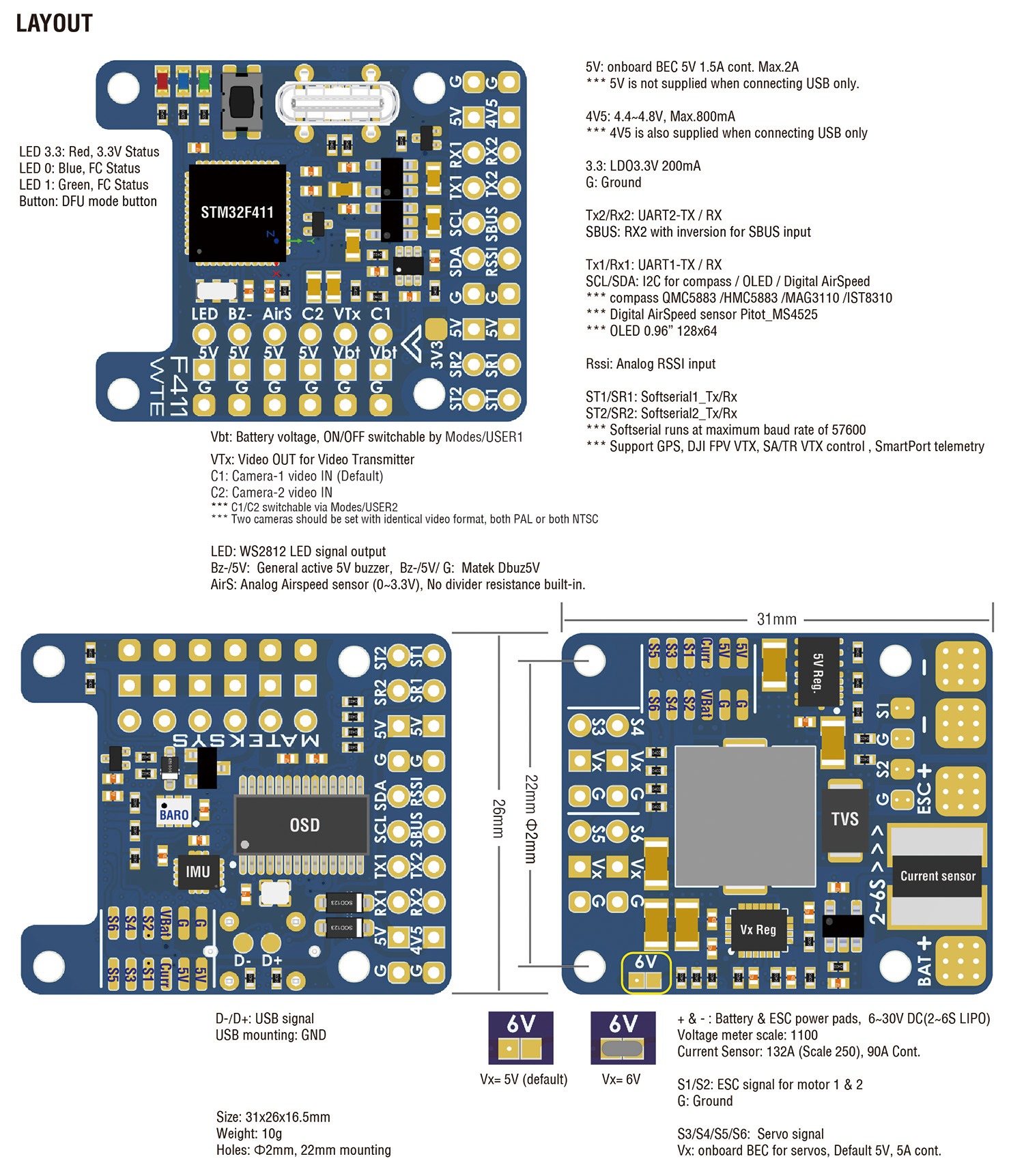

Physical

• Dimensions: 31 x 26 x 16.5 mm
• Mounting: 22 x 22mm, Φ2mm
• Weight: 10g

Including

• 1x FC F411-WTE
• Dupont 2.54 pins  (Board is shipped unsoldered)

Tips

• F411-WTE has INAV fw 4.1.0 preloaded for QC
• Start with INAV5.0, MatekF411TE target will be listed in INAV configurator.
• Download INAV firmware 4.x.x from Mateksys website
• The pre-flashed firmware INAV4.1.0 in F411-WTE is exactly identical as the firmware downloaded from our website. There is no any newer firmwares now.  What you need to do is just typing CLI “defaults” to revert all parameters back to default.
