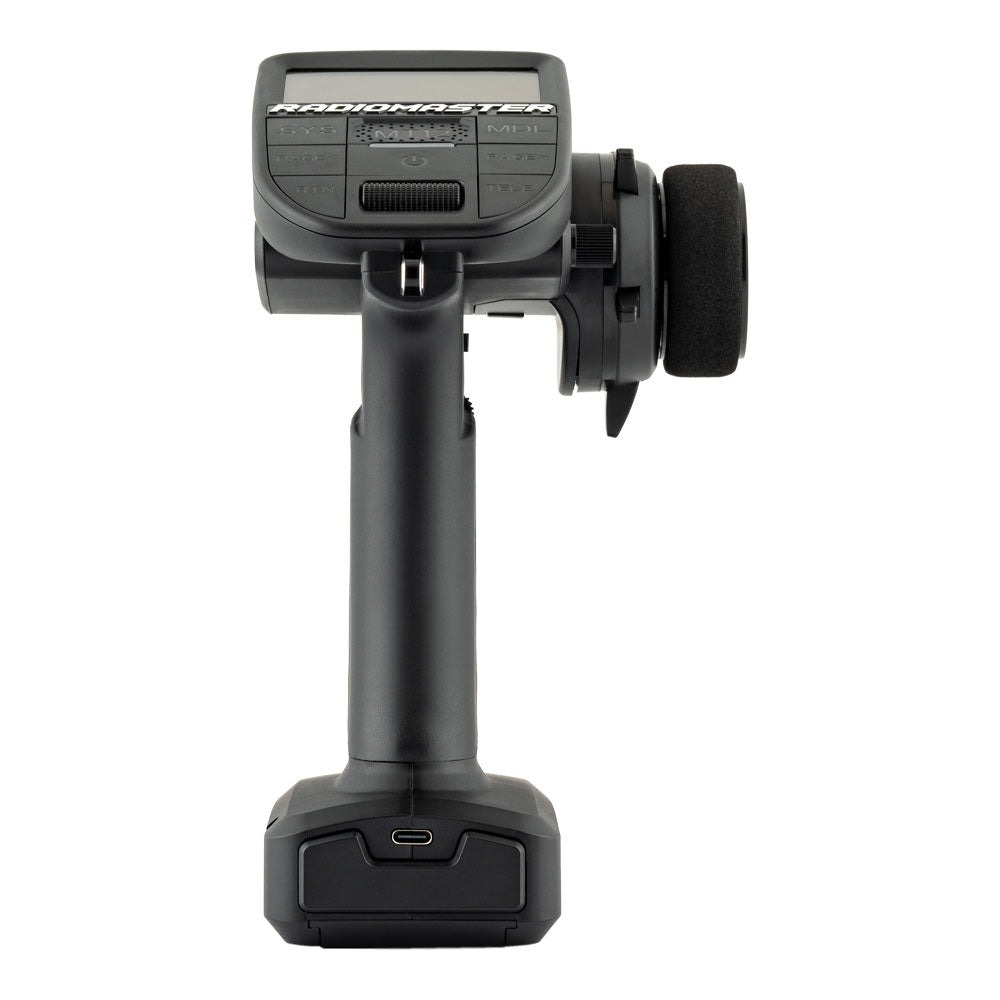

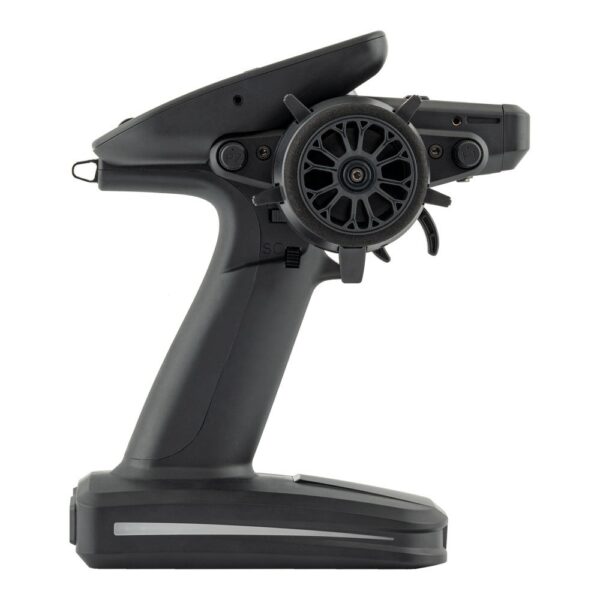

RadioMaster MT12 Surface Radio (4in1/ExpressLRS)

Description

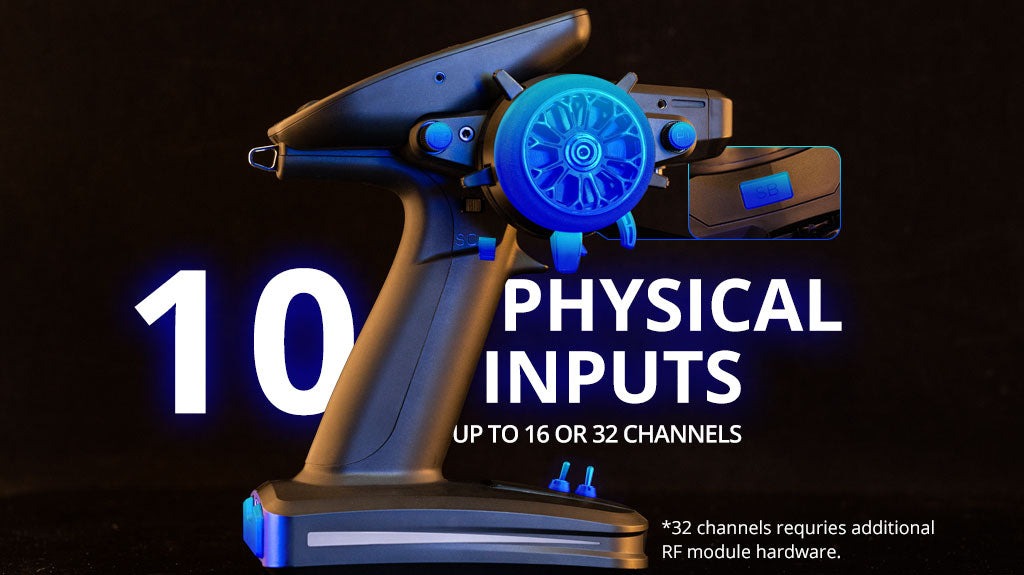

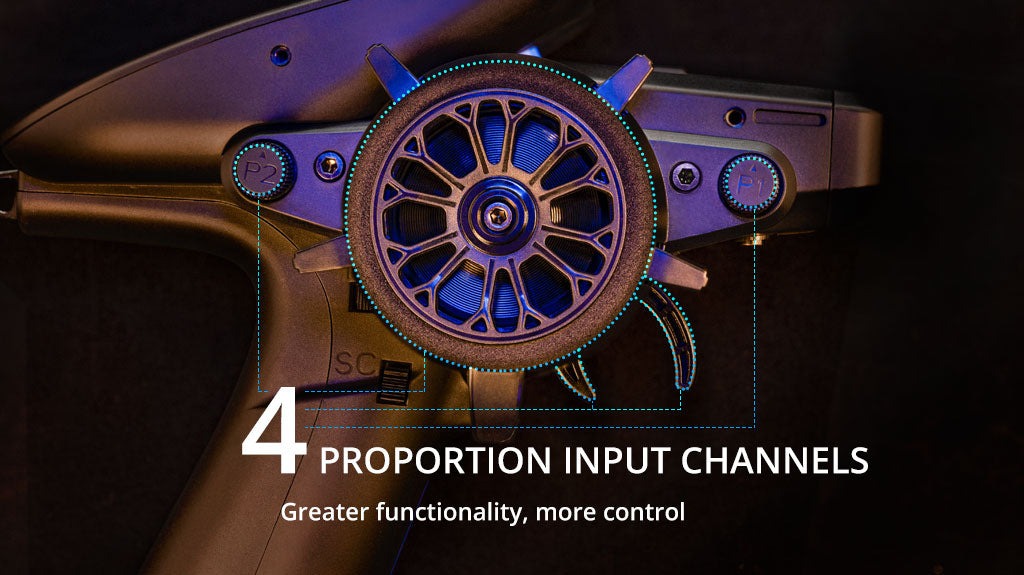

The RadioMaster MT12 is a pioneering open-source surface radio, and the first surface radio officially supported by EdgeTX, ExpressLRS, and the Multi-module project. Boasting 10 physical inputs and the capability to handle either 16 or 32 channels*, the MT12 is primed for a wide array of surface models, from cars and trucks to boats and beyond. Featuring extensive customizability and a versatile operating system, the MT12 stands out as a highly configurable surface radio, prepared to excel in virtually any scenario.

Available with ExpressLRS and 4in1 Version

In addition to the popular internal 4-in-1 Multi-module, the MT12 is also available with an internal 2.4GHz ExpressLRS (ELRS) module. Designed to provide reliable long-distance control, super low latency, and high refresh rates. ELRS is a revolutionary open-source protocol taking the R/C industry by storm.

ExpressLRS VERSION
ExpressLRS supports ultra-fast response modes for seat of your pants racing or super long range modes for pushing the limits of your adventures.
For more information, please visit www.expresslrs.org

4in1 VERSION
One remote control all of your cars. The 4in1 internal RF system has protocols, for many popular brands of cars and receivers.
Click here to visit the list of supported protocols



RADIOMASTER MT12 SURFACE RADIO CONTROLLER

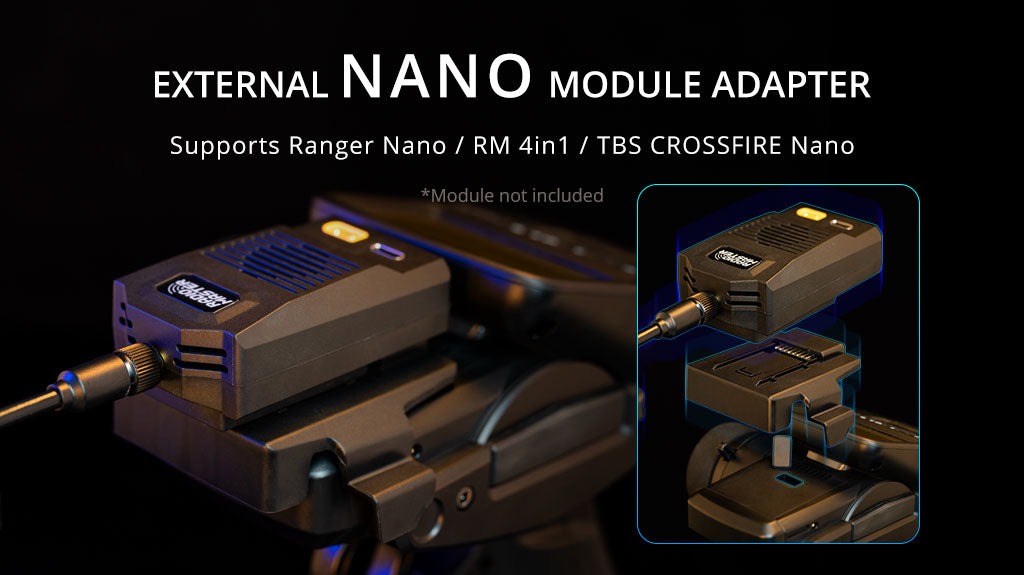

• Module bay: Nano size (RadioMaster Ranger Nano Module / RadioMaster RM 4in1 module / TBS Crossfire Nano module)

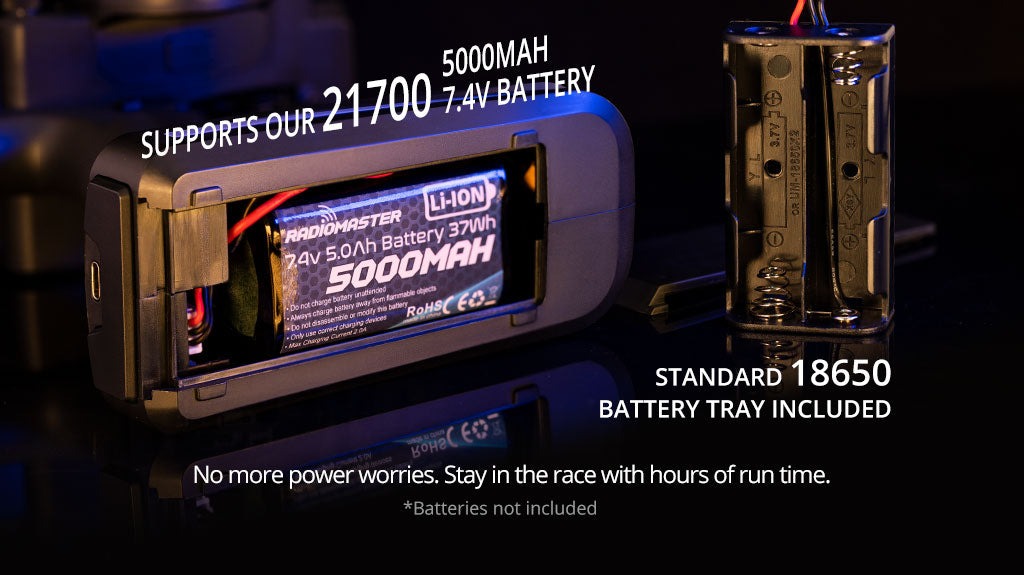

• Battery: 2 x 18650 cells or a 2s 7.4v 5000mah battery pack (Batteries not included)

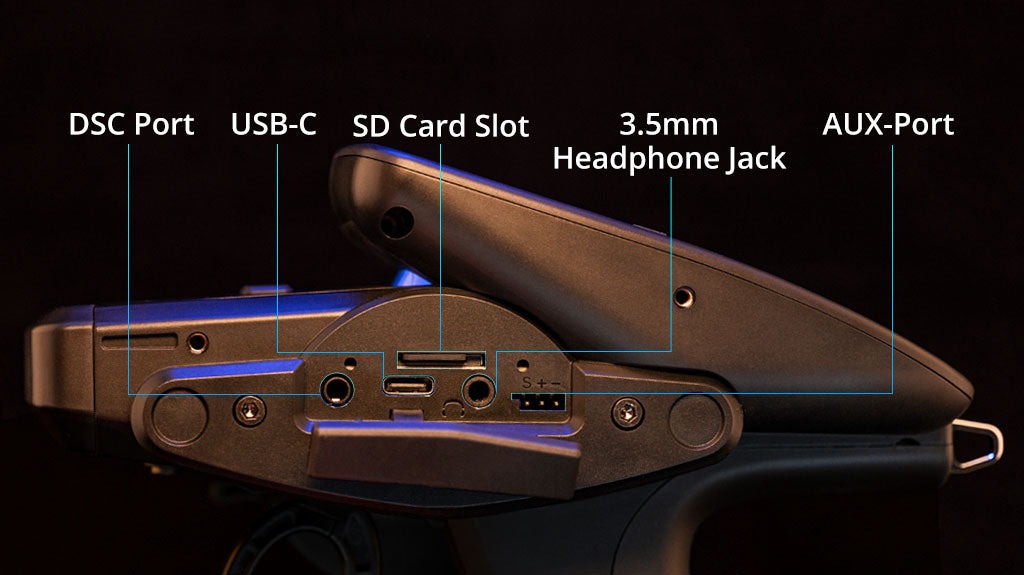

• Firmware Upgrade method: Via USB or SD card

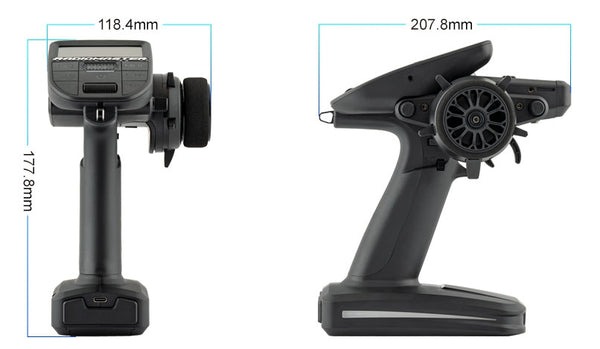

• Physical dimensions: 177.8*118.4*207.8mm
• Operating frequency: 2.400GHz-2.480GHz
• Supported protocols: Module dependent
• Operational current: 320mA for ELRS

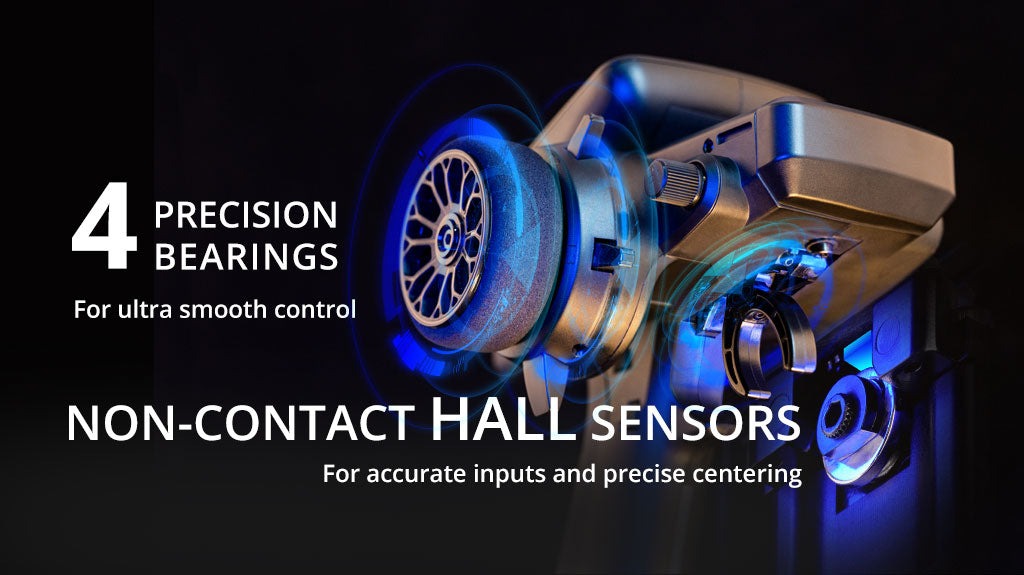

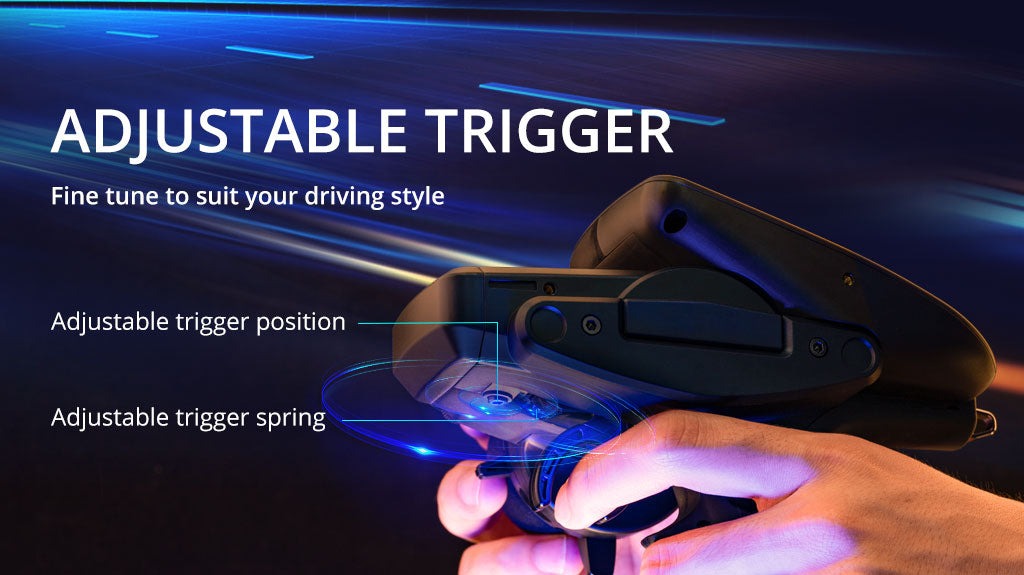

• Wheel and Trigger sensor: Hall-effect
• Display: 128*64 Monochrome LCD

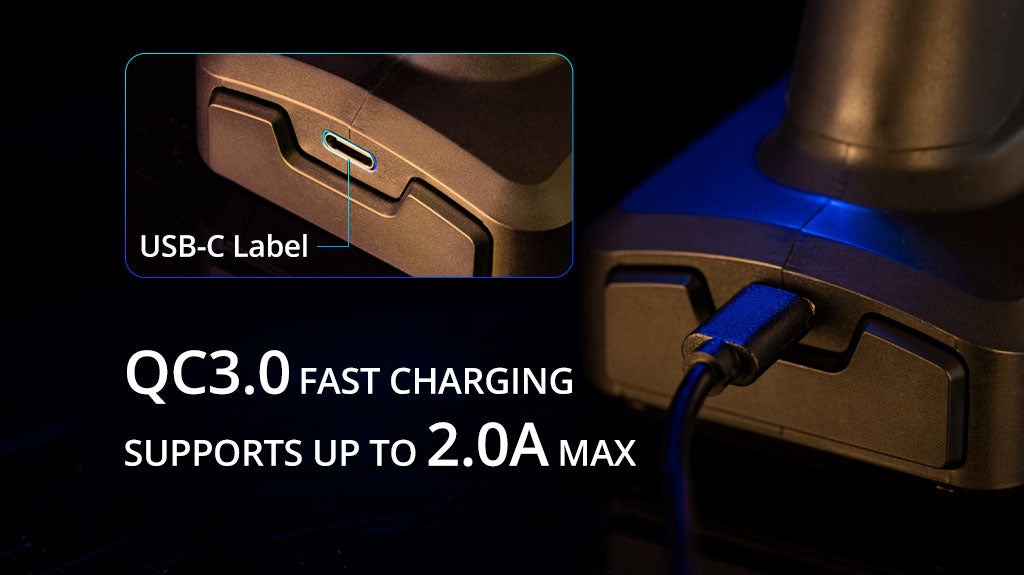

• Charging: Built-in USB-C Charging
• Operational voltage: DC 6.6-8.4V
• Control channels: 16 as standard

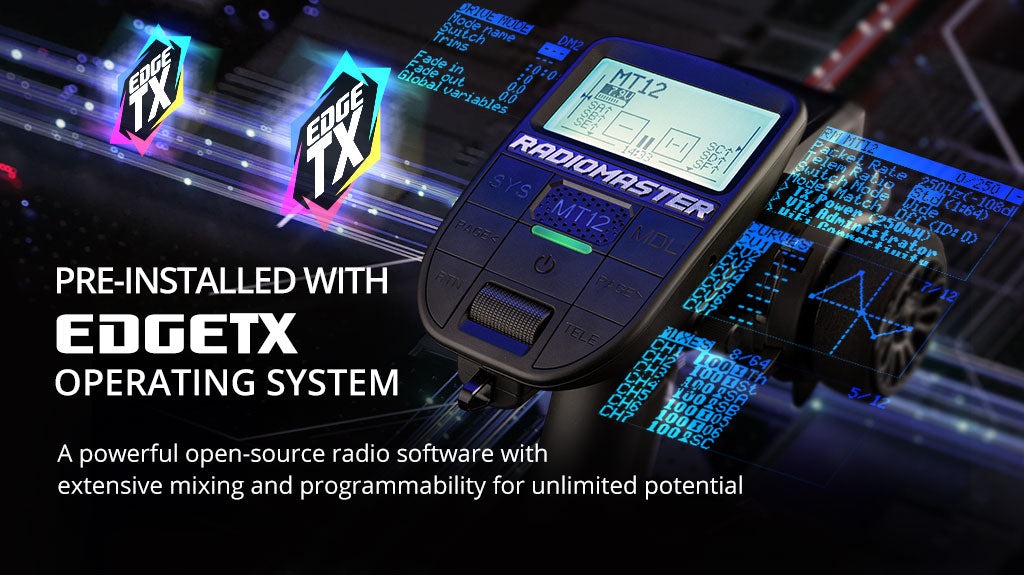

• Operating system: EdgeTX
• Internal RF: ELRS 2.4GHz / 4in1
• Item: MT12 Surface Radio
• Weight: 480 grams

Accessories

ER3C-i 2.4GHz ELRS PWM Receiver
ER5C-i 2.4GHz ELRS PWM Receiver
R85C Receiver

Reccomended Batteries:

18650 Battery 2 pack

Download

• MT12_Quick_Start
• MT12_Manual_English_V1.0

Package Includes

1 * MT12 Surface Radio ExpressLRS Version
1 * ER3C-i 2.4GHz ELRS PWM Receiver

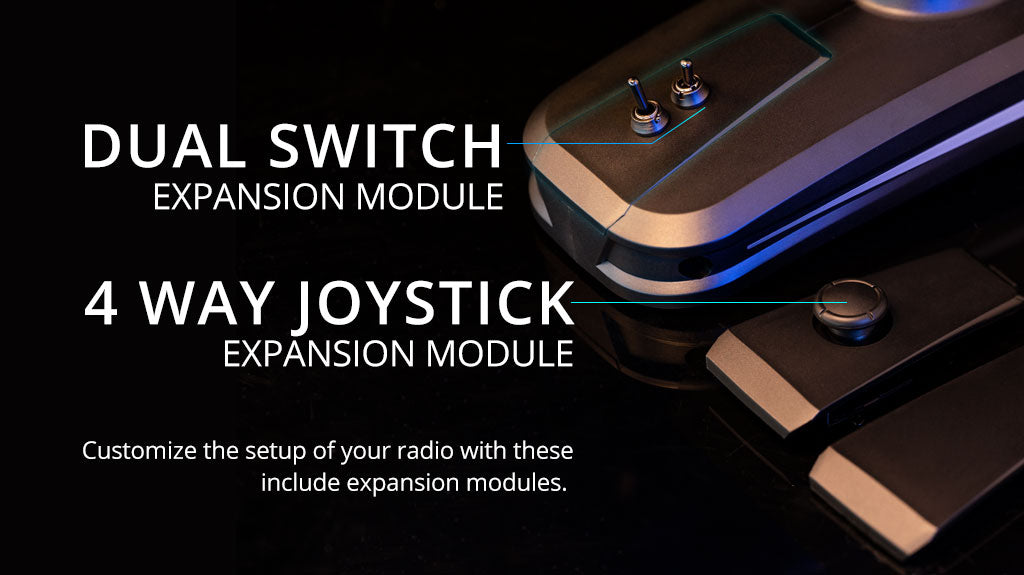

1 * Dual Switch Expansion module
1 * 4 Way Joystick Expansion module
1 * Nano Adapter
1 * USB-C Cable

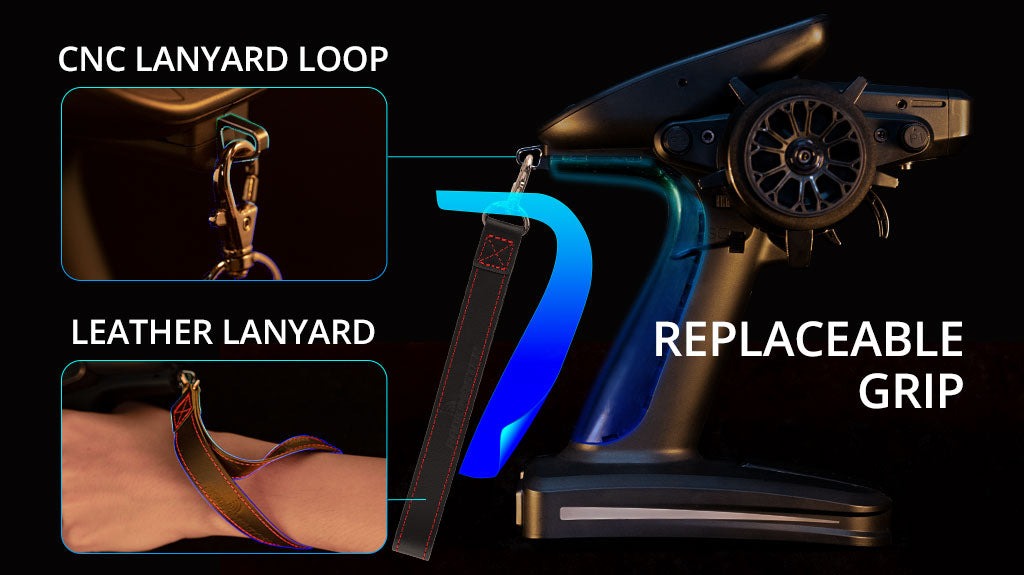

1 * Leather Lanyard
1 * Custom RadioMaster signature carry case
1 * 18650 Battery Tray
1 * Screen Protector
1 * Stickers
1 * Manual

OR

1 * MT12 Surface Radio 4in1 Version
1 * R85C Receiver
1 * Dual Switch Expansion module
1 * 4 Way Joystick Expansion module
1 * Nano Adapter
1 * USB-C Cable
1 * Leather Lanyard
1 * Custom RadioMaster signature carry case
1 * 18650 Battery Tray
1 * Screen Protector
1 * Stickers
1 * Manual
