Description

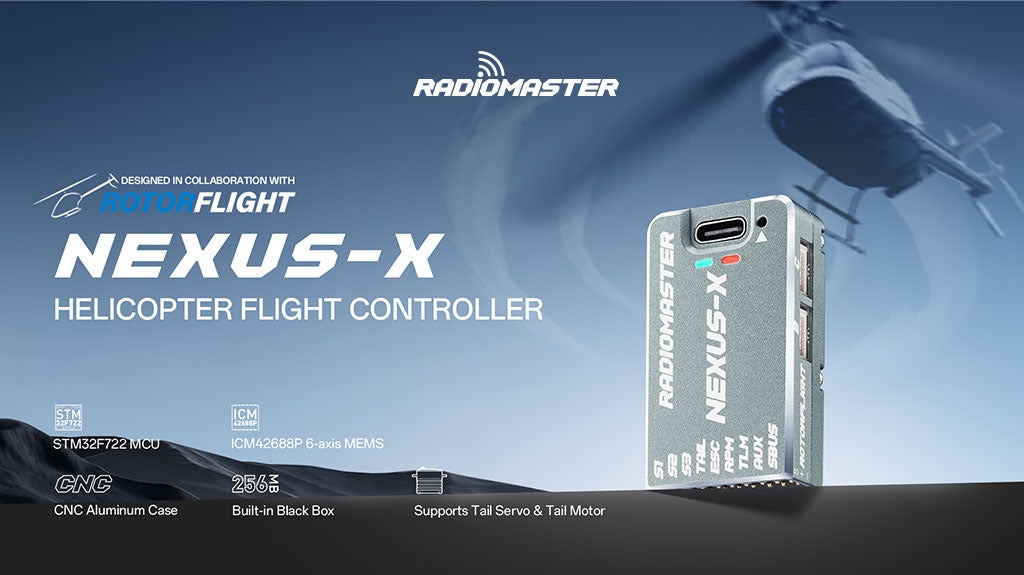

The RadioMaster NEXUS-X Control System delivers exceptional RF 2.2 performance with precision motion sensing, expanded onboard logging, and versatile connectivity, giving pilots smoother control and greater confidence in every flight. Built with a rugged CNC-machined aluminum case, powerful STM32F722 processor, multiple UART ports, and Plug’n’Play ExpressLRS support, it provides reliable operation, simplified installation, and advanced tuning for demanding RC enthusiasts seeking peak performance.

Features

• Optimized for RF 2.2: Engineered for peak performance and compatibility.

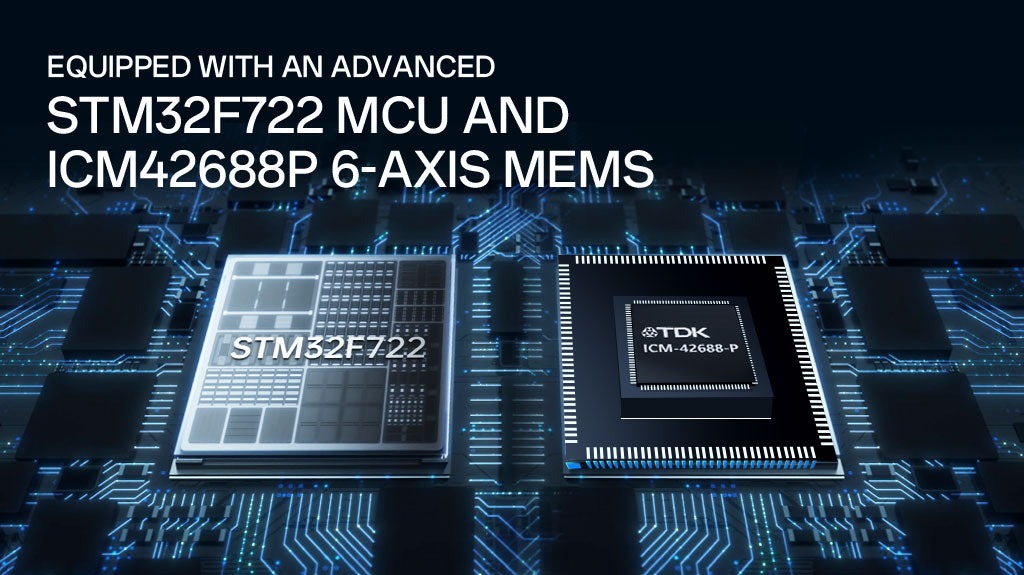

• Precision Control: STM32F722 MCU and ICM42688P 6-axis motion sensor/accelerometer for superior dynamics.
• Data Logging: 256MB onboard flash memory for detailed logging and tuning.
• Versatile Connectivity: Multiple UART ports support CRSF, ELRS, S.BUS, and more.
• Plug’n’Play ExpressLRS: Solder-free locking connector for RP3-H ExpressLRS receivers (sold separately).
• More PWM Pins: Additional pins for expanded control in complex setups.

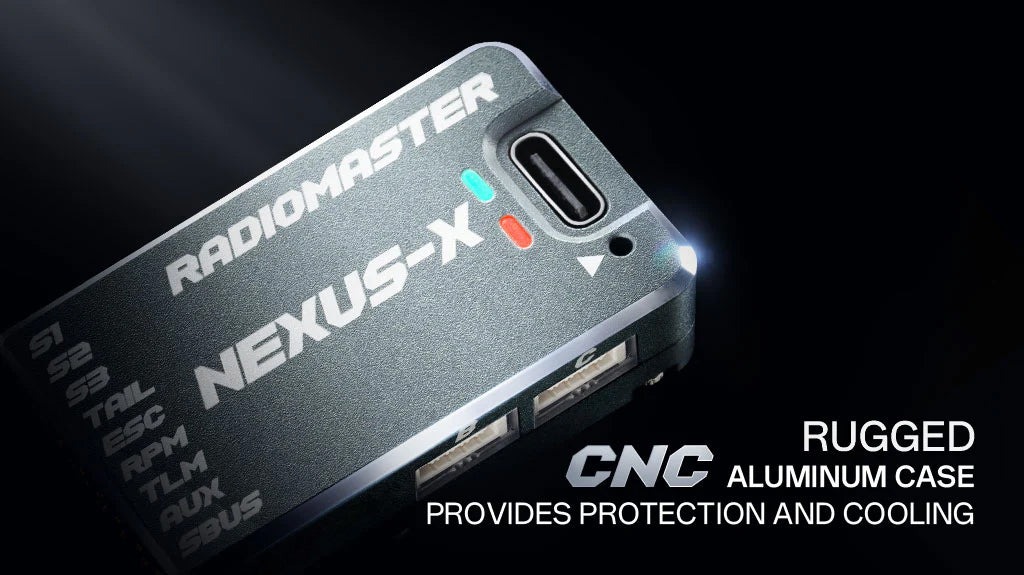

• CNC-Machined Aluminum Case: Sleek, rugged design doubles as a heat sink to keep the system cool.
• Wide Voltage Range: Supports 3.6V–70V external power input for flexible setups.
• Improved BEC: Stable, reliable power delivery to electronics for enhanced performance.
• USB-C Accessibility: Lightweight, flexible USB-C extender cable for easy access in tight builds.
• Compact and Lightweight: Ideal for any build.
• RF Rescue: Standard feature for enhanced safety in emergencies.

Specifications

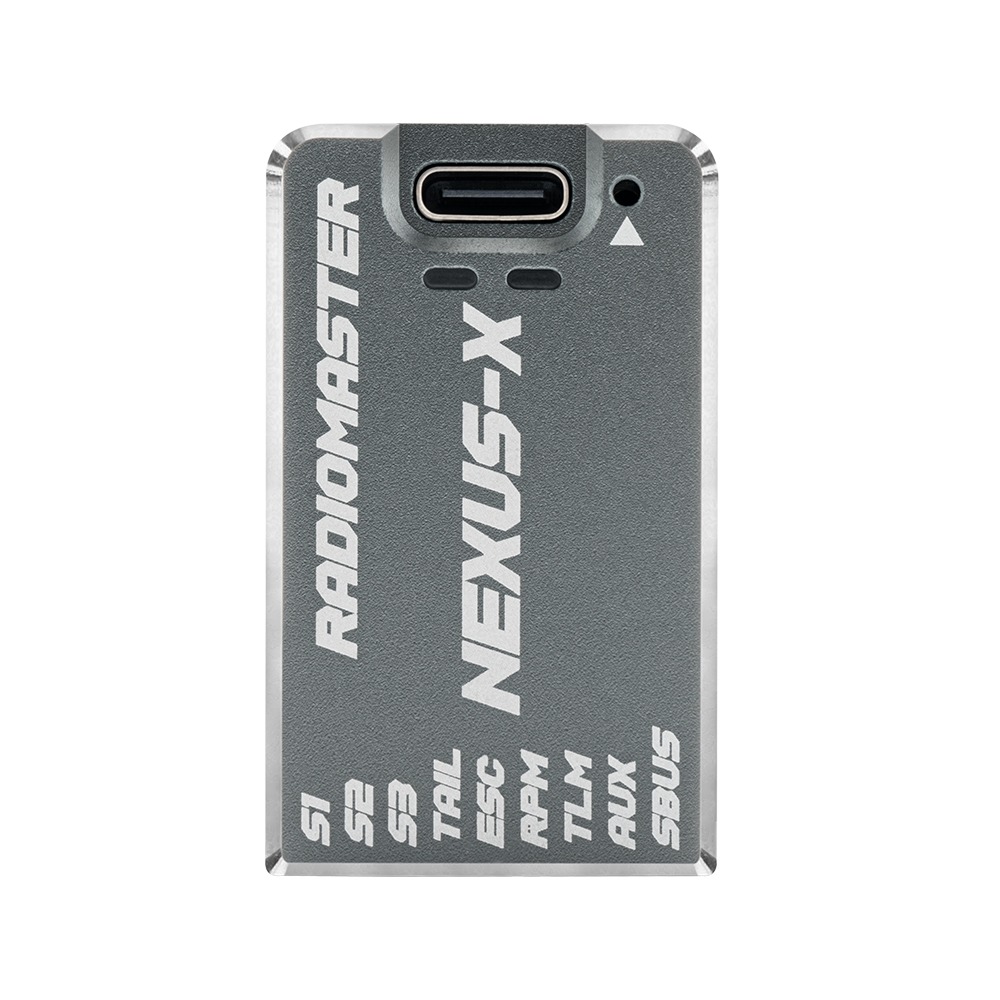

• Item: Nexus-X Control System
• Firmware: RF 2.2
• MCU: STM32F722RET6
• Flash Memory (Black Box. IC): 256MB (W25N02KVZEIR)
• Barometer: SPL06-001
• Uart: 5 – S.BUS[UART1], TELEM[UART2],PORT-A[UART4], PORT-B[UART6], PORT-C[UART3]
• Servo: S1, S2, S3, TAIL Servos (Up to 12V )
• Rpm Sensor: 1 – FROM ESC FREQUENCY SENSOR
• AUX: 1
• Ext voltage input (tele): 3.6-70v
• Receiver Support: CRSF, ELRS, GHOST, S.BUS, SUMD, IBUS, XBUS, EXBUS, PPM, MSP
• Voltage Supply(DC): 5 – 16V
• A-B-C Serial Port Power Output: 5V – 1.5A
• Telemetry: S.BUS, HoTT, S.Port, MSP, EDGETX, ELRS
• Demensions: 44.70 x 26.50 x 12.30mm
• Weight: 20.6g

Package Includes

• 1 x RadioMaster NEXUS-X Control System
