Description

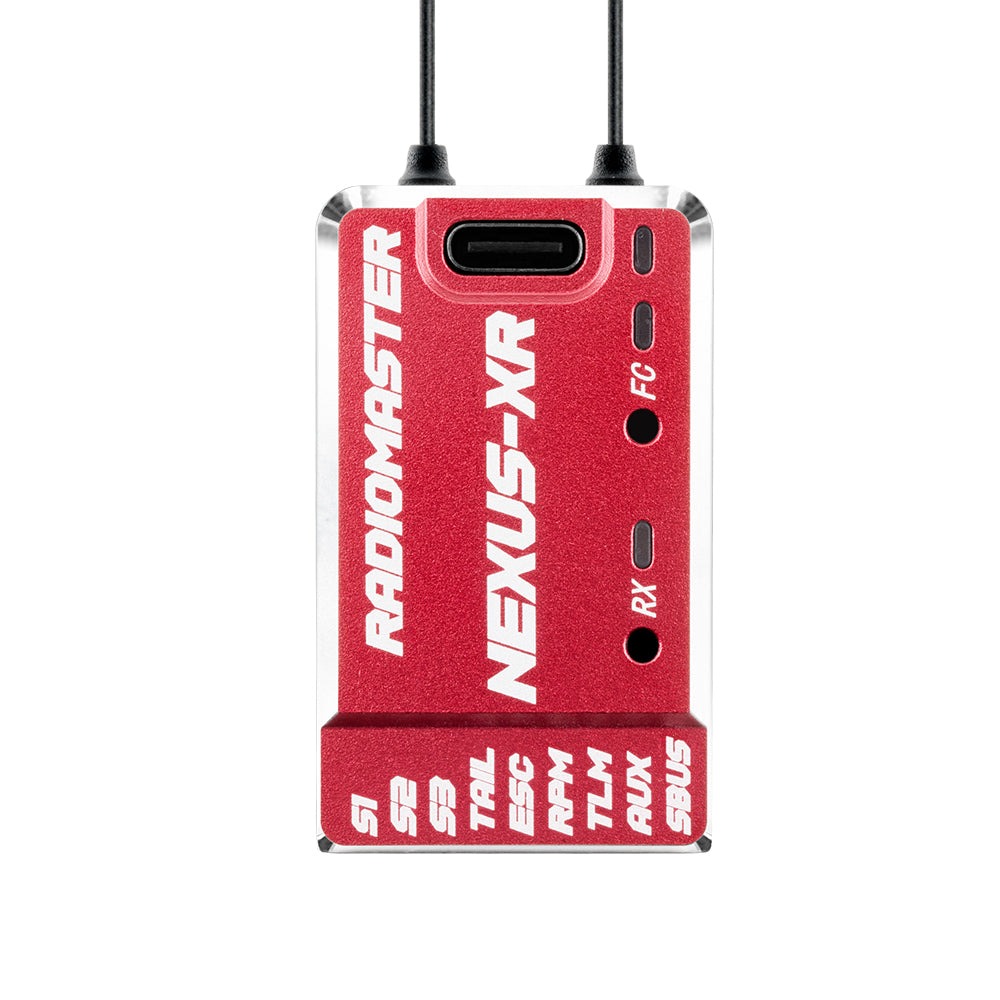

The RadioMaster NEXUS-XR Control System Integrated 2.4GHz ExpressLRS Receiver redefines precision with an integrated dual SX1281 ExpressLRS receiver, advanced STM32F722 processor, rugged CNC aluminum housing, and expanded onboard logging for dependable, high-performance control. Experience effortless installation, exceptional signal stability, extended range, versatile connectivity, wide voltage support, and reliable operation that empowers demanding pilots to fly confidently in every mission.

Features

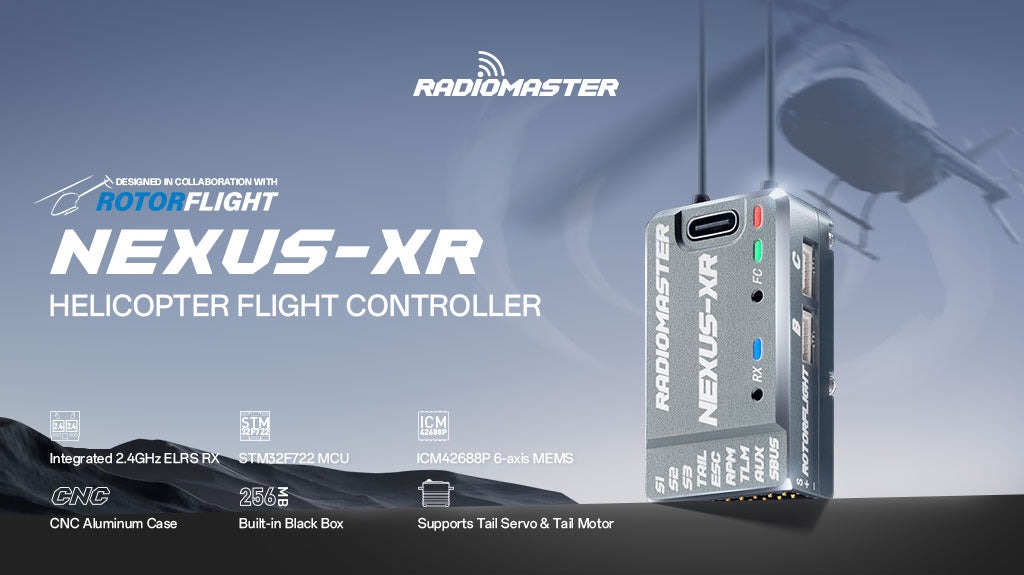

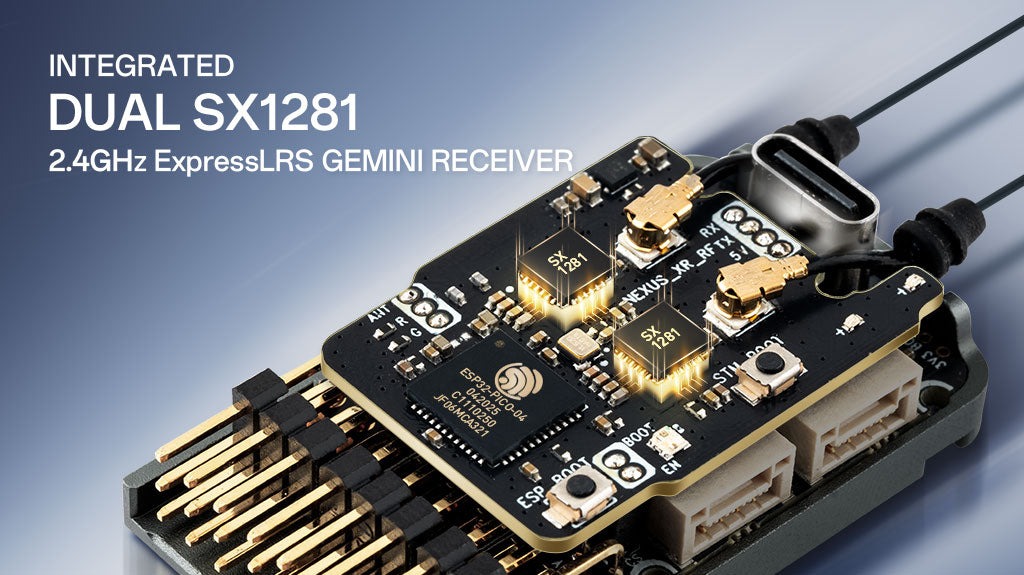

• Integrated ExpressLRS Receiver: Dual Semtech SX1281 2.4GHz transceivers for seamless RF performance, eliminating the need for an external receiver.
• Optimized for RF 2.2: Engineered for peak performance and compatibility.

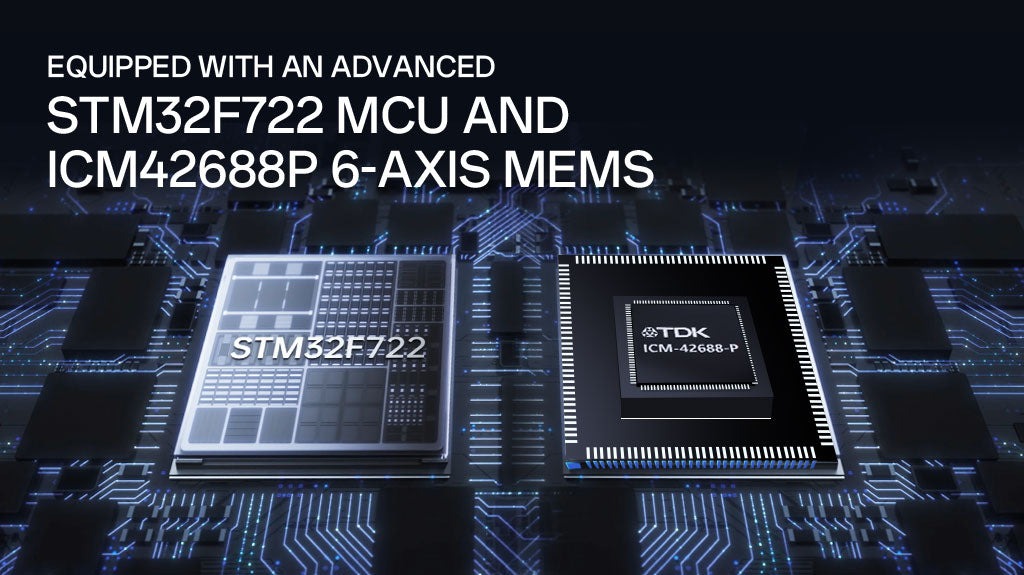

• Precision Control: STM32F722 MCU and ICM42688P 6-axis motion sensor/accelerometer for superior dynamics.

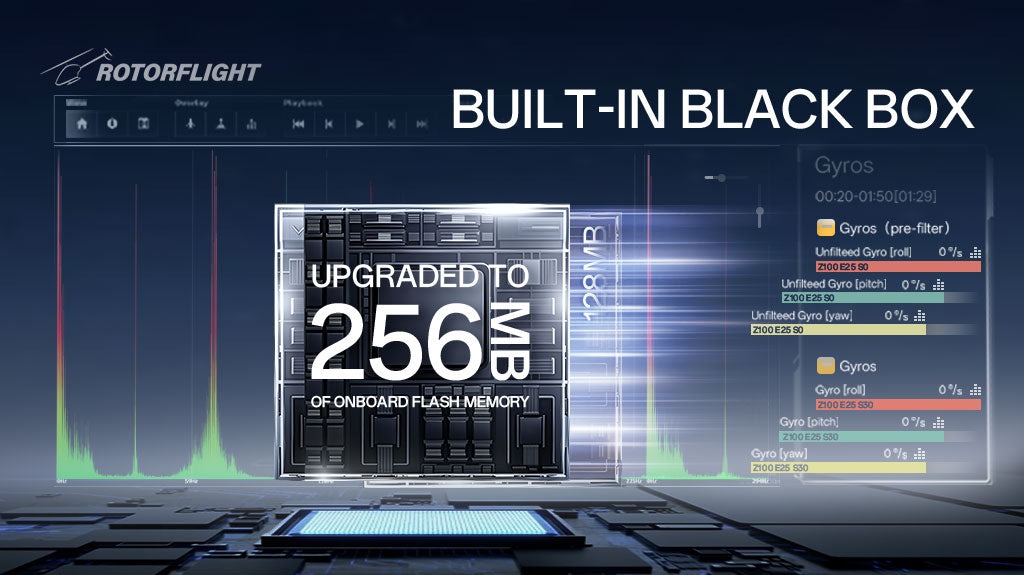

• Data Logging: 256MB onboard flash memory for detailed logging and tuning.
• Dual Antenna Design: Two 65mm wire antennae for superior signal strength and range.
• Versatile Connectivity: Multiple UART ports support CRSF, ELRS, S.BUS, and more.
• More PWM Pins: Additional pins for expanded control in complex setups.

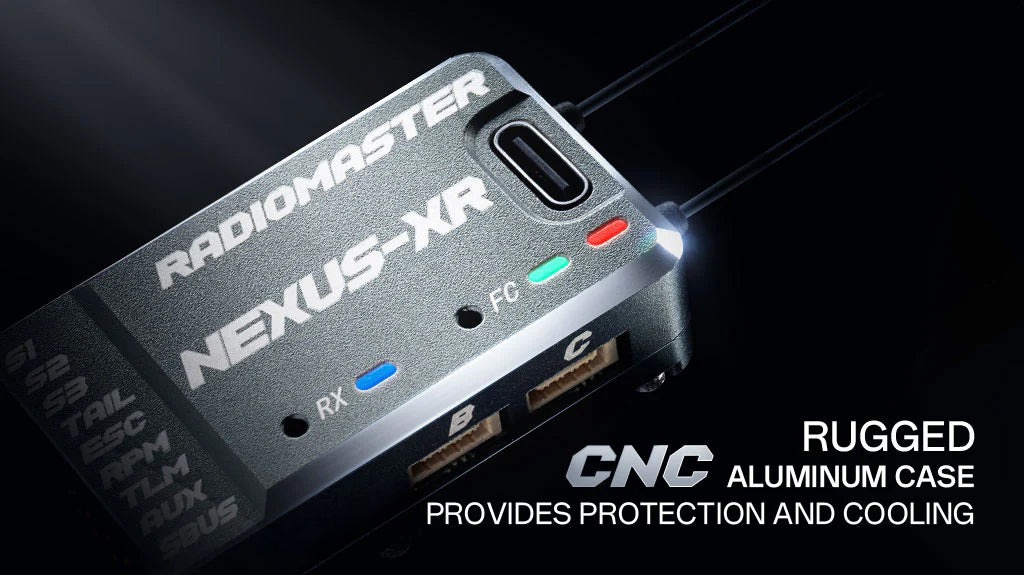

• CNC-Machined Aluminum Case: Sleek, rugged design doubles as a heat sink to keep the system cool.

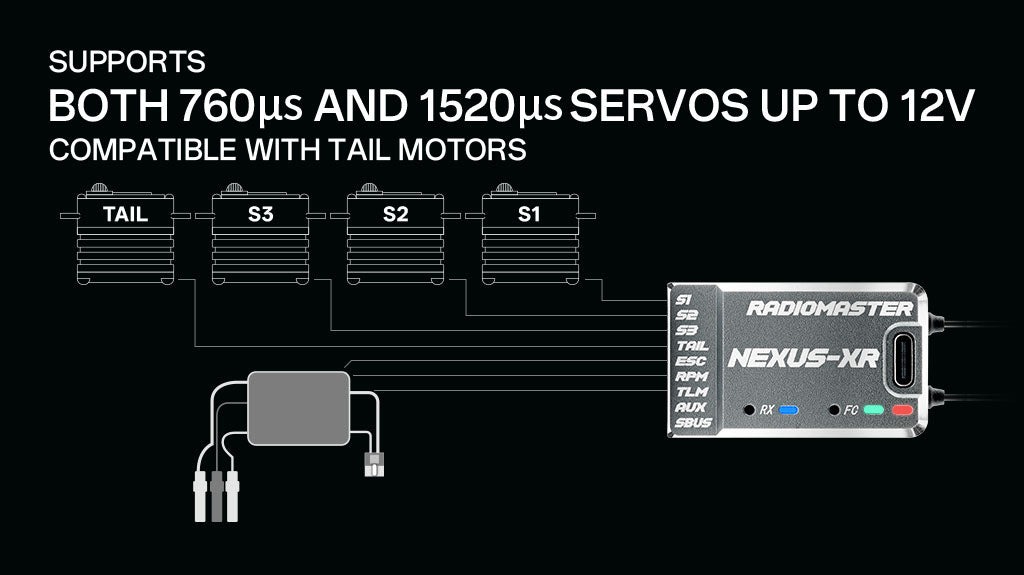

• 12V Servo Support: Capable of supporting 12-volt servos.
• Wide Voltage Range: Supports 3.6V–70V external power input for flexible setups.
• Improved BEC: Stable, reliable power delivery to electronics for enhanced performance.
• Isolated Power Supplies: Dedicated 1.8V, 3.3V (MCU), and 5V (interfaces) to minimize noise.
• USB-C Accessibility: Lightweight, flexible USB-C extender cable for easy access in tight builds.
• Compact and Lightweight: Ideal for any application.
• RF Rescue: Standard feature for enhanced safety in emergencies.

Specifications

• Item: NEXUS-XR Control System
• Firmware: RF 2.2
• MCU: STM32F722RET6
• Flash Memory (Black Box. IC): 256MB (W25N02KVZEIR)
• Barometer: SPL06-001
• Uart: 5 – S.BUS[UART1], TELEM[UART2], PORT-A[UART4], PORT-B[UART6], PORT-C[UART3]
• Servo: S1, S2, S3, TAIL Servos (Up to 12V )
• Rpm Sensor: 1 – FROM ESC FREQUENCY SENSOR
• AUX: 1
• Ext voltage input (tele): 3.6-70v
• Receiver Support: CRSF, ELRS, GHOST, S.BUS, SUMD, IBUS, XBUS, EXBUS, PPM, MSP
• Voltage Supply(DC): 5 – 16V
• A-B-C Serial Port Power Output: 5V – 1.5A
• Telemetry: S.BUS, HoTT, S.Port, MSP, EDGETX, ELRS
• Internal Receiver:  RP4TD-M ExpressLRS 2.4GHz Mini True Diversity Receiver
• MCU: ESP32
• Type: ISM
• RF Chip: SX1281 x 2
• Antenna: 65mm 2.4GHz Wire Antenna x 2
• Frequency Range: 2.4GHz
• Maximum Refresh Rate: 500Hz / F1000Hz
• Telemetry RF Power: Max 2 x 10mW
• Wifi Updates: Yes
• FW Target: RadioMaster RP4TD-M 2400 RX
• Bus interface: CRSF
• Demensions: 44.70 x 26.50 x 14.30mm
• Weight: 24.1g

Package Includes

• 1 x RadioMaster NEXUS-XR Control System Integrated 2.4GHz ExpressLRS Receiver
