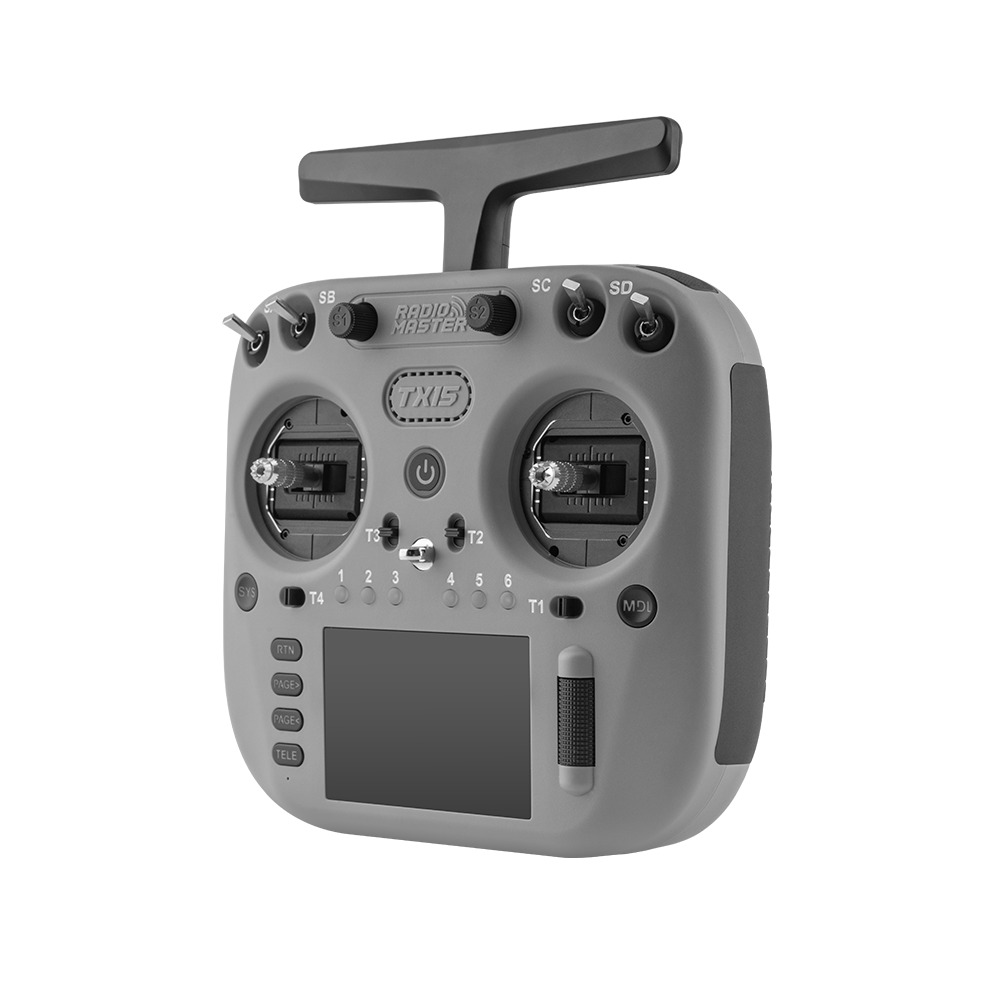

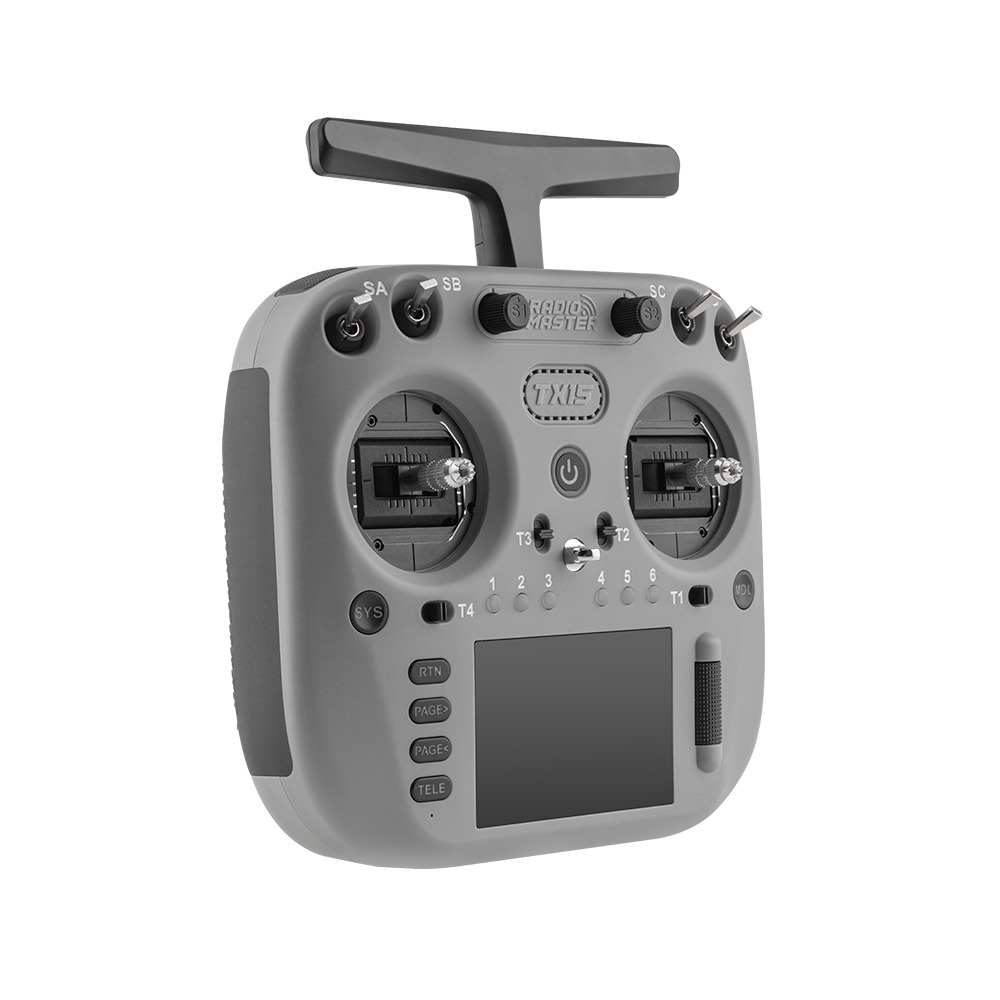

Radiomaster TX15 Radio Controller ExpressLRS (6 Colours)

Description

Pre-Order Information – KiwiQuads has a confirmed order with RadioMaster, we are expecting to have limited stock from the first production batch (RadioMaster is quoting end August – early September). We will update this comment as we hear more.

The Radiomaster TX15 Radio Controller ExpressLRS sets a new standard in high-performance radio control with its blazing-fast STM32 H7 chip, ultra-responsive EdgeTX interface, and stunning 3.5-inch IPS touchscreen. Built for pros and hobbyists alike, it features long-range ExpressLRS support, customizable gimbals, and six striking colors. Foldable antennas, tilt-control functions, and smart battery management make the TX15 the ultimate tool for total command—wherever and however you fly.

Features

Blazing-Fast Performance: The STM32 H7 chip powers our fastest radio ever.

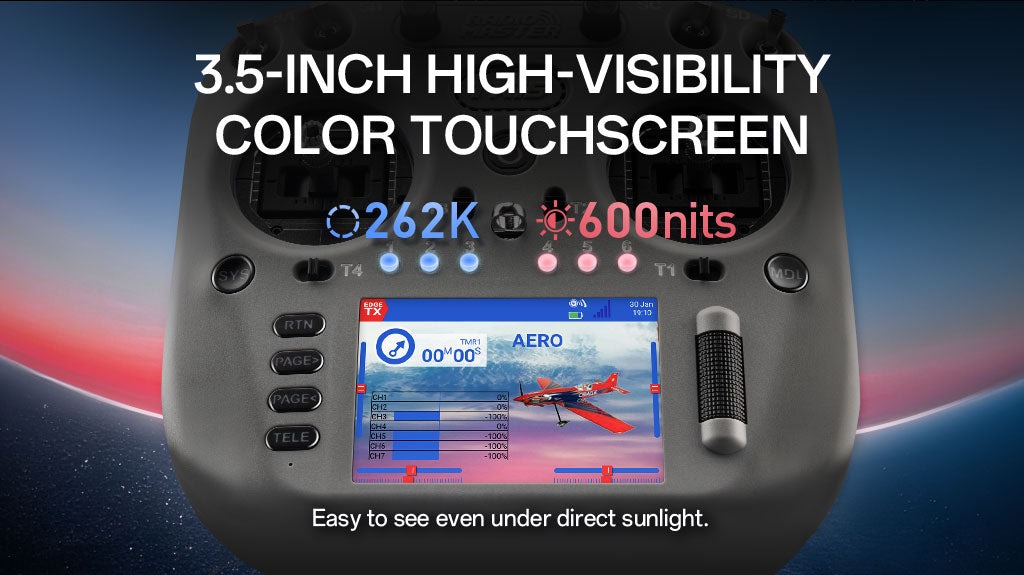

Touchscreen Display: 3.5-inch, 480 x 320 IPS touchscreen with vivid colors and sharp detail.

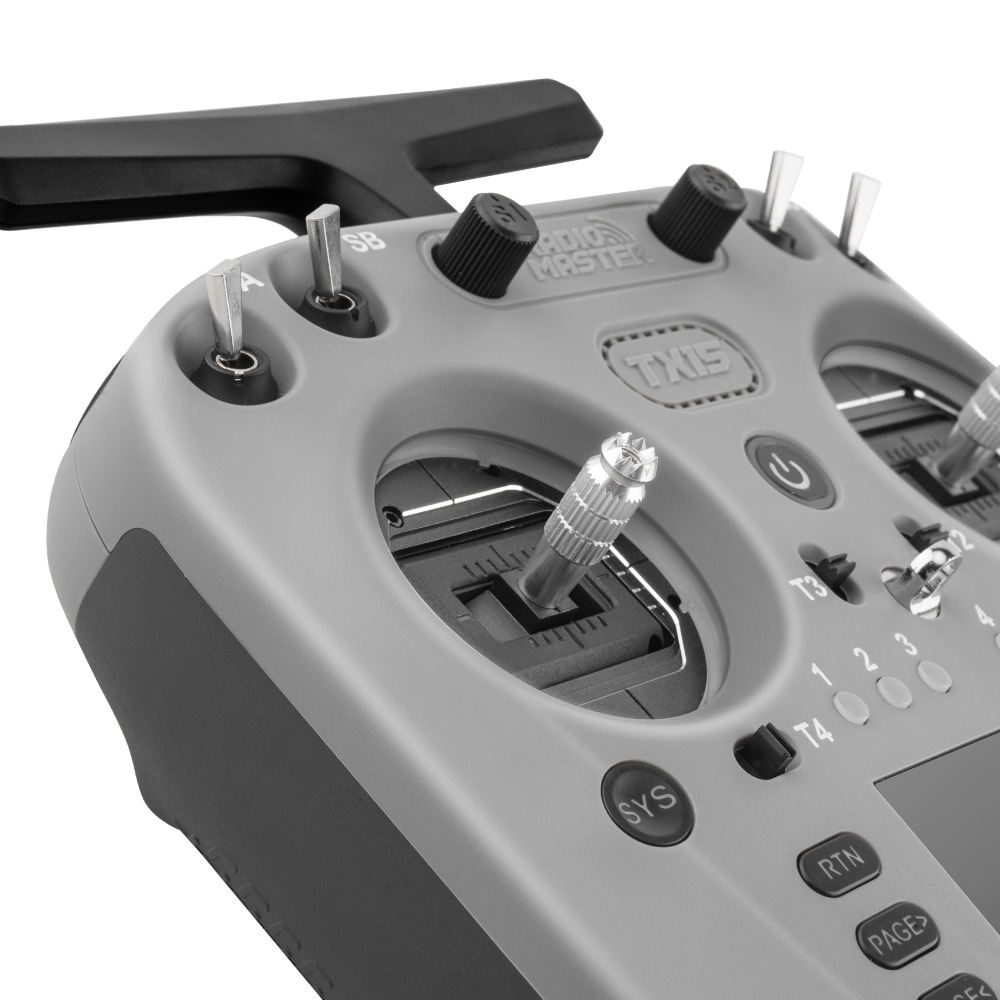

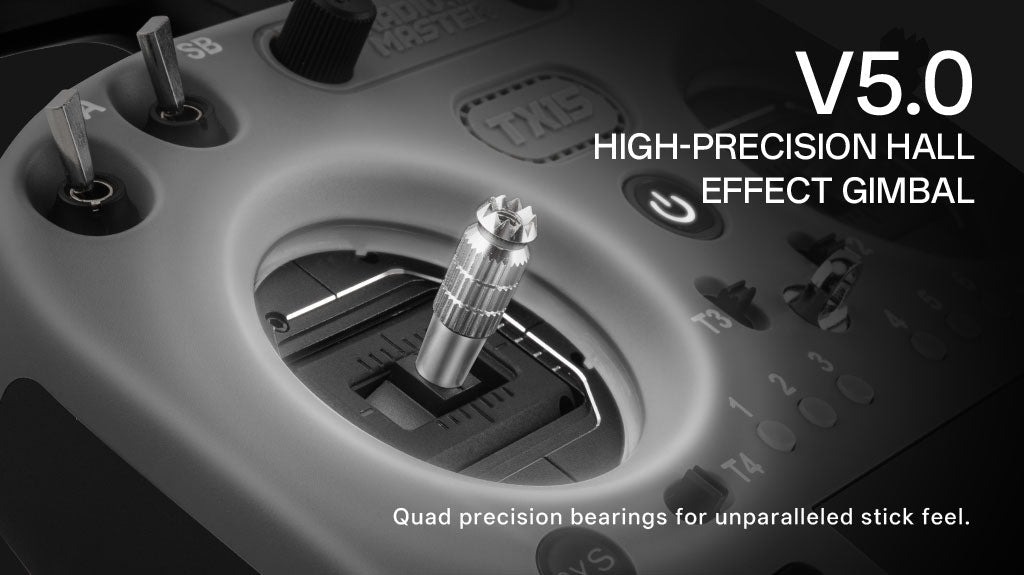

Precision Gimbals: V5.0 Hall sensor gimbals
Built-in ExpressLRS: 2.4GHz / Sub-G 900MHz ExpressLRS integration for reliable and long-range control.
Smart Balance Battery Circuit: Maximizes battery efficiency and longevity for more flight time.
Powerful, Efficient Cooling System: Low noise, high output fans and an aluminium heat sink keep your radio cool even on the hottest days.

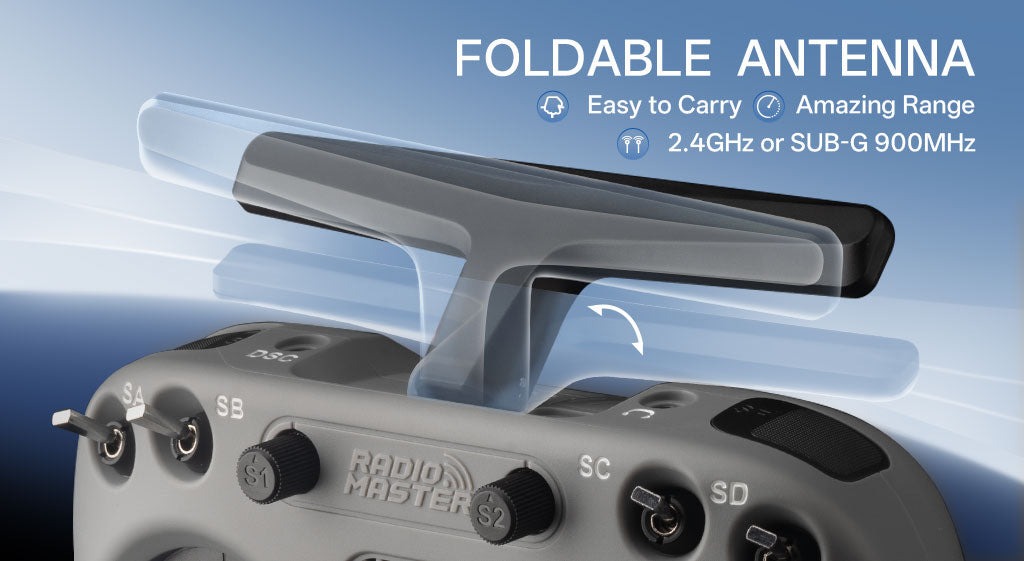

Foldable Antenna: Compact and easy to store without compromising signal strength.
Built-in Microphone: For future feature expansion.

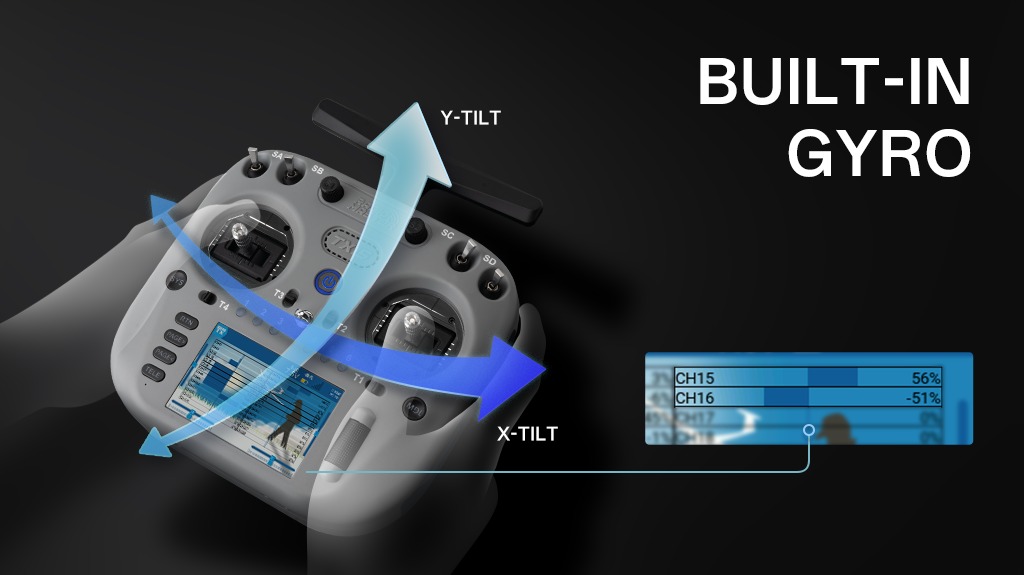

Built-in Gyro: Trigger switches, pan/tilt cameras, or telemetry callouts simply by tilting your radio.
Memory: Integrated 4GB of onboard flash memory and external MicroSD card support.
Interchangeable Shoulder Switches: Customize your controls to match your flying style.

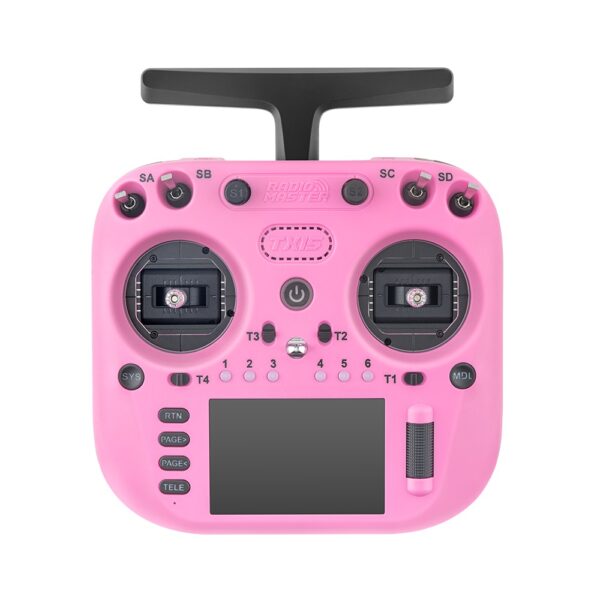

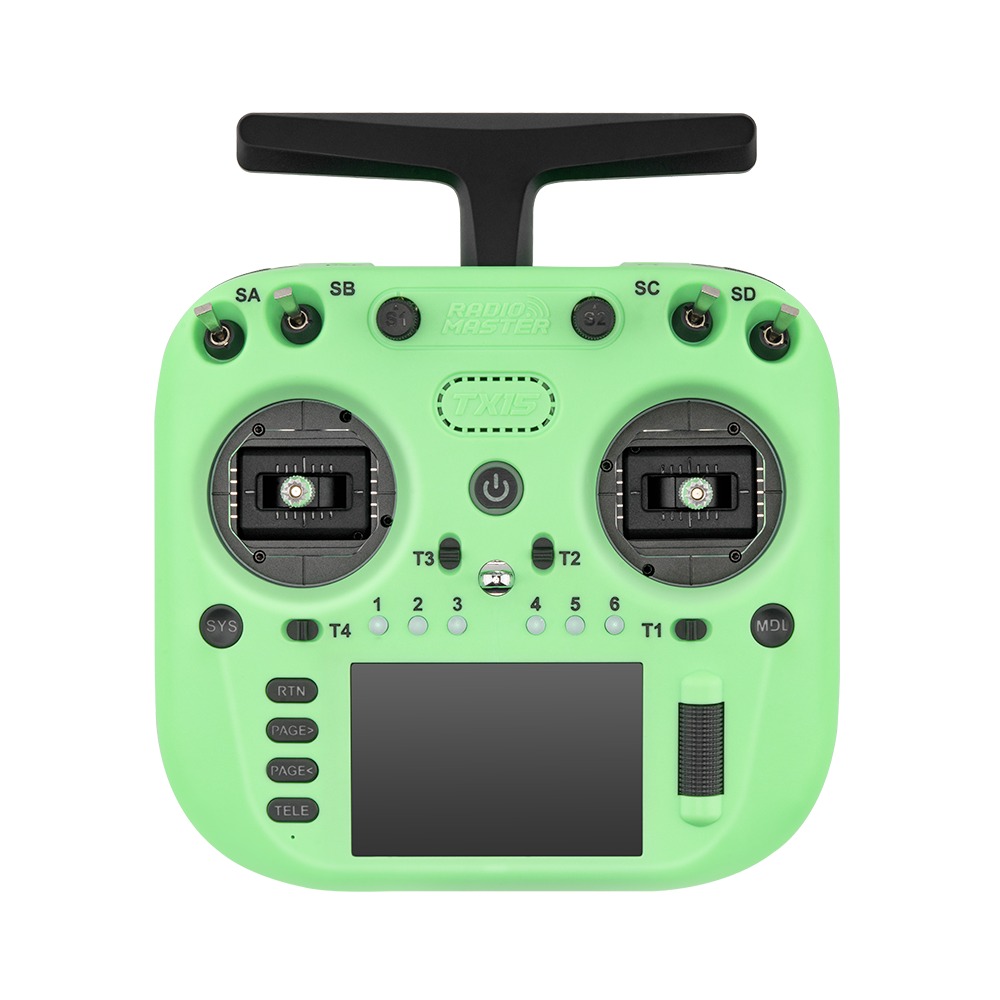

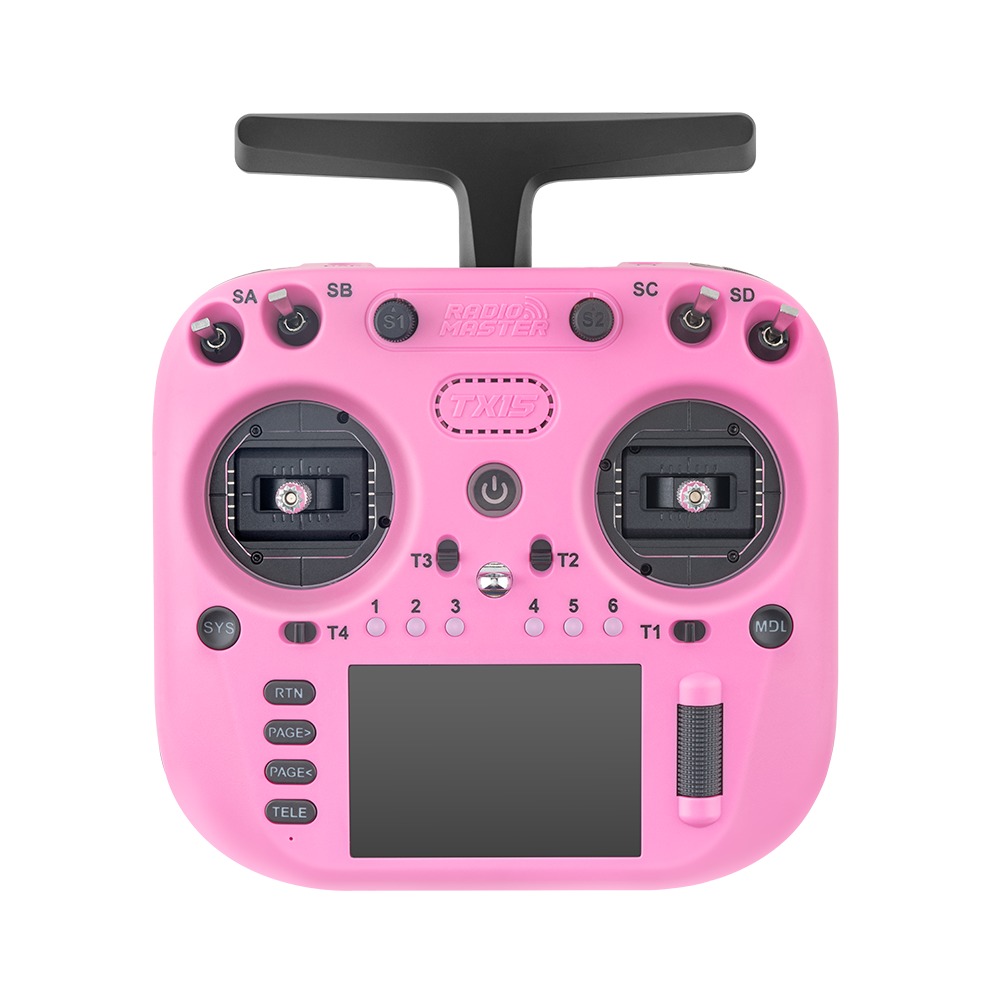

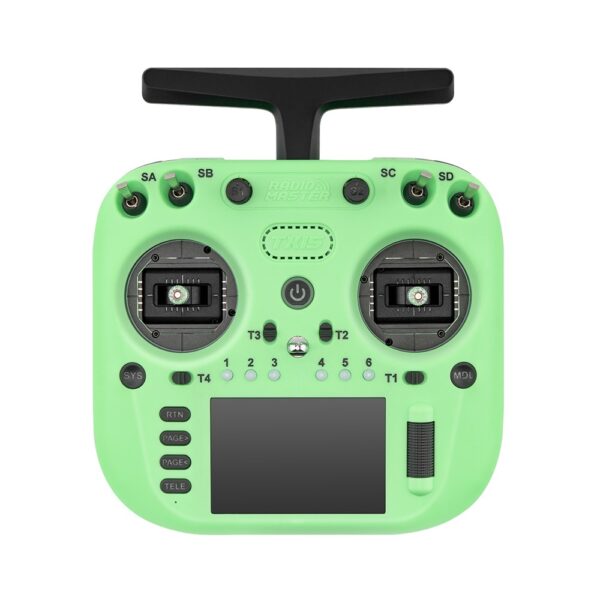

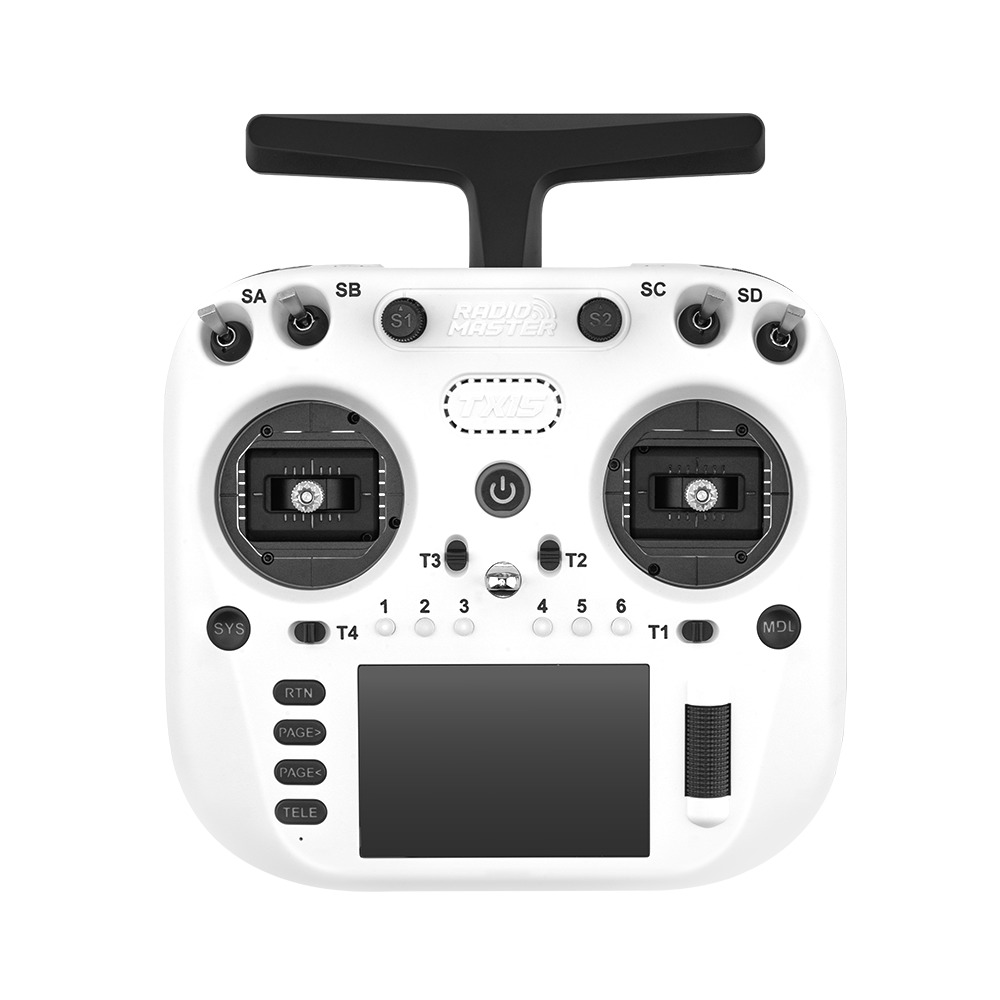

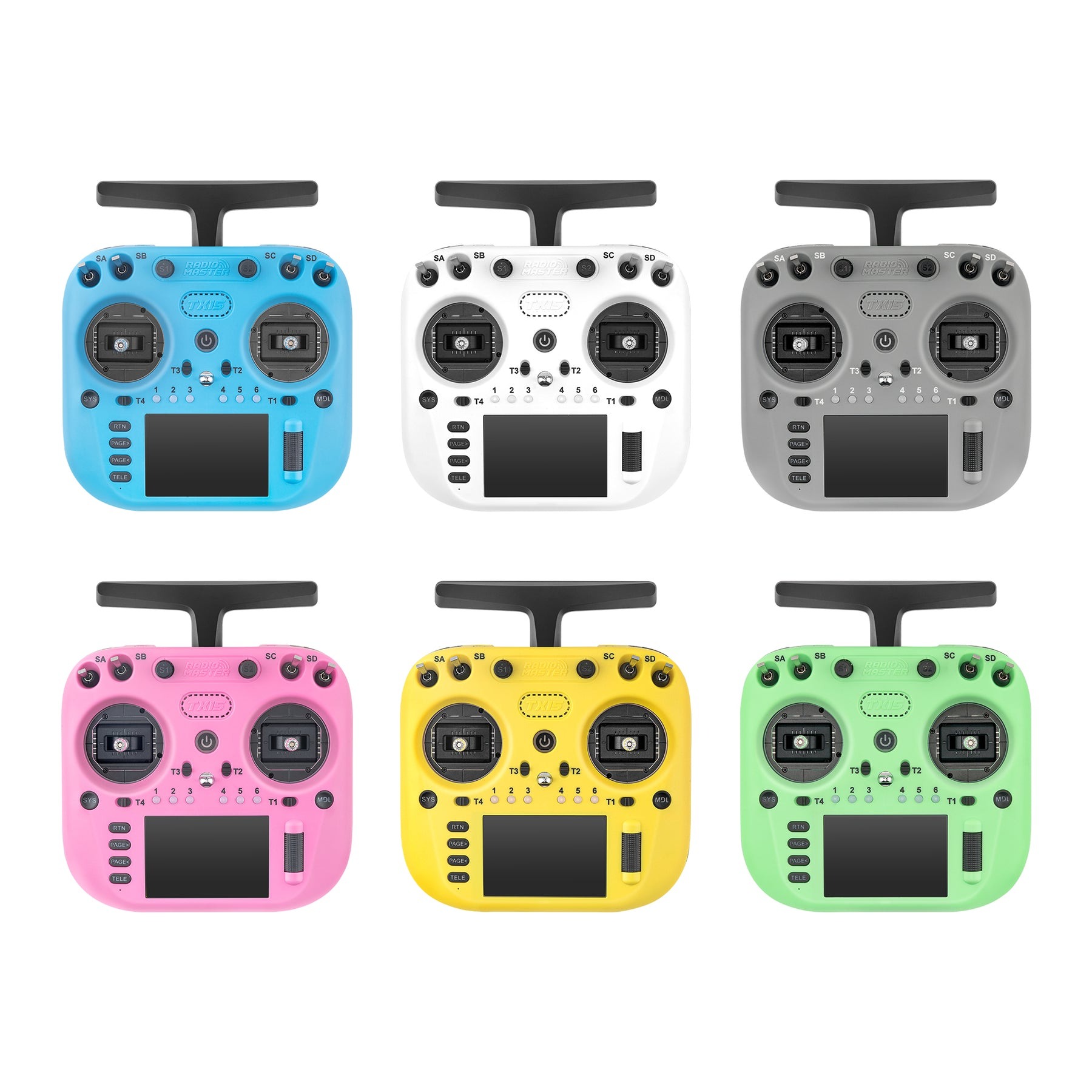

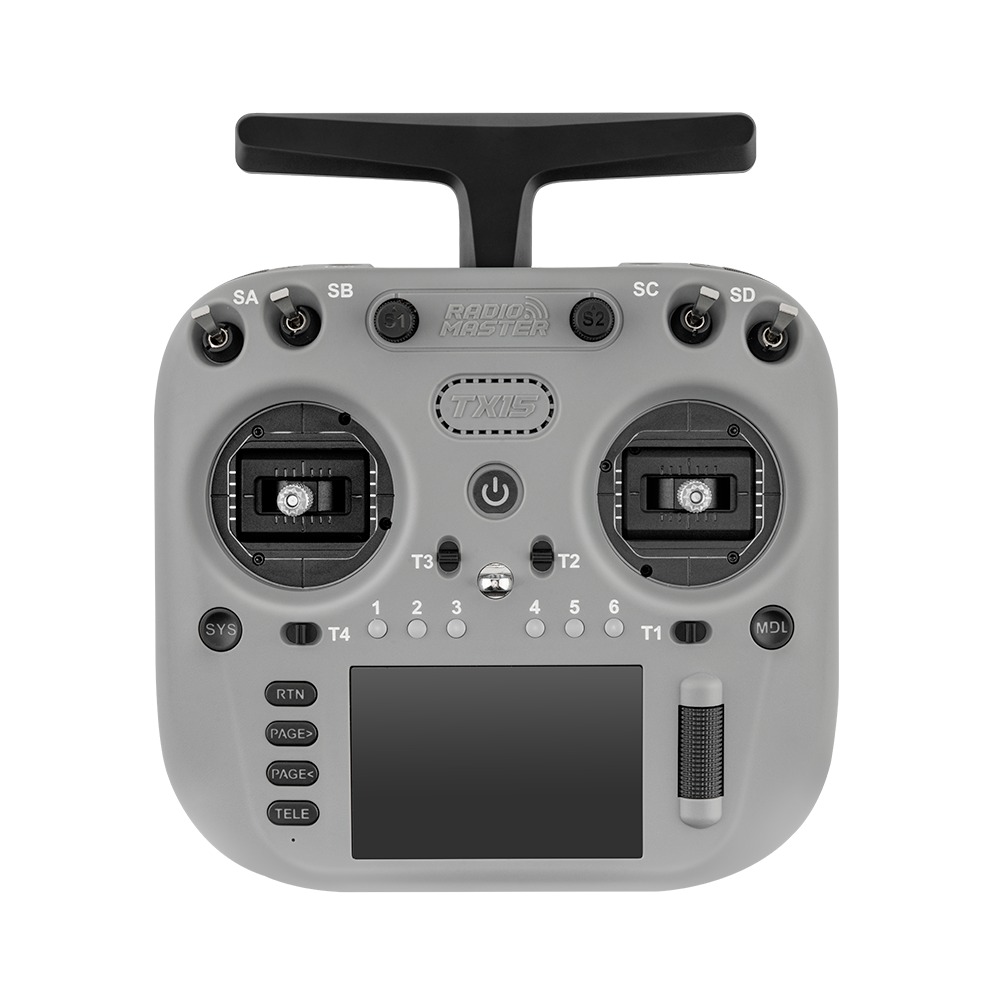

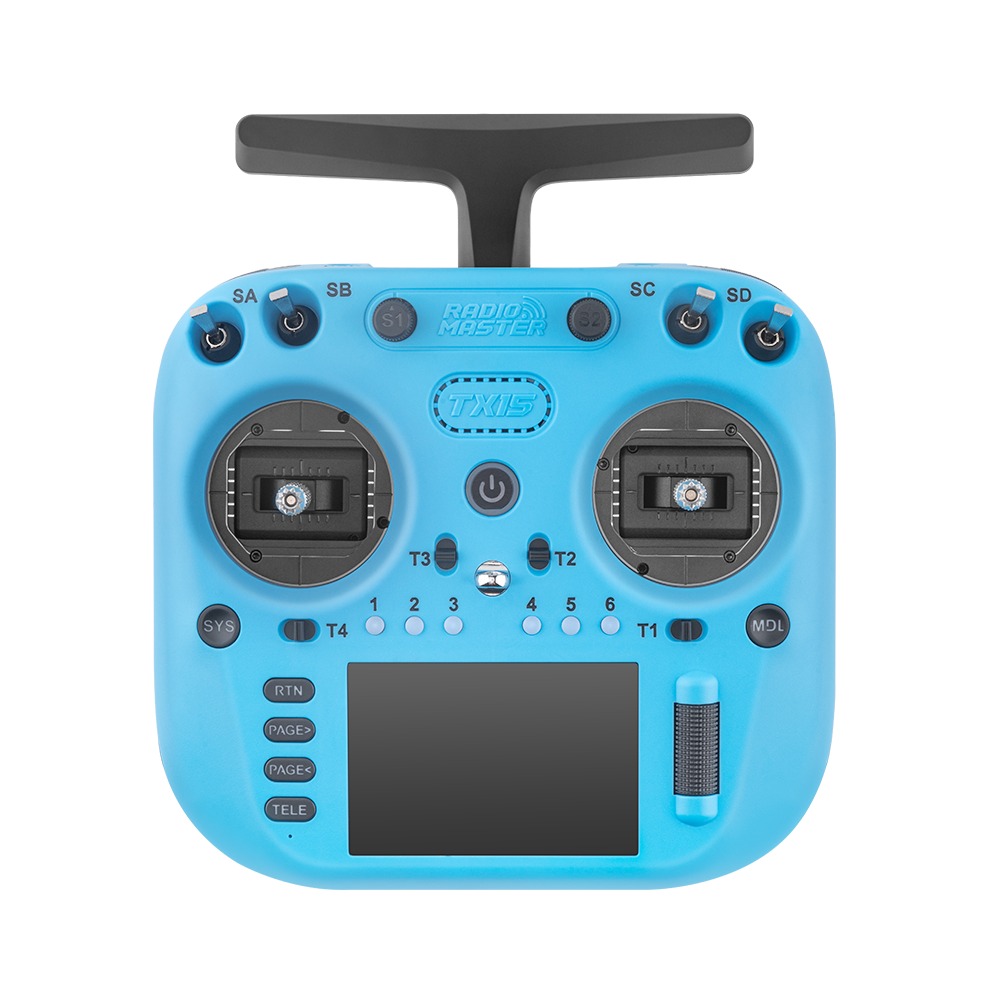

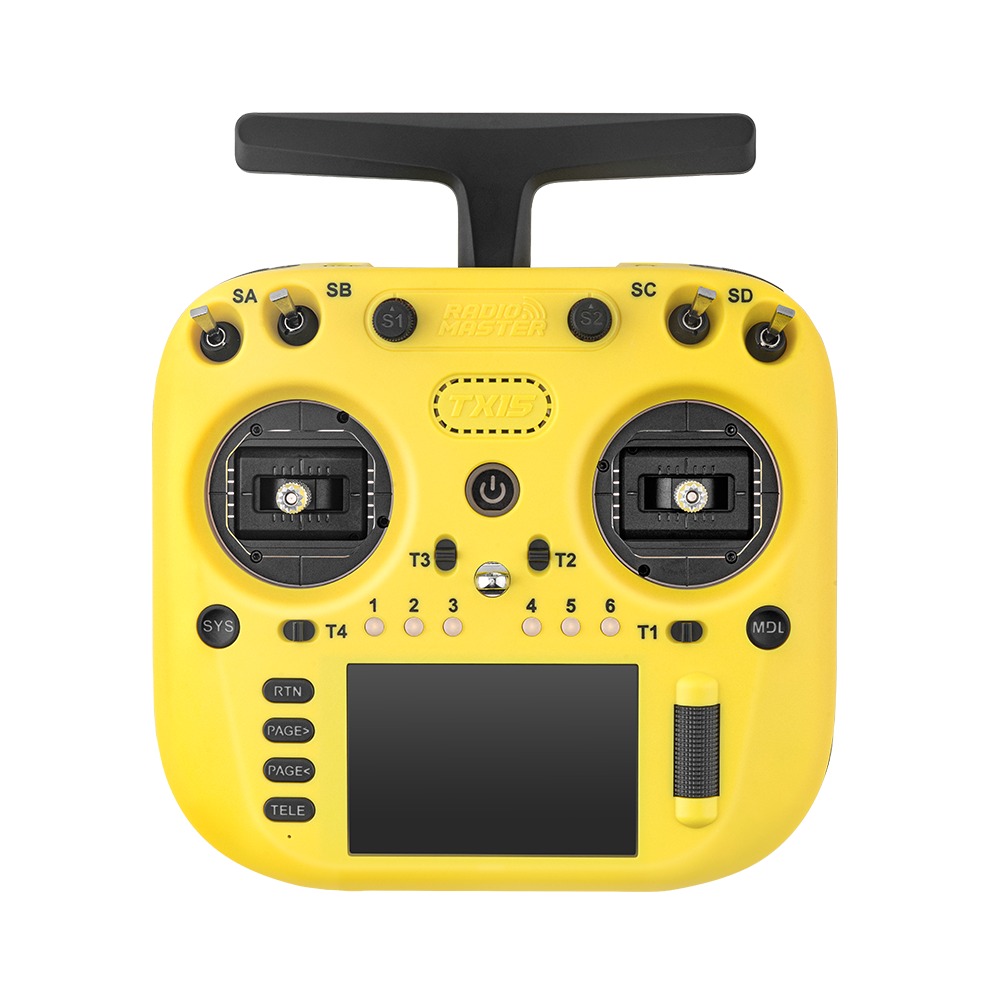

Optional colors: Iron Grey / Frost White / Iceberg Blue / Mint Mist / Lemon Twist Yellow / Hot Pink

Specifications

Item: TX15 Radio Controller
Size: 178*168*81mm
Weight: 605g (without battery)
Frequency: 2.400GHz OR Sub-G 900MHz
Internal RF: ELRS 2.4GHz / Sub-G 900MHz
Supported Protocols: Express-LRS
Cooling Fan: Yes
Transmitter Module: Built-in ELRS
Built-in Flash Size: 4GB
Built-in Microphone: Yes (Future expansion)
Built-in Gyro: Yes (ICM-42607-C)
MicroSD card (Not included): 32GB/FAT32 (Inserting a MicroSD card will disable the onboard flash)
Antenna Gain: 2dB (transmit power adjustable)
Current: 875mA at max power output
Voltage Range: 6.6 – 8.4V DC
Radio Firmware: EdgeTX (Transmitter) (requires version 3.0.0 or later)
Module Firmware: ExpressLRS
Channels: Max 16 channels (Receiver dependent)
Display: 3.5-inch IPS touchscreen (480 x 320 resolution)

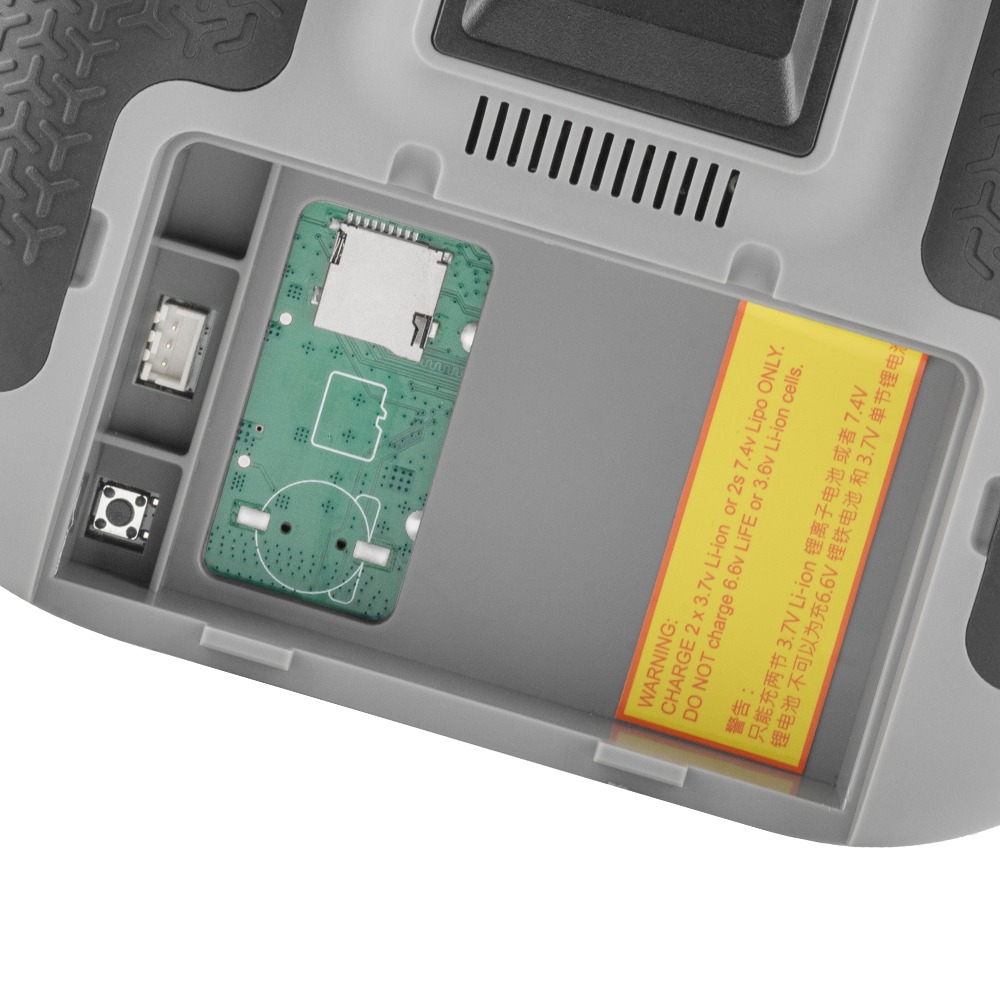

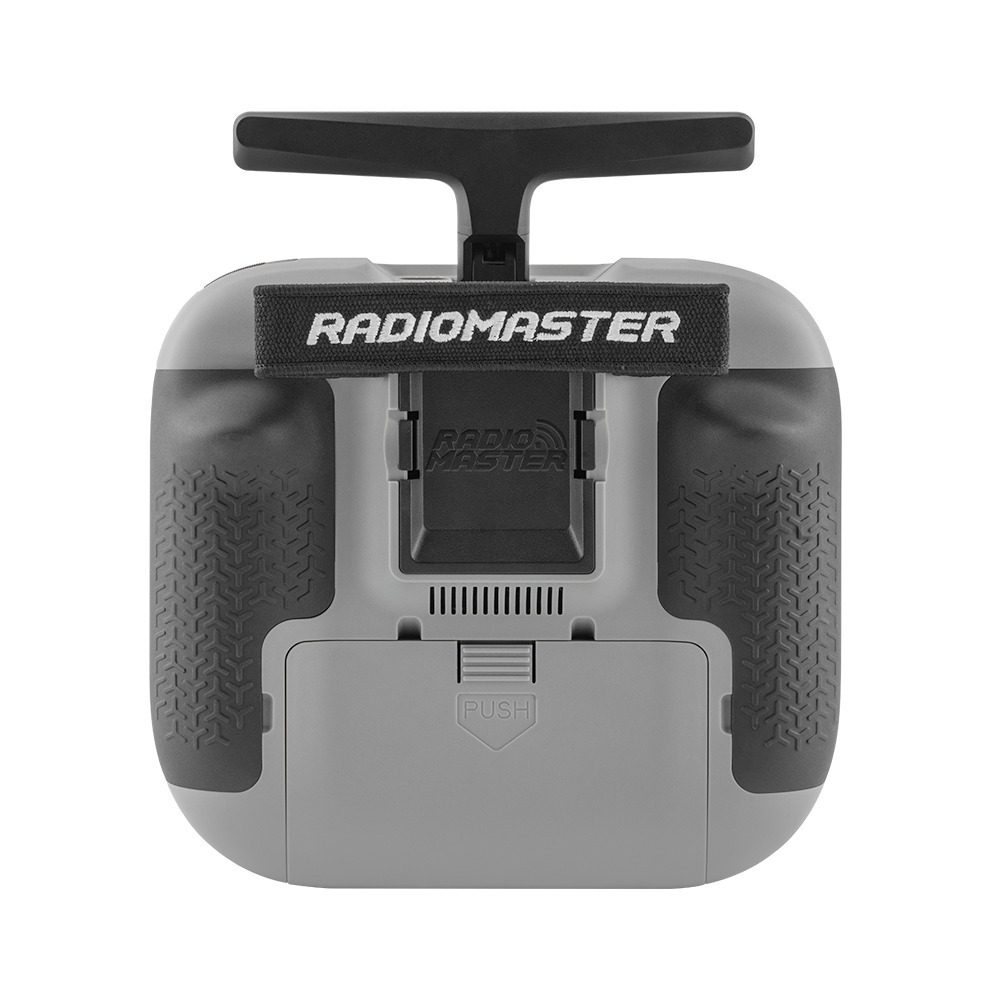

Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells / 21700 5000mAh Battery (batteries not included)
Connectivity: USB-C
Gimbals: V5.0 Hall sensor gimbals (standard)
Gimbal Sticks: M4
Upgrade Method: USB-C (UF2)
Module Bay: JR-compatible module bay for additional modules
