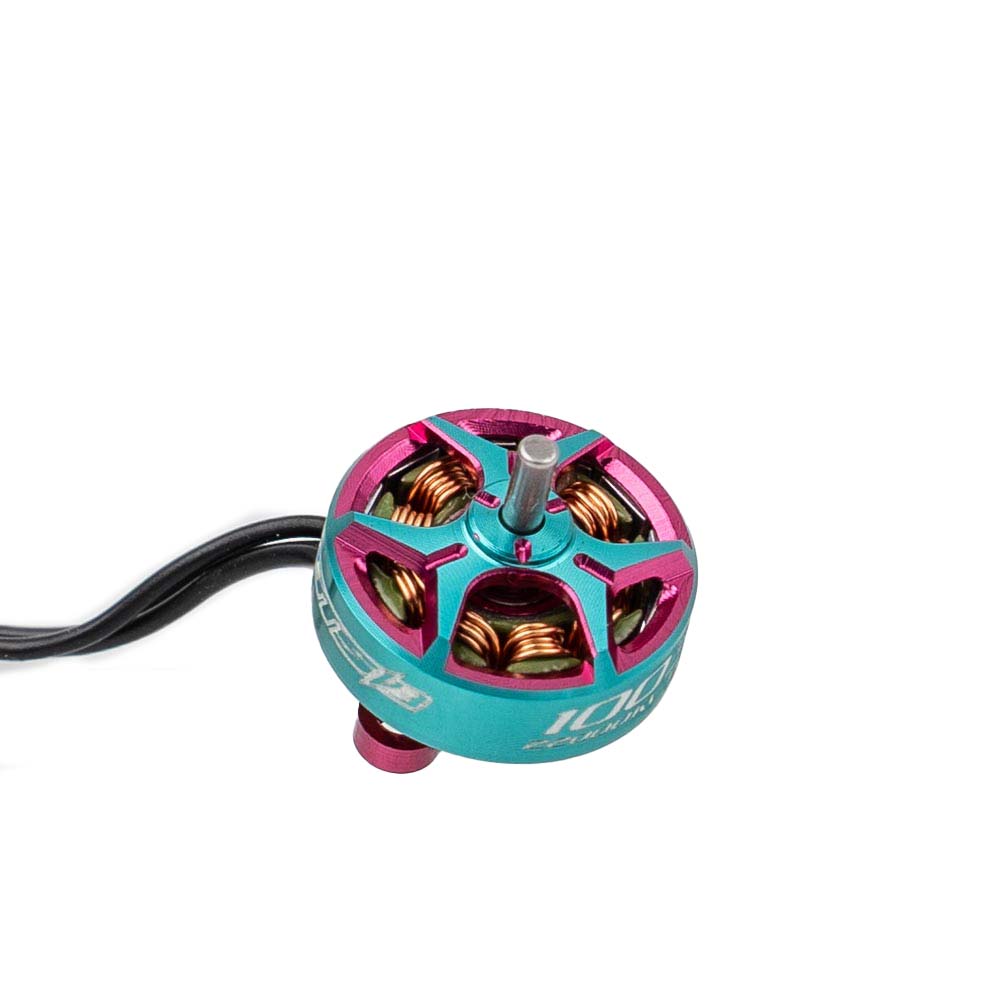

RCINPOWER GTS V3 1003 1S Brushless Micro Motor (22000Kv)

The Wasp Major 22.6-6.5 is a powerful FPV Motor by RCINPOWER! Ranking #1 in Chris “AOS” Rosser’s Scientific testing (see video below) don’t limit yourself and choose the best motor for FPV!

$21.99

Out of stock

SKU: 2075 Category:

Description

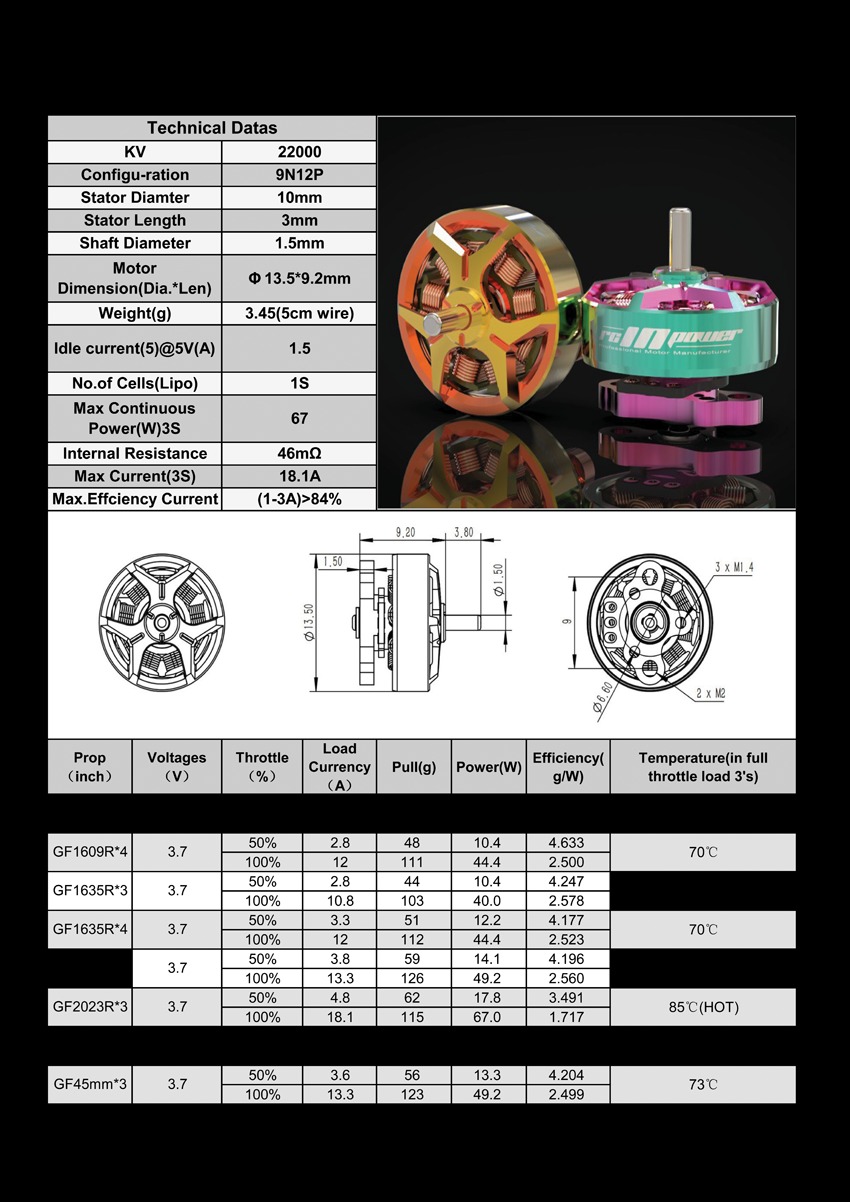

Specifications:

  • KV: 22000
  • Configuration : 9N12P
  • Stator diameter : 10mm
  • Stator Length : 3mm
  • Shaft diameter : 1.5mm
  • Dimensions : 13.5*9.2mm (dia)
  • Weight : 3.45g
  • Idle current(5)@5V : 1.5A
  • No.of cells (lipo) : 1S
  • Max continuous power 3S : 67W
  • Internal resistance : 46mΩ
  • Max current(3S) : 18.1A
  • Max efficiency current : (1-3A)>84%

INCLUDED

  • 1x GTS V3 1003 – 22000KV Brushless Motor
  • 1x Set of screws





Additional information

Brand

Motor Size

KV Rating

22000Kv

Colour

Shaft Size
