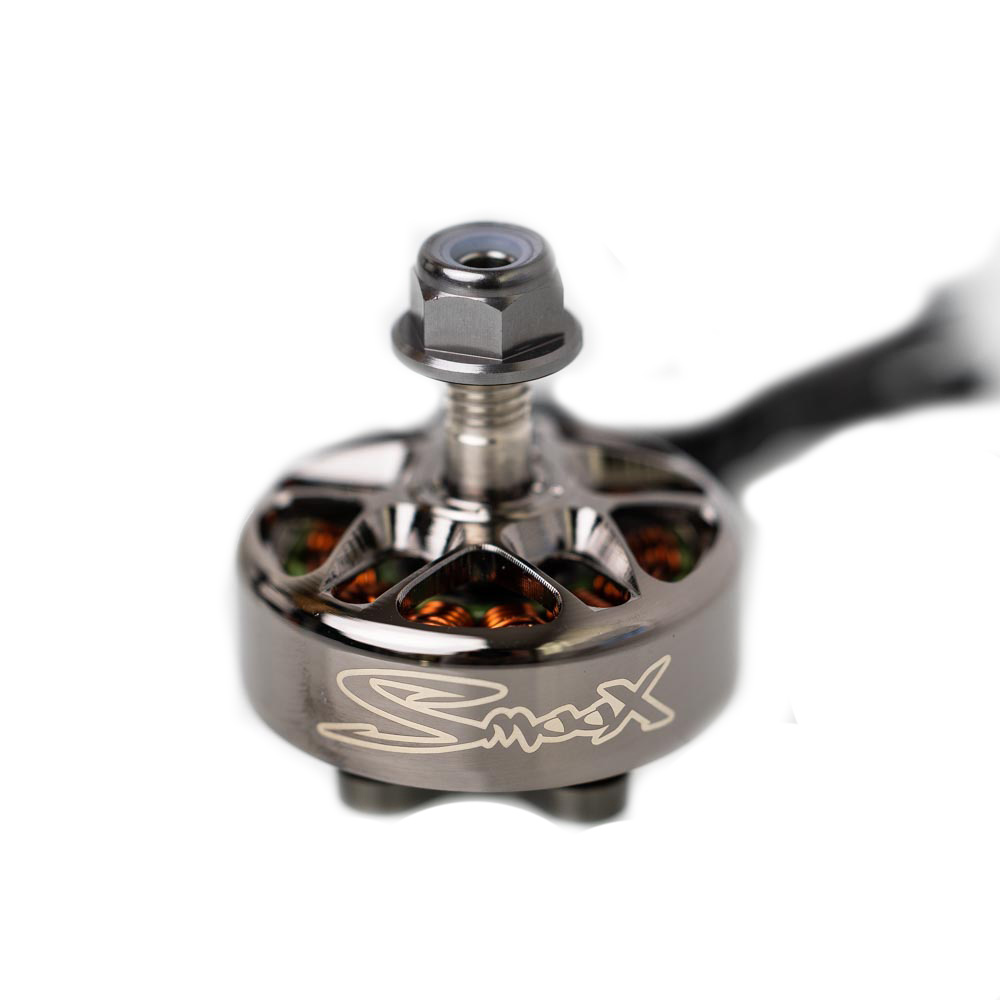

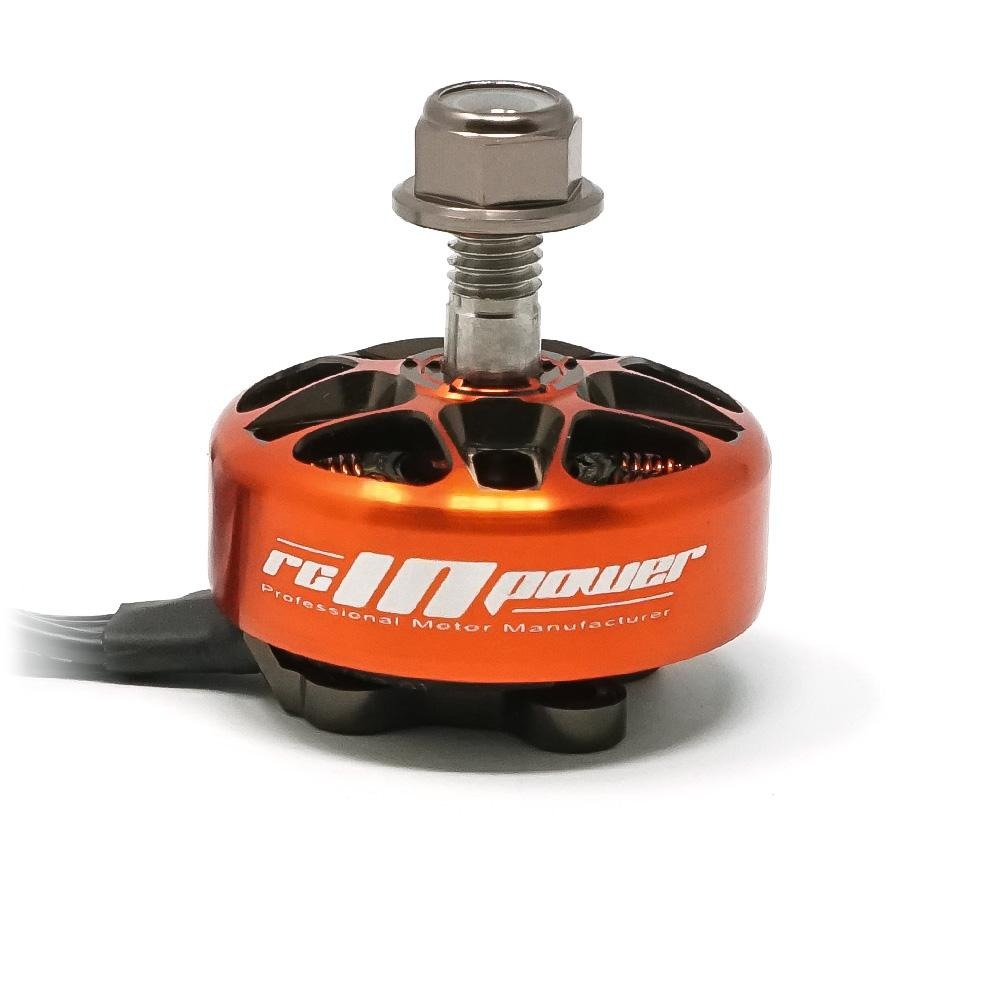

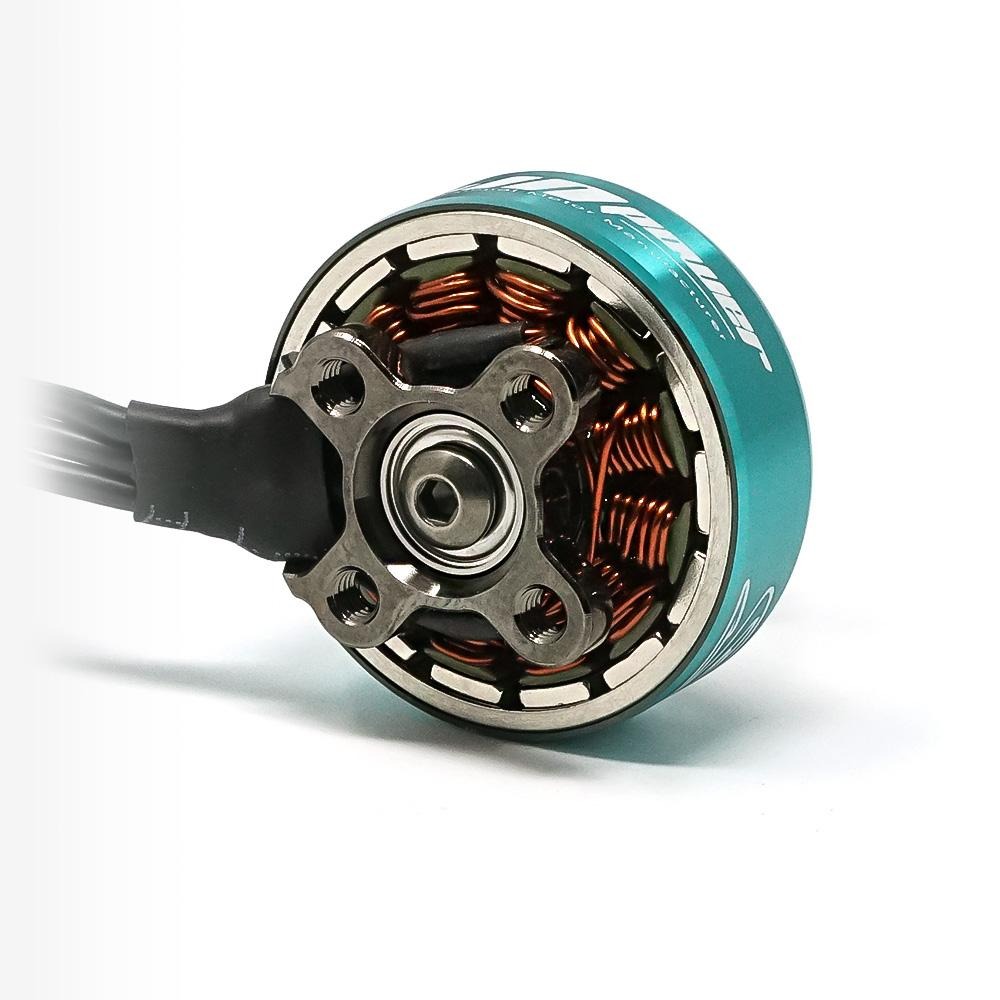

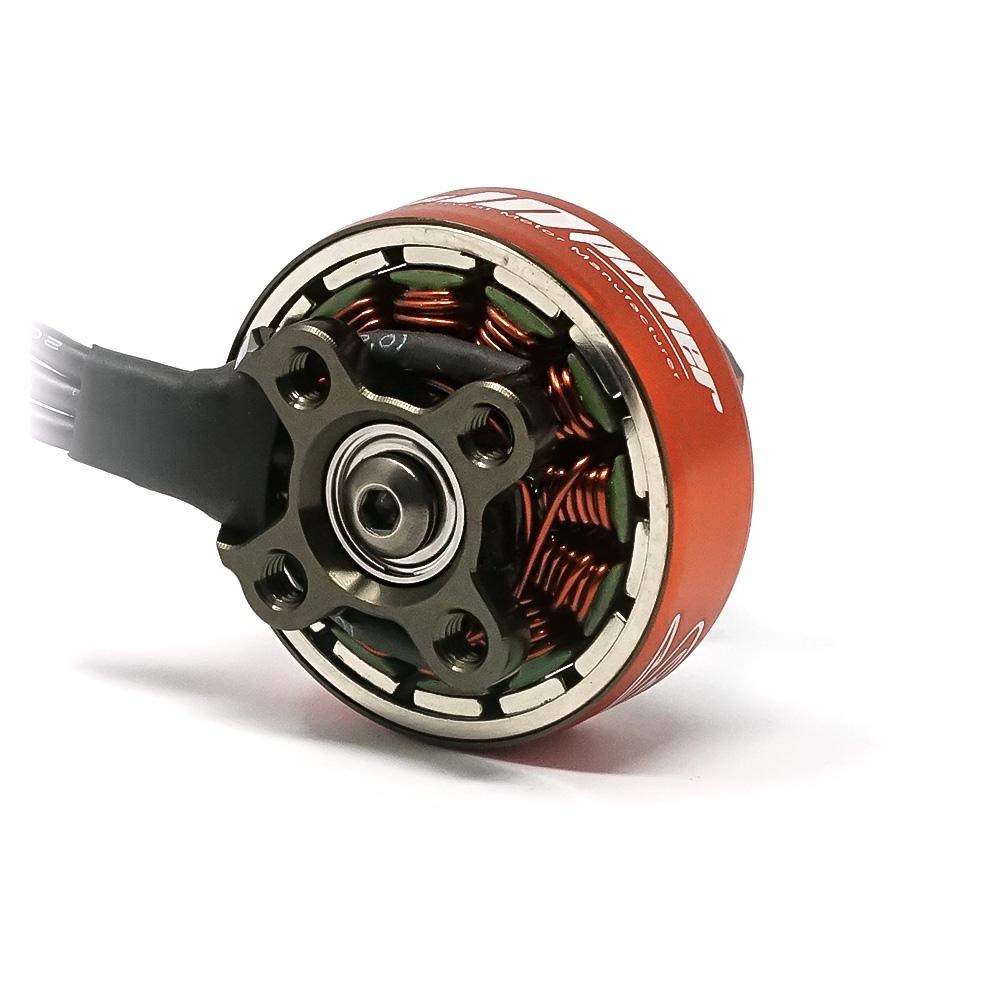

RCINPOWER SmooX 2306.5 FPV Motor (6 Options)

Description

These RCINPOWER 2306 plus motors (PLUS stands for 0.5mm so these motors are 2306.5 size) are available in 3 absolutely gorgeous colours as well as 1880Kv (for 6S) or 2580Kv (for 4S) to complete your perfect 5″ build!

Specifications:

Configuration: 12N14P

Stator Diameter: 23mm

Stator Length: 6.5mm

Shaft Diameter: 4mm ( Hollow)

Idle Current(10V): 1.35A @ 1880KV ; 1.95A @ 2280KV ; 2.3A@2580KV

Max. Con. Power (5S): 900W @ 1880KV; 850W @ 2280KV ; 1100W@2580KV

Internal Resistance: 49mΩ@ 1880KV ; 40mΩ @ 2280KV ; 30mΩ @2580KV

Max. Current(5s): 36A @ 1880KV ; 40A @2280KV ; 55A @ 2580KV
Cable Length: 15cm
Motor Dimension(Dia*Len):29×30.5mm
Weight: 33g ( 3cm wire)

Package includes:

1x SmooX 2306 Plus Motor
1x Motor Nut

Additional information

Brand	RCINPOWER
Motor Size	23XX
kV Rating	1880Kv, 2580Kv
Colour	Orange, Chrome, Teal
Shaft Size	5mm

2 reviews for RCINPOWER SmooX 2306.5 FPV Motor (6 Options)

Rated 5 out of 5

Shaun (verified owner) – June 17, 2023

loving these motors , they are very smooth
Rated 5 out of 5

Finn S. (verified owner) – July 16, 2023

Super nice quality and cant really beat them, on the expensive side but it makes up for that with amazing build quality.
