RunCam Phoenix 2 JB Edition 1000TVL CMOS Micro FPV Camera

by RunCam
4.81 out of 5
(16 customer reviews)
The Runcam Phoenix 2 Joshua Bardwell Edition is a micro FPV camera equipped with an M12 lens. It has a super clear 1000TVL image that displays excellently in daylight.

$59.99

Out of stock

SKU: 1536 Category:

Description

The Runcam Phoenix 2 Joshua Bardwell Edition is a micro FPV camera equipped with an M12 lens. It has a super clear 1000TVL image that displays excellently in daylight.

Features

  • Phoenix 2 JB updated with OSD control and refreshed.
  • Excellent Image Quality – especially in daylight
  • Integrated OSD Supports Voltage & Timer
  • PAL/NTSC & 4:3/16:9 Switchable
  • Supports Image Mirror & Flip
  • Uart or Remote Control Switchable

Specifications

  • Image Sensor: 1/2″ CMOS Sensor
  • Horizontal Resolution: 1000TVL
  • Aspect Ratio: 4:3 / 16:9
  • Signal System: PAL / NTSC
  • Lens Size: M12
  • Focal Length: 2.1mm
  • Field of View: 155°
  • WDR: Global WDR
  • Minimum Latency: “Similar to Eagle”
  • Minimum Illumination: 0.01Lux @ 1.2F
  • Menu Control: Cable Control
  • Signal to Noise Ratio: >50dB (AGC OFF)
  • Electronic Shutter Speed Auto
  • Input Voltage: 5-36V
  • Current Draw: 200mA@5V 85mA@12V
  • Housing Material: ABS

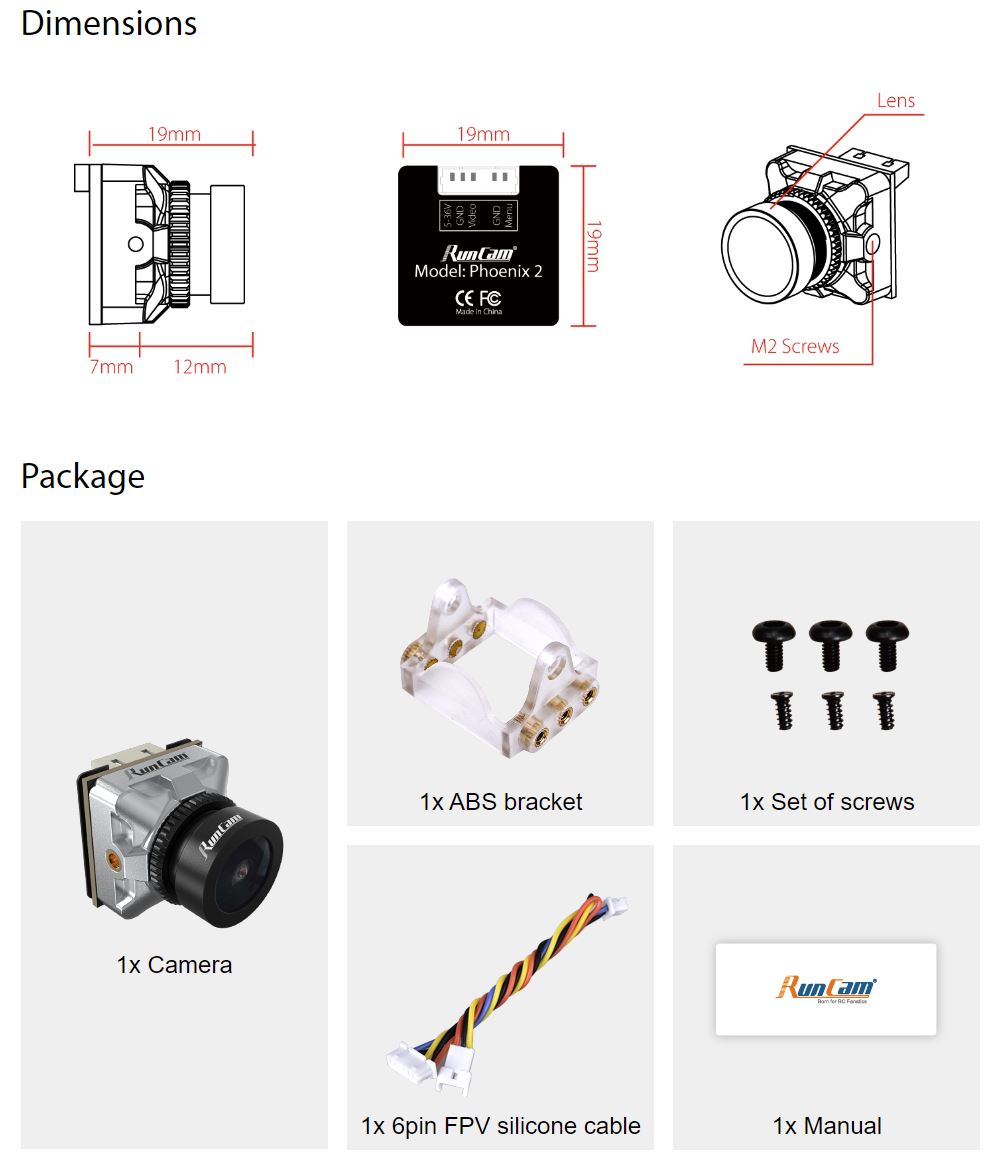

  • Dimensions: 19x19x19mm (Micro)
  • Weight: 9g

  PLEASE NOTE THE ABS BRACKET IS NO LONGER INCLUDED.

Note: Reviews in this listing cover Phoenix 1, Phoenix 2, and the 2022 refresh Phoenix 2 JB.



Additional information

Brand

Camera Resolution

Camera Size

16 reviews for RunCam Phoenix 2 JB Edition 1000TVL CMOS Micro FPV Camera

  1. 5 out of 5

    jasonodonnell (verified owner) –

    Replacement from a runcam Eagle 2 pro. Similar camera but just nicer overall. Not the fastest, but can take on a “almost” HD quality on a sunny clear day. This is the second one I have brought.

  2. 5 out of 5

    Andrew M. (verified owner) –

    Good image, cheap camera

  3. 5 out of 5

    Harrison Taylor (verified owner) –

    Incredible cam for the price, had a phoenix 2 before this and decided to keep it pretty similar but the adjustments to colour, sharpness, dynamic range and the larger sensor make this one my go to from here on out. Having the cam control for my goggles and for it to include lots of accessories (cables, full size mounting cage, etc) just adds to the complete package that this cam brings.

  4. 5 out of 5

    Taylor Rooney (verified owner) –

    Such a huge upgrade from my old TVL. Wish I had’ve bought one sooner.

  5. 5 out of 5

    Josh C. (verified owner) –

  6. 5 out of 5

    Vaughan Mccann (verified owner) –

    Still one of the best analog cams

  7. 5 out of 5

    Anonymous (verified owner) –

    Came in 2 days and exactly as photographed. Very happy customer

  8. 4 out of 5

    Anonymous (verified owner) –

    Best analogue image I’ve seen but they don’t come with a remote so if you need to change any of the settings your only option is to connect via UART.
