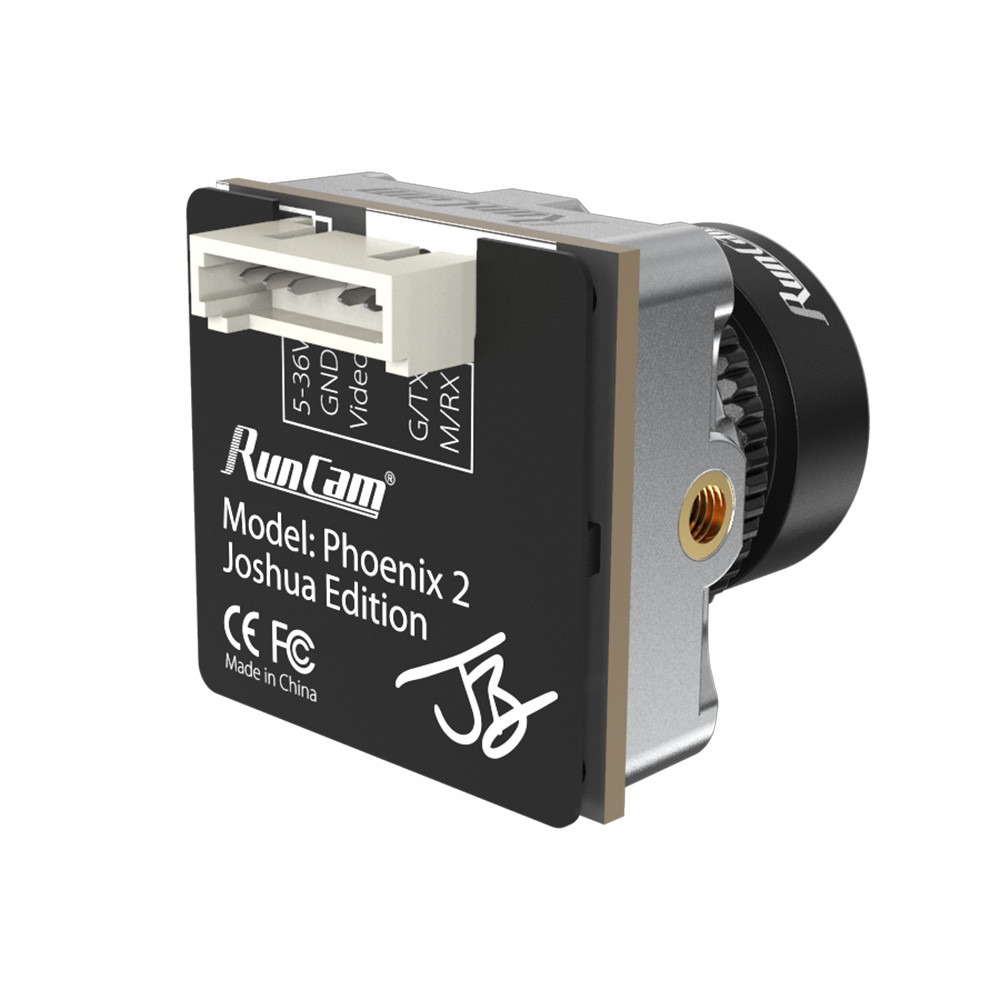

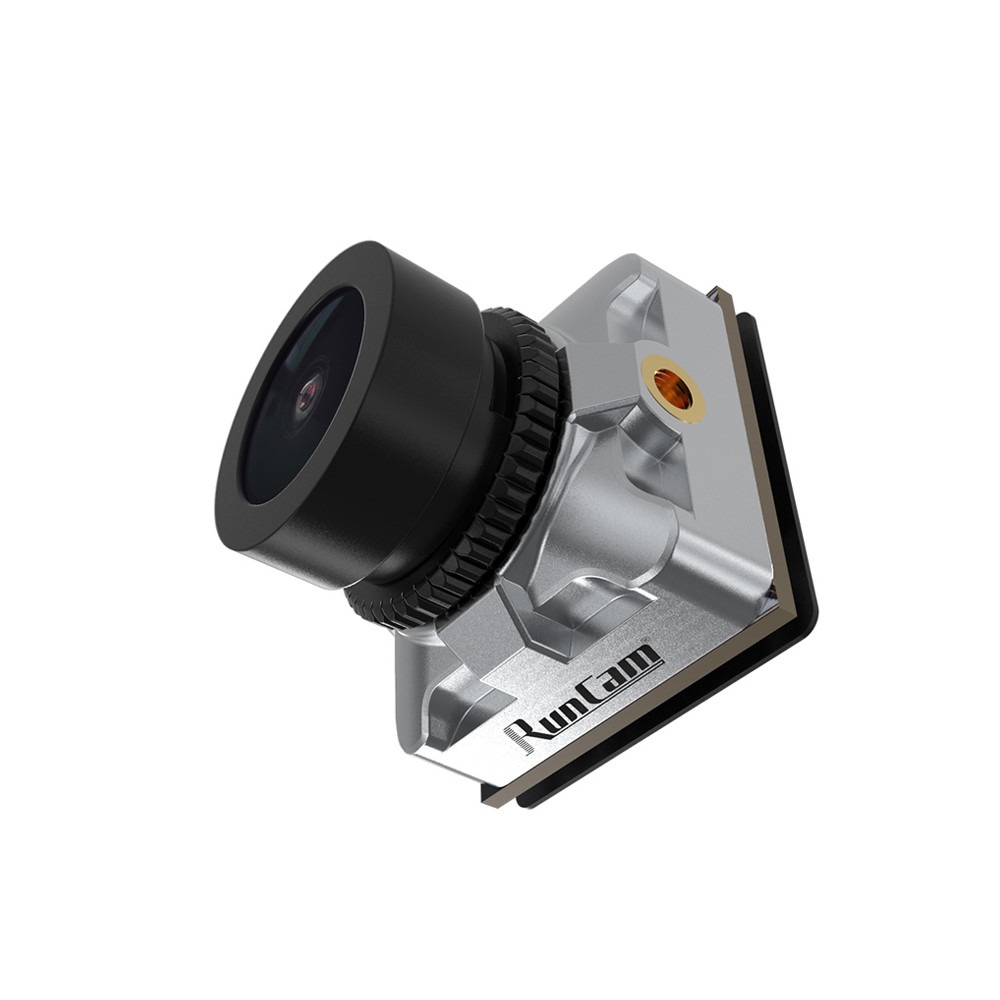

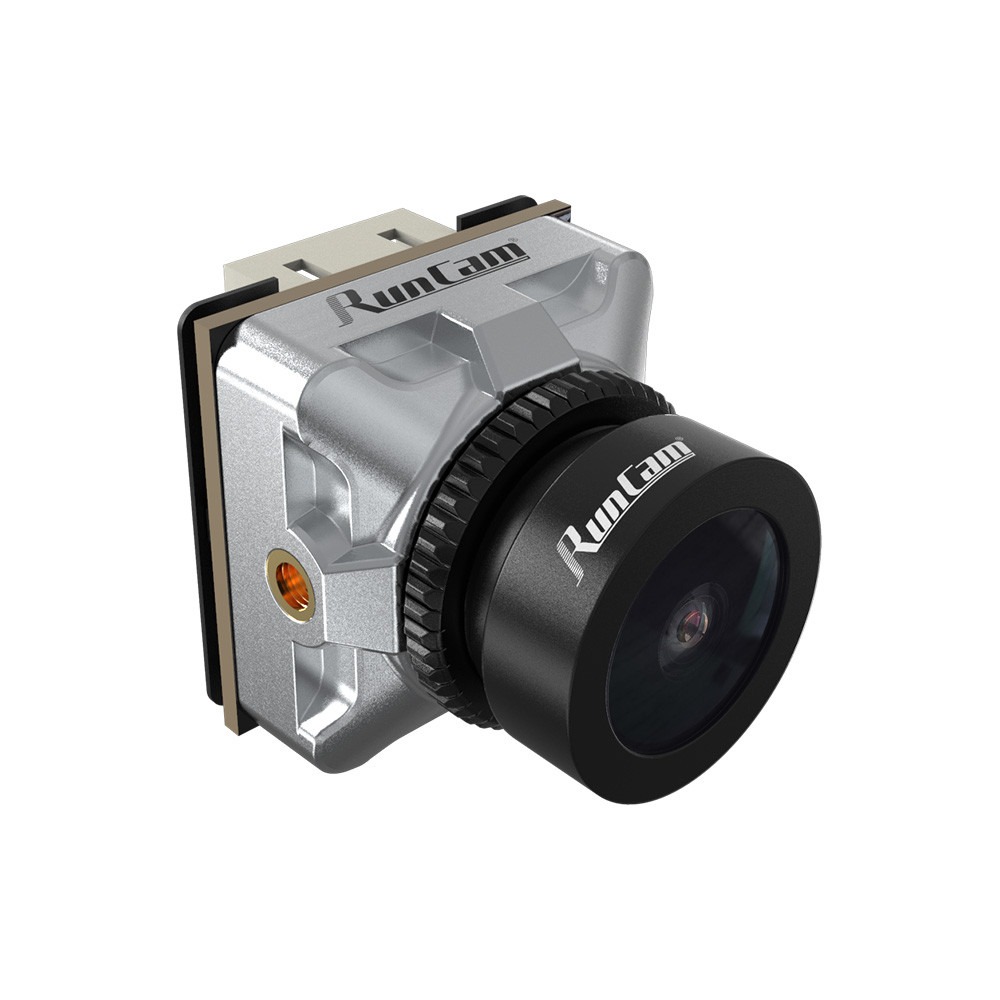

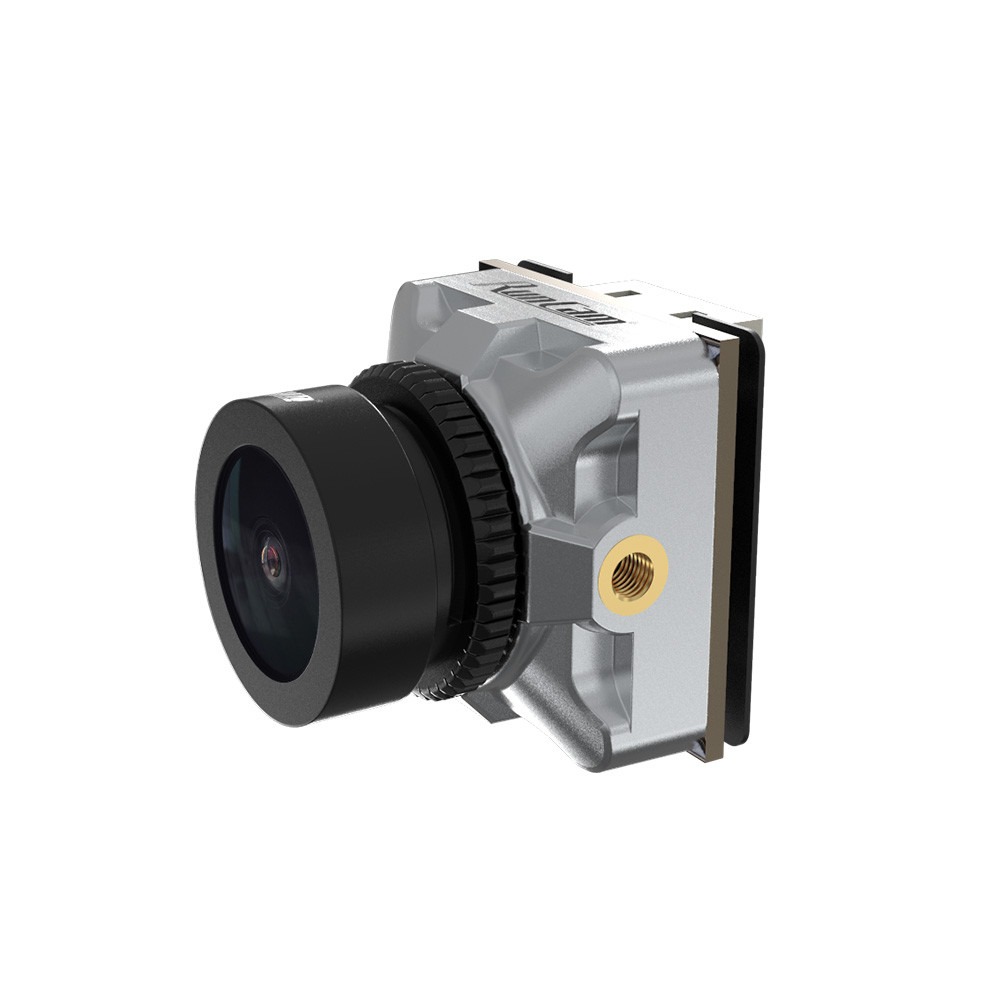

RunCam Phoenix 2 JB Edition 1000TVL CMOS Micro FPV Camera

Description

The Runcam Phoenix 2 Joshua Bardwell Edition is a micro FPV camera equipped with an M12 lens. It has a super clear 1000TVL image that displays excellently in daylight.

Features

Phoenix 2 JB updated with OSD control and refreshed.
Excellent Image Quality – especially in daylight
Integrated OSD Supports Voltage & Timer
PAL/NTSC & 4:3/16:9 Switchable
Supports Image Mirror & Flip
Uart or Remote Control Switchable

Specifications

Image Sensor: 1/2″ CMOS Sensor
Horizontal Resolution: 1000TVL
Aspect Ratio: 4:3 / 16:9
Signal System: PAL / NTSC
Lens Size: M12
Focal Length: 2.1mm
Field of View: 155°
WDR: Global WDR
Minimum Latency: “Similar to Eagle”
Minimum Illumination: 0.01Lux @ 1.2F
Menu Control: Cable Control
Signal to Noise Ratio: >50dB (AGC OFF)
Electronic Shutter Speed Auto
Input Voltage: 5-36V
Current Draw: 200mA@5V 85mA@12V
Housing Material: ABS
Dimensions: 19x19x19mm (Micro)
Weight: 9g

PLEASE NOTE THE ABS BRACKET IS NO LONGER INCLUDED.

Note: Reviews in this listing cover Phoenix 1, Phoenix 2, and the 2022 refresh Phoenix 2 JB.
