Description

The RunCam Phoenix 2 Pro delivers stunning ultra-sharp 1500TVL clarity powered by its 1/2.8″ Starlight CMOS sensor, giving pilots extraordinary visibility in both day and low-light environments. This upgraded camera provides cinematic color, advanced WDR performance, and rock-solid reliability, ensuring every flight is captured with unmatched precision, smoothness, and dynamic detail for FPV pilots who demand superior image quality.

Features

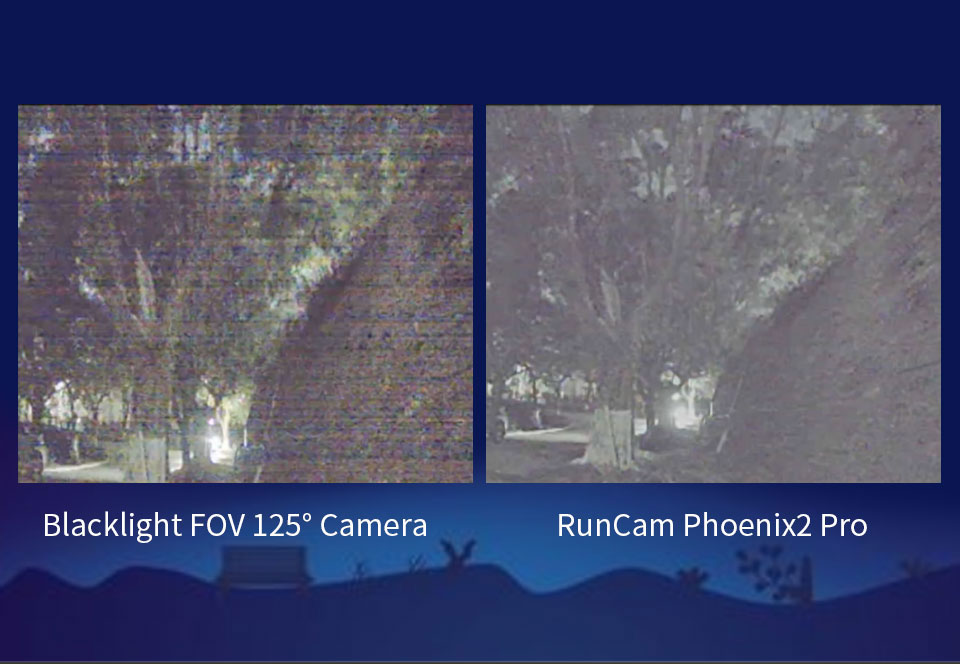

• 1/2.8″ Starlight CMOS sensor for excellent low-light clarity
• Ultra-sharp 1500TVL image resolution
• Dual FOV lens options for flexible viewing angles
• Supports both 4:3 and 16:9 screen formats
• Global WDR for enhanced dynamic range
• Mirror/Flip function available
• Day/Night auto switching: Color/BW
• Cable menu control for easy adjustments
• Ultra-lightweight 7.5g design
• Durable ABS housing ideal for FPV builds

Specifications

• Model: RunCam Phoenix 2 Pro

• Image Sensor: 1/2.8″ Starlight CMOS

• Resolution: 1500TVL

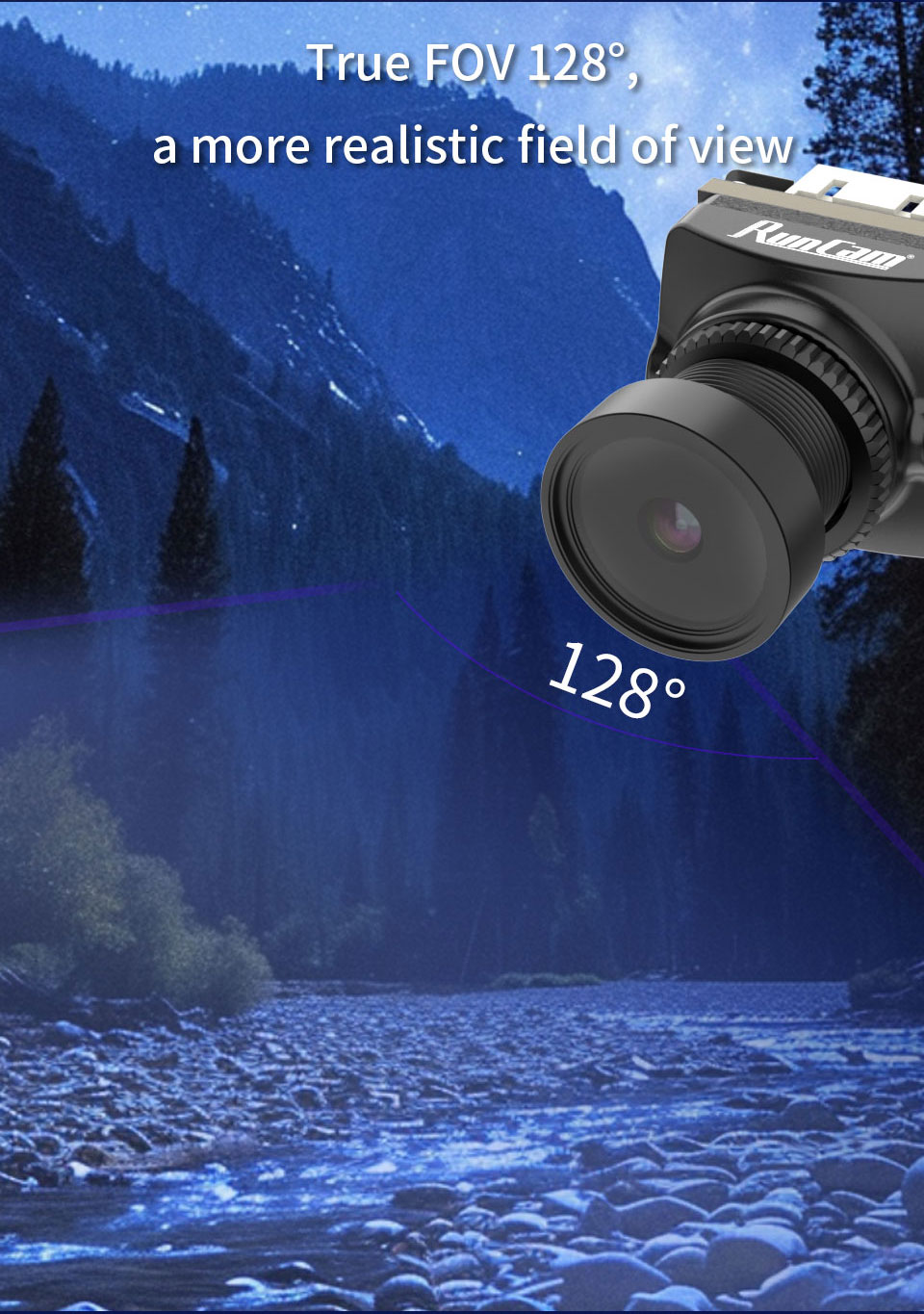

• Lens FOV Options:

  • D:128°, H:97°, V:72°

  • D:112°, H:97°, V:54°

• Screen Format: 4:3 / 16:9

• Mirror/Flip: Supported

• Signal System: NTSC/PAL

• Shutter: Rolling Shutter

• Sensitivity: 15000mV/Lux•sec

• WDR: Global WDR

• Day/Night Mode: Color/BW

• Menu Control: Cable Control

• Power Input: DC 5–36V

• Current: 220mA@5V / 120mA@12V

• Housing Material: ABS

• Weight: 7.5g

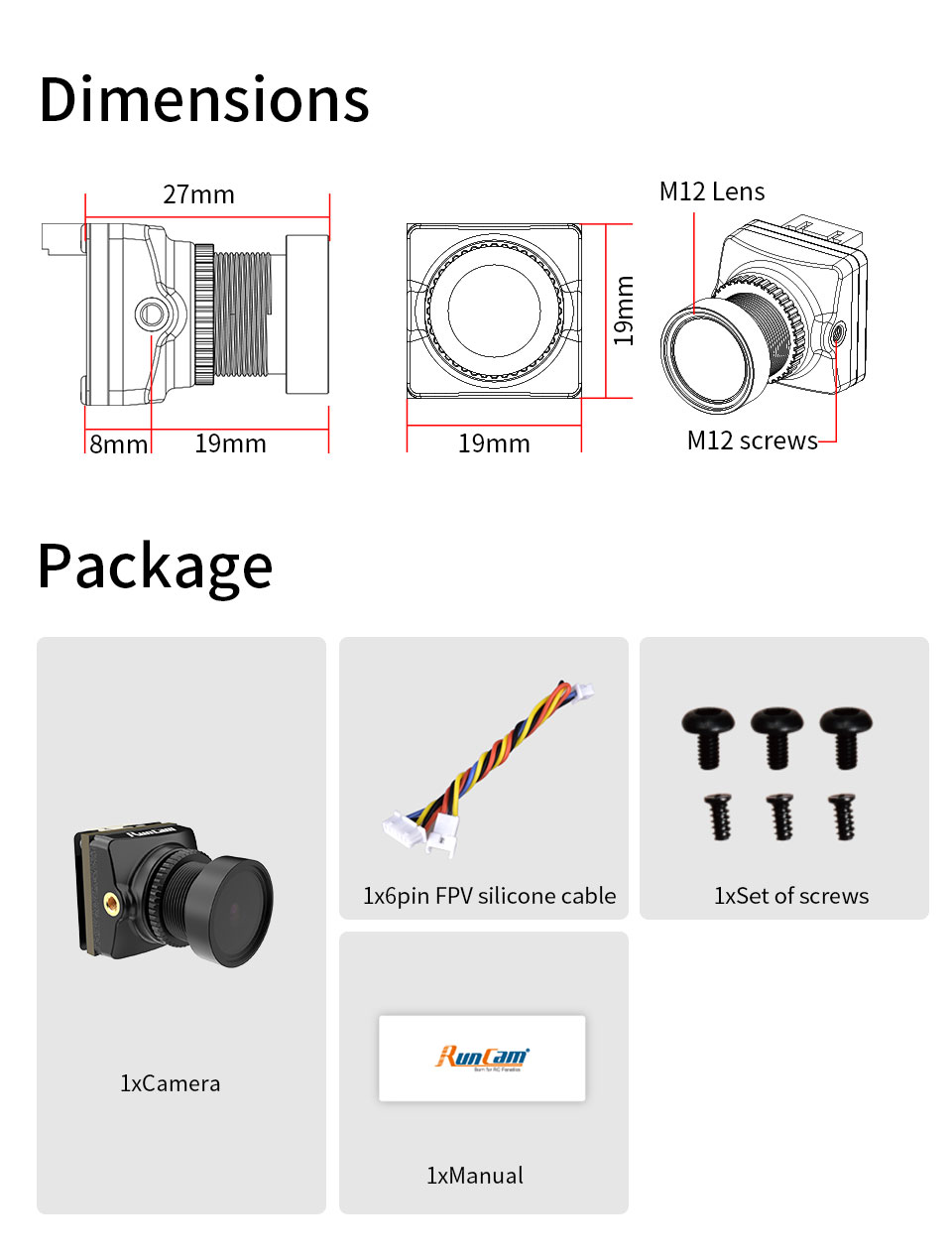

• Dimensions: 19 × 19 × 27 mm

Package Includes

• 1 x RunCam Phoenix 2 Pro
