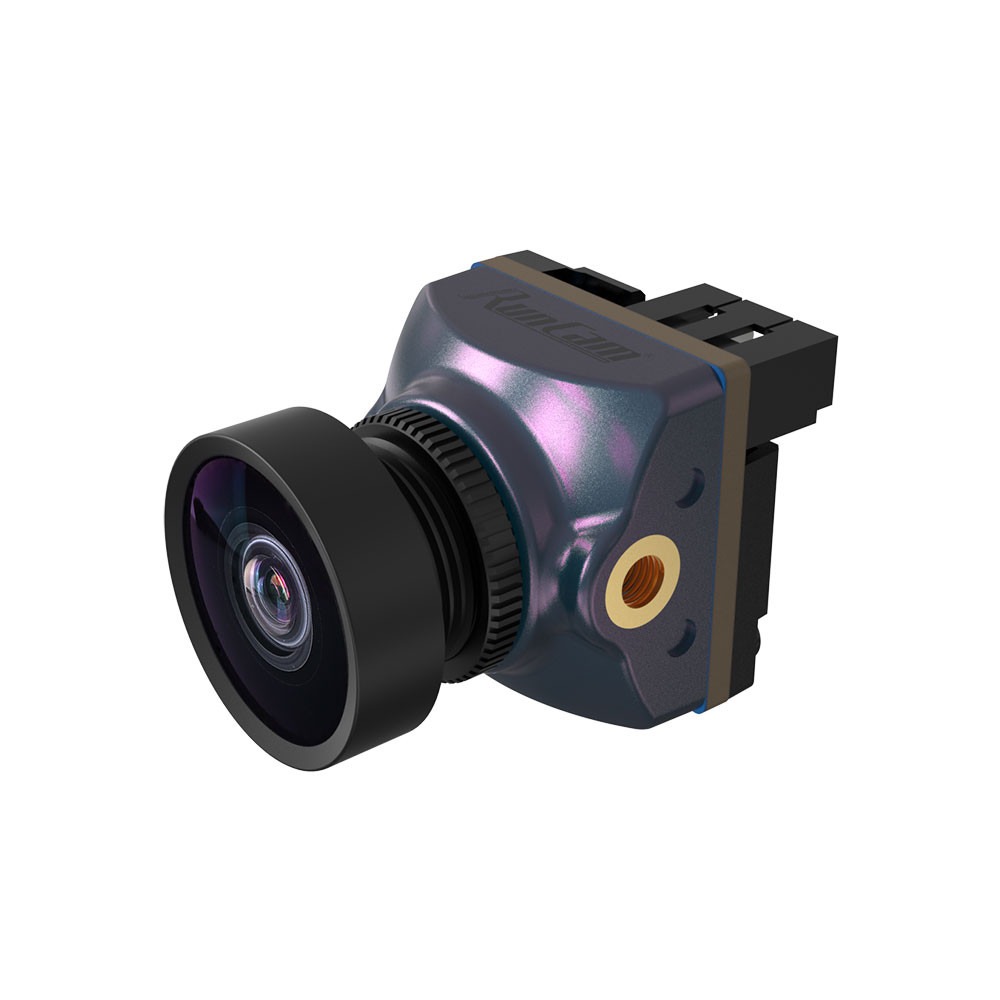

RunCam Racer Nano 4 1200TVL FPV Camera

Description

Features

• With a waterproof design and a professional LED lighting track mode, the Racer Nano 4 is the ultimate all-weather racing camera for FPV.
• Designed specifically for rainy conditions, it features a sealed, dustproof and waterproof shell, with a built-in mode for getting you the clearest images even on LED-heavy tracks.
• With its low distortion lens, you get a vertical angle of up to 97°, offering a broader and more adaptable field of view.
• The added rear cover effectively prevents short circuits and also provides collision protection for the internal components, enhancing durability.

Specifications

• Product Name RunCam Racer Nano 4
• Image Sensor Super WDR CMOS Sensor
• Horizontal Resolution 1200TVL
• LENS FOV D:160° H:125° V:97°
• Screen Format 4:3 / Widescreen Switchable
• Mirror/Flip Available
• Signal System NTSC/PAL
• Shutter Rolling Shutter
• WDR Super WDR
• Day/Night Color

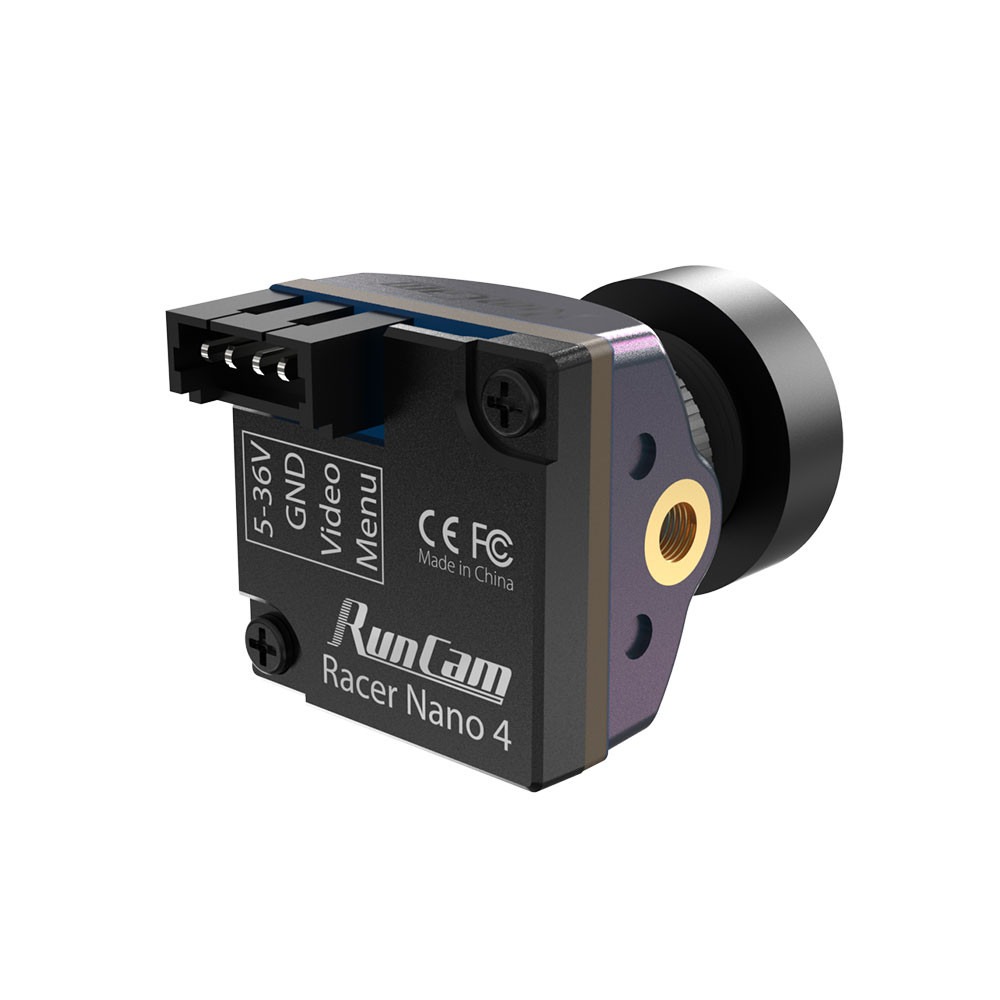

• Menu Control Cable Control
• Power DC 5-36V
• Current
• 120mA@5V 70mA@12V
• Housing Material ABS
• Net Weight 4.5g
• Dimensions 14mm*14mm*20mm

Manual: Racer Nano4 Manual_EN
