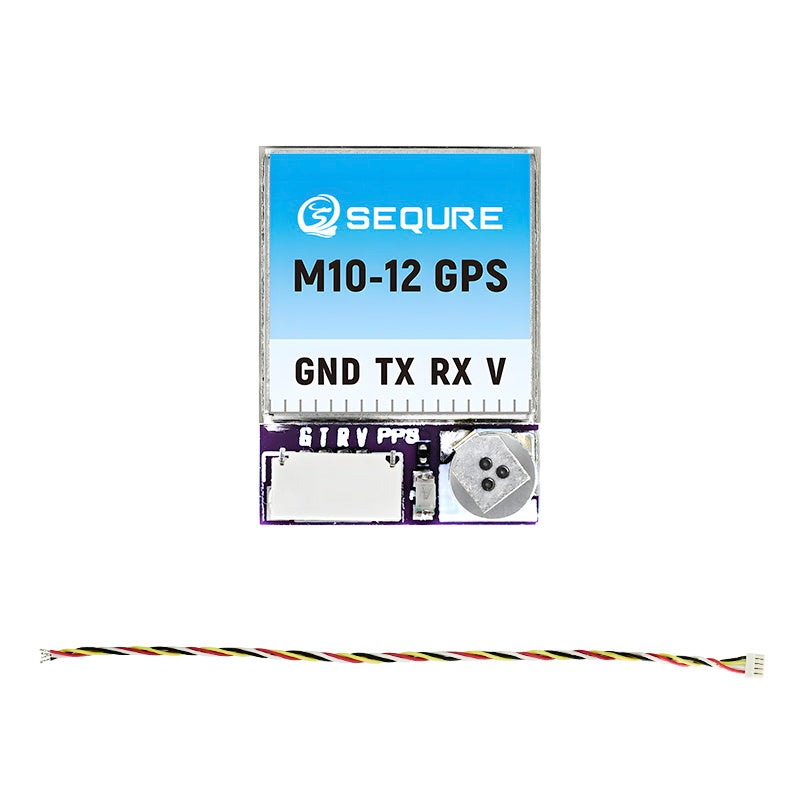

Sequre M10-12 Nano GPS 12mm

Description

The Sequre M10-12 Nano GPS 12mm offers exceptional satellite reception through its high-quality ceramic antenna and 10th-gen chip design. With 10Hz output frequency, low power consumption, and precision positioning, this lightweight GPS ensures reliable performance for drones of all sizes. Its versatile design supports both direct plug-in and soldering pad connections, making installation effortless. Designed to withstand extreme temperatures, the M10-12 Nano GPS guarantees uncompromising accuracy and compatibility across GPS, GLONASS, BDS, and Galileo systems.

Features:

• Adopts 10th generation chip to design the u-blox output protocol and 10Hz output frequency, lower power consumption, and fast positioning.
• High-quality ceramic antenna with strong performance and effective reception of satellite signals.
• M10-25Q integrates QMC5883L compass for a wider range of applications
• Miniaturized and multi-specification design, easy to install, suitable for the installation of drones of various sizes on the market.
• Supports two connection methods: direct plug-in and soldering pad, with strong compatibility.

Specifications:

• Model: M10-12 GPS
• Chip: M10
• Frequency: GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1
• Power supply: 5V
• Size: 12*16*4.5mm
• Weight: 2.3g
• Interface: SH0.8-4P connector,PCB pad
• Antenna: Ceramic Antenna
• Receiving channels: 72 search channels
• Baud rate: 115200
• Output protocol: UBLOX
• Compass: /
• Output frequency: 1Hz-10Hz，default 10Hz
• Speed accuracy: 0.05m/s
• Horizontal positioning accuracy: 2D ACC1.5m（open-air）
• Receive sensitivity: Trace-162dBm，capture-160dBm
• Working temperature: -40℃ ～ + 85℃
• Storage temperature: -40℃ ～ + 105℃

Dimensions:

Package Included:

• 1 x GPS
• 1 x Cable
