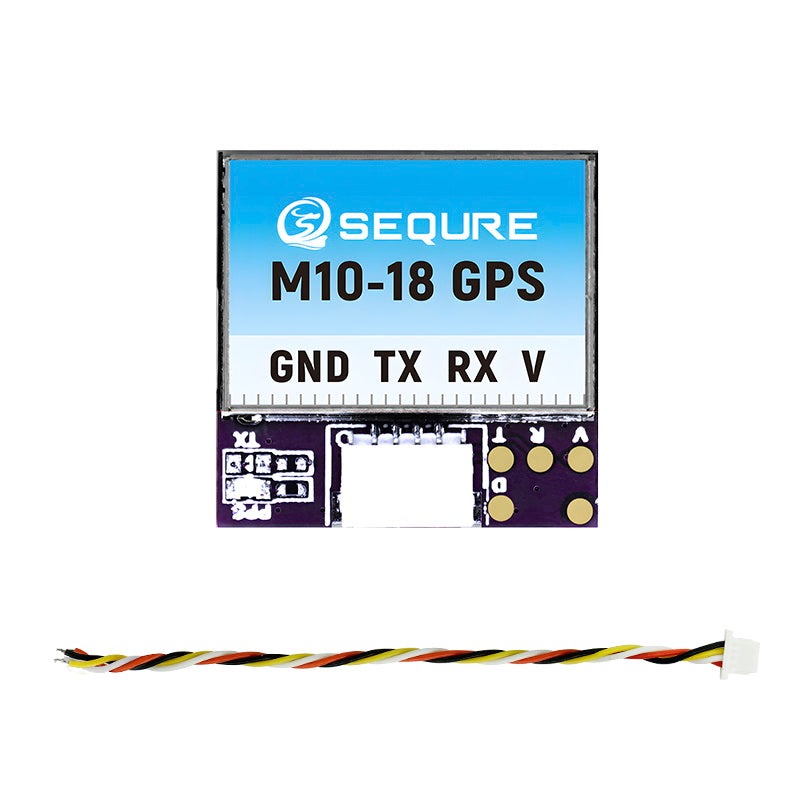

Sequre M10-18 Micro GPS 18mm

Description

The Sequre M10-18 Micro GPS 18mm offers precise navigation with its advanced 10th-generation chip, delivering fast positioning, low power consumption, and a 10Hz output frequency. Equipped with a high-performance ceramic antenna, it ensures reliable satellite reception, while its compact, easy-to-install design fits drones of all sizes. With dual connection options—direct plug-in and soldering pad—it provides seamless compatibility, making it the perfect GPS solution for professional UAV applications.

Features:

• Adopts 10th generation chip to design the u-blox output protocol and 10Hz output frequency, lower power consumption, and fast positioning.
• High-quality ceramic antenna with strong performance and effective reception of satellite signals.
• M10-25Q integrates QMC5883L compass for a wider range of applications
• Miniaturized and multi-specification design, easy to install, suitable for the installation of drones of various sizes on the market.
• Supports two connection methods: direct plug-in and soldering pad, with strong compatibility.

Specifications:

• Model: M10-18 GPS
• Chip: M10
• Frequency: GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1
• Power supply: 5V
• Size: 18*18*8mm
• Weight: 7.2g
• Interface: SH1.0-4P connector,PCB pad
• Antenna: Ceramic Antenna
• Receiving channels: 72 search channels
• Baud rate: 115200
• Output protocol: UBLOX
• Compass: /
• Output frequency: 1Hz-10Hz，default 10Hz
• Speed accuracy: 0.05m/s
• Horizontal positioning accuracy: 2D ACC1.5m（open-air）
• Receive sensitivity: Trace-162dBm，capture-160dBm
• Working temperature: -40℃ ～ + 85℃
• Storage temperature: -40℃ ～ + 105℃

Dimensions:

Package Included:

• 1 x GPS
• 1 x Cable

Related Products:

• M10-12: Sequre M10-12 Nano GPS 12mm
• M10-25Q: Sequre M10-25Q GPS 25mm
