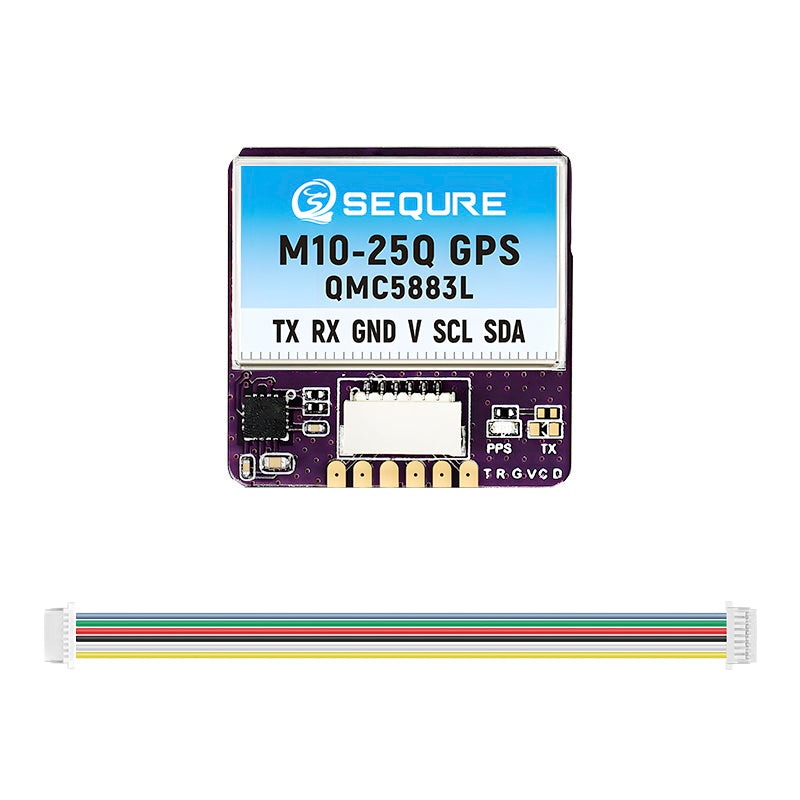

Sequre M10-25Q GPS 25mm

Description

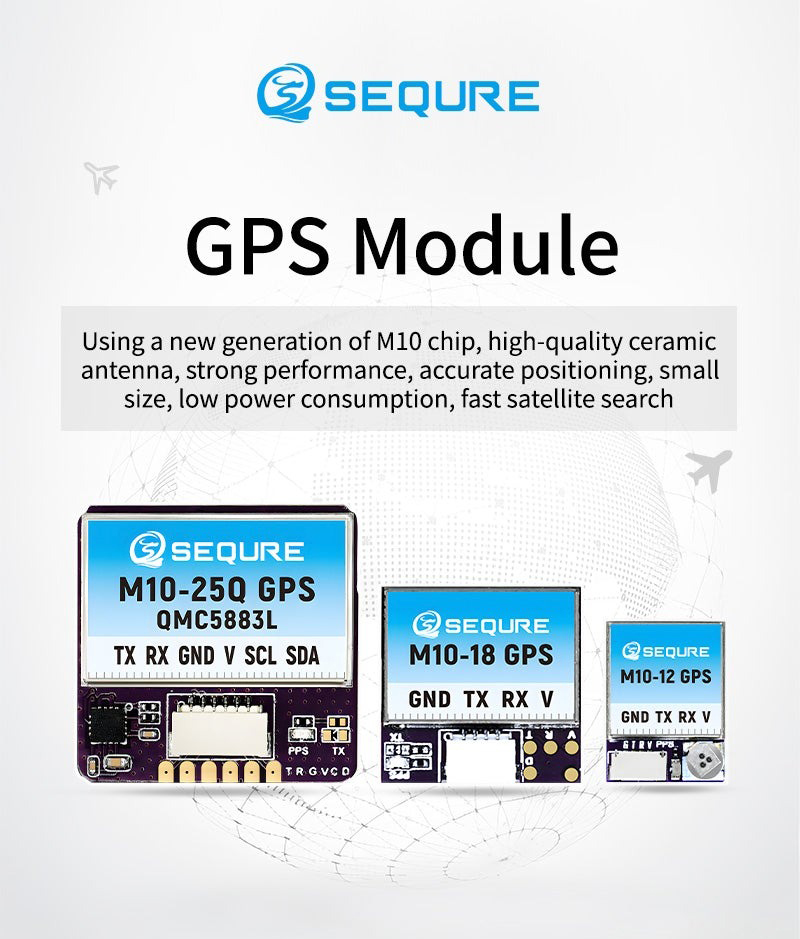

The Sequre M10-25Q GPS 25mm offers lightning-fast positioning with a 10th-generation chip and 10Hz output frequency. Designed with a high-performance ceramic antenna and integrated QMC5883L compass, it ensures precise signal reception and versatility for drones of all sizes. With dual connection options—plug-in or soldering—it’s highly compatible and easy to install. Enjoy lower power consumption, stable performance, and seamless multi-satellite reception from GPS, GLONASS, BDS, and more, all in a compact 12.2g package.

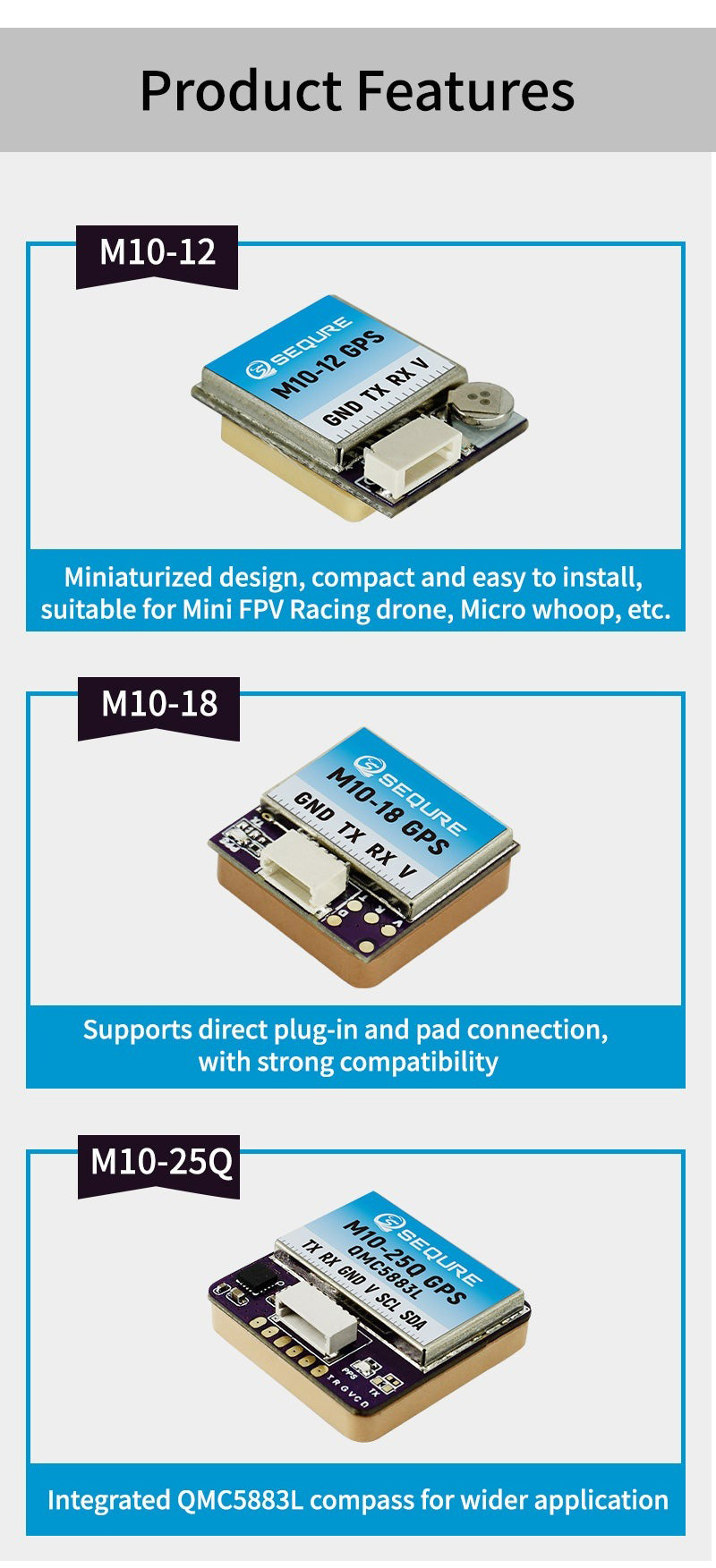

Features:

• Adopts 10th generation chip to design the u-blox output protocol and 10Hz output frequency, lower power consumption, and fast positioning.

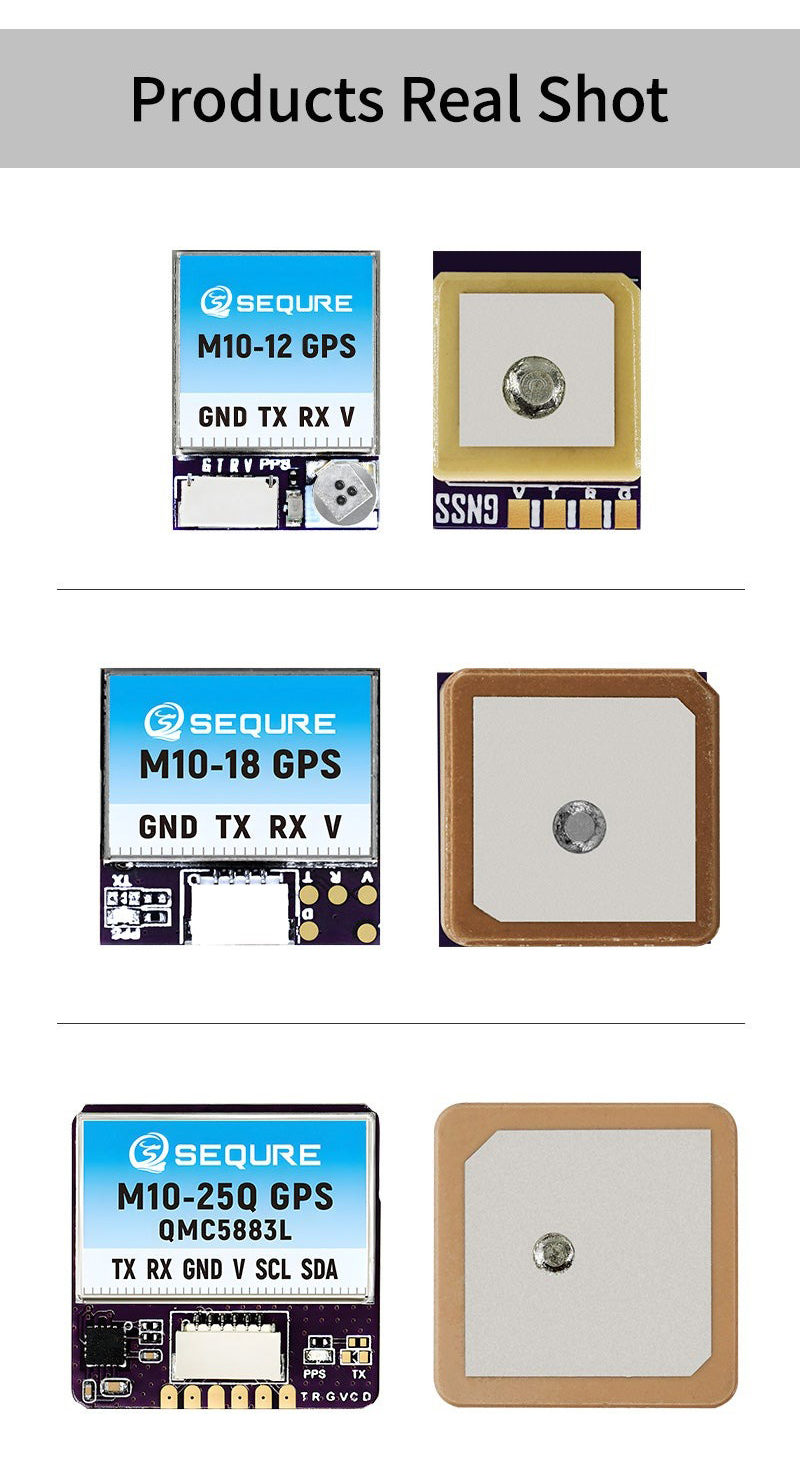

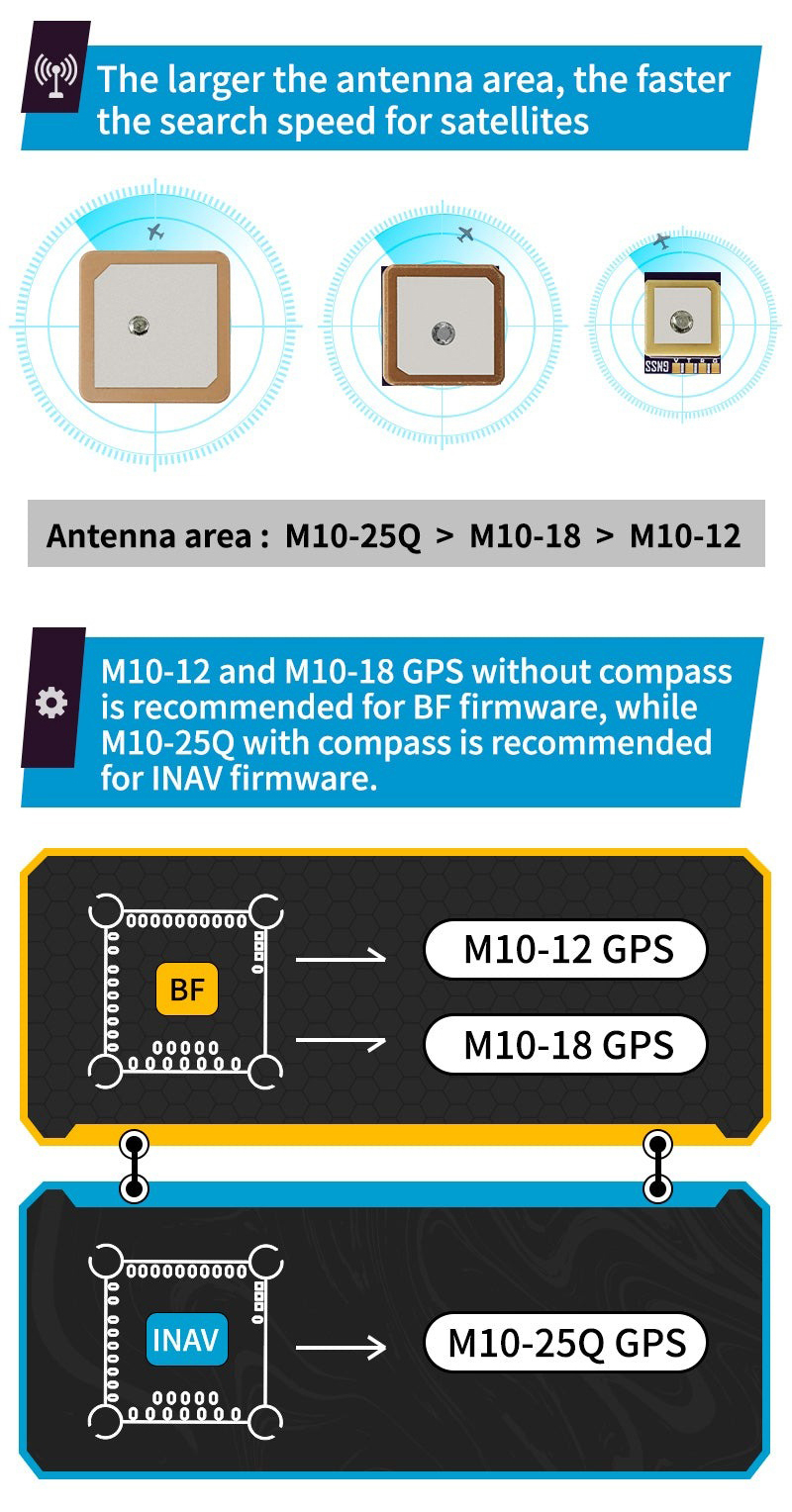

• High-quality ceramic antenna with strong performance and effective reception of satellite signals.
• M10-25Q integrates QMC5883L compass for a wider range of applications
• Miniaturized and multi-specification design, easy to install, suitable for the installation of drones of various sizes on the market.

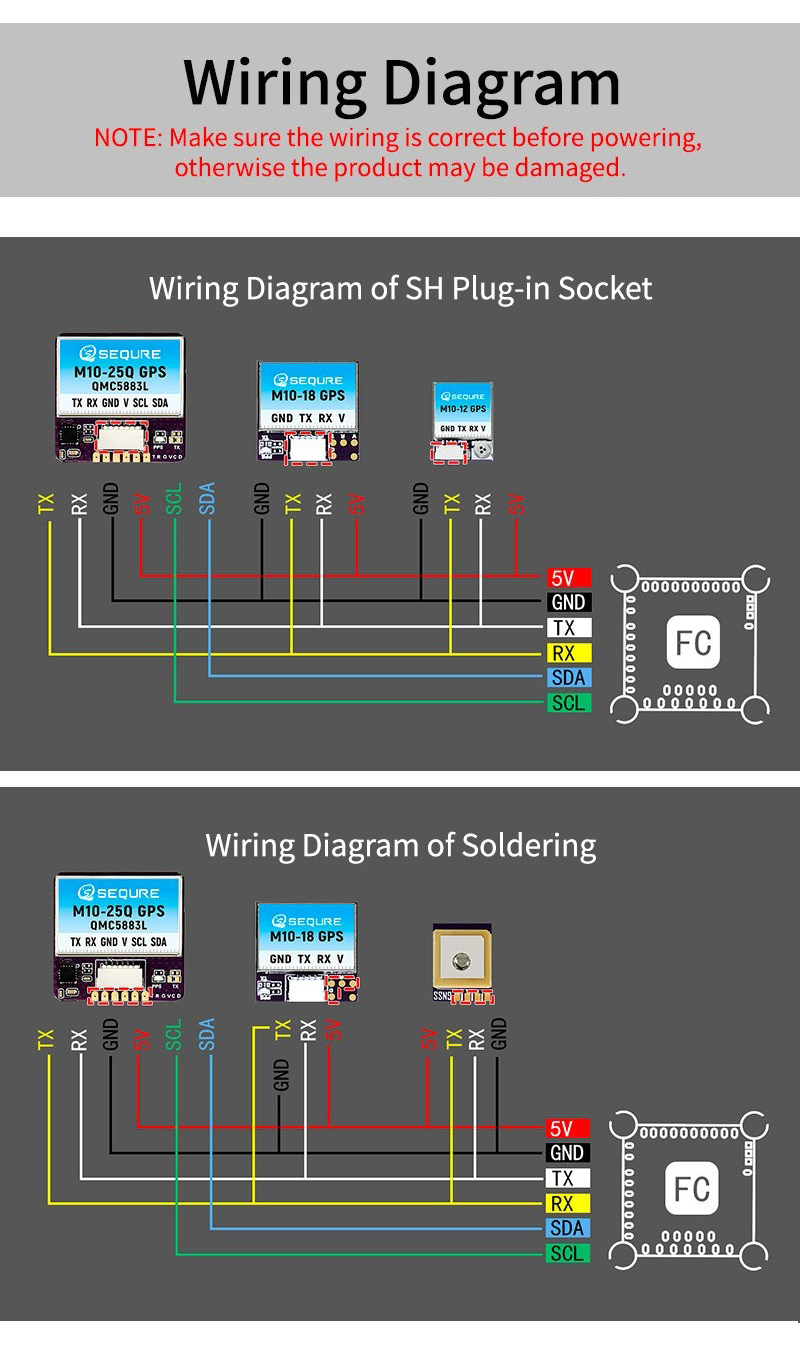

• Supports two connection methods: direct plug-in and soldering pad, with strong compatibility.

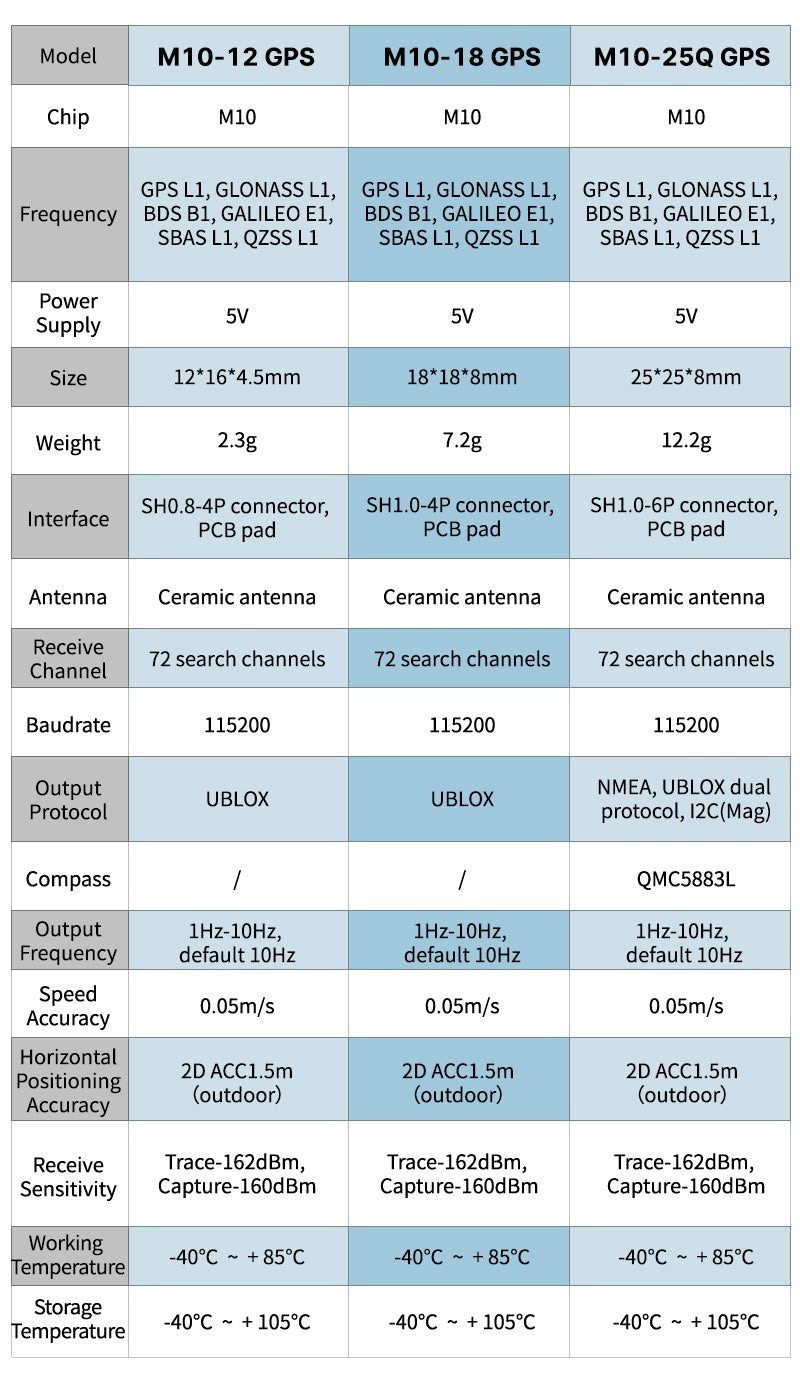

Specifications:

• Model: M10-25Q GPS
• Chip: M10
• Frequency: GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1
• Power supply: 5V
• Size: 25*25*8mm
• Weight: 12.2g
• Interface: SH1.0-6P connector, PCB pad
• Antenna: Ceramic Antenna
• Receiving channels: 72 search channels
• Baud rate: 115200
• Output protocol: NMEA、UBLOX dual protocol,
  I2C(Mag)
• Compass: QMC5883L
• Output frequency: 1Hz-10Hz，default 10Hz
• Speed accuracy: 0.05m/s
• Horizontal positioning accuracy: 2D ACC1.5m（open-air）
• Receive sensitivity: Trace-162dBm，capture-160dBm
• Working temperature: -40℃ ～ + 85℃
• Storage temperature: -40℃ ～ + 105℃

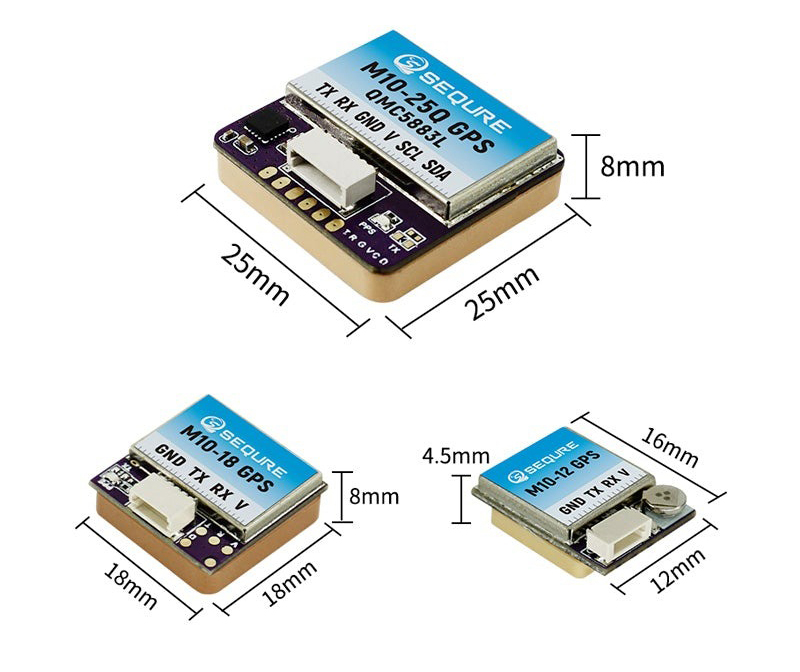

Dimensions:

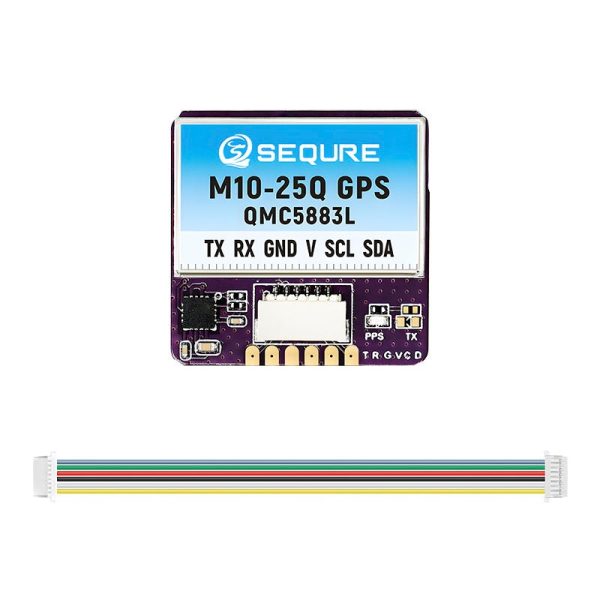

Package Included:

• 1 x GPS
• 1 x Cable

Related Products:

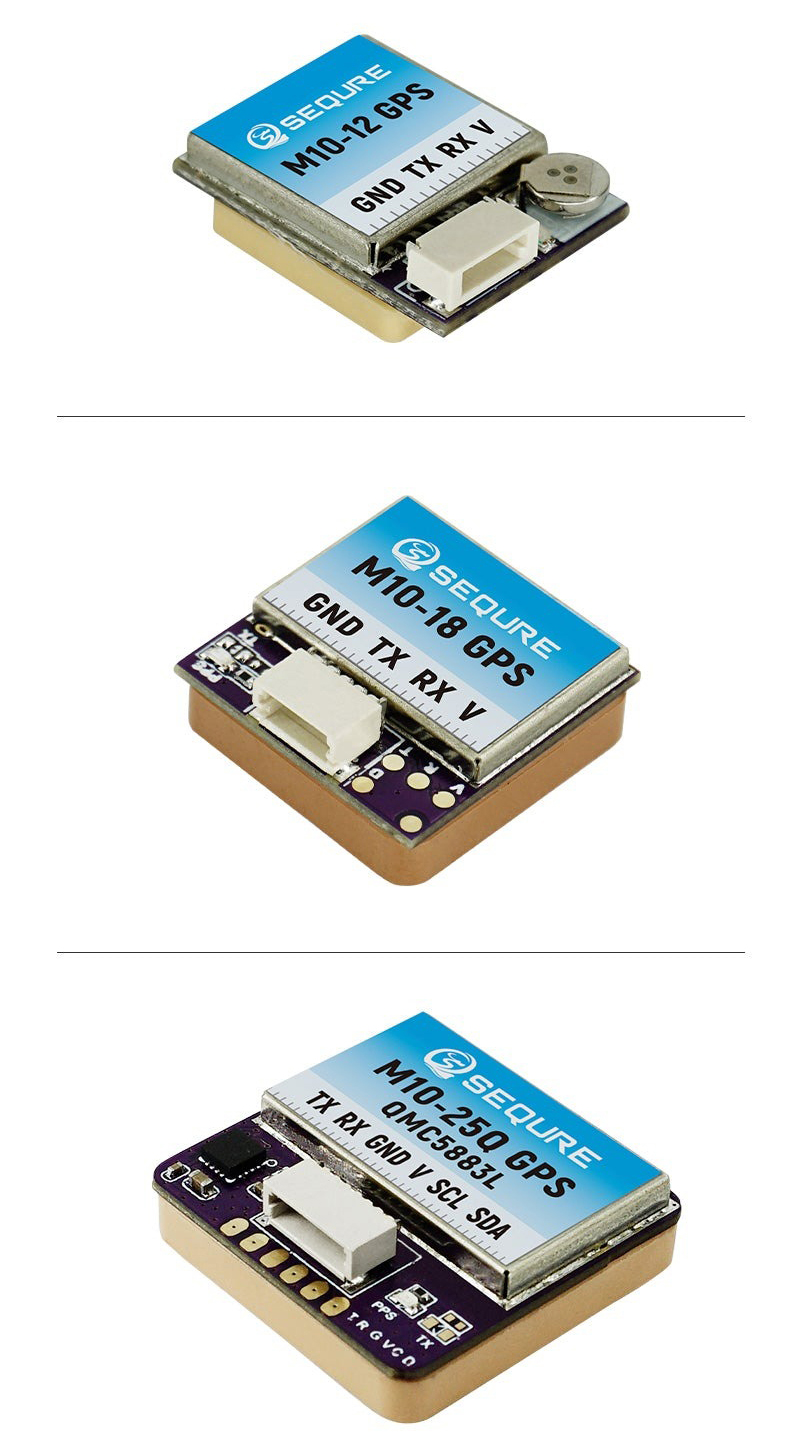

• M10-12: Sequre M10-12 Nano GPS 12mm
