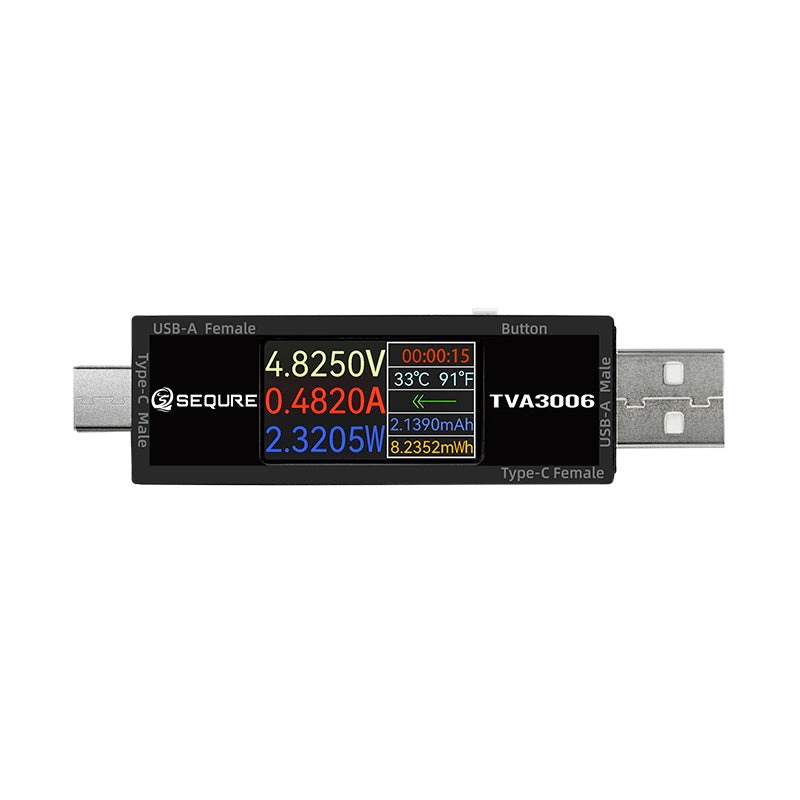

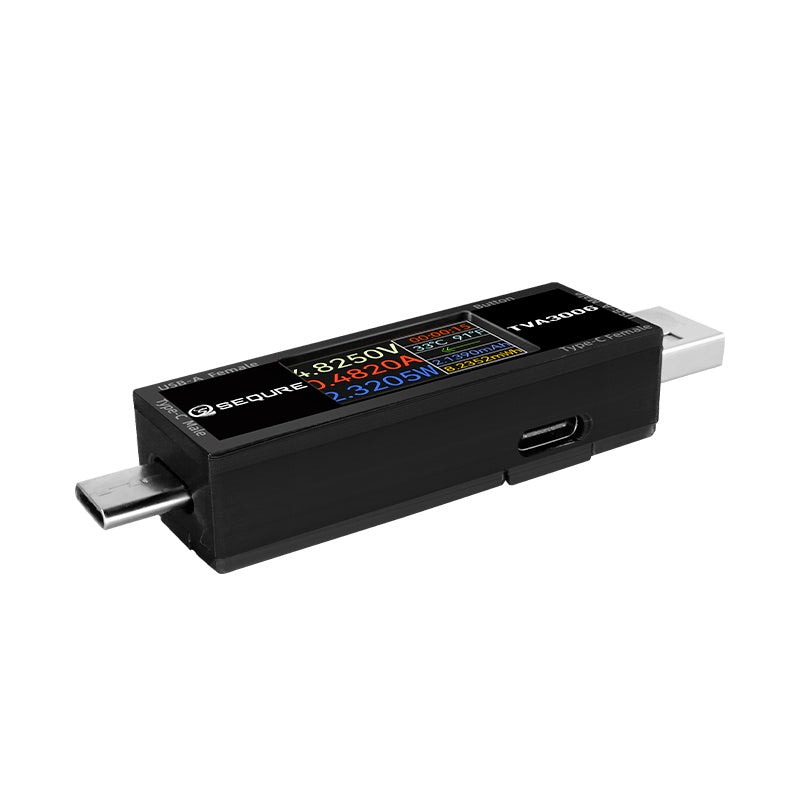

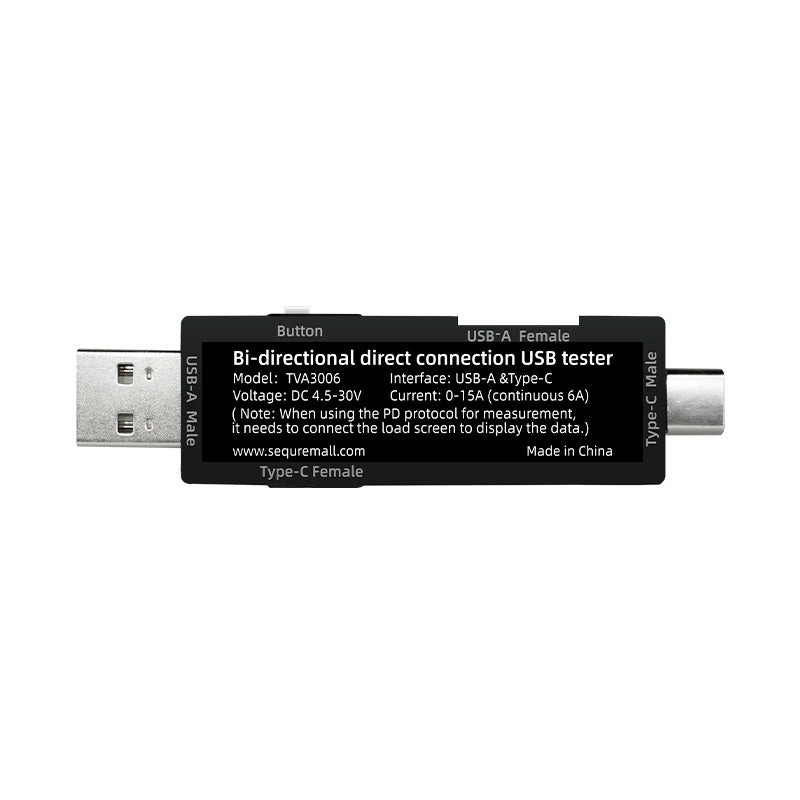

Sequre TVA3006 High Precision USB Volt-Ammeter Power Meter Type-C

Description

The Sequre TVA3006 High Precision USB Volt-Ammeter Power Meter Type-C delivers accurate real-time monitoring of voltage, current, and power across USB-A and Type-C interfaces. With support for DC4.5V to 30V and currents up to 15A, it features an HD color screen, adjustable display direction, and advanced data statistics to track maximum, minimum, and average values. Its multi-functional interface ensures seamless testing, firmware upgrades, and bidirectional current detection for optimal device performance.

Features:

• Supports test voltage from DC4.5V to DC30V, current from 0A to 15A.

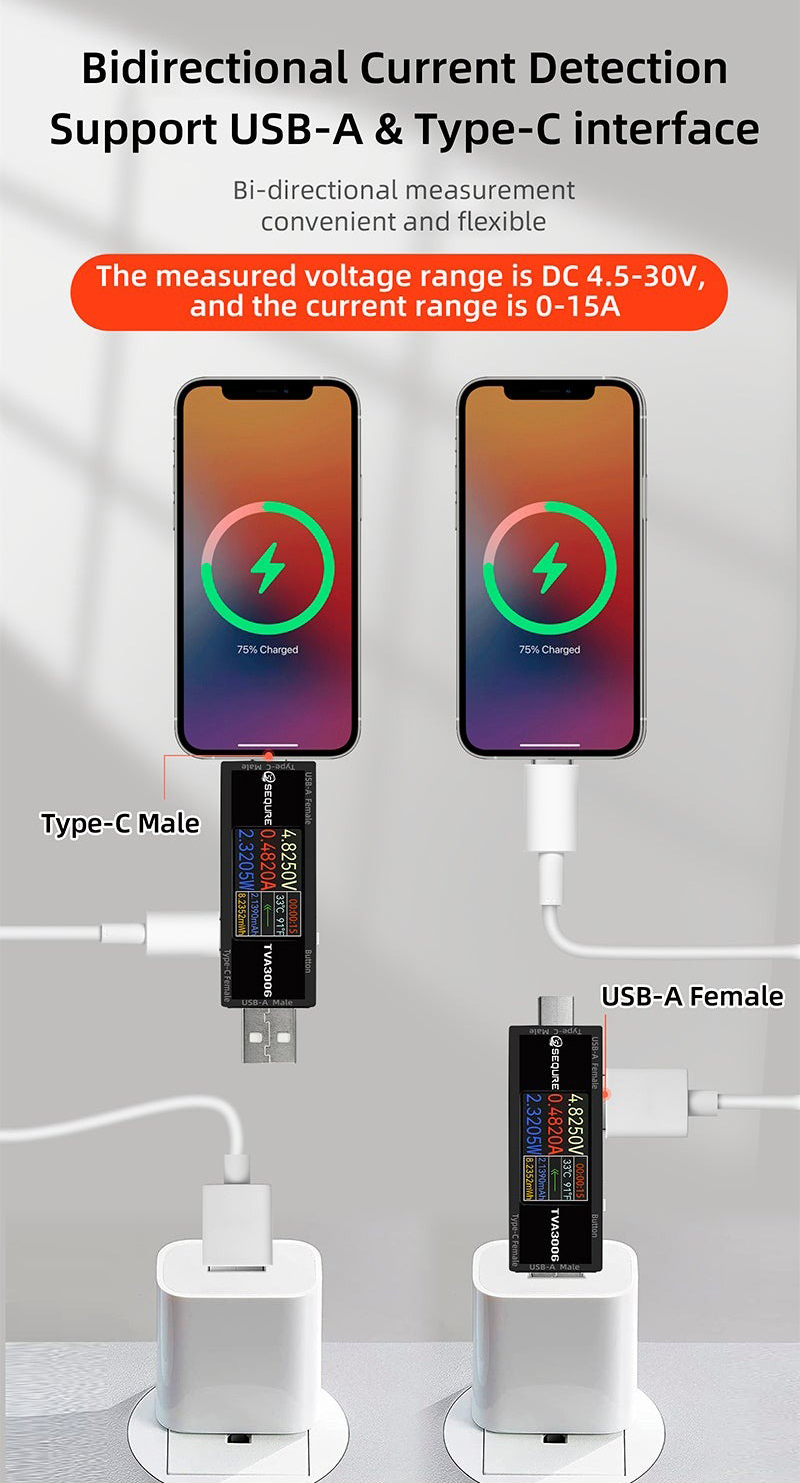

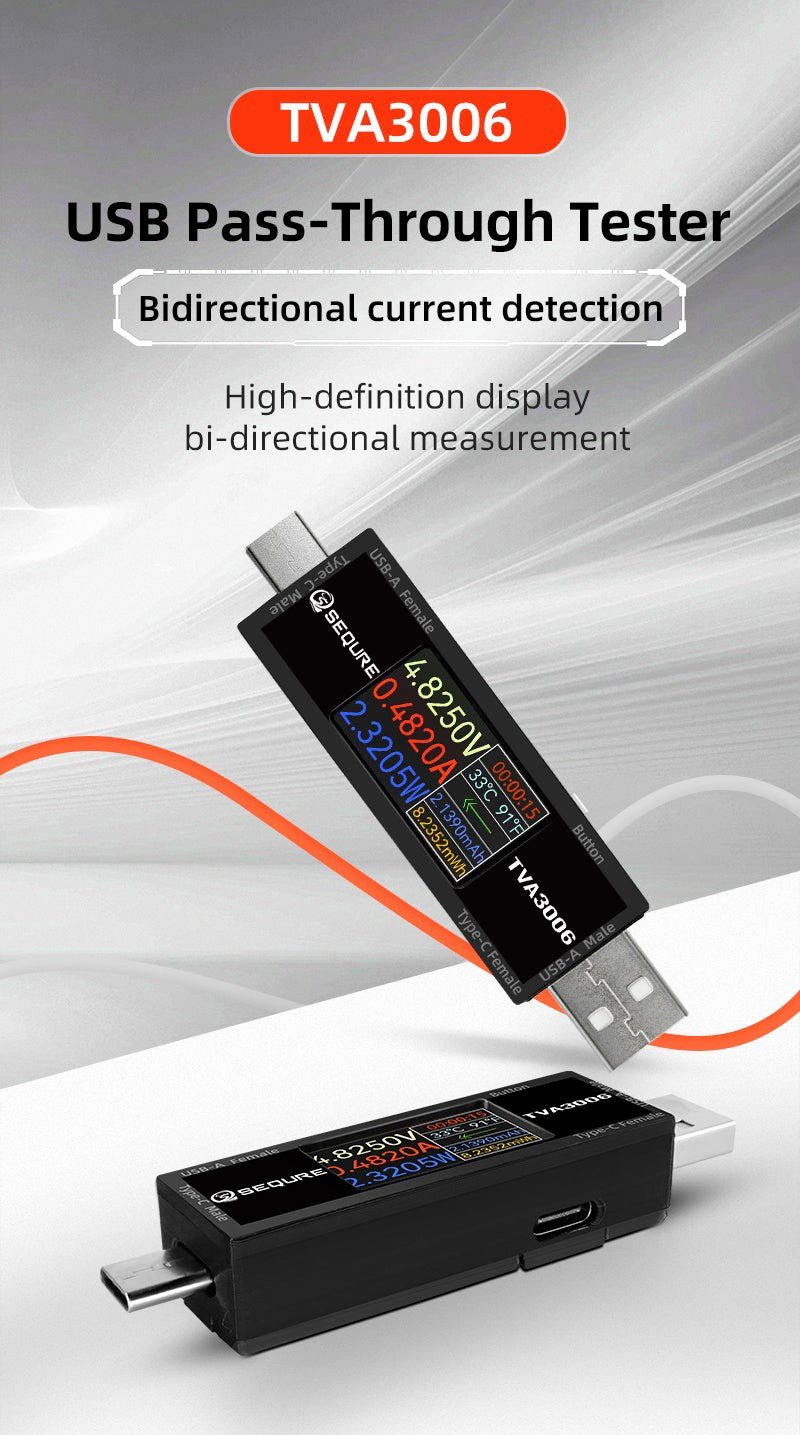

• Detects bidirectional current. Supports USB-A & Type-C interface.

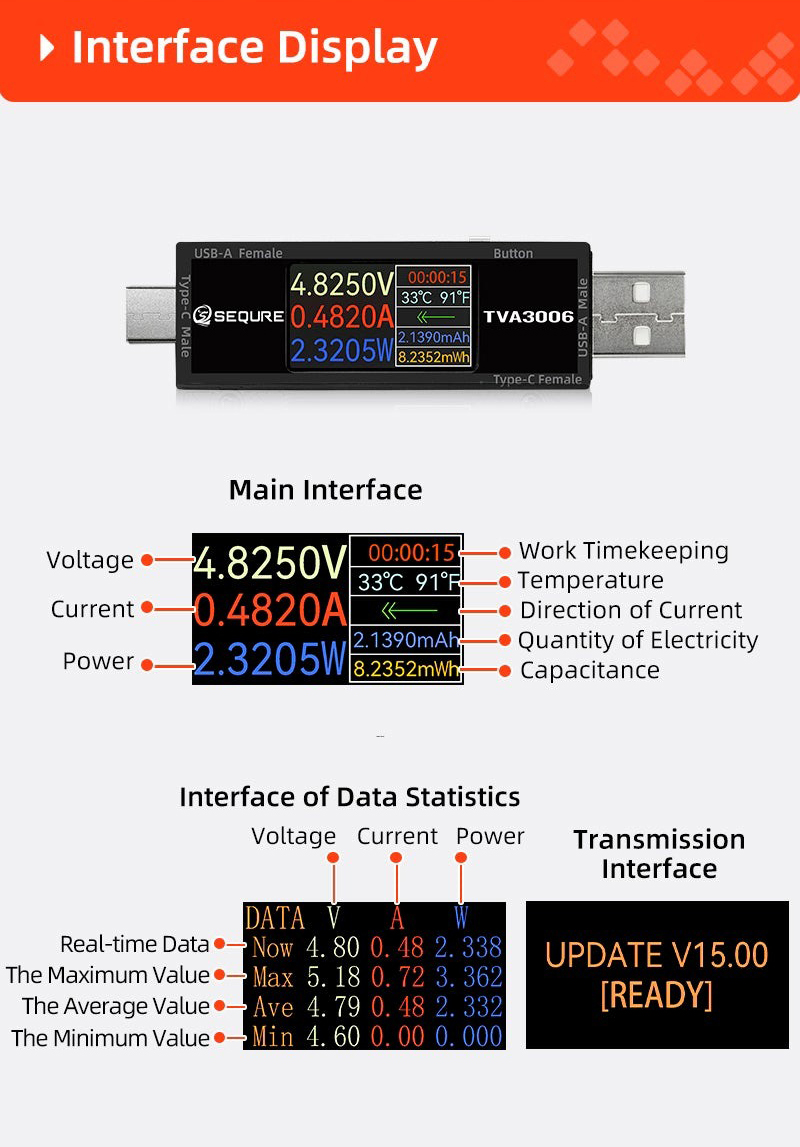

• Monitors the voltage, current, power, work timekeeping, current direction, capacitance, quantity of electricity in real time.
• Features with data statistics, the statistics interface will show the maximum/minimum/average value of voltage, current, and power.

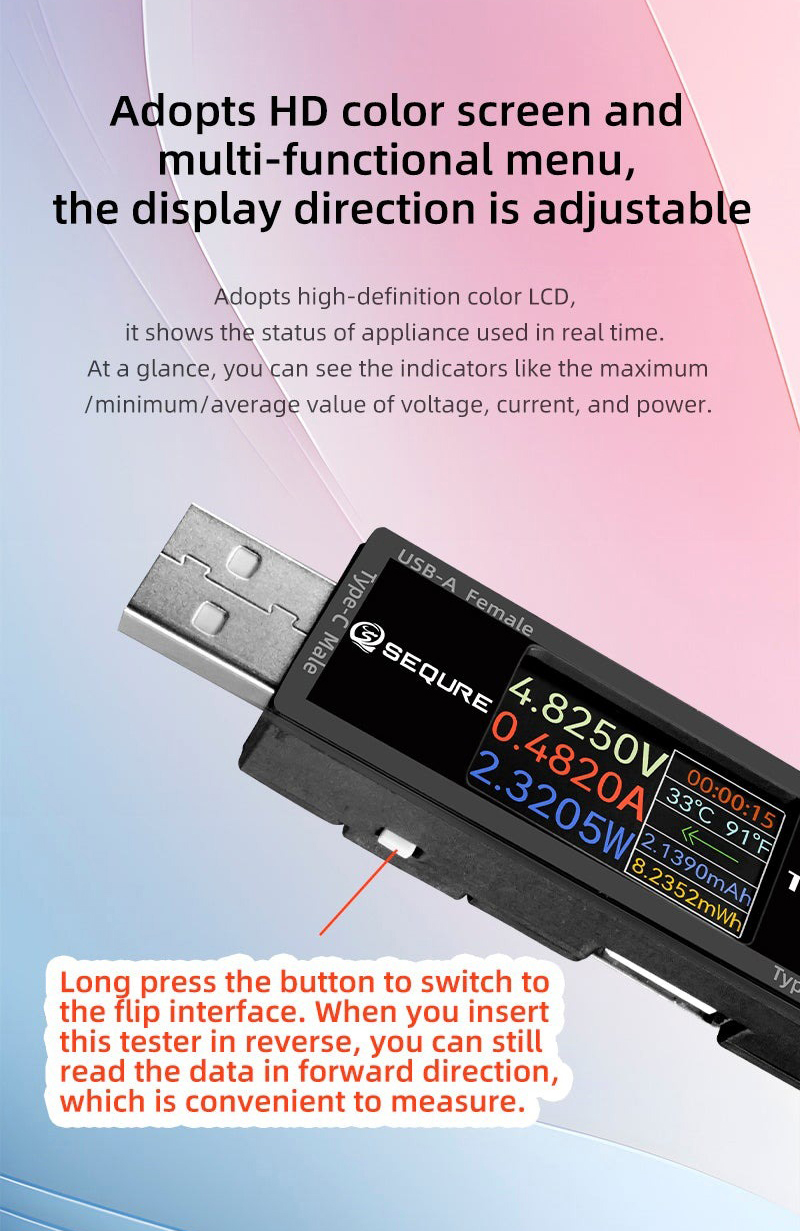

• Adopts HD color screen display, the display direction of screen is adjustable.

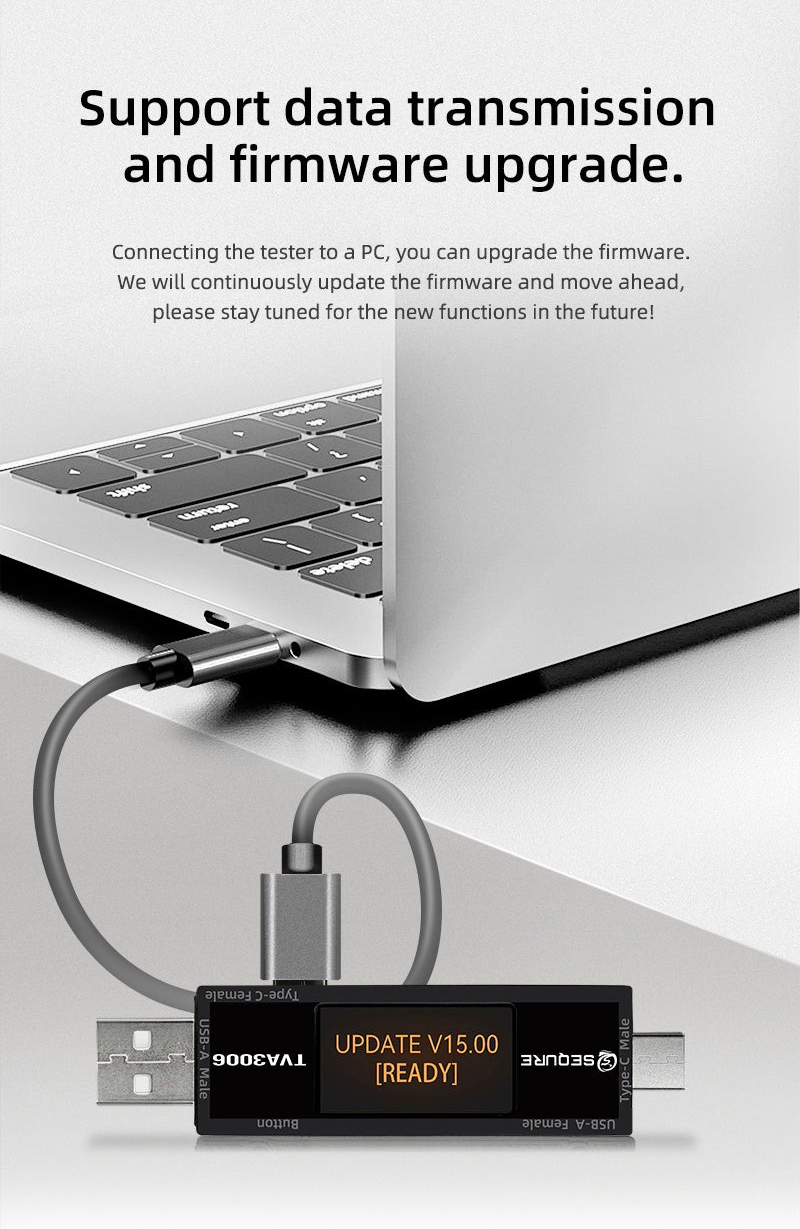

• Equipped with a multi-functional UI design interface, the tester supports firmware upgrade.
• Suitable for monitoring the voltage,current, and power of power supply devices.

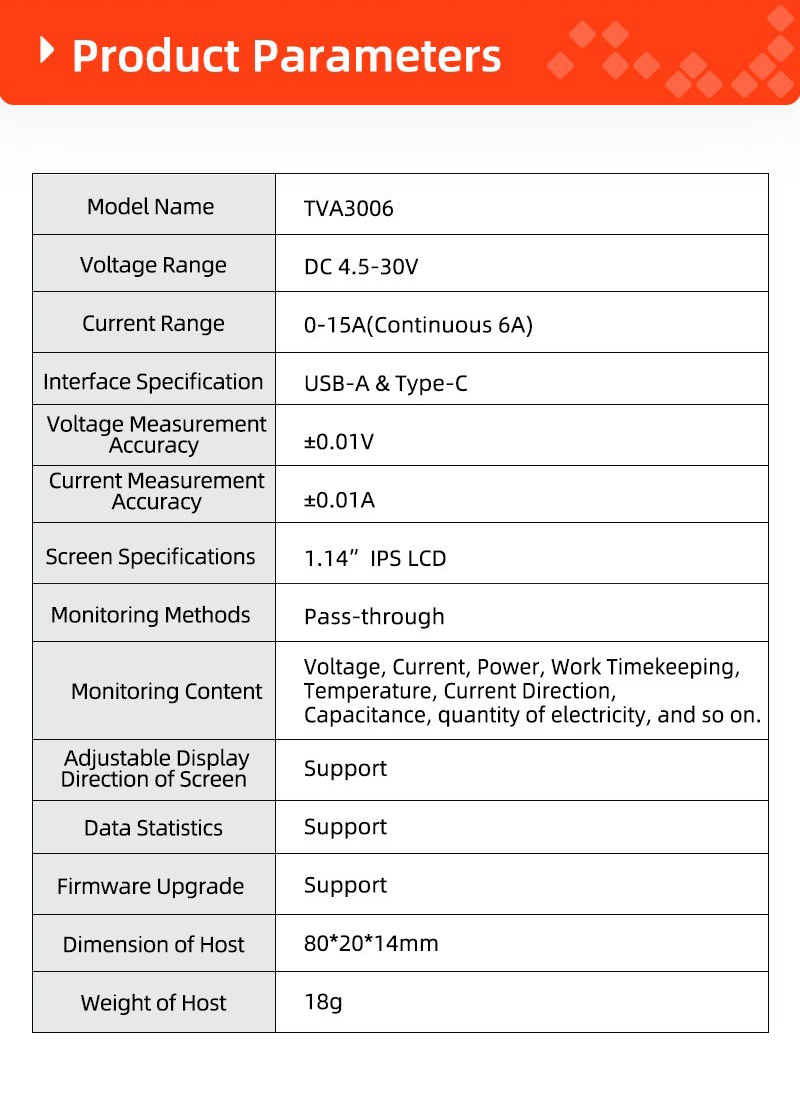

Specifications:

• Model: TVA3006
• Voltage Range: DC 4.5-30V
• Current Range: 0-15A(Continuous 6A)

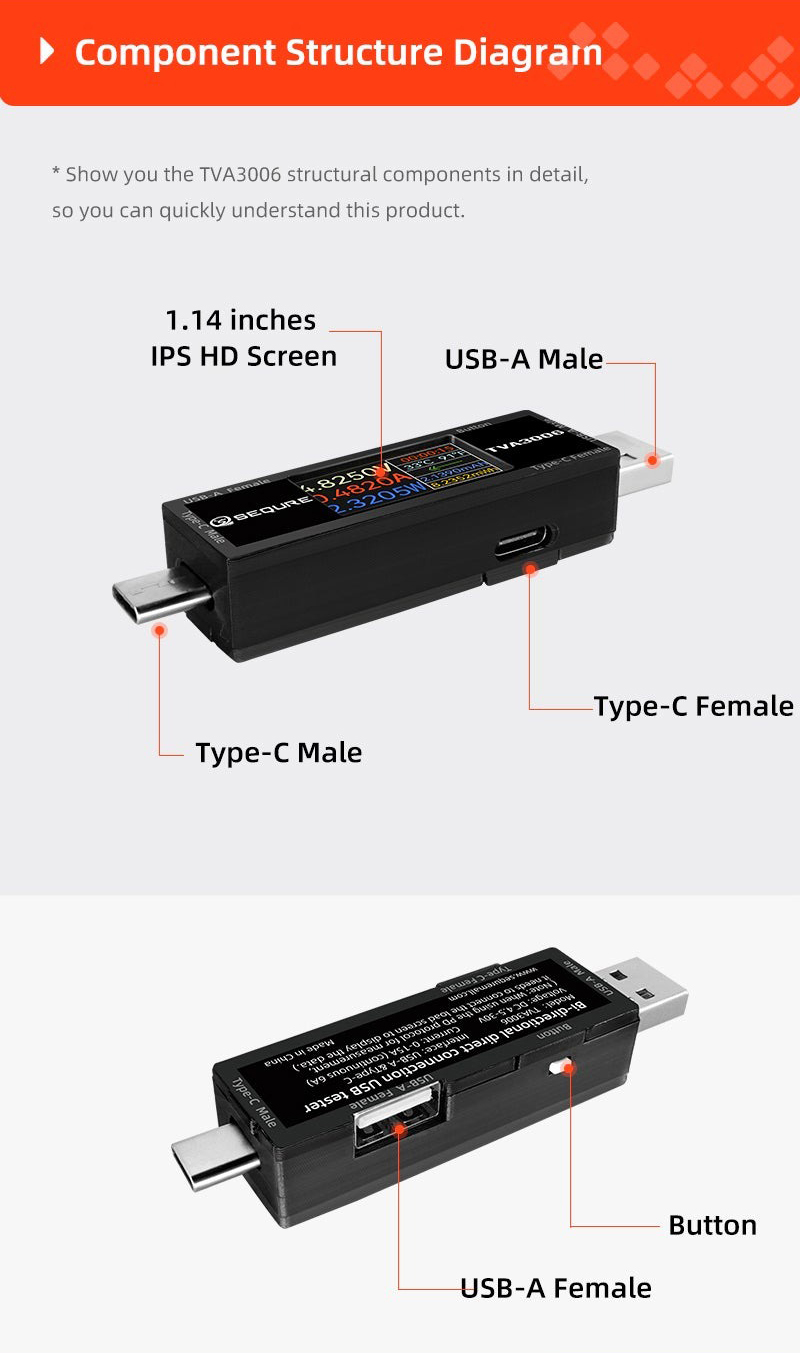

• Interface Specification: USB-A & Type-C

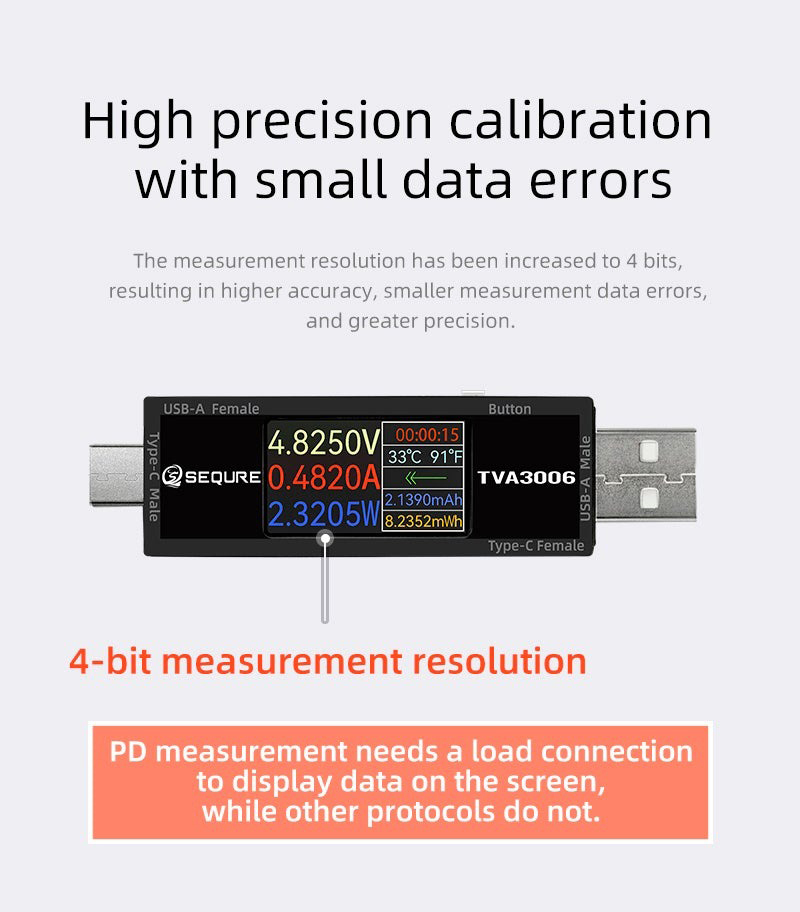

• Voltage Measurement Accuracy: ±0.01V
• Current Measurement Accuracy: ±0.01A
• Screen Specification: 1.14”IPS LCD
• Monitoring Methods: Pass-through
• Monitoring Content: Voltage, Current, Power, Work Timekeeping, Temperature, Current Direction, Capacitance, quantity of electricity, and so on.
• Adjustable Display Direction of Screen: Support
• Data Statistics: Support
• Firmware Upgrade: Support
• Dimension of Host: 80*20*14mm
• Weight of Host: 18g

Package Included:

• 1 x TVA3006
