Description

• Active PFC (power factor correction) consists of active PFC and negative PFC. Active PFC, which is integrated into SkyRC 1200W/50A regulated power supply, can provide higher power utilization.  Active PFC is the use of power electronics to change the waveform of current drawn by a load to improve the power factor, thus achieving the purpose of higher efficiency. It’s capable of correction on AC input voltage and universal on a global basis.
• Intelligent Air Cooling System, the fan will be initiated automatically when the operating temperature reaches 50 degrees.

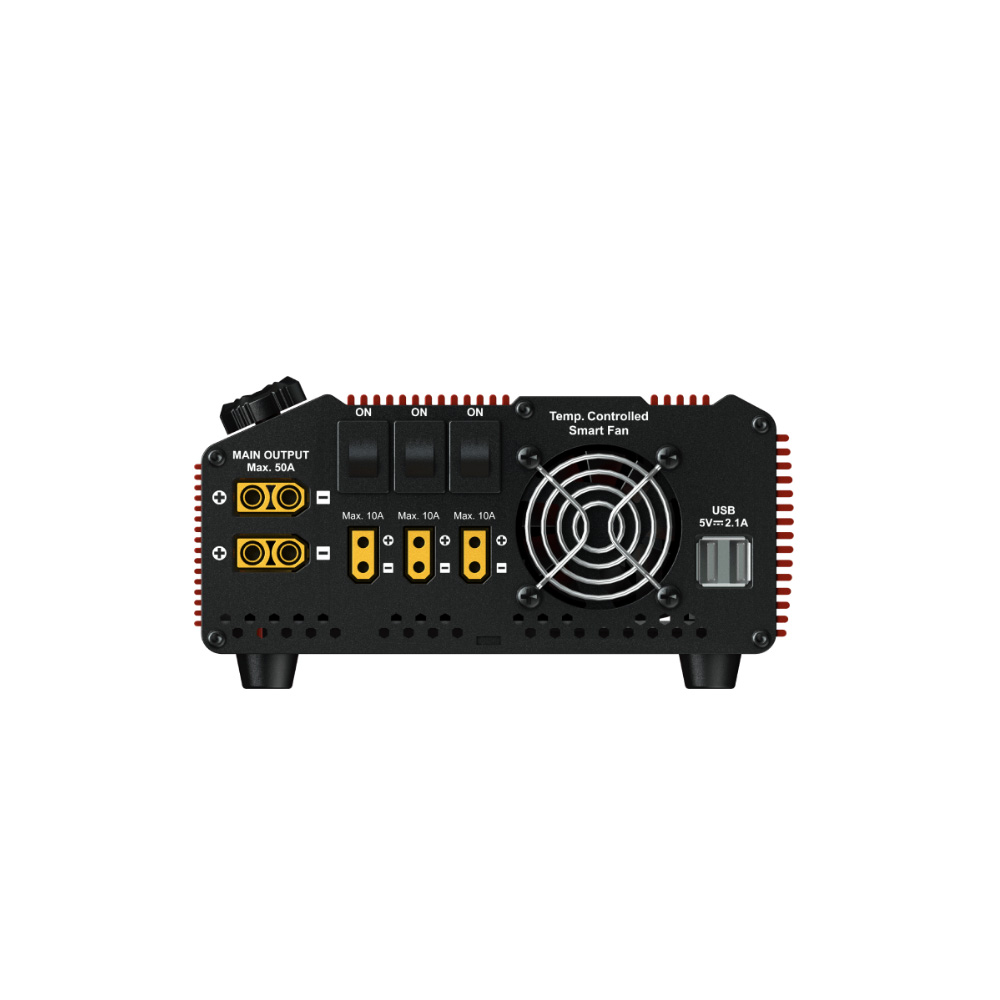

• Multiple Outputs, with maximum output of the two main ports is 50A, while each of other three deputy outlets provides up to 10A output with a switch to control respectively.  1200W output with 5 outlets to power your charger, you deserve to have one such power supply.

Specifications:

• Cooling Method – Cooling Fan
• Input AC Frequency: 50-60Hz
• Input Fuse: 20A Fuse
• LCD Display
  • Voltage Precision ±0.3V
  • Current Precision ±0.5A
• Operating Temperature: 0-40℃
• Output Current: 50A±1A
• Output Voltage: 15-30V DC±0.5V
• Output Voltage Ripple: < 1200mV
• Over Temperature Protection: < 65℃
• Power Efficiency: 89%
• Power Factor: > 0.98
• Voltage: 100-240V AC
• Weight: 3.08kg
• Size: 85mmH 305mmL Width 170mmL
• Manual: eFUEL 1200W_Instruction_Manual_EN_V2.0
