Description

Specifications

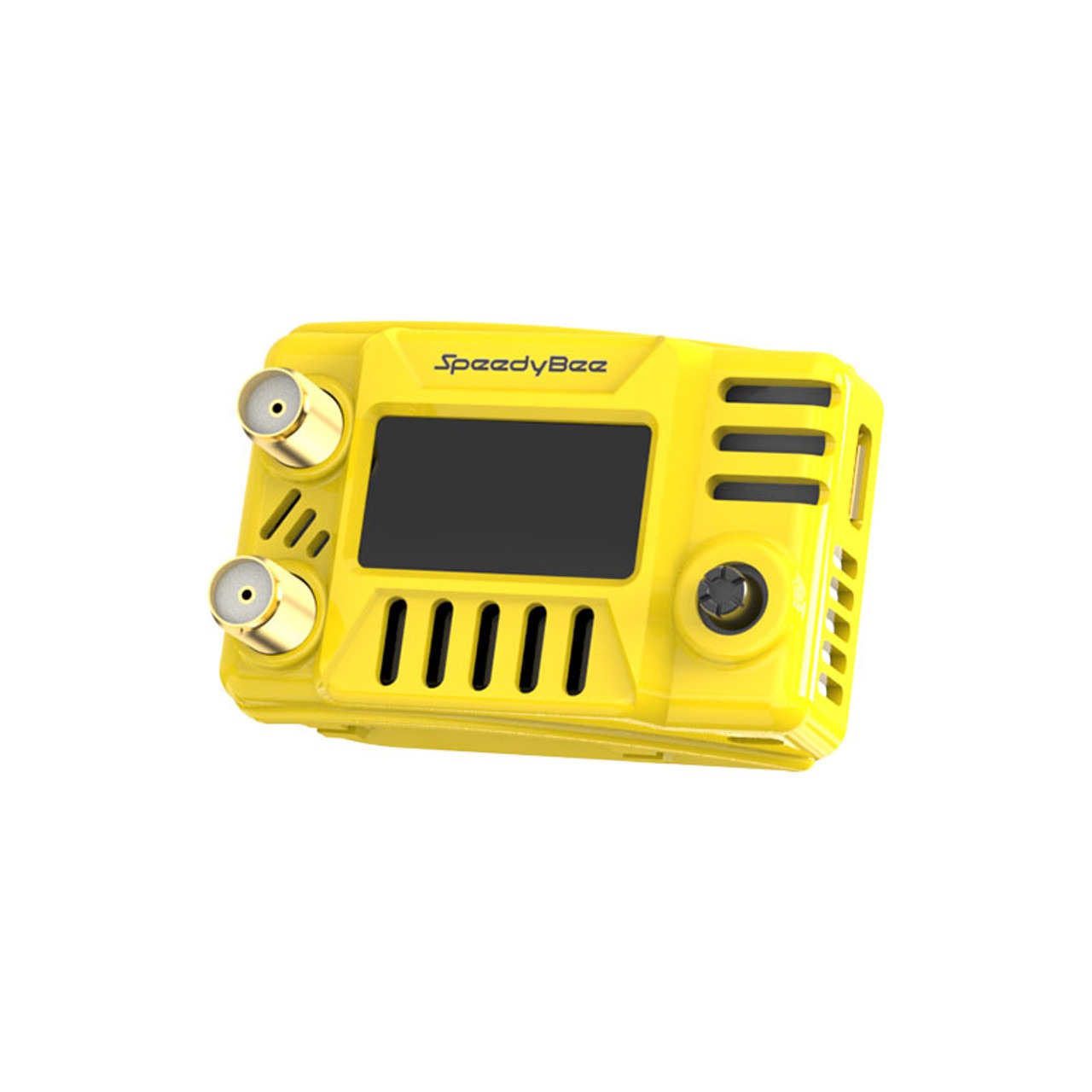

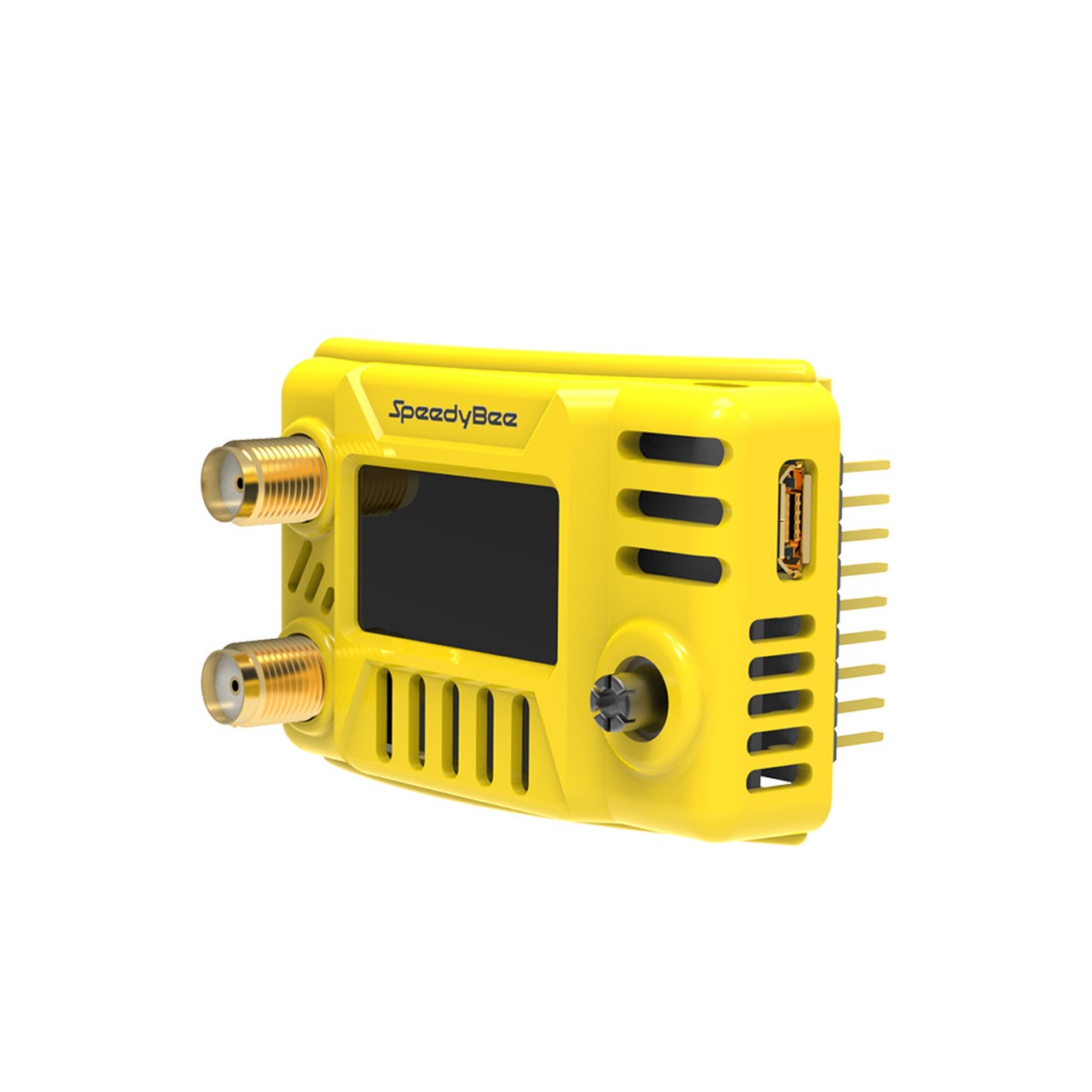

• Model SpeedyBee 5.8GHz FPV Goggles Receiver Module
• Operating Voltage 5V
• Operating Current 450mA@5V
• Supported FPV Goggles
• Fat Shark Dominator series including V1,V2, V3,SE,HD1, HD2,HD3,HDO,HDO2.
• Orqa Currently not compatible with the factory housing of Orqa goggles. We have designed a 3D-printed housing that supports Orqa’s FPV.One, FPV.One
• Pilot, FPV.One Race.
• HDZero Supports HDZero FPV goggles analog conversion module.
• DJI Supports DJI V1, V2 Goggles (an adapter board needs to be purchased separately when using DJI Goggles).
• Working Frequency Supports A, B, E, F,R, L bands with 48 channels from 5.3GHz~5.9GHz
• Dimensional 51x34x17.8mm
• Weight 32.8g
• Package includes VRx only.
• Manual: SpeedyBee 5.8GHz Goggles Receiver Manual-EN
