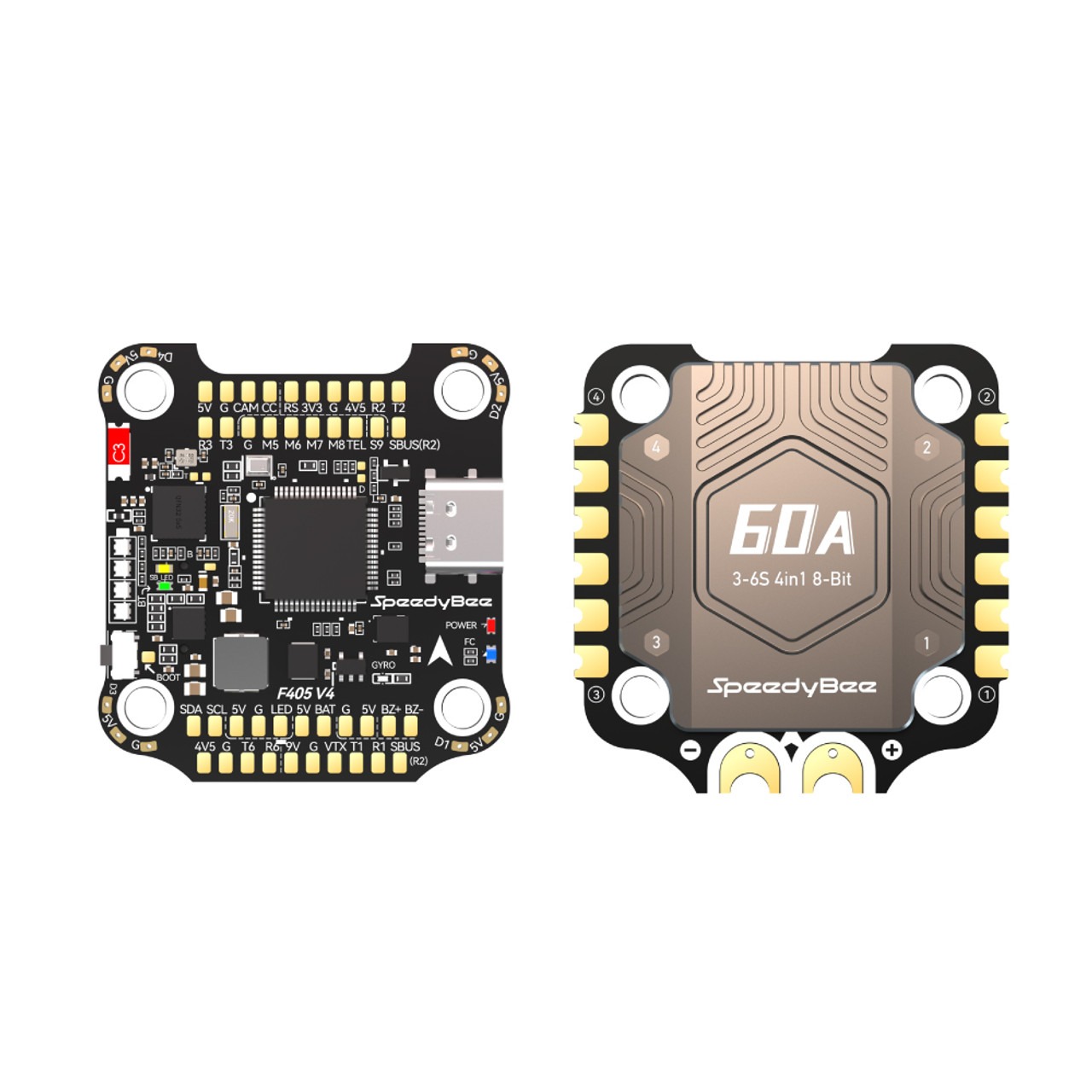

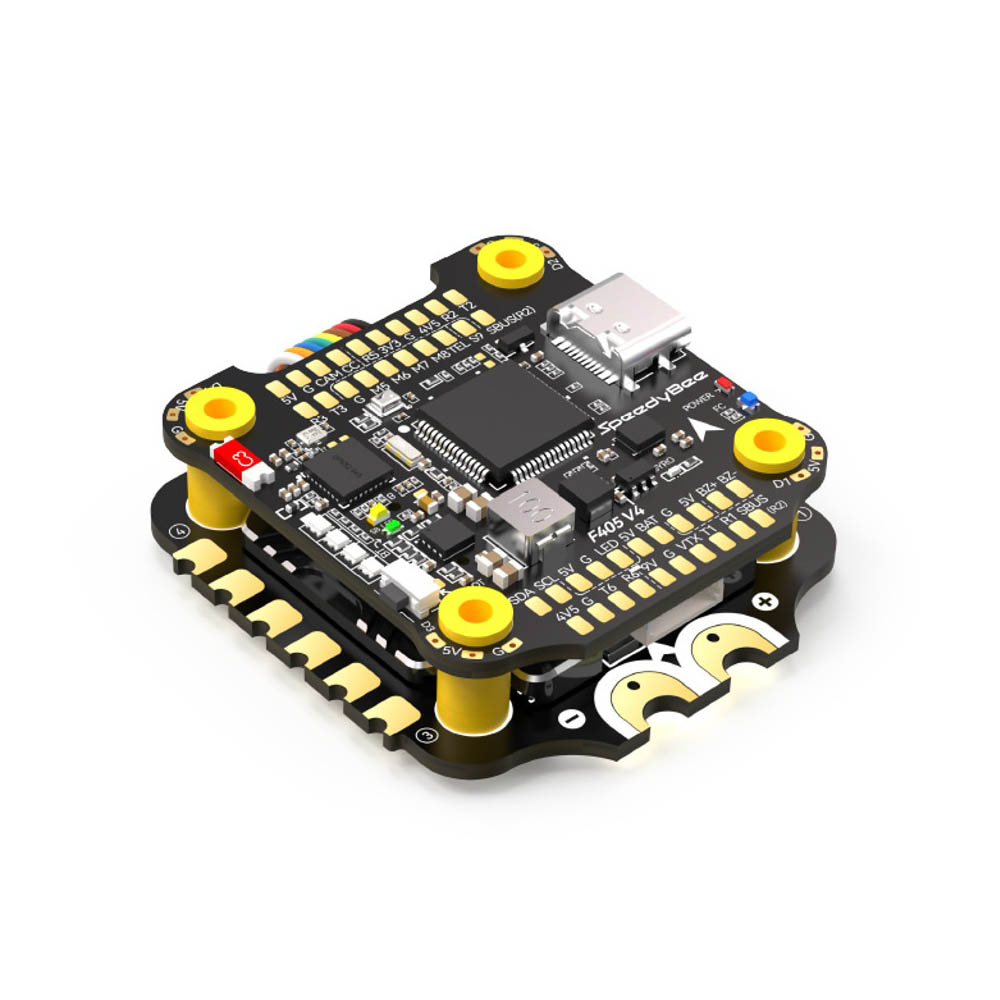

SpeedyBee F405 V4 BLS 60A 30×30 Stack

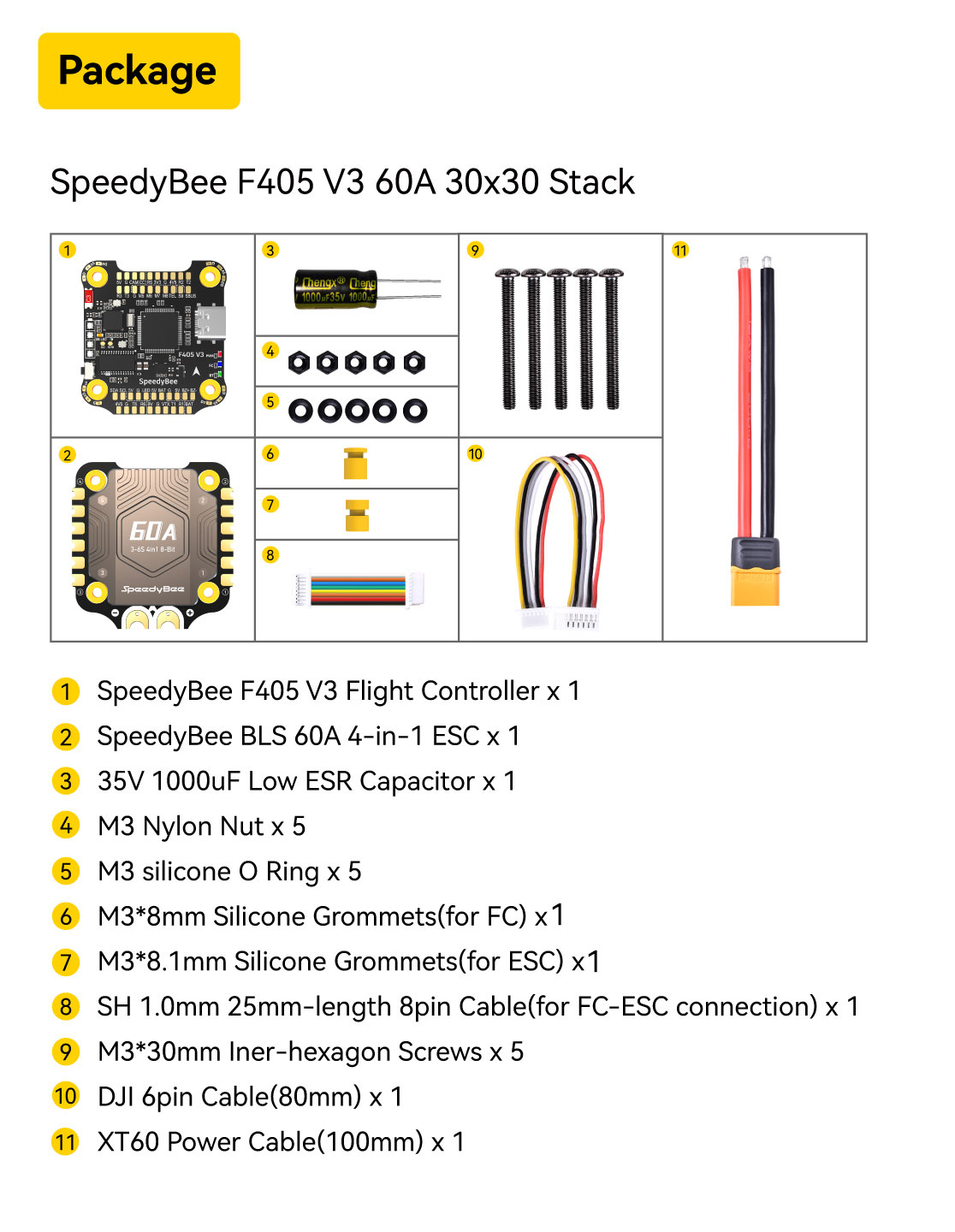

Description

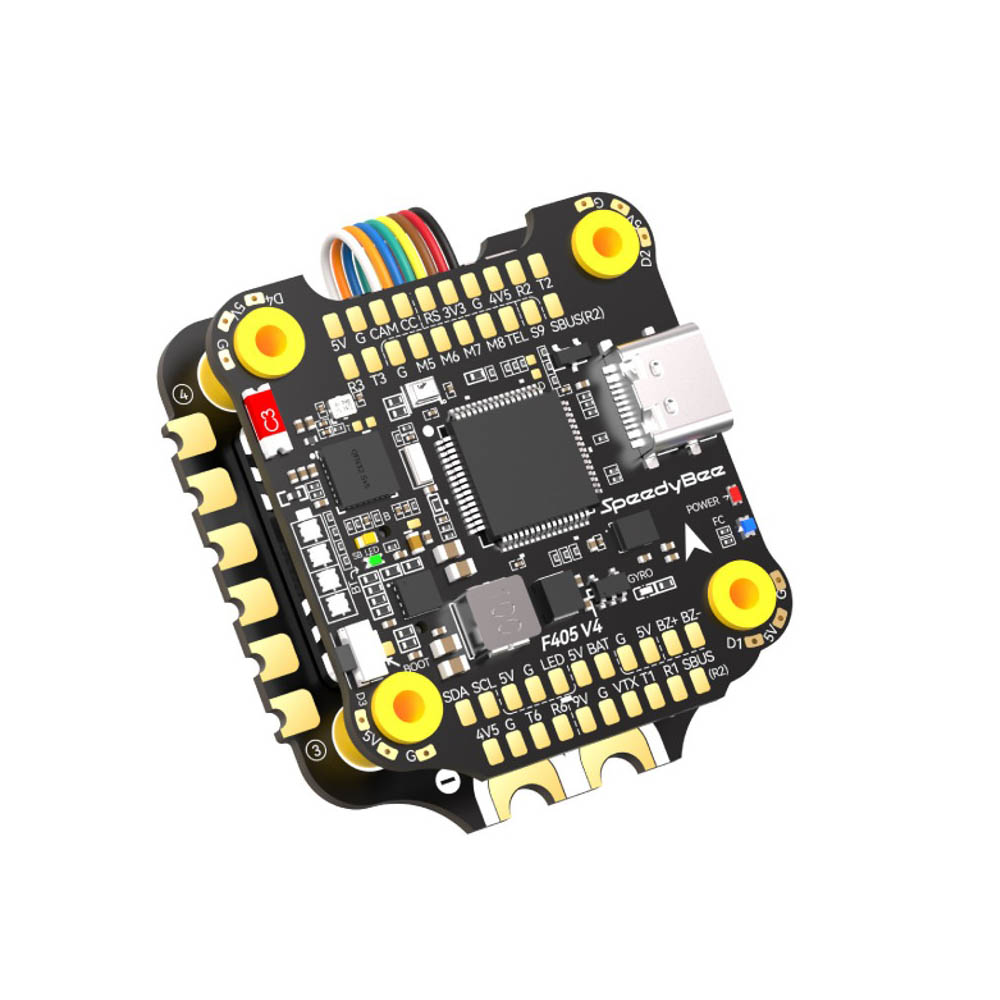

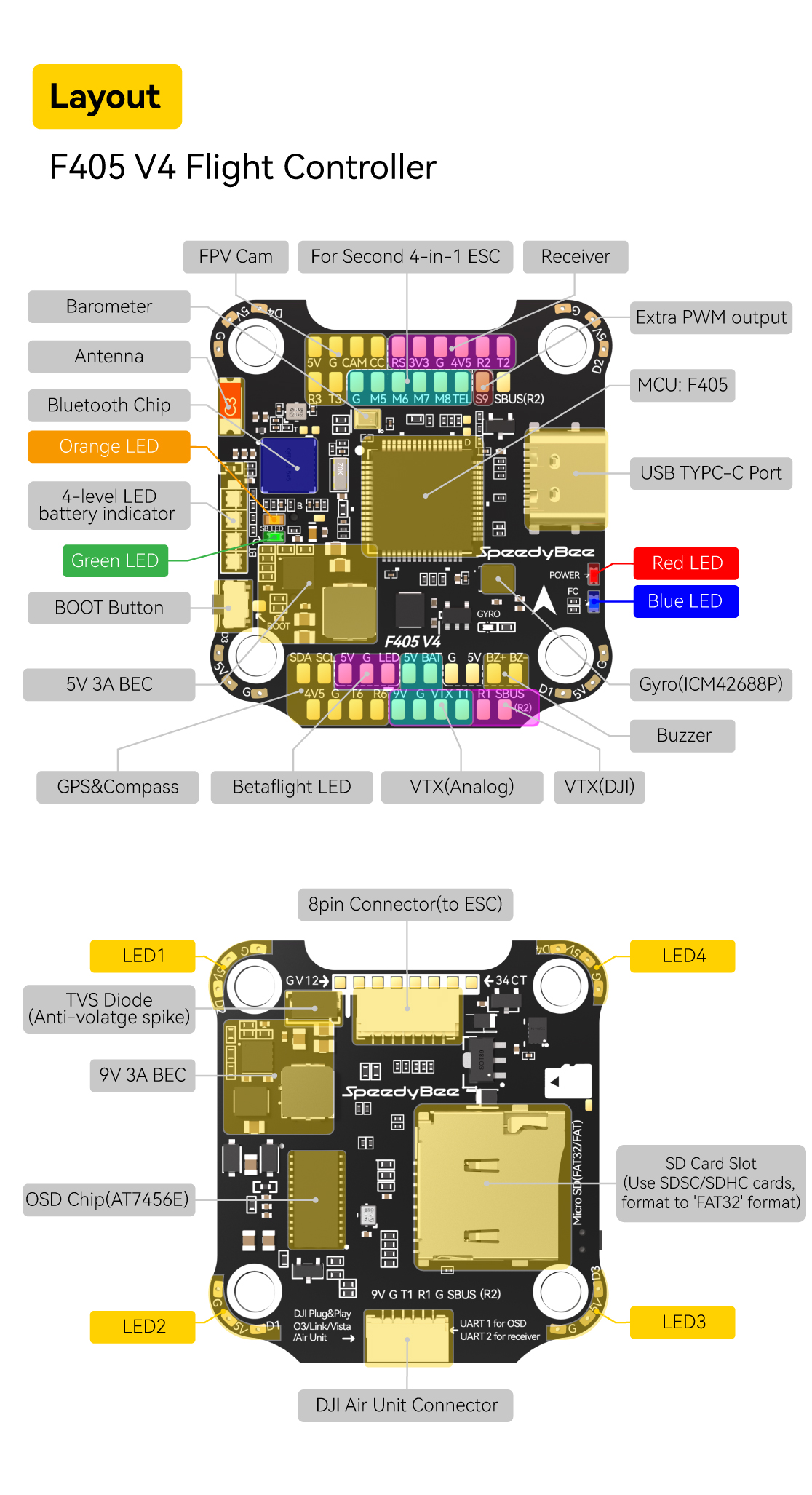

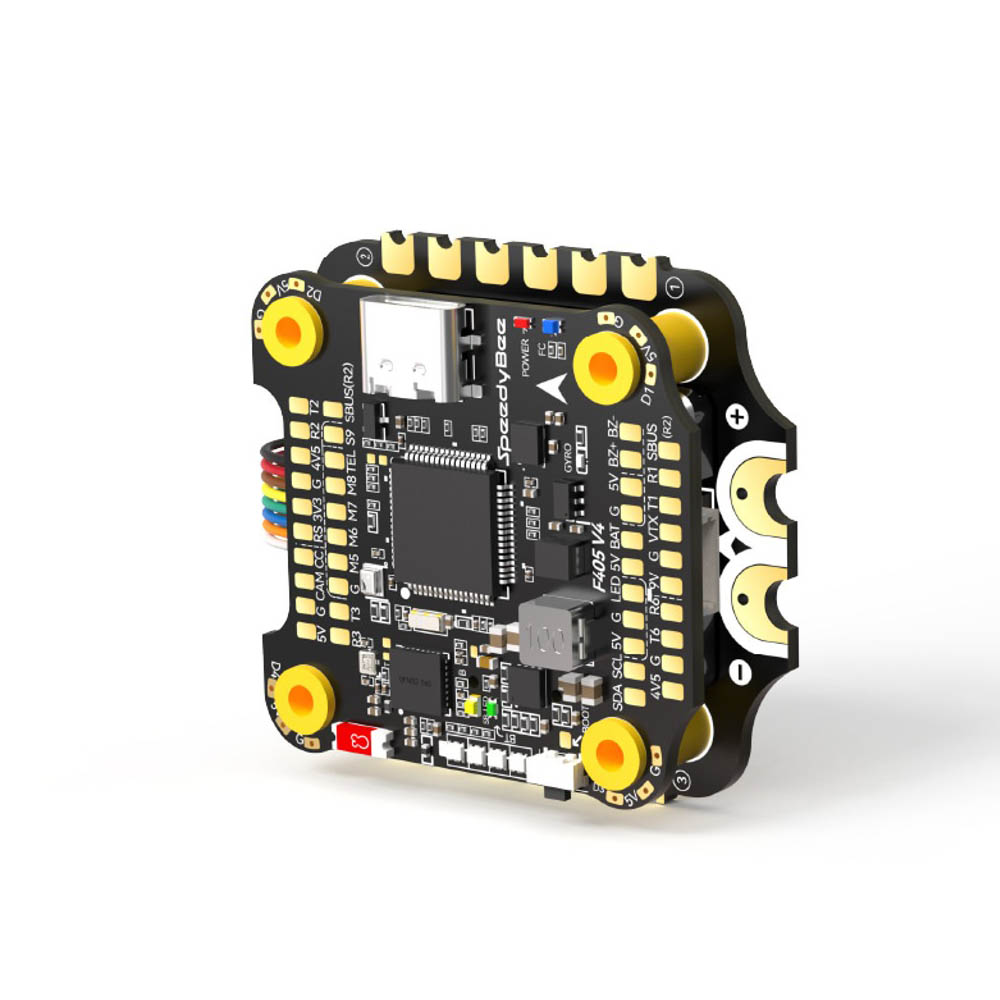

• Product Name SpeedyBee F405 V4 30×30 Flight Controller
• MCU STM32F405
• IMU(Gyro) ICM42688P
• USB Port Type Type-C
• Barometer Built-in
• OSD Chip AT7456E chip
• BLE Bluetooth Supported. Used for Flight Controller configuration (MSP should be enabled with Baud rate 115200 on UART4)
• WIFI Not supported

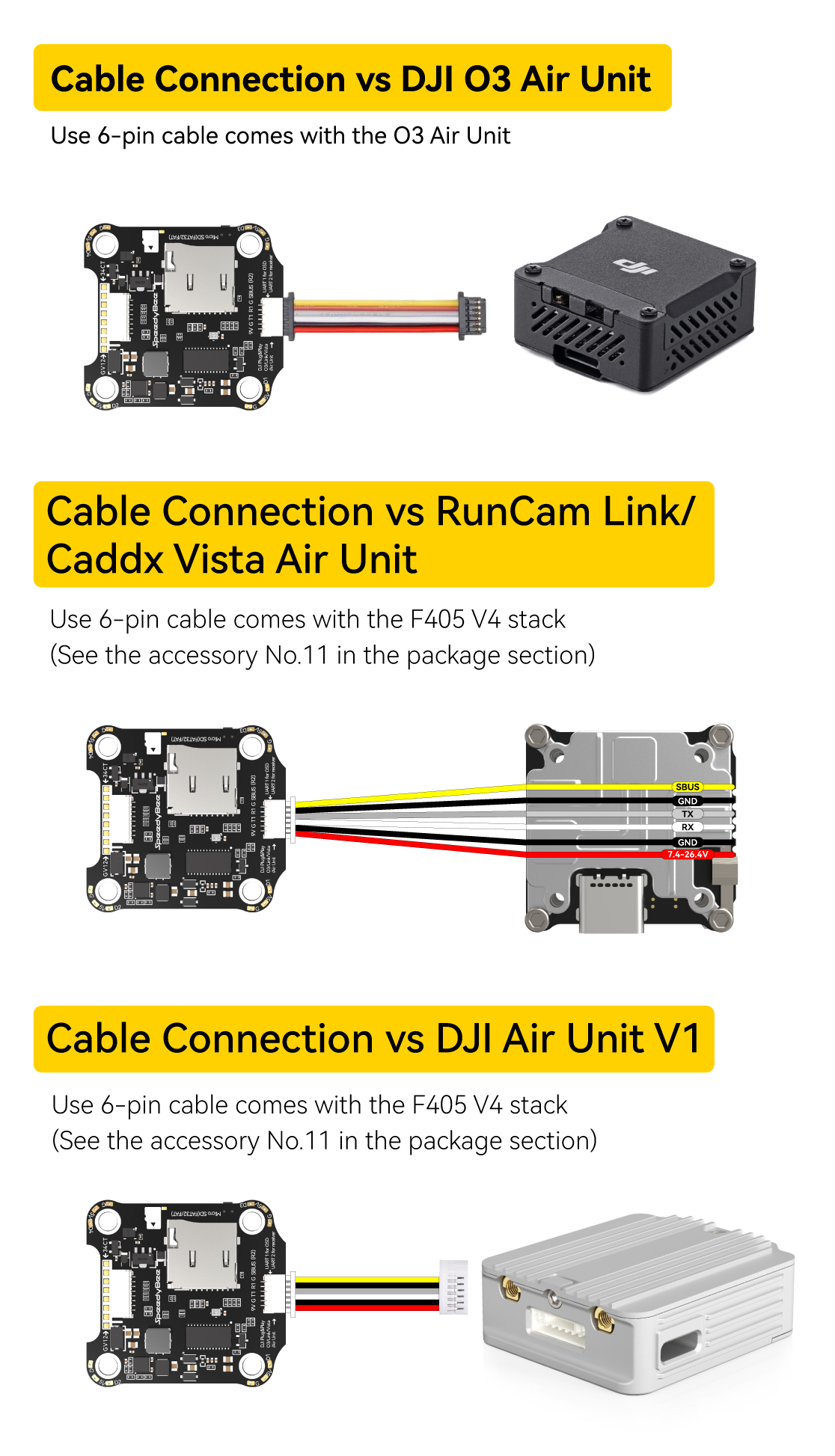

• DJI Air Unit Connection Way Two ways supported: 6-pin connector or direct soldering.

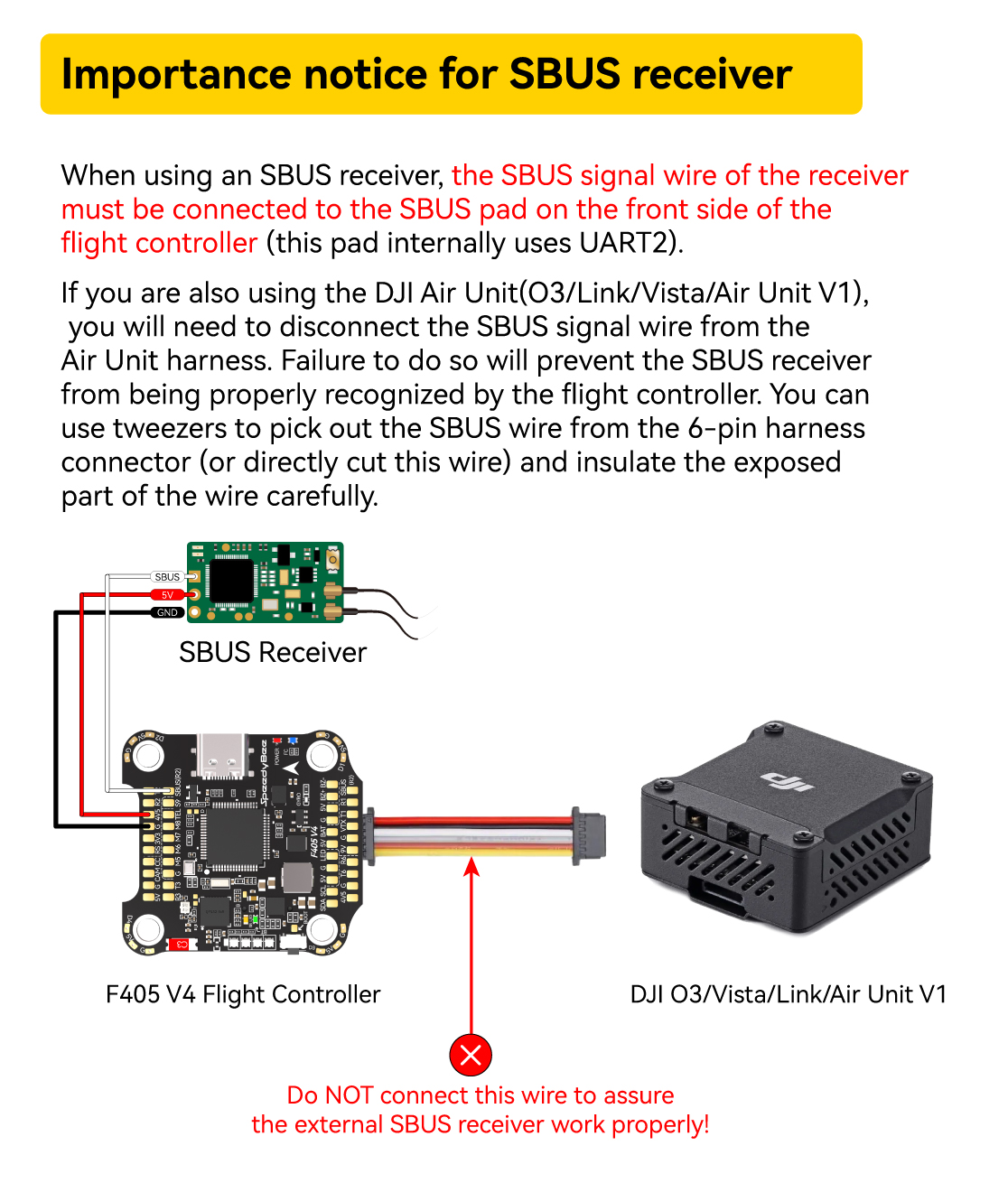

• 6-pin DJI Air Unit Plug Supported. Completely compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no wire is needed to be changed.
• Blackbox MicroSD Card Slot *Betaflight firmware requires the type of the microSD card to be either Standard (SDSC) or High capacity (SDHC) under 32GB,

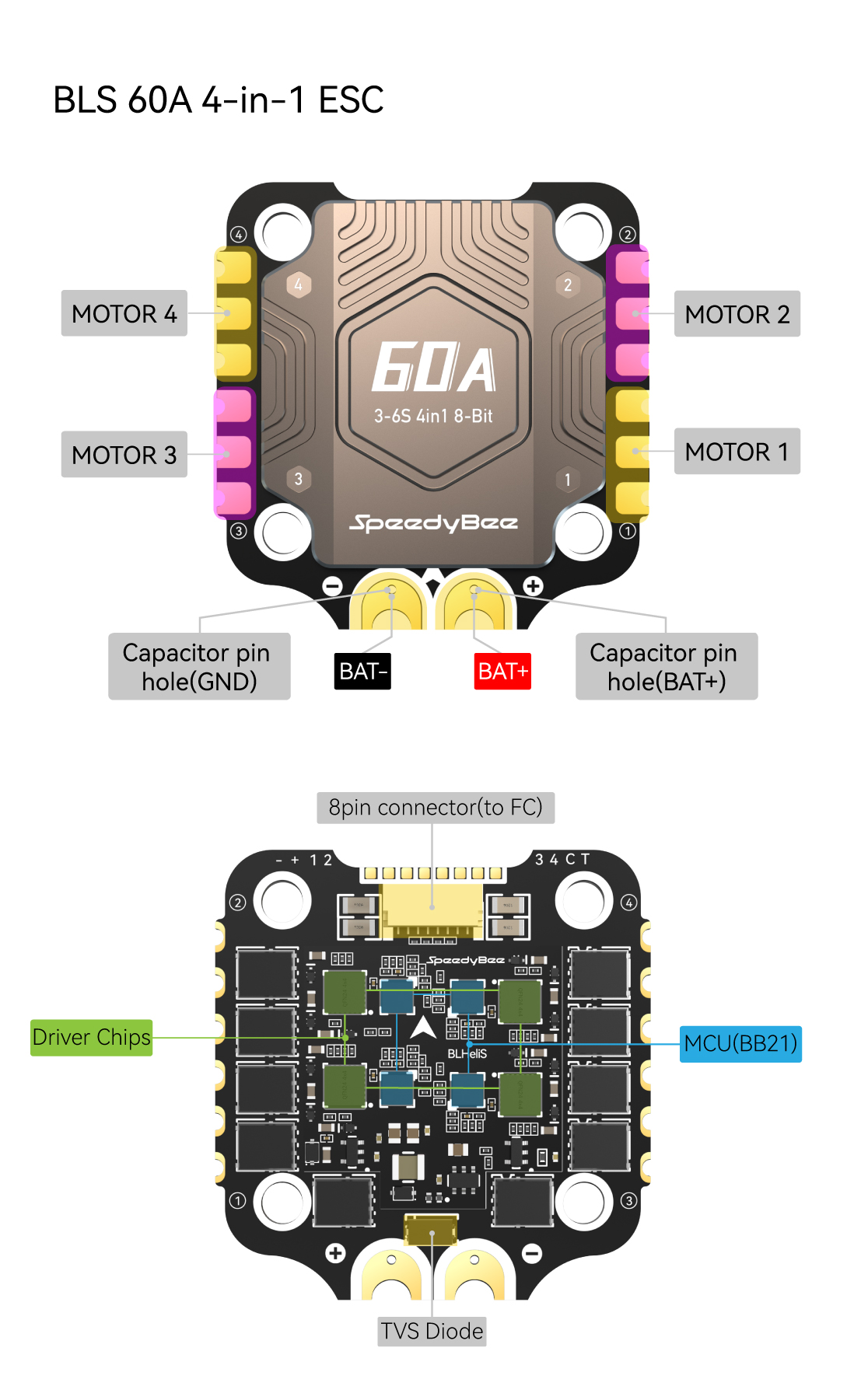

• Current Sensor Input Supported. For SpeedyBee BLS 60A ESC, please set scale = 400 and Offset = 0.
• Power Input 3S – 6S Lipo(Through G, BAT pins/pads from the 8-pin connector or 8-pads on the bottom side)
• 5V Output 9 groups of 5V output, four +5V pads and 1 BZ+ pad( used for Buzzer) on front side, and 4x LED 5V pads. The total current load is 3A.
• 9V Output 2 groups of 9V output, one +9V pad on front side and other included in a connector on bottom side. The total current load is 3A.
• 3.3V Output Supported. Designed for 3.3V-input receivers. Up to 500mA current load.
• 4.5V Output Supported. Designed for receiver and GPS module evenwhen the FC is powered through the USB port. Up to 1A current load.

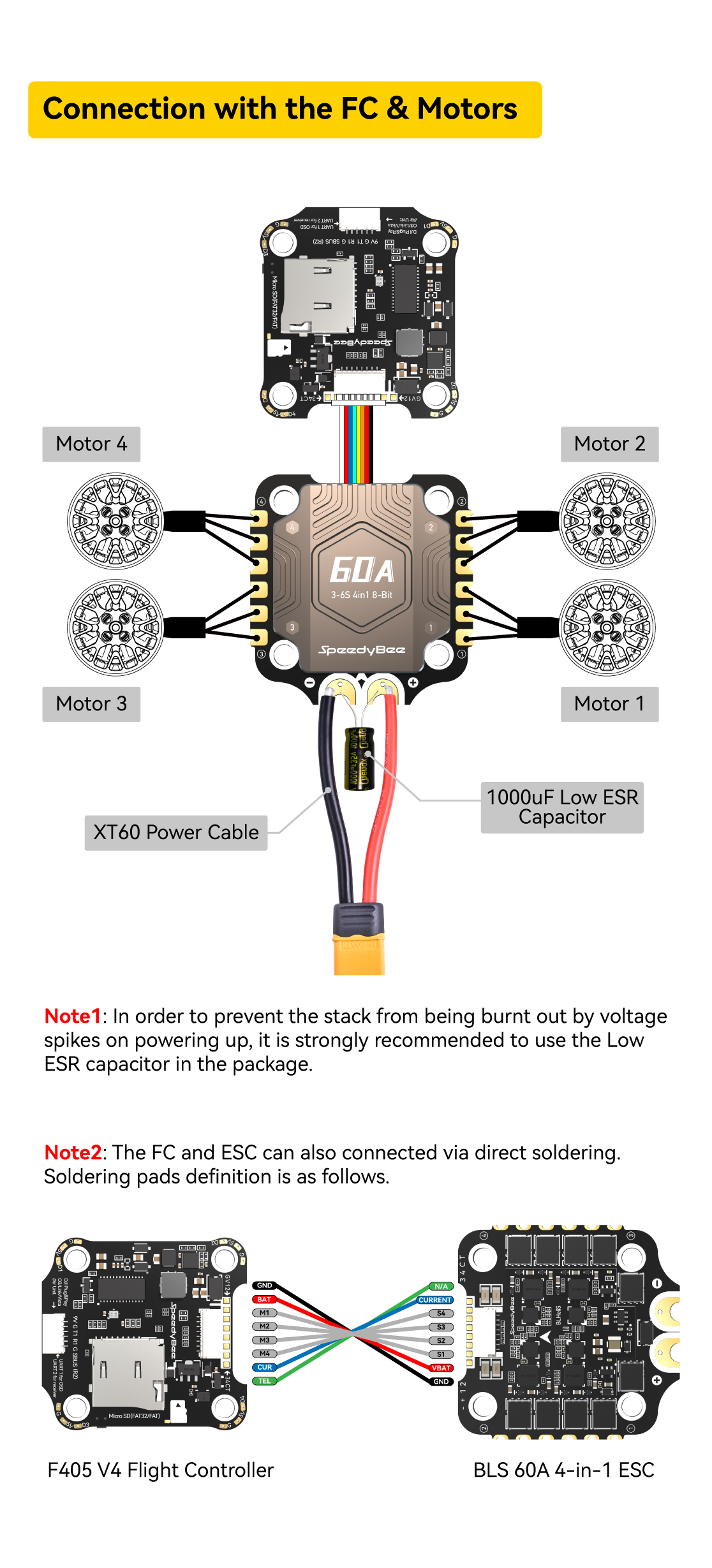

• ESC Signal M1 – M4 on bottom side and M5-M8 on front side.

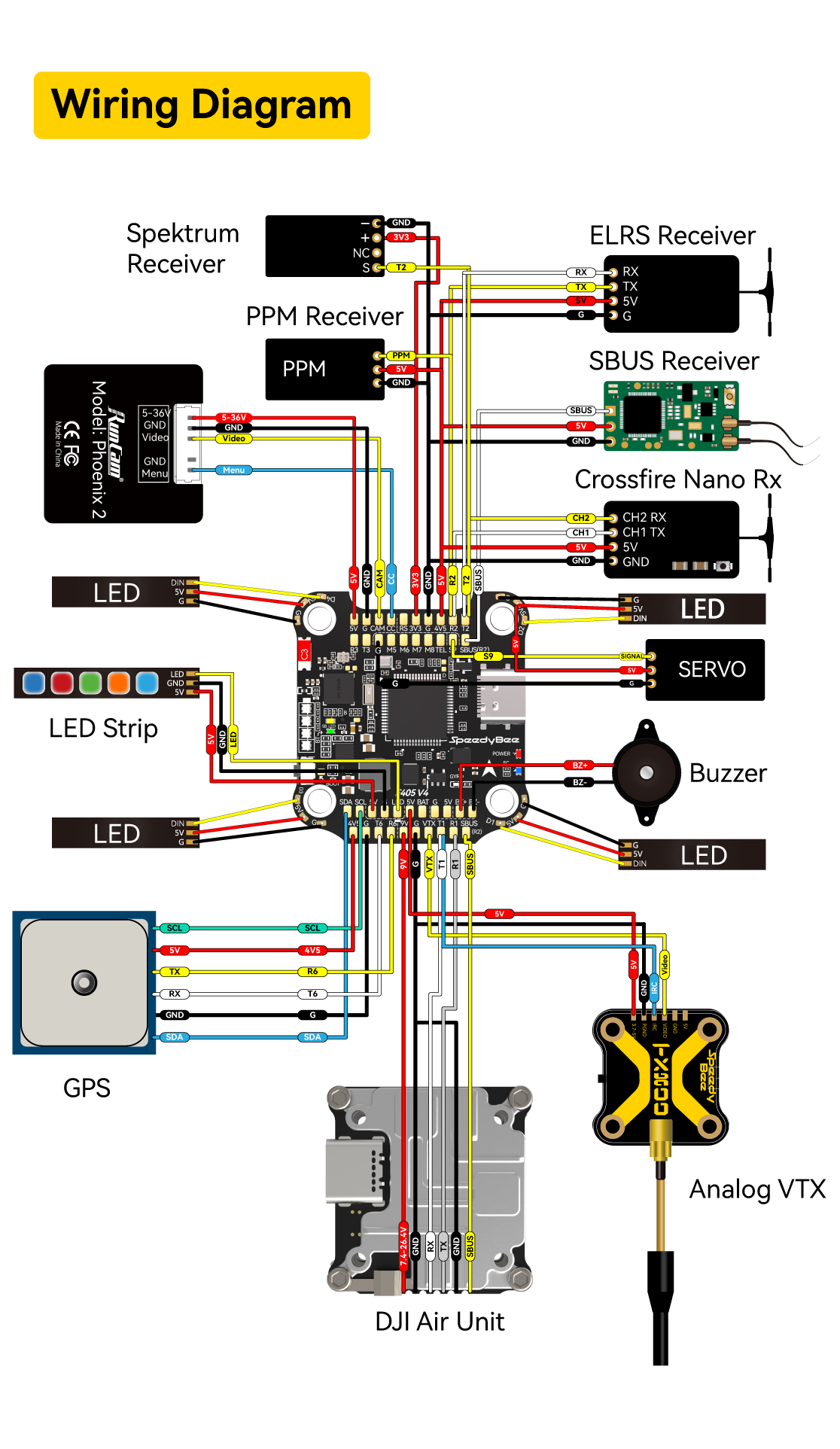

• UART 6 sets(UART1, UART2, UART3, UART4(Dedicated for Bluetooth connection)), UART5(Dedicated for ESC telemetry),UART6
• ESC Telemetry UART R5(UART5)I2C Supported. SDA & SCL pads on front side. Used for magnetometer, sonar, etc.
• Traditional Betaflight LED Pad Supported. 5V, G and LED pads on bottom of the front side. Used for WS2812 LED controlled by Betaflight firmware.
• Buzzer BZ+ and BZ- pad used for 5V BuzzerBOOT Button Supported.
  RSSI Input Supported. Named as RS on the front side.
• Smart Port / F.Port Not supported
• Supported Flight Controller Firmware BetaFlight(Default), INAV
• Firmware Target Name SPEEDYBEEF405V4

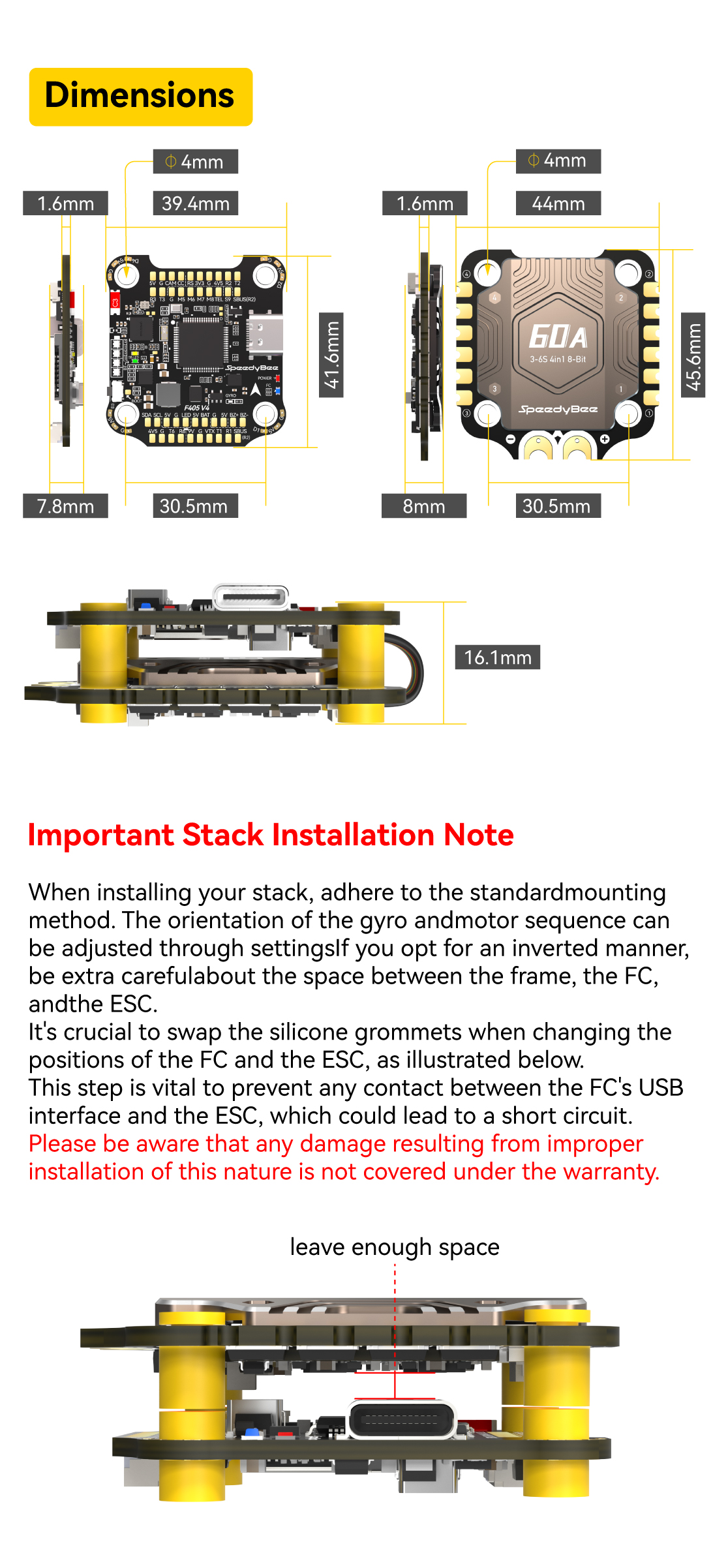

• Mounting 30.5 x 30.5mm( 4mm hole diameter)
• Dimension 41.6(L) x 39.4(W) x 7.8(H)mm
• Weight 10.5g
