Description

The SpeedyBee Mario 5 Frame is a robust and lightweight quad frame built for maximum durability. Featuring a T300 3K carbon fiber structure, 6mm thick arms, and compatibility with 5.1″ propellers, it ensures stability and performance for freestyle or racing.

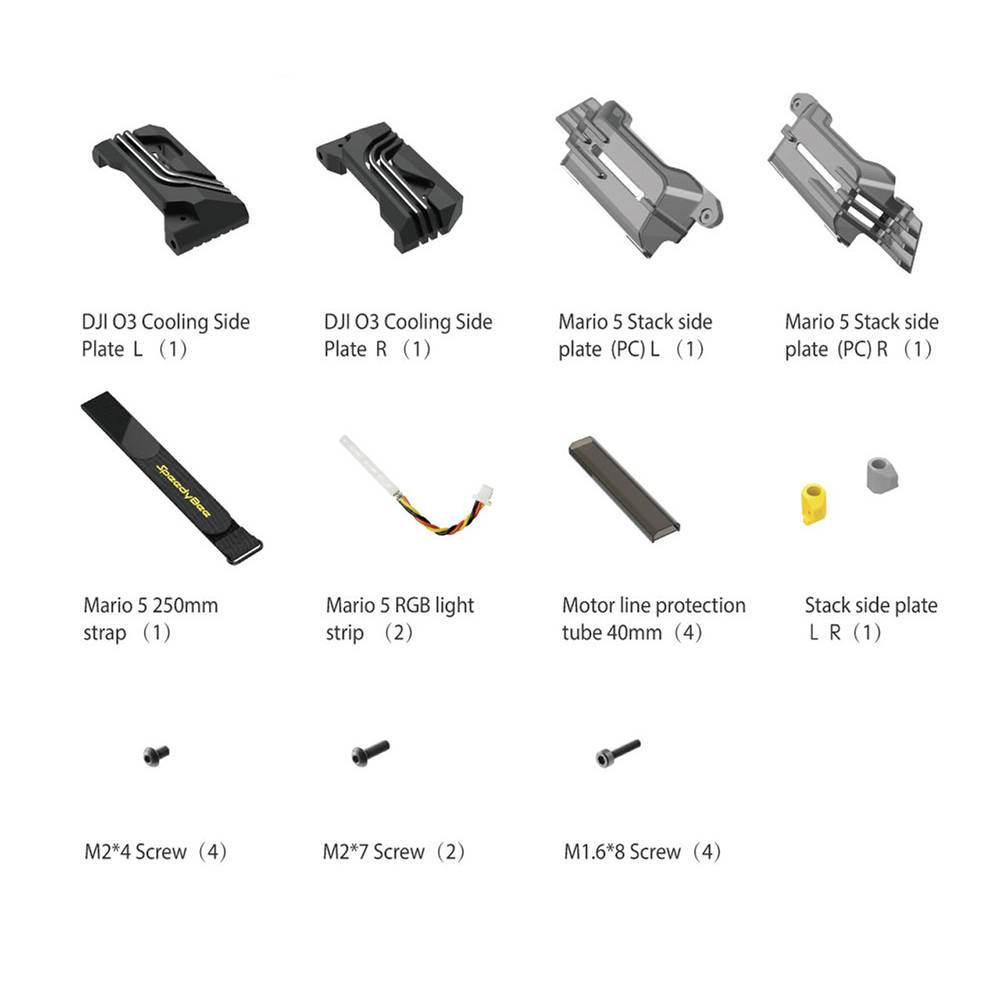

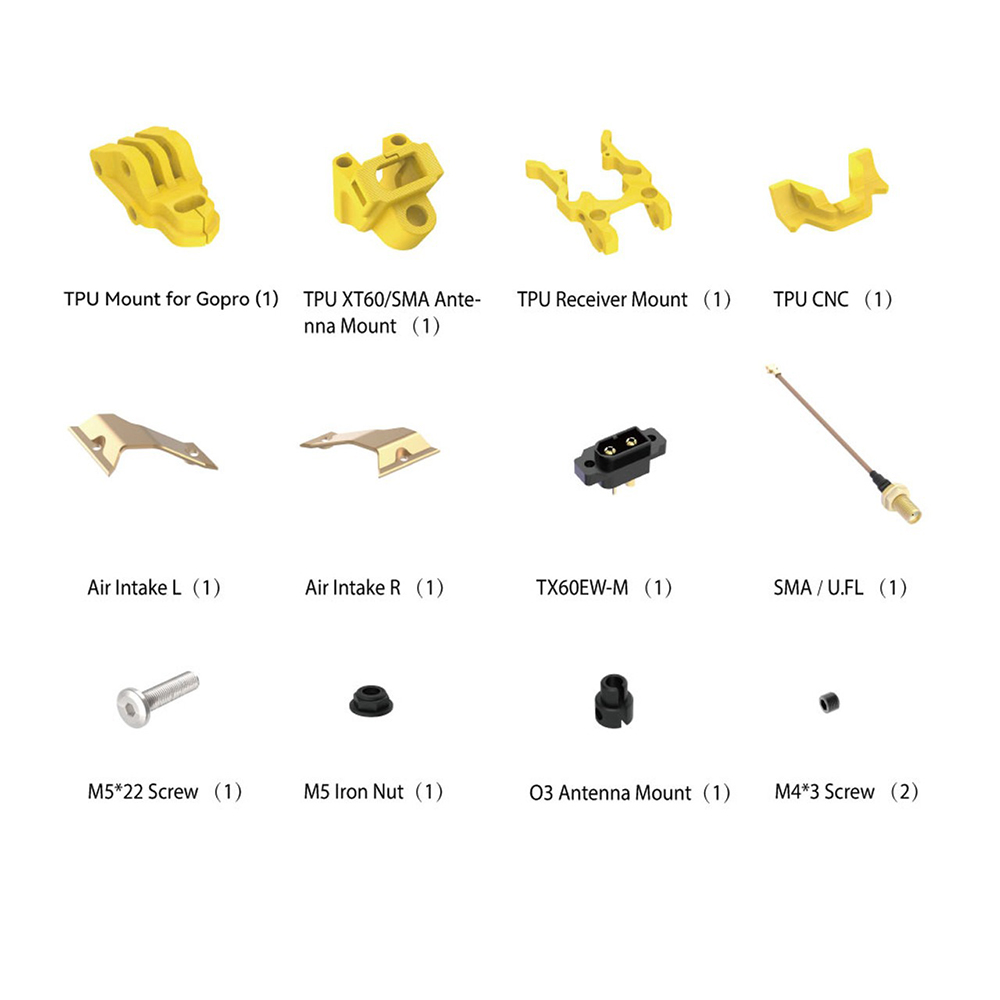

Note: KiwiQuads have the Lite version available in DC and XH, as well as the upgrade packages, so pick and choose your setup!

Specifications:

• Model: SpeedyBee Mario 5 Frame

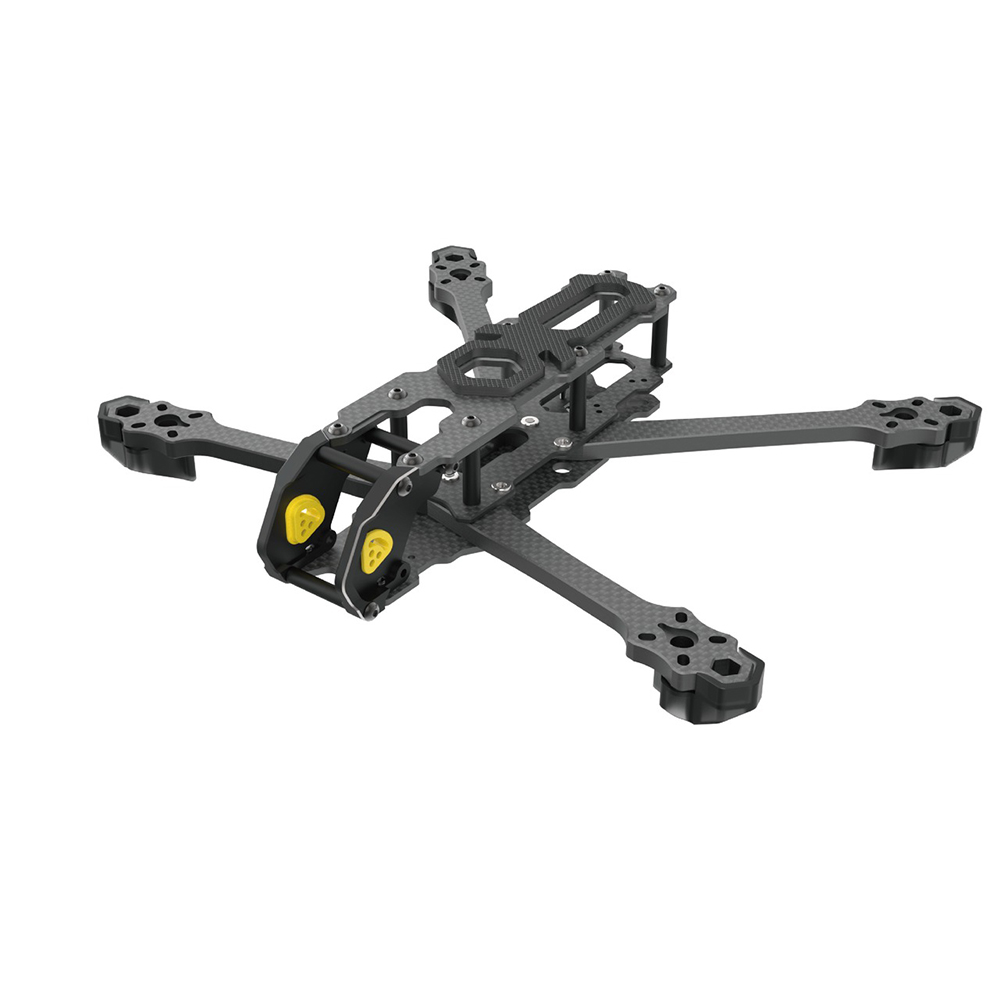

• Mario 5 DC Wheelbase: 227mm
• Mario 5 DC Weight: 129 ±5g (3D Printed Parts Excluded)
• 170 ±5g (3D Printed Parts and Injection)

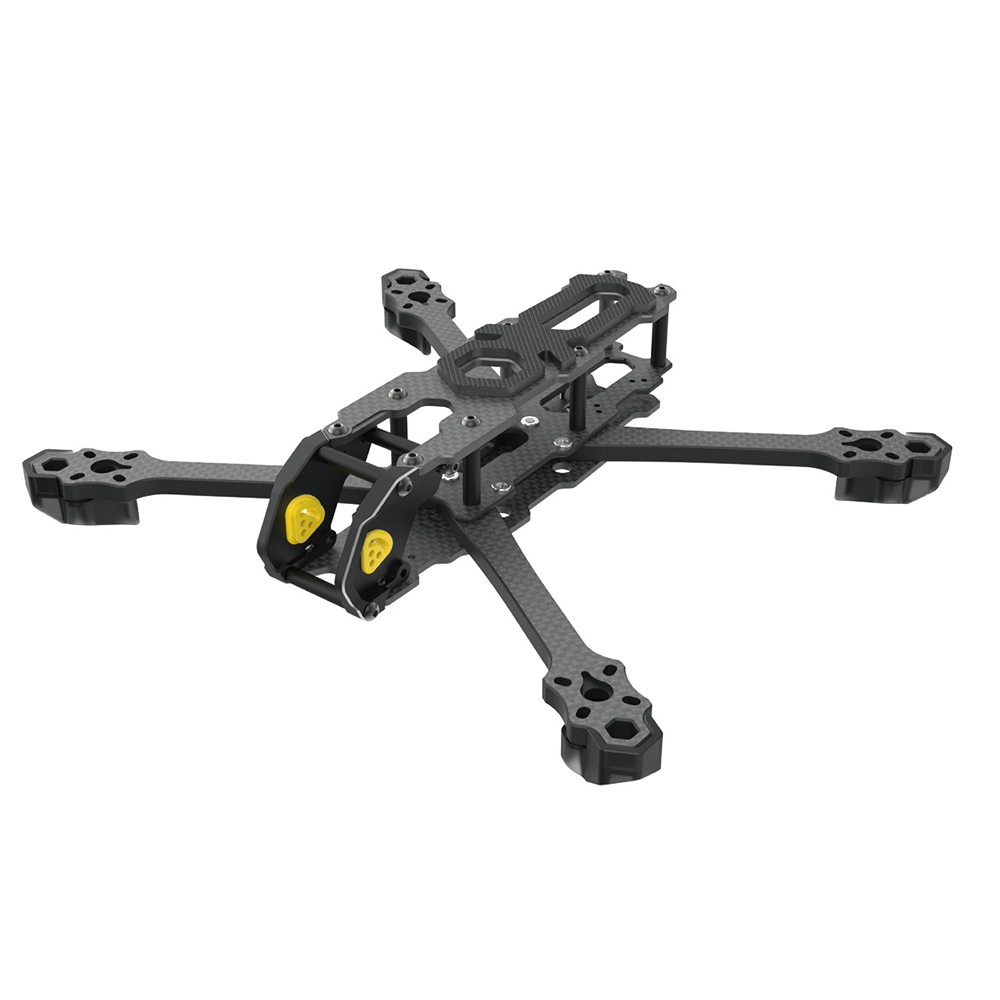

• Mario 5 XH Wheelbase: 226mm
• Mario 5 XH Weight: 126 ±5g (3D Printed Parts Excluded)
• 167±5g (3D Printed Parts and Injection)
• Top Plate Thickness: 2.5mm(T300 3K)
• Middle Plate Thickness: 2.0mm(T300 3K)
• Bottom Plate Thickness: 2.5mm(T300 3K)
• Arm Thickness: 6mm(T300 3K)
• Camera Mounting Screw: 7mm
• 3D Printed Parts: Yellow TPU
• Battery Anti-Slip Pad: Silicone 3mm
• Motor Spring Hole Position: Φ8mm
• Compatible Propeller Size: Max 5.1 Inch
• Motor Mounting Hole Distance: 16-19mm
• FC Mounting Hole: 30.5×30.5(M3)
• VTX Mounting Hole: 20×20(M2) / 25.5×25.5(M2)
• Head Material: Aviation Aluminum Alloy
• Aluminum Column Material: 7075 D5*23mm/D46*22mm
• Internal Mounting Height: 23-31mm
• Receiver Installation Space: 25*13*6mm
• Suitable Capacitor Size: Φ10mm*20mm
• GPS Installation Size: 18*18*7
• Camera Compatibility: 19mm/20

Package Includes:

• 1 x SpeedyBee Mario 5 Frame
