SpeedyBee Mario 5 Frame (4 Options)
by Speedybee
5.00 out of 5
(4 customer reviews)
Designed with aviation-grade aluminum and T300 3K carbon fiber, this quad frame offers superior durability and performance.
$17.99 – $67.99
SKU: 6980
Categories: Carbon Frames, Drone Frames
Description

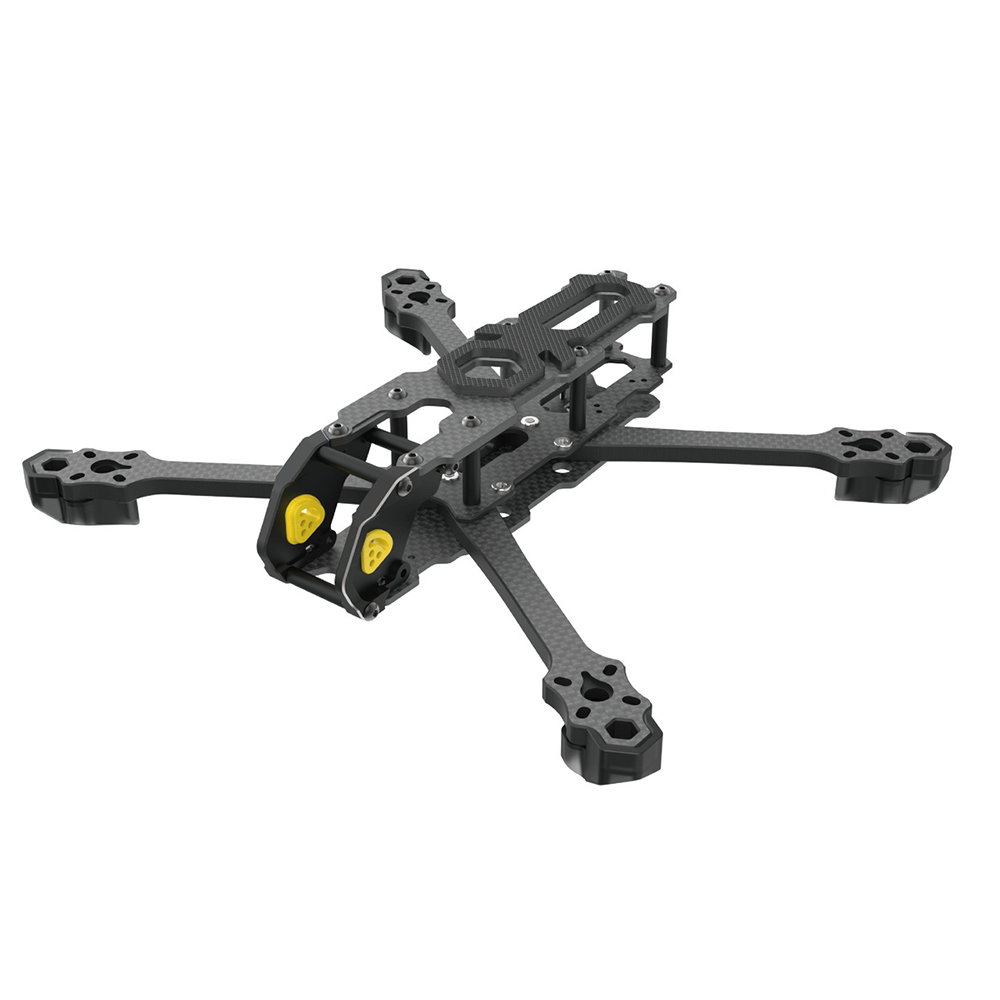

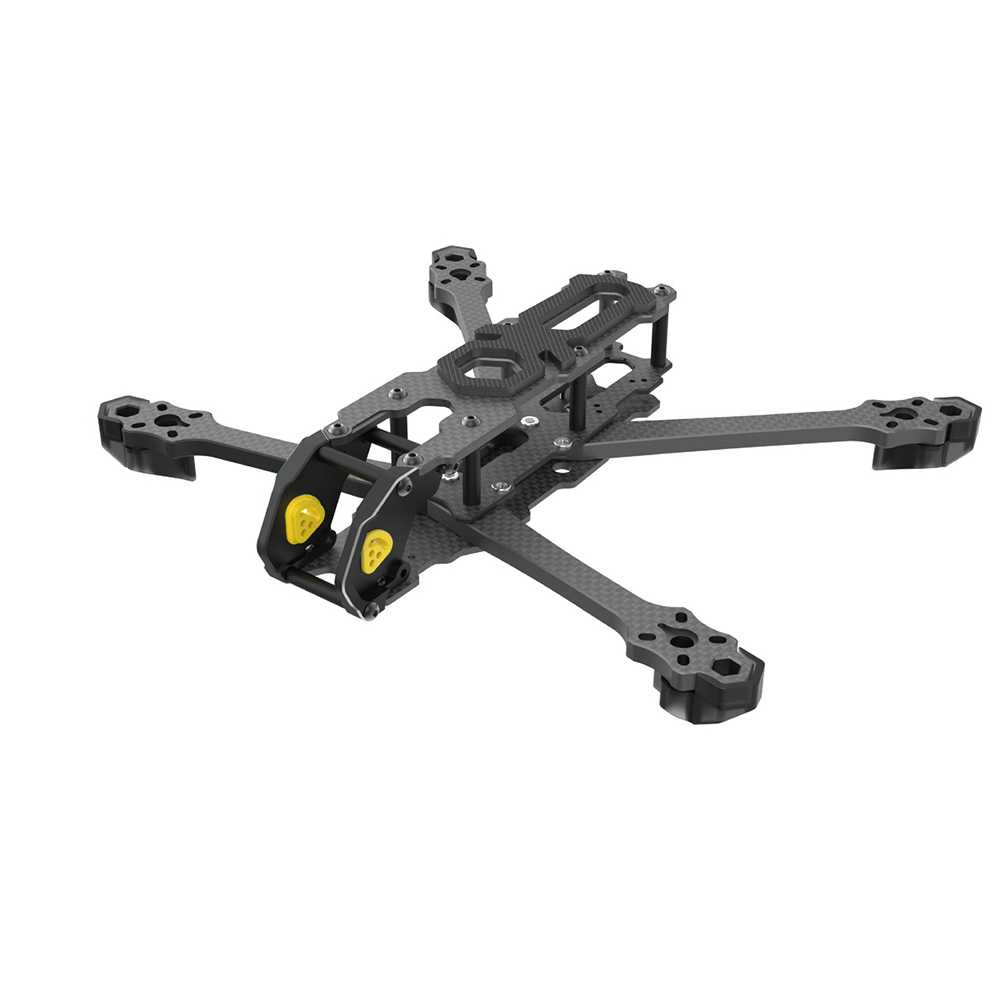

The SpeedyBee Mario 5 Frame is a robust and lightweight quad frame built for maximum durability. Featuring a T300 3K carbon fiber structure, 6mm thick arms, and compatibility with 5.1″ propellers, it ensures stability and performance for freestyle or racing.

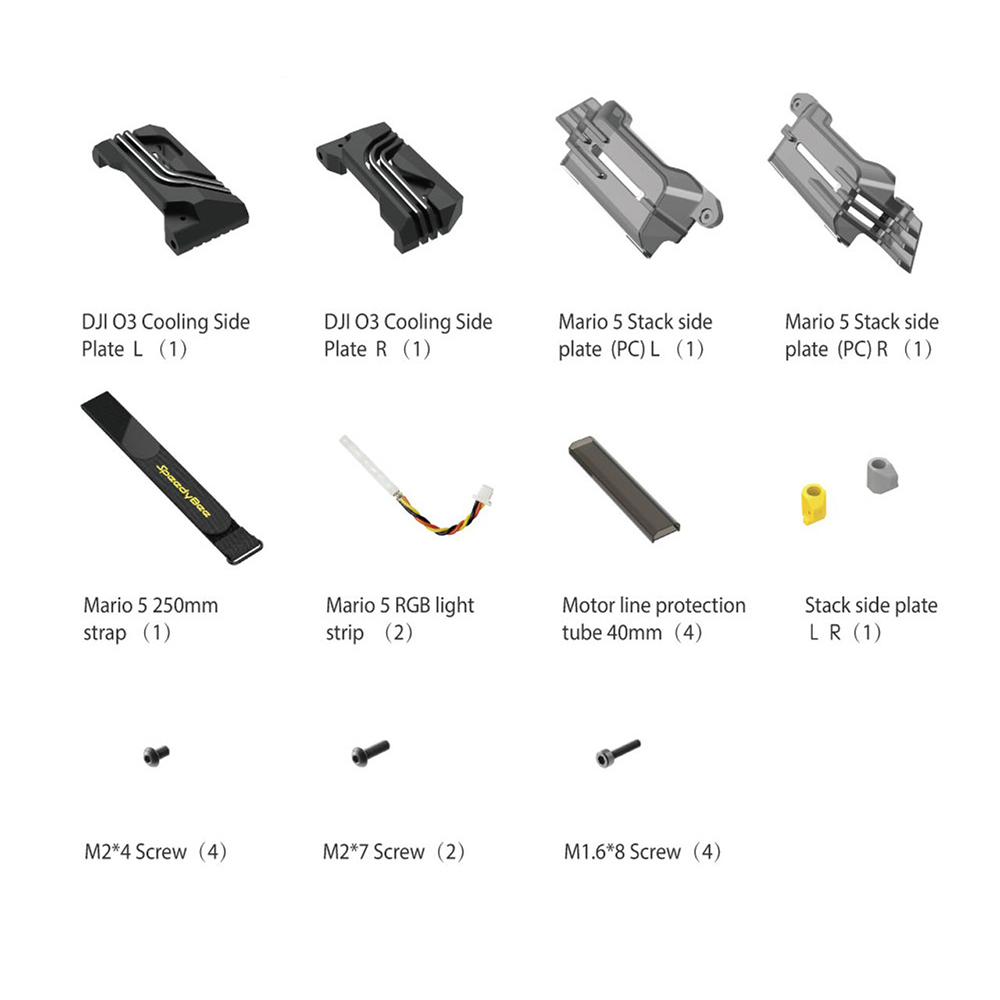

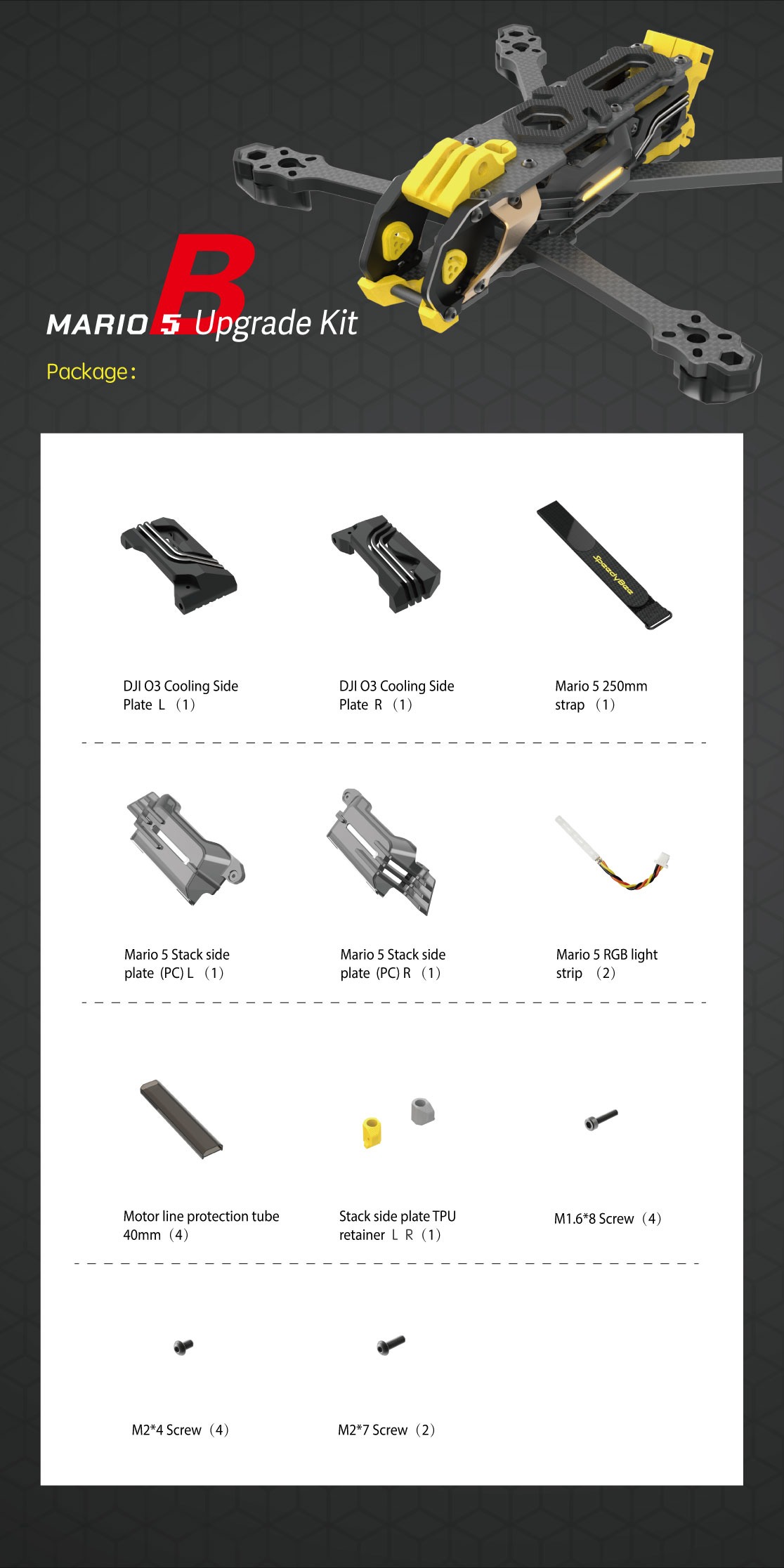

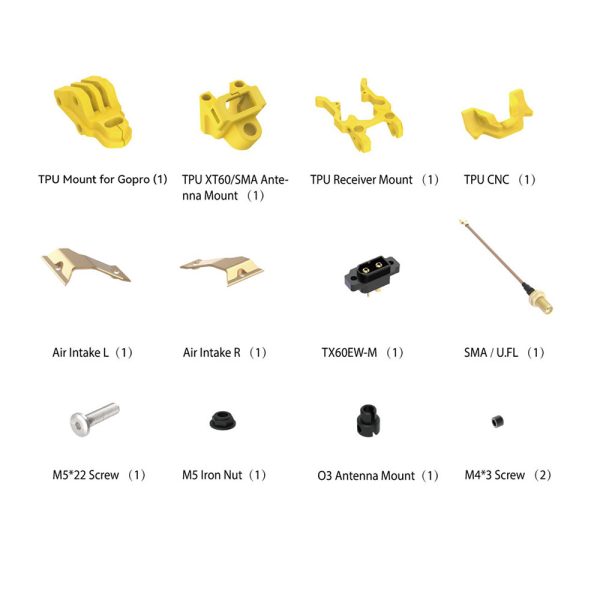

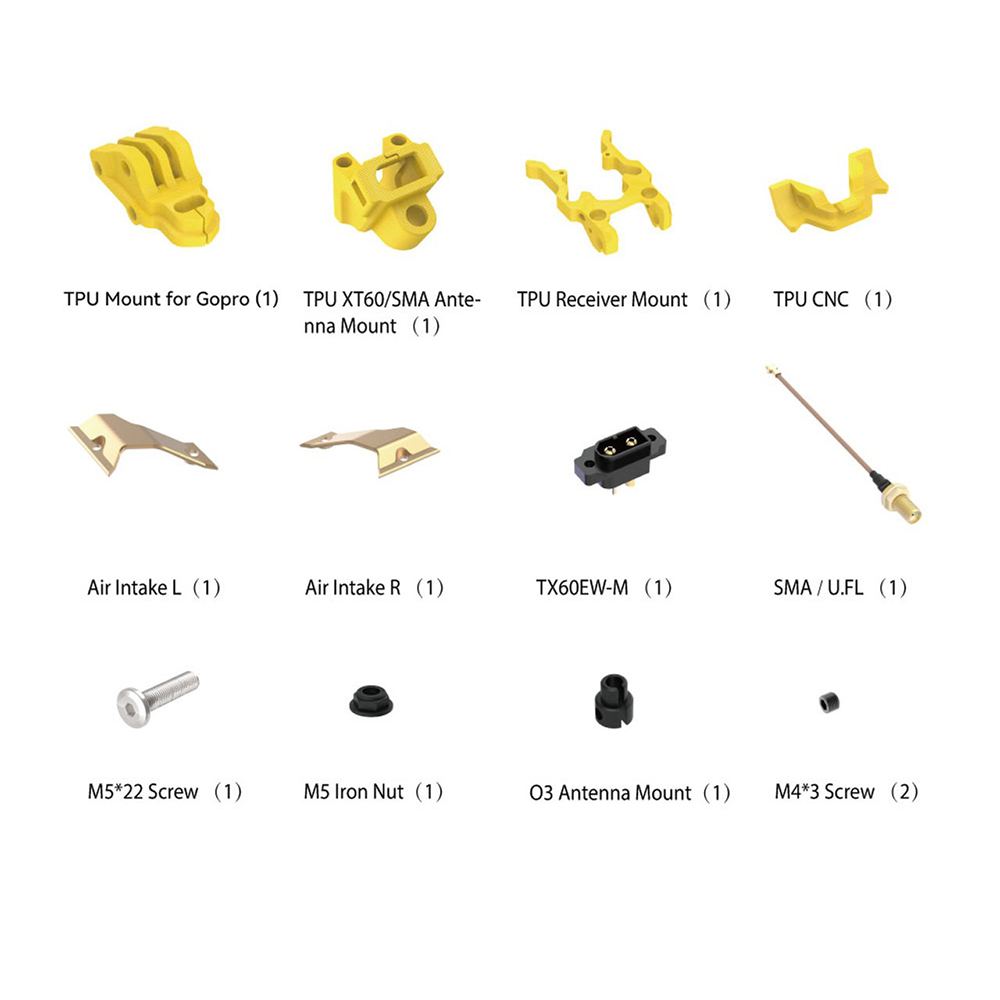

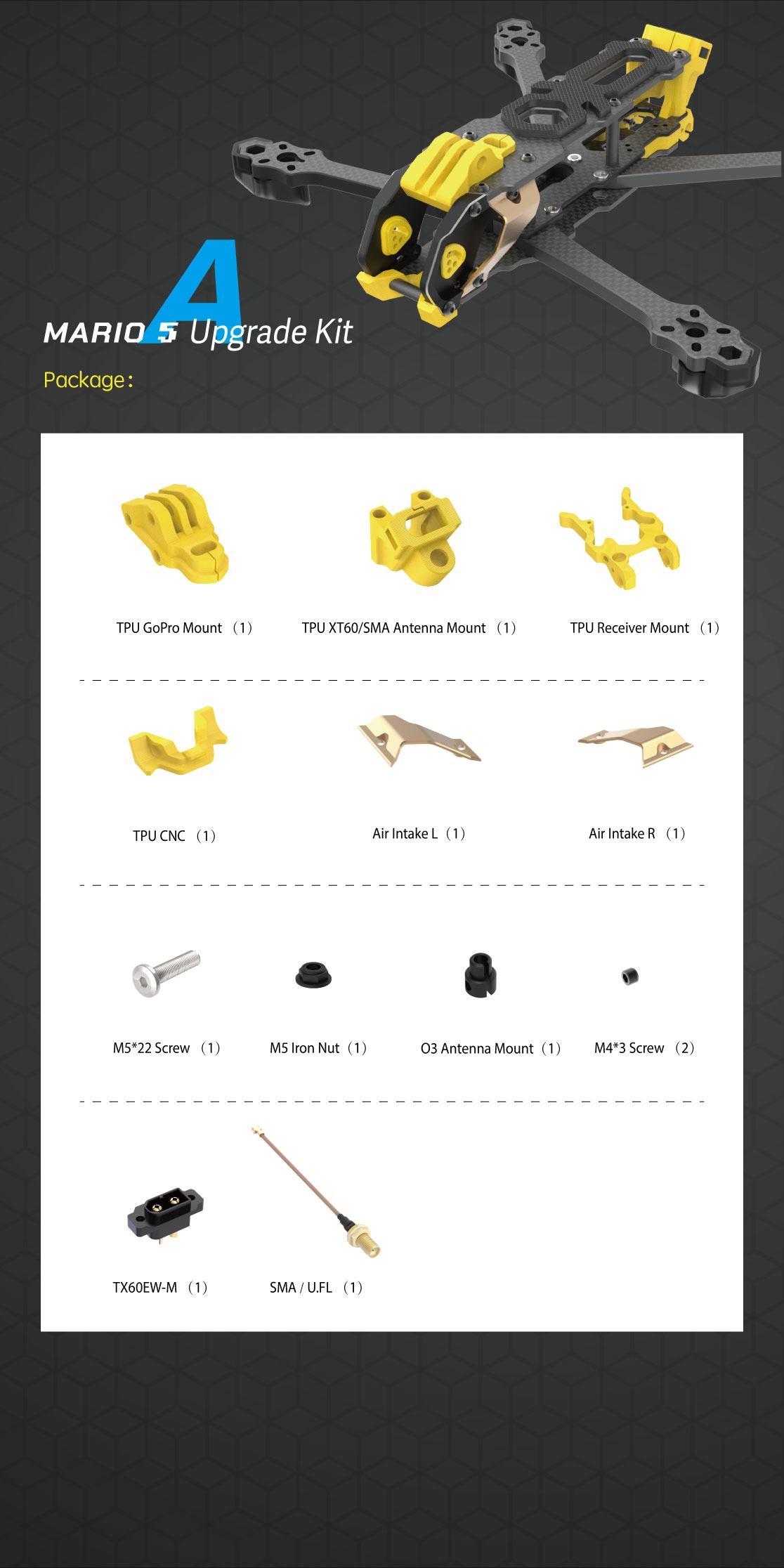

Note: KiwiQuads have the Lite version available in DC and XH, as well as the upgrade packages, so pick and choose your setup!
Specifications:
- Model: SpeedyBee Mario 5 Frame

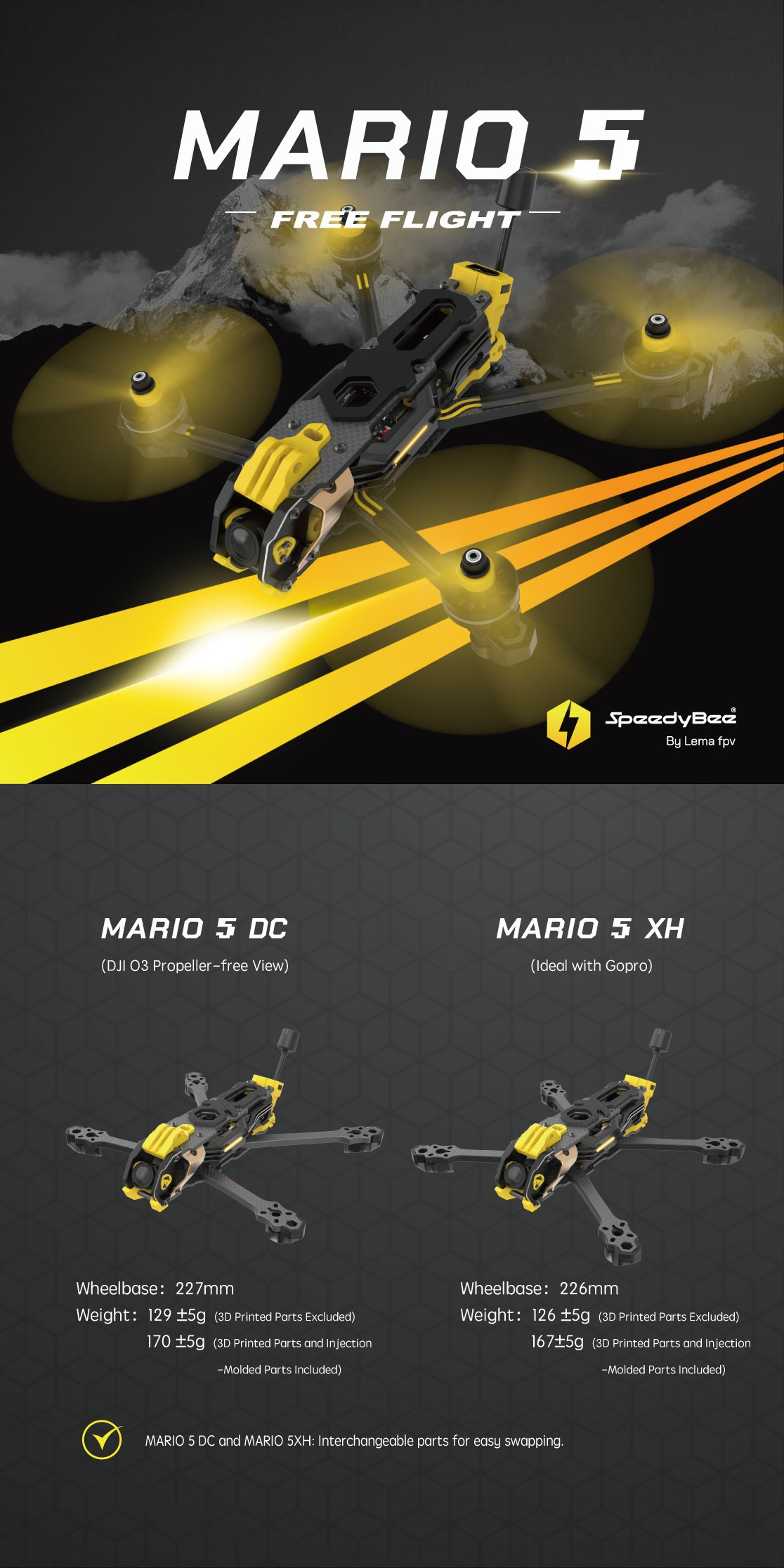

- Mario 5 DC Wheelbase: 227mm
- Mario 5 DC Weight: 129 ±5g (3D Printed Parts Excluded)
- 170 ±5g (3D Printed Parts and Injection)

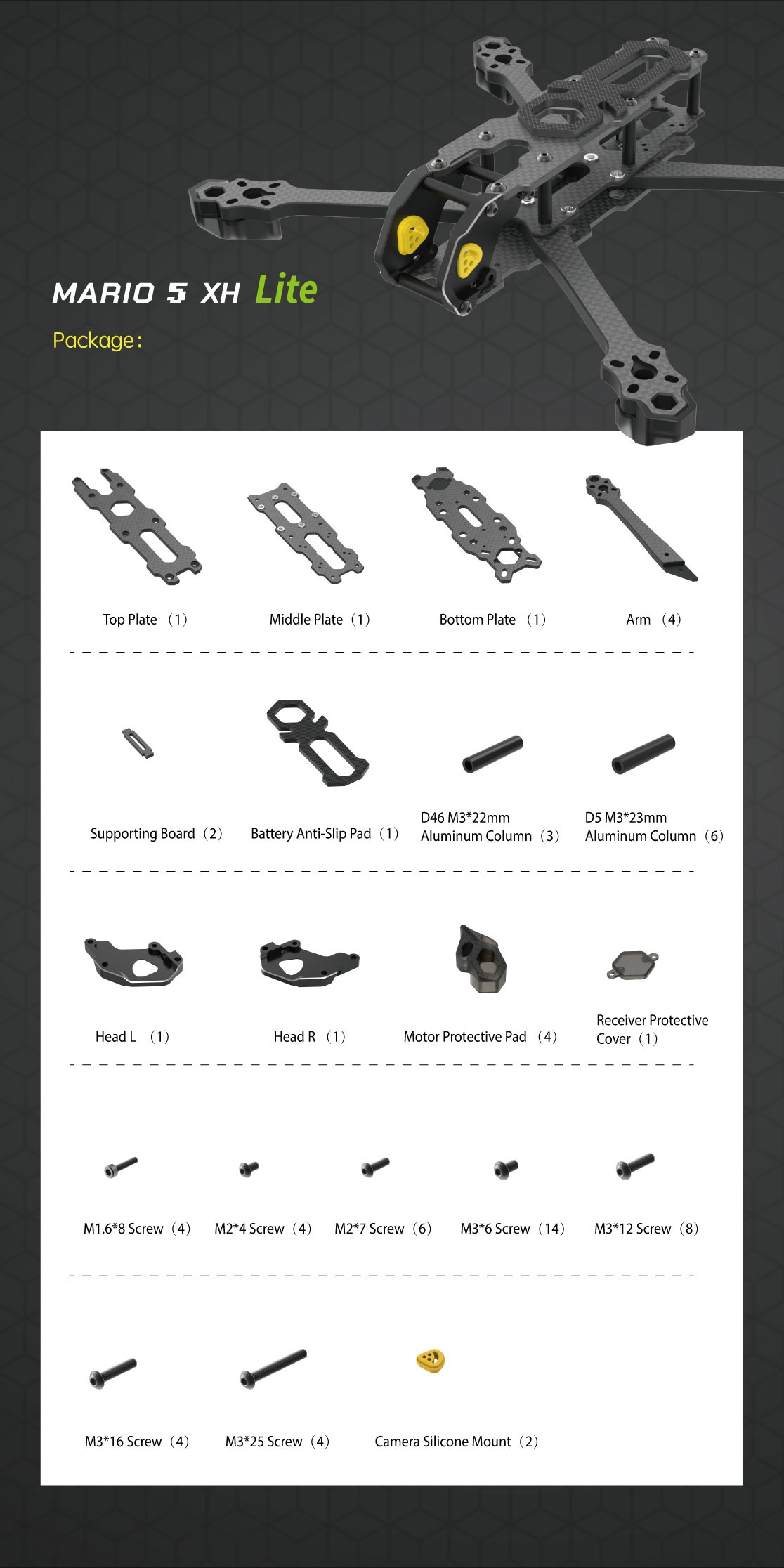

- Mario 5 XH Wheelbase: 226mm
- Mario 5 XH Weight: 126 ±5g (3D Printed Parts Excluded)
- 167±5g (3D Printed Parts and Injection)

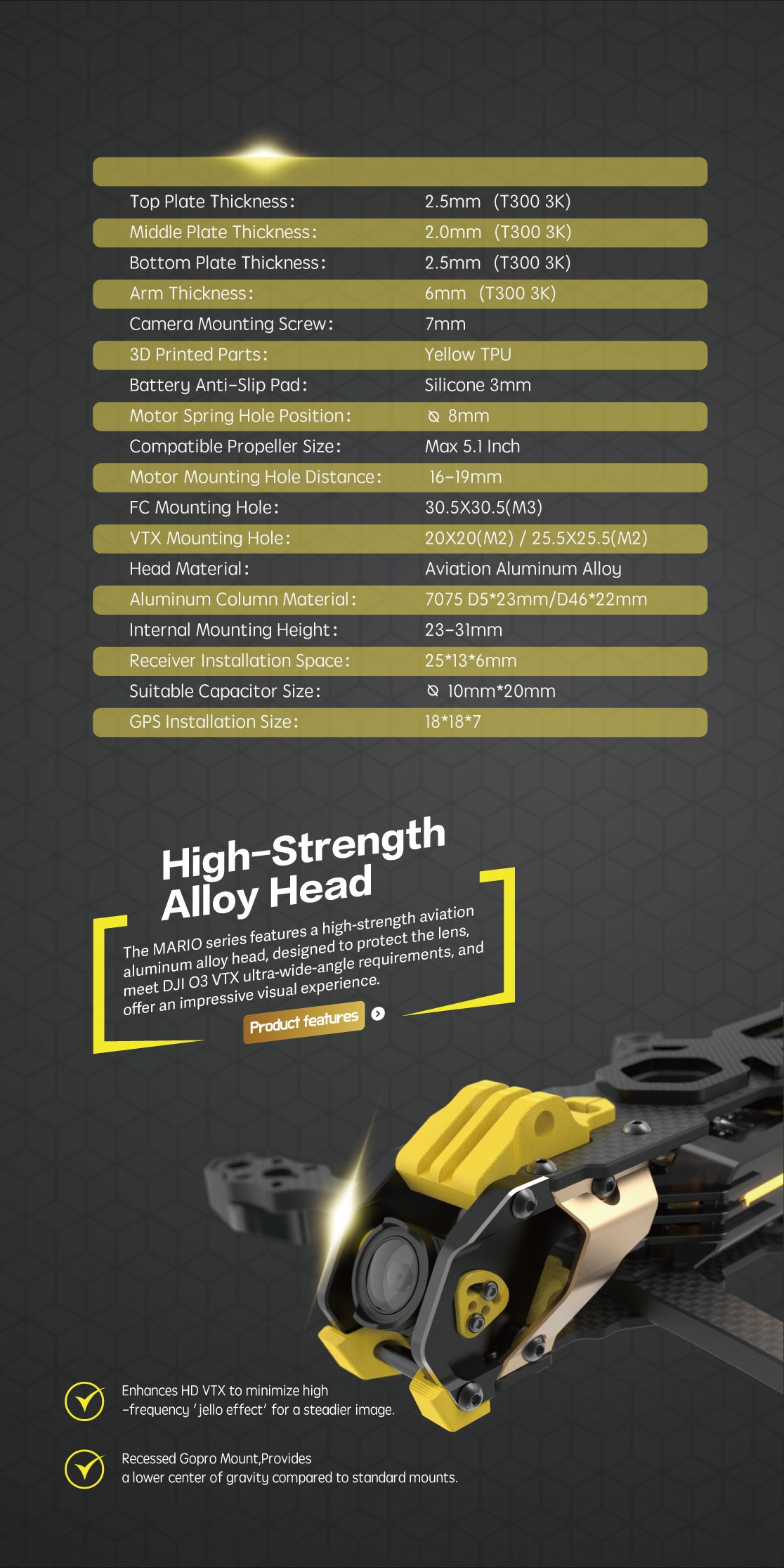

- Top Plate Thickness: 2.5mm(T300 3K)
- Middle Plate Thickness: 2.0mm(T300 3K)
- Bottom Plate Thickness: 2.5mm(T300 3K)
- Arm Thickness: 6mm(T300 3K)
- Camera Mounting Screw: 7mm
- 3D Printed Parts: Yellow TPU
- Battery Anti-Slip Pad: Silicone 3mm
- Motor Spring Hole Position: Φ8mm
- Compatible Propeller Size: Max 5.1 Inch
- Motor Mounting Hole Distance: 16-19mm
- FC Mounting Hole: 30.5×30.5(M3)
- VTX Mounting Hole: 20×20(M2) / 25.5×25.5(M2)
- Head Material: Aviation Aluminum Alloy
- Aluminum Column Material: 7075 D5*23mm/D46*22mm
- Internal Mounting Height: 23-31mm
- Receiver Installation Space: 25*13*6mm

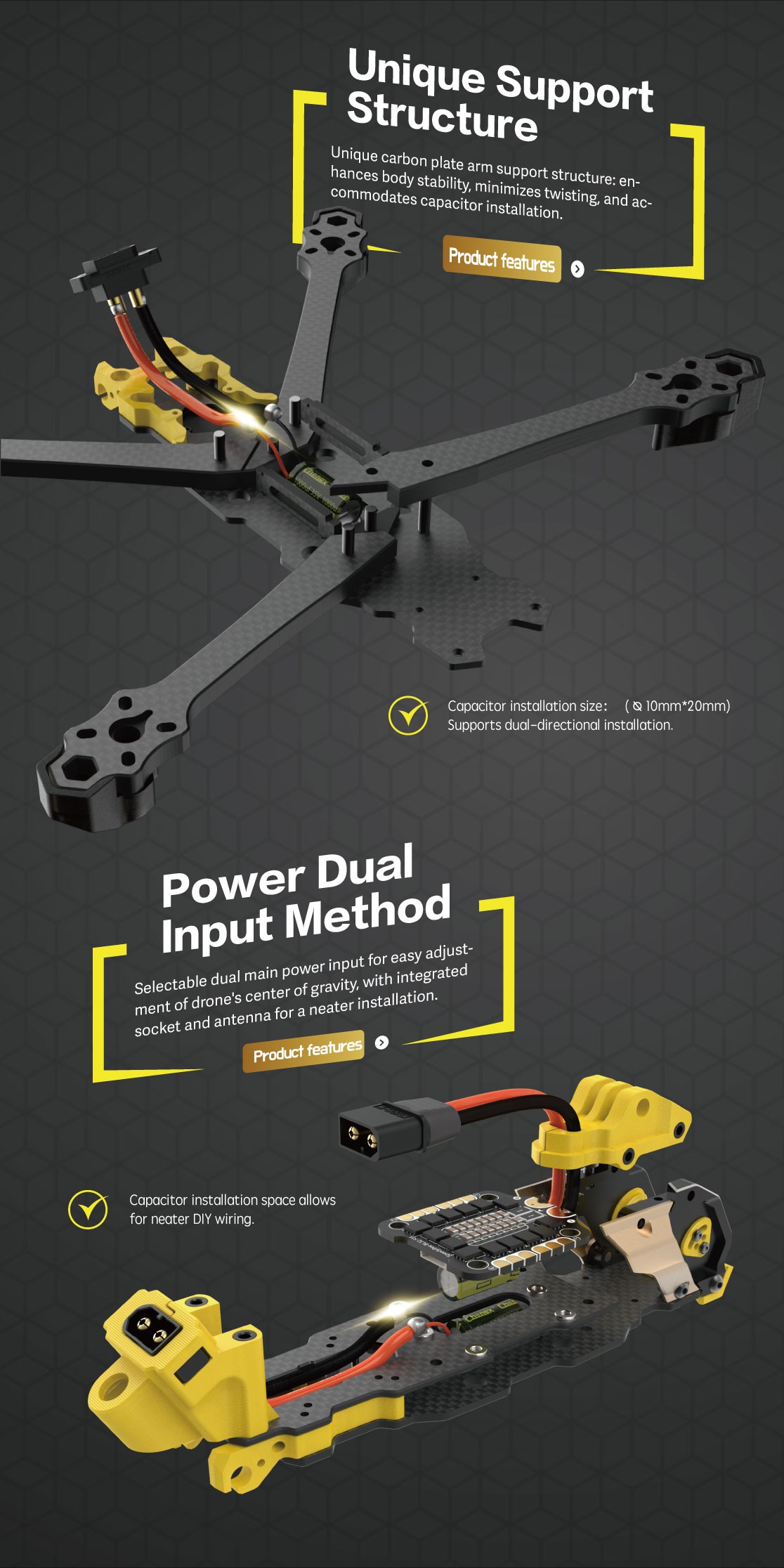

- Suitable Capacitor Size: Φ10mm*20mm
- GPS Installation Size: 18*18*7
- Camera Compatibility: 19mm/20

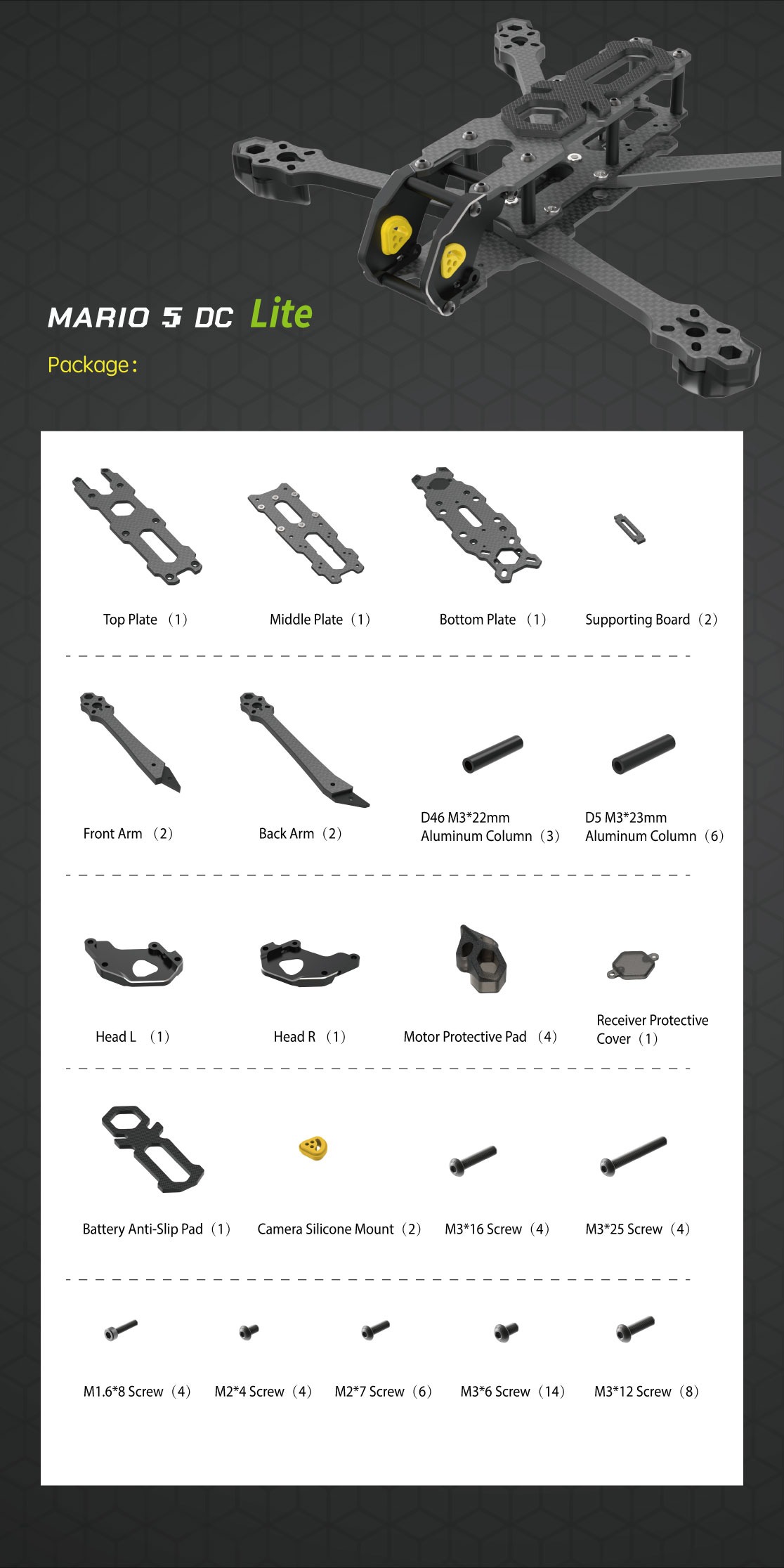

Package Includes:
- 1 x SpeedyBee Mario 5 Frame
Additional information
Brand | |
---|---|
Frame Size | |
Frame Type | |
Type | DC Lite Version, XH Lite Version, Upgrade Kit A, Upgrade Kit B |
