Description

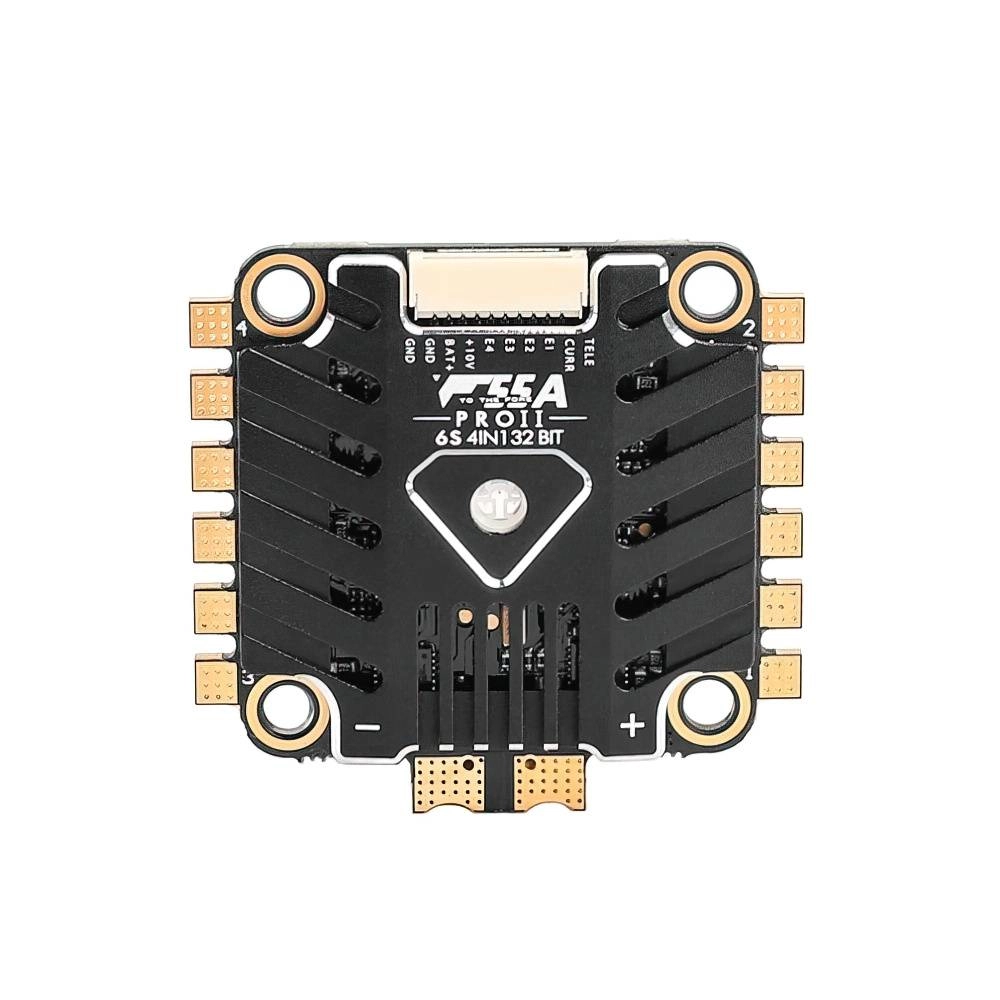

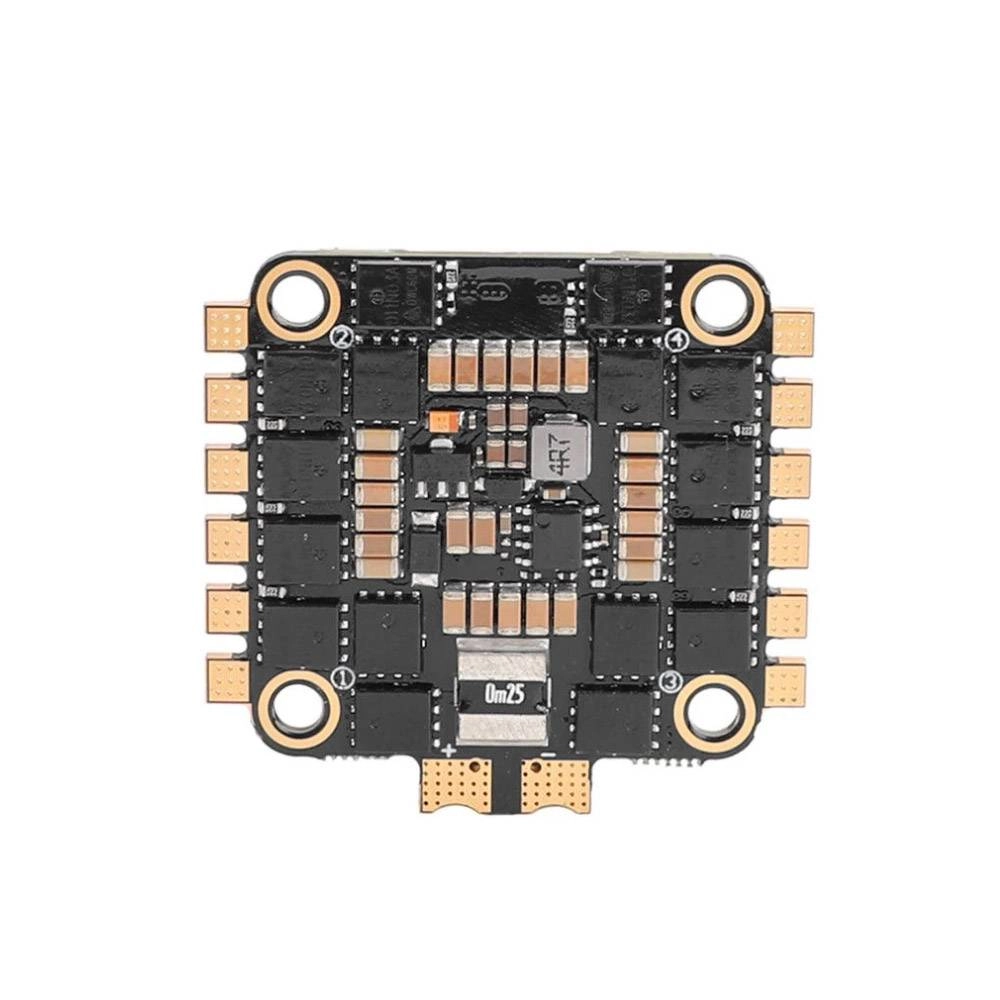

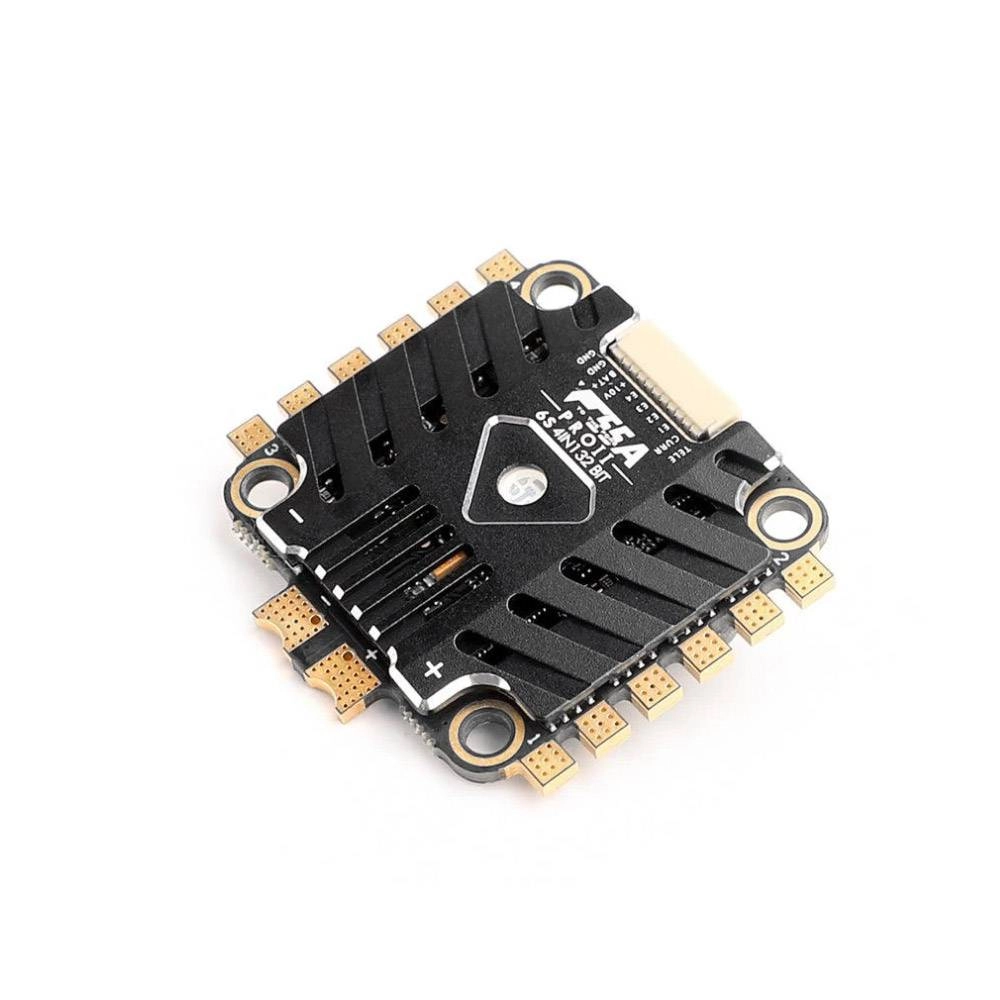

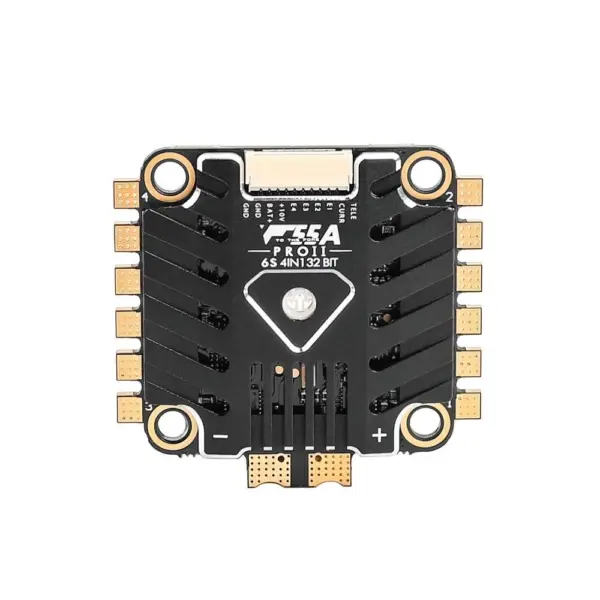

The TMotor HOBBY F55A Pro II 55A 3-6s AM32 4-in-1 ESC w/ BEC redefines power and control for elite FPV pilots. With upgraded heatsink, high current tolerance, and cutting-edge AM32 firmware, it delivers ultra-responsive performance, unmatched durability, and efficient 10V@2A BEC output—all packed into a sleek 30x30mm design that dominates demanding drone builds.

Features

• 30x30mm Mounting Pattern
• Upgraded Heatsink Design
• High Power Handling
• 32-Bit Architecture
• AM32 Firmware
• Durable Design
• 10V@2A BEC
• Built-in LED

Specifications

• Support: DSHOT150/300/600/1200
• Weight: 17.5g (Including Heatsink)
• Continuous current: 4*55A
• Firmware: AM32 32bit
• Burst current: 4*75A
• BEC Output: 10V @2.0A
• Size: 45x41x7.3mm

Package includes

• 1 x T-Motor F55A Pro II 55A 3-6S AM32 4-in-1 ESC w/ BEC – 30×30
• 1 x 12AWG-130MM with XT60 Soldered input wires
• 3 x SH0.1mm Plugs(6/8/10)
• 5 x Damping Rubbers
• 2 x 61mm Signal wire
• 5 x Cable Protectors
• 1 x Capacitor
