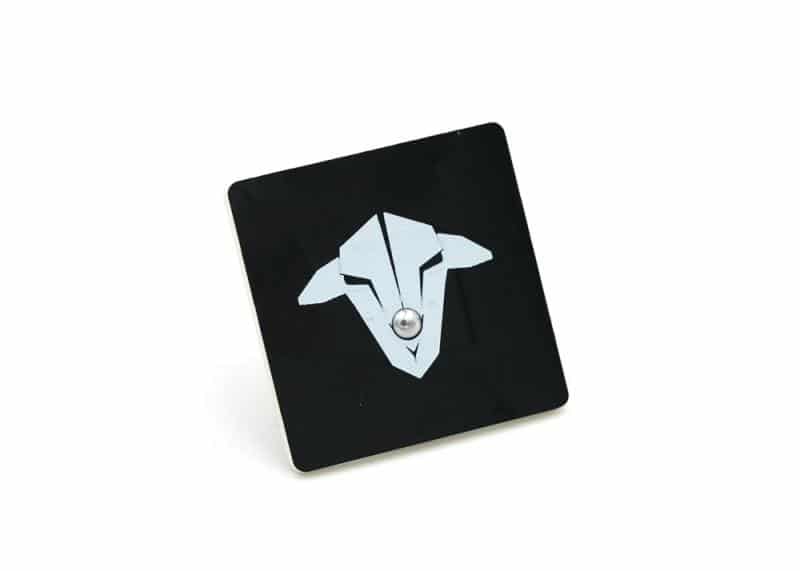

TBS 5G8 RHCP Patch Antenna (SMA)
Designed by the godfather of circular polarization (IBCrazy, Video Aerial Systems LLC) and manufactured by Team BlackSheep, this antenna is your cheap entry into circular polarization. The 5dbi gain provides enough beamwidth to comfortably mount this patch antenna directly to your goggle-receiver.
$20.99
In Stock at KiwiQuads
Description
TBS is a new player in the 5.8 GHz game. Taking the typical TBS approach, we look at the shortcomings of the current offerings and try to find niches for innovation. The TBS 5.8 GHz Patch antenna is one of them. Designed by the godfather of circular polarization (IBCrazy, Video Aerial Systems LLC) and manufactured by Team BlackSheep, this antenna is your cheap entry into circular polarization. The 5dbi gain provides enough beamwidth to comfortably mount this patch antenna directly to your goggle-receiver.
The typical range for this antenna is a very comfortable 1.5km on a 200mW transmitter (which translates to 3-4km if we use the same metrics as our competition). It thus matches or outperforms all existing Cloverleaf / Skew-Planar-Wheel combinations, but it only has a 110 degree coverage. It’s more rugged and durable than all of the other receiver antennas too, and lighter.
Use this antenna for your everyday flights at the field in combination with the TBS Fusion.
Specifications:
- 5dBi Gain
- Circular Polarization
- 5700 – 5900 MHz working frequency
- 110° beamwidth
- 35 x 35mm

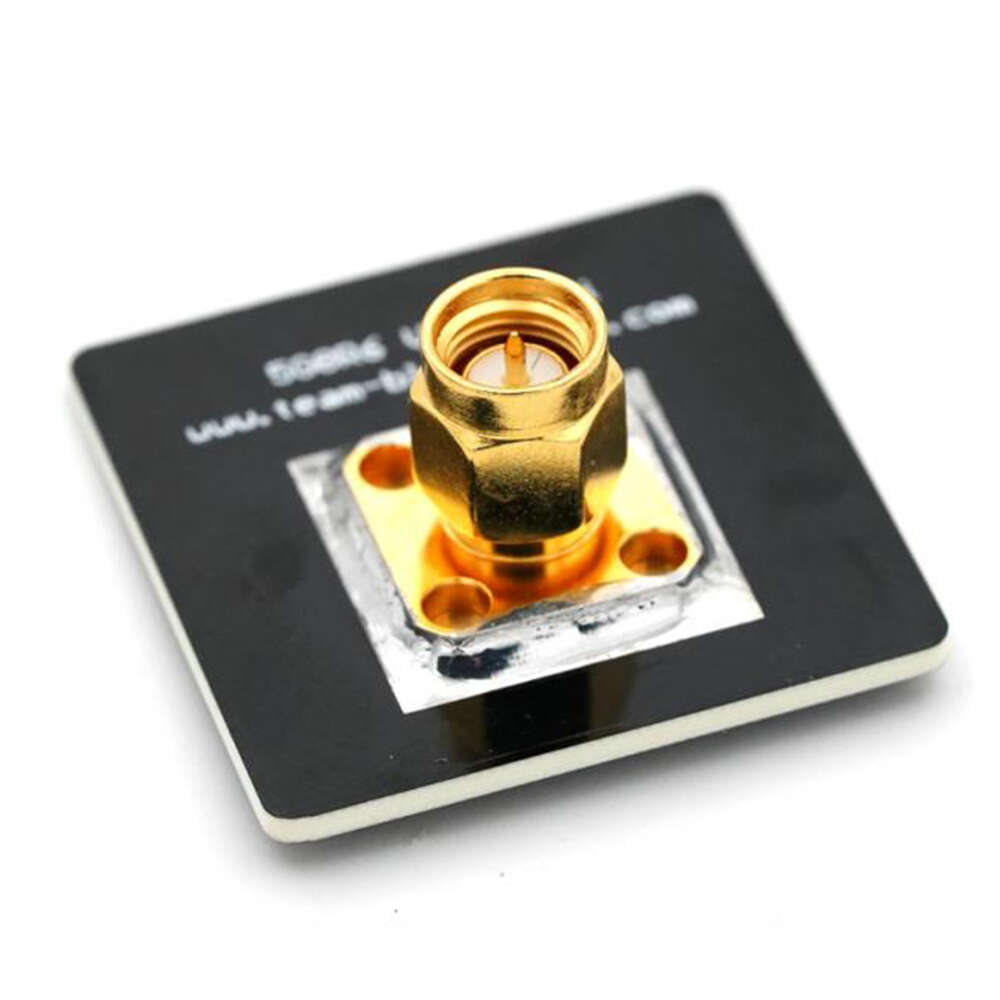

- SMA connector
Included:
- 1 x TBS 5G8 RHCP Patch Antenna (SMA)
