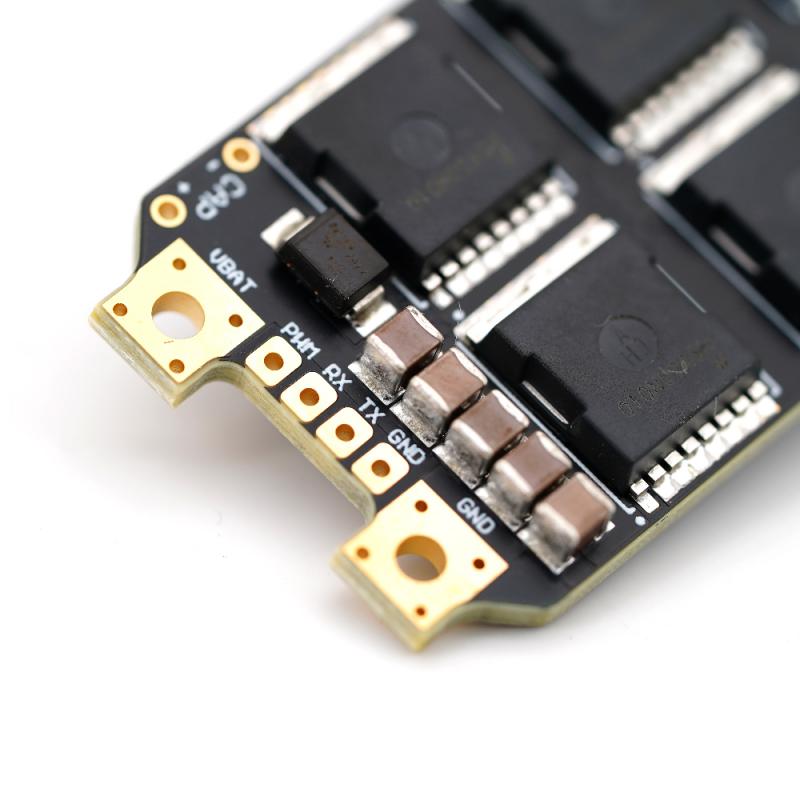

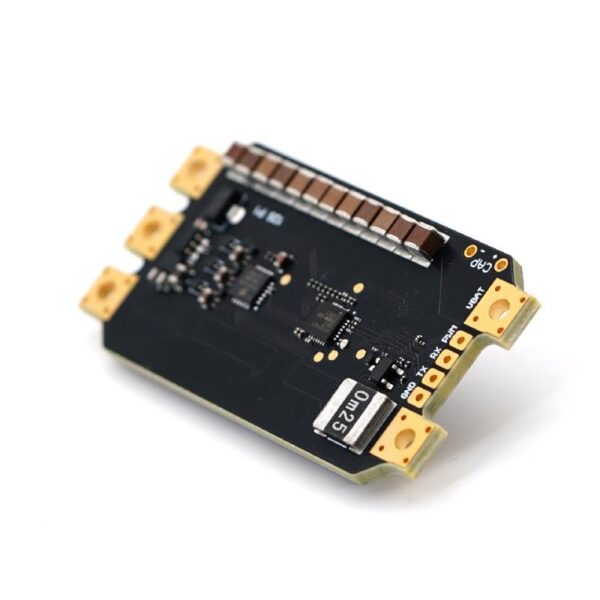

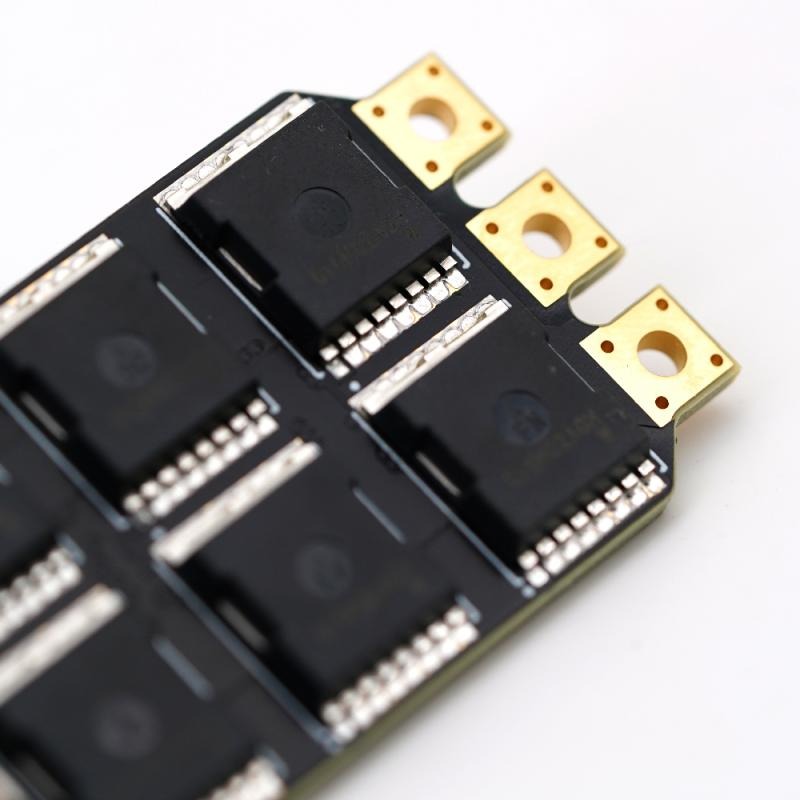

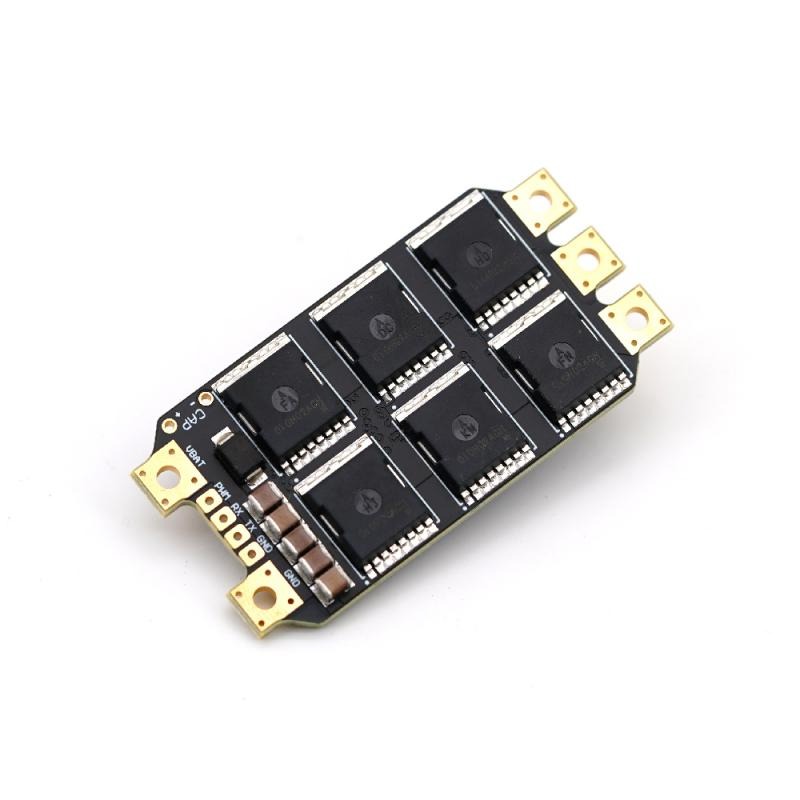

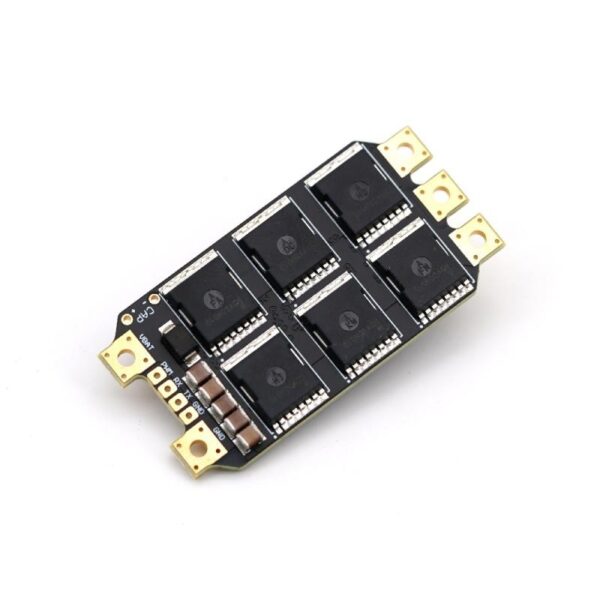

TBS Lucid 12S 90A ESC for Wing or Cinelifter

by Team BlackSheep
5.00 out of 5
(1 customer review)

This ESC combines high power with heat resistance, ensuring reliability and peak performance under extreme conditions.

$99.99

Out of stock

SKU: 2239 Categories: , ,

Description

The TBS Lucid 12S 90A ESC for Wing or Cinelifter delivers unmatched power and reliability for high-demand applications. With advanced thermal dissipation and protection against voltage spikes, this ESC is designed to handle extreme conditions while ensuring top-tier performance and durability.

Specifications

  • ESC software: AlkaMotors32 (AM32)
  • ESC target: AM32_TBS_12S_F421
  • Rated current: 70A, 60 seconds, 90A 40 seconds
  • Peak Current: 120A, 30 seconds
  • Propellers: Up to 15″, over 7″ requires good airflow
  • Input: 3-12S Lipo
  • Protocol: Bi-directional Dshot 300/600), KISS ESC Telemetry
  • ESC Current port: Yes
  • BEC: No
  • Size: 57.75mm x 29mm
  • Mounting: See DXF drawing
  • Weight: 19g excl. cable and capacitors

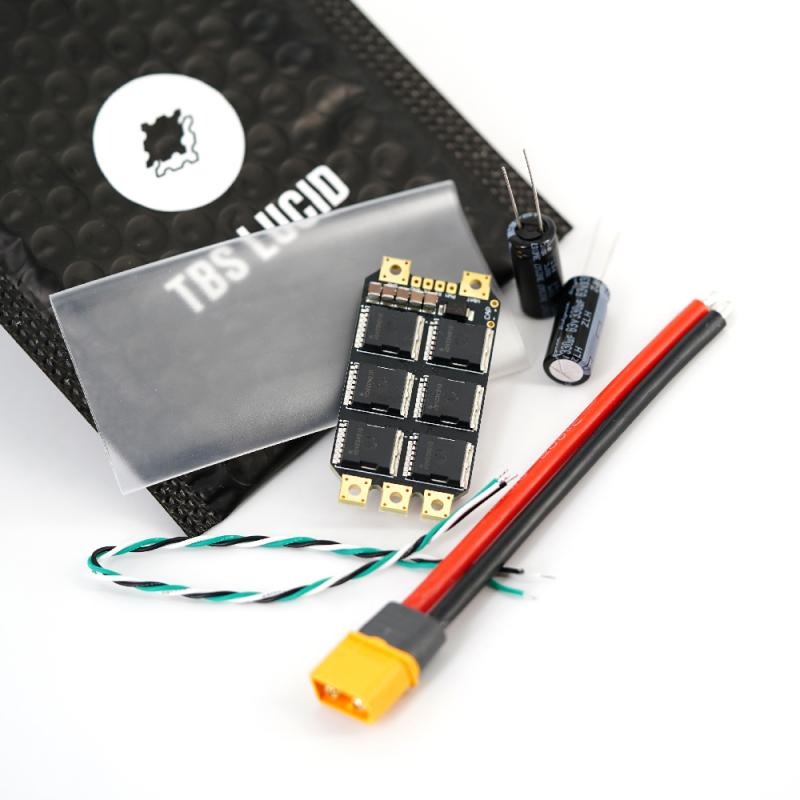

Package Includes

  • 1x TBS Lucid 12S ESC
  • 1x XT60 12 AWG wire
  • 1x 3-color wire for PWM or Serial (D-Shot, CRSF)
  • 1x shrink tube (transparent)
  • 2x 330uF 12S low-ESR Capactior
