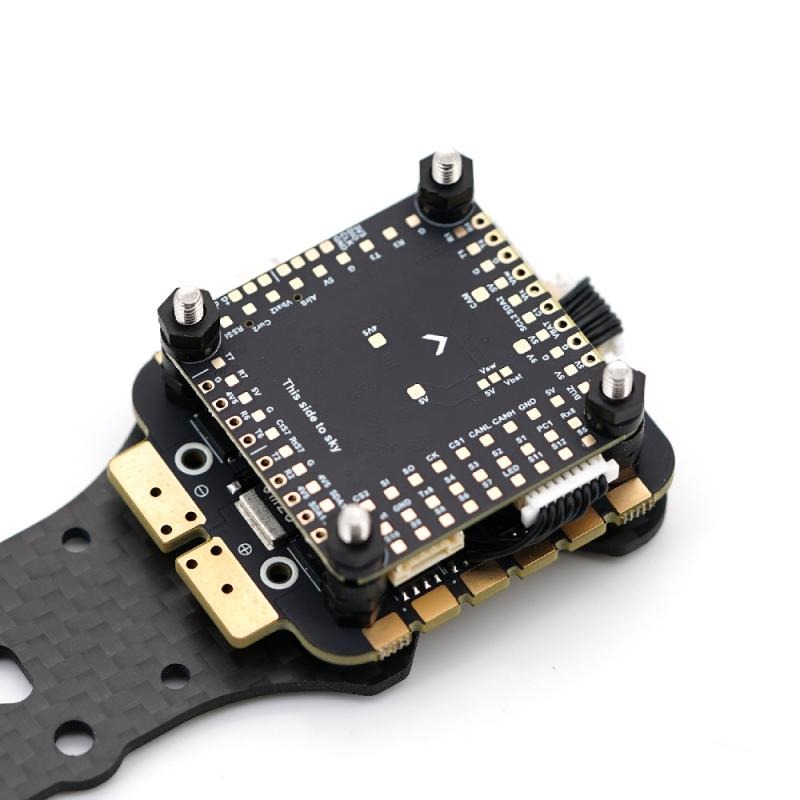

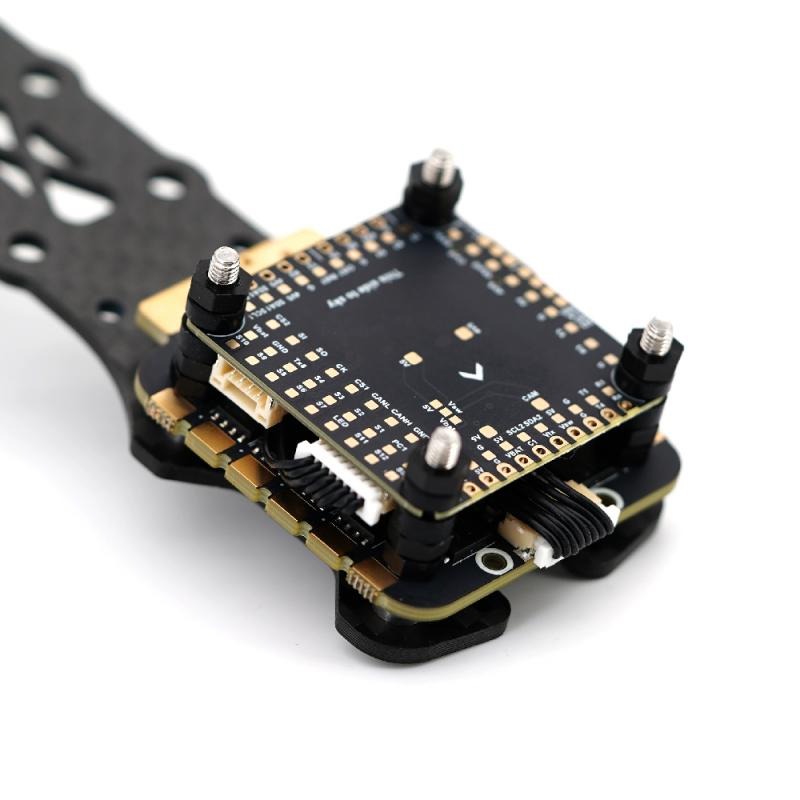

Description

The TBS Lucid H7 Stack 8S 60A is an elite powerhouse built for serious pilots demanding ultimate performance. With a lightning-fast STM32H743 MCU, dual ICM42688 gyros, 13 PWM outputs, and 8S 60A-rated AM32 ESC, it delivers unmatched precision, responsiveness, and durability for advanced freestyle, cinematic, or long-range builds—plus onboard MicroSD blackbox logging, dual camera switching, CAN bus support, and bi-directional DShot for total flight control.

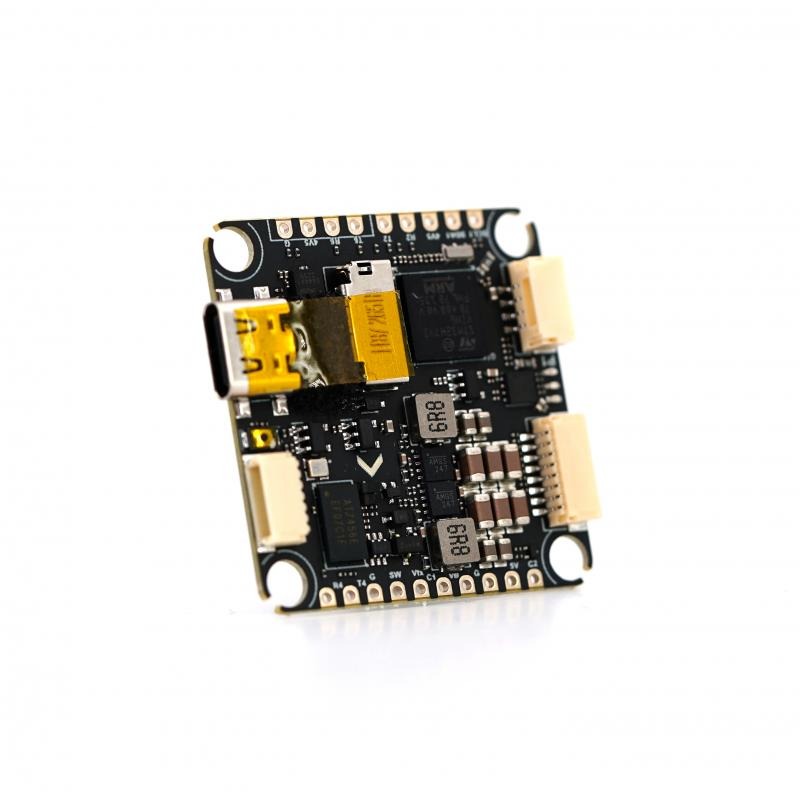

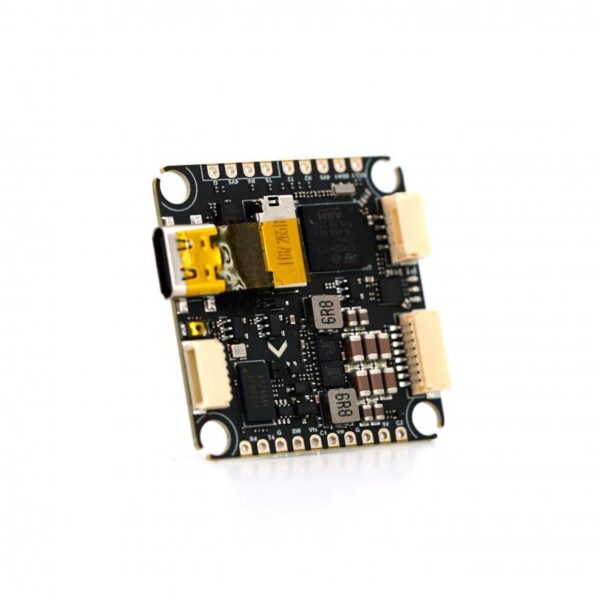

FC Specifications:

• MCU: STM32H743VIH6 running at 480MHz, with 1MB RAM and 2MB Flash.
• Gyro: ICM42688 x 2 (duo gyro)
• OSD Chip: AT7456E (SPI2)
• Barometer: Infineon DPS310 connected via I2C2.
• PWM Outputs: 13 channels, including a dedicated “LED” pad.
• Blackbox (BB): Data logging equipped with a MicroSD card slot (SDIO)
• UARTs: 7 total (1, 2, 3, 4, 6, 7, 8) signal inversion ready
• I2C Buses: 2 available.
• CAN Bus: 1 available.
• Analog Inputs: 6 ADC channels (VBAT, Current, RSSI, Analog AirSpeed, Vbat2, Cur2).
• LED Indicators: 3 LEDs (Blue, Green for FC Status, Red for 3.3V Power).
• Breakout: SPI3 breakout available.
• USB Interface: Type-C connector (USB 2.0 standard).
• JST Connectors:
  • 1x JST-SH1.0 8-pin (Vbat/G/Curr/Rx8/S1/S2/S3/S4)
  • 1x JST-GH1.25 4-pin (5V/CAN-H/CAN-L/Ground).
• Dual Camera Input: Switchable inputs for two cameras.
• Power Control: Switch for filtered 5V/Vbat output power.
• DJI FPV OSD: Compatible via any spare UART port.

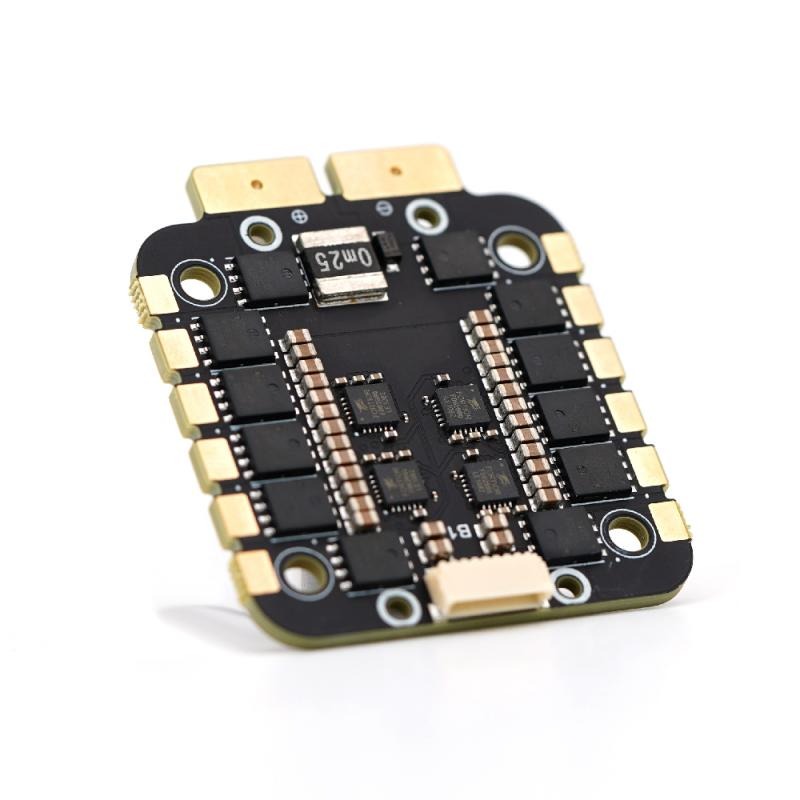

ESC Specifications:

• ESC Software: AlkaMotors32 (AM32)
• ESC Target: tbslu8s4in1
• Rated Current: 60A × 4 (60 seconds)
• Peak Current: 85A × 4 (30 seconds)
• Propellers: Up to 11″ (over 7″ requires good airflow)
• Input: 3–8S LiPo
• Protocol: Bi-directional DShot 300/600, KISS ESC Telemetry
• ESC Current Port: Yes
• BEC: No
• Size: 50mm × 42mm

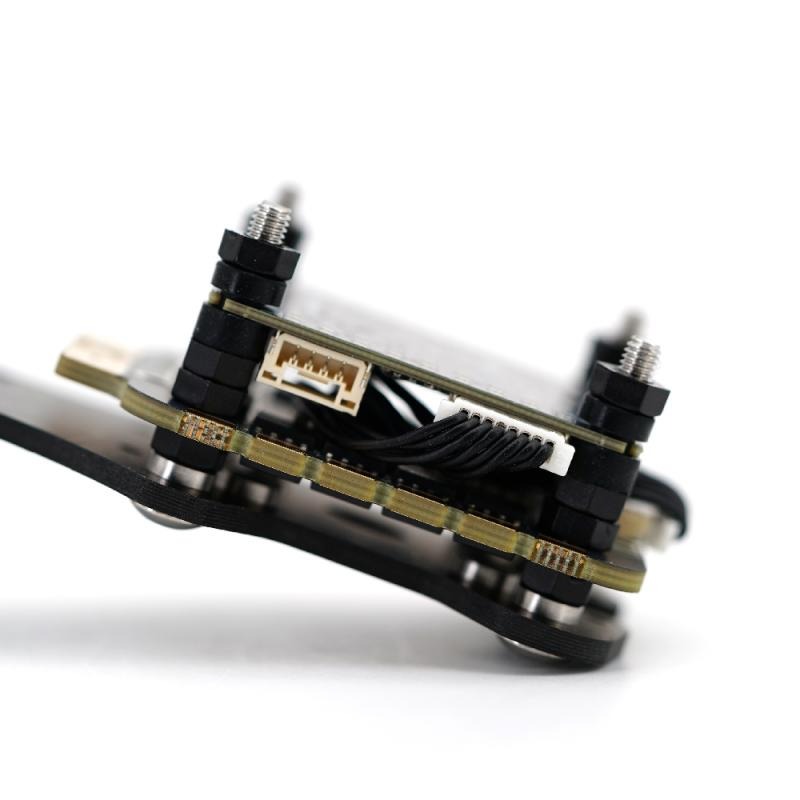

• Mounting Options:
• Gorilla-mount (39.5 × 16.0mm)
• 30.5 × 30.5mm
• Brackets for 20 × 20mm
• Weight: 17.58g (22g including brackets)

Package Includes:

• 1 x TBS Lucid H7 Stack 8S 60A
