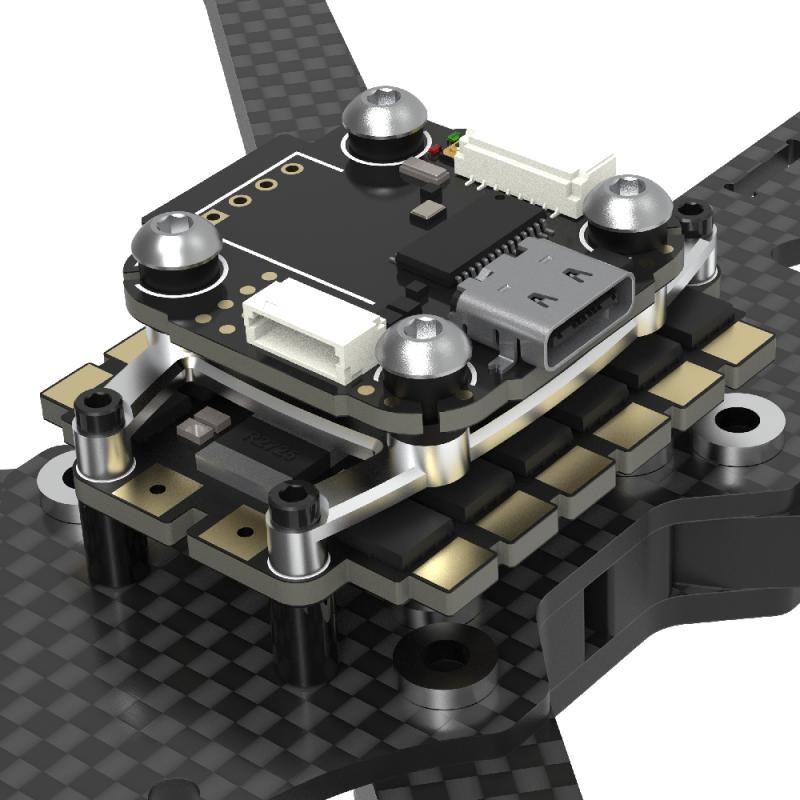

TBS Lucid Pro Stack F60A AM32 (MPU-6000)

Description

The TBS Lucid Pro Stack F60A AM32 (MPU-6000) redefines versatility in FPV. Engineered with AT32 microprocessors and a unique bracket mount, it suits 30.5×30.5mm and 20x20mm setups for 3” to 8” quads. Perfect for pros with MPU6000 precision or ICM-42688P value, it’s your ultimate choice for racing and freestyle.

Specifications

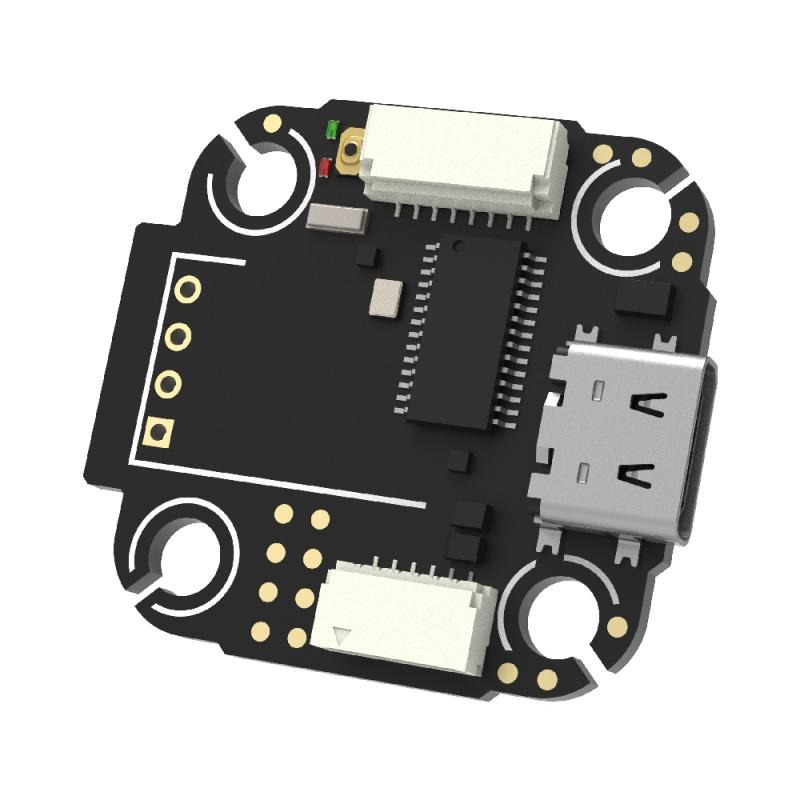

Flight Controller:

• MCU: AT32F435RMT7, 288MHz
• Gyro: MPU-6000
• Motors: 4 motors, with telemetry and current sensor
• BEC: 9V, 2.5A. 5V 2A
• OSD: AT7456E
• Blackbox: 8M
• UARTs: 6 (UART1/UART3/UART4/UART5/UART7/UART8)
• Input: 3S-6S
• Size:: 31mm*29mm
• Mounting: 20mm*20mm
• Weight: 4.51g

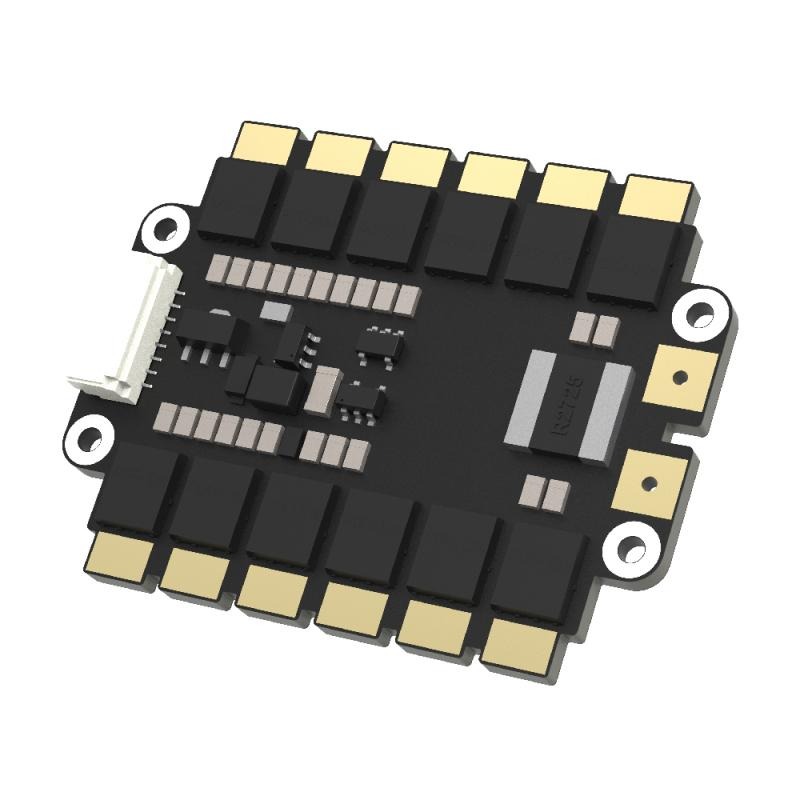

ESC:

• ESC software: AlkaMotors32 (AM32)
• ESC target: tbslu6s4in1
• Rated current: 60A x 4, 300 seconds
• Peak Current: 70A x 4, 60 seconds
• Propellers: Up to 9″, over 7″ requires good airflow
• Input: 3-6S Lipo
• Protocol: Bi-directional Dshot 300/600), KISS ESC Telemetry
• ESC Current port: Yes
• BEC: No
• Size: 34mm*44mm

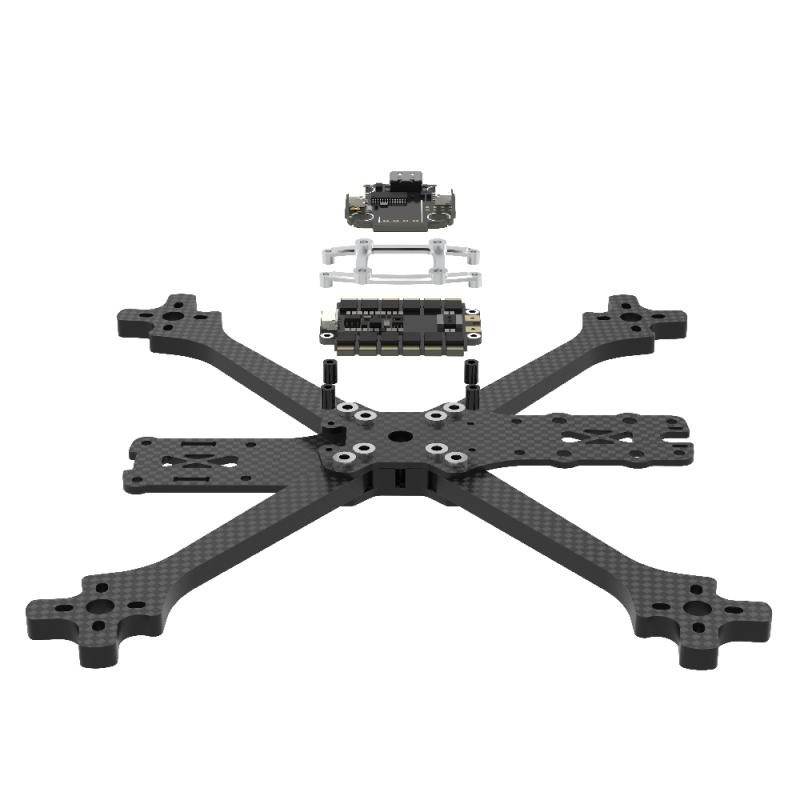

• Mounting: Gorilla-mount (39.5 x 16.0mm) or brackets for 20×20 mm, 30.5×30.5 mm
• Weight: 13.81g, 19g incl. brackets

Package Includes

• 1 x TBS Lucid Pro Stack F60A AM32 (MPU-6000)
