Description

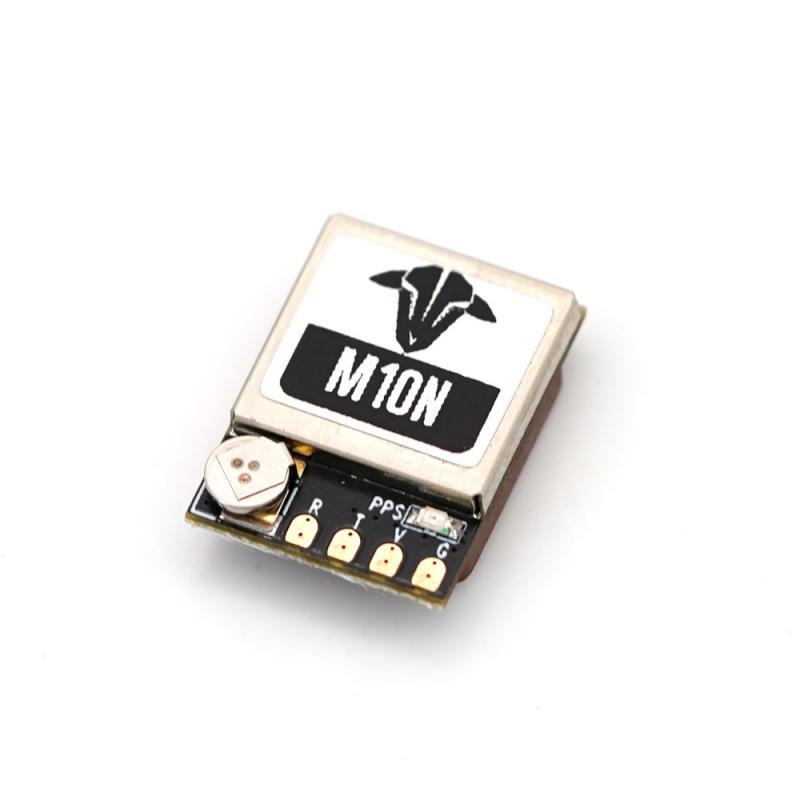

The TBS M10N GPS Glonass delivers reliable positioning performance in an ultra-compact, lightweight design ideal for space-conscious drone builds. Featuring multi-constellation satellite support, fast acquisition times, and impressive tracking sensitivity, this advanced GPS module helps provide accurate navigation data for your flight controller. With configurable update rates, versatile communication protocols, and low power consumption, it is an excellent choice for enhancing your FPV drone’s navigation capabilities.

Specifications

Electrical Characteristics

• Chip: M10050
• Receiver Type: GPS L1 C/A, QZSS L1 C/A/S, BDS B1I/B1C, Galileo E1B/C, SBAS L1 C/A (WAAS, EGNOS, MSAS, GAGAN)
• Default Position System: GPS, BDS, GALILEO
• Augmentation System: SBAS, QZSS
• Channel: N/A

Sensitivity

• Tracking & Navigation: -166 dBm
• Reacquisition: -160 dBm
• Cold Start: -148 dBm
• Hot Start: -160 dBm

Accuracy

• Horizontal Position: 2.0 m CEP
• Velocity: 0.05 m/s
• Dynamic Heading: 0.3°
• Time Pulse: RMS 30 ns / 99% within 60 ns

Acquisition

• Cold Start: 27 s
• Hot Start: 1 s
• Aided Start: 1 s

Data Output

• Baud Rate: 4800 – 921600 bps (default: 115200 bps)
• Signal Level: TTL
• Protocols: NMEA, UBX
• UBX Messages: PVT
• NMEA Messages: RMC, VTG, GGA, GSA, GSV, GLL
• Update Rate: 0.25 Hz – 18 Hz (default: 10 Hz)
• FLASH Memory: Retains configuration after power loss

Operational Limits

• Altitude: 80,000 m
• Velocity: 500 m/s
• Dynamics: < 4 g

Power

• Input Voltage: 3.6V – 5.5V (typical: 5.0V)
• Power Consumption: 15 mA @ 5.0V

Physical

• Dimensions: 16.5 × 12.3 × 6.0 mm
• Weight: 3 g
• Connector: 1.00 mm 4-pin connector

Temperature

• Operating Temperature: -40°C to +85°C
• Storage Temperature: -40°C to +105°C

LED Indicator

• PPS LED: Off when no fix; flashes blue after 3D positioning, the blue light flashes

Package Includes

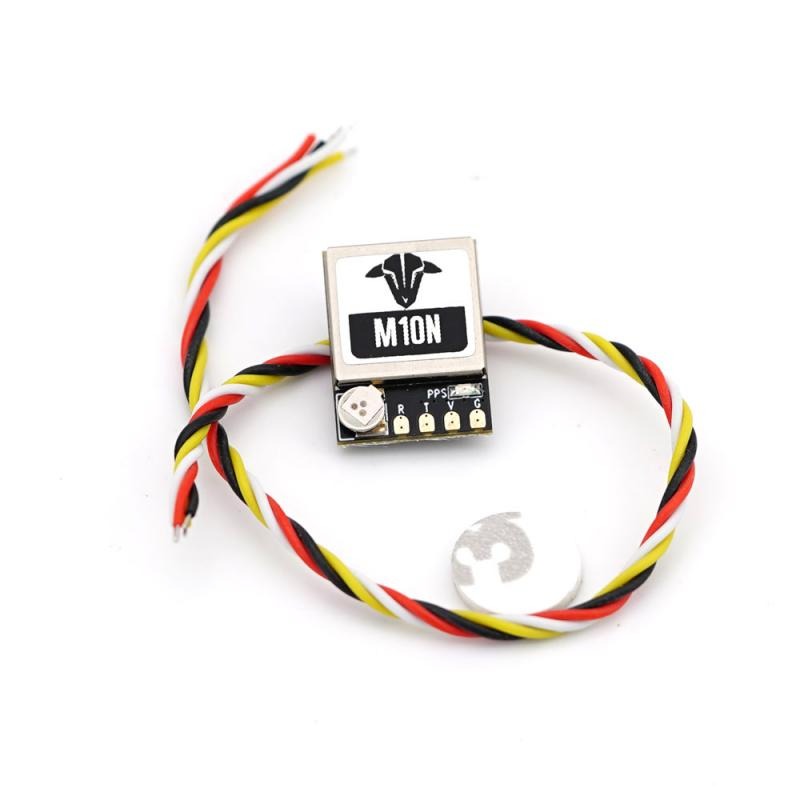

• 1 x TBS M10N GPS Glonass
