Description

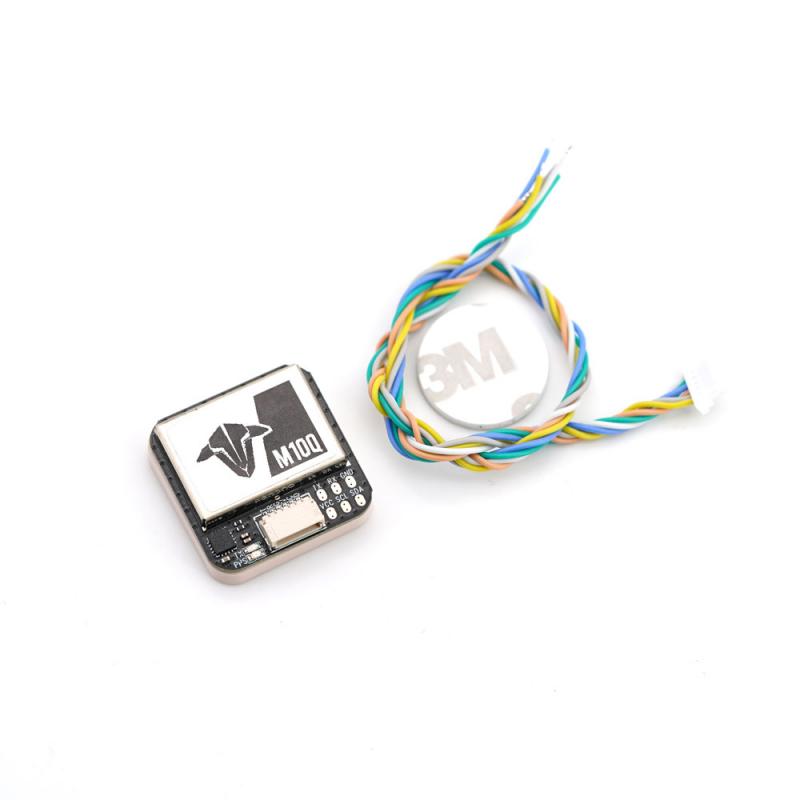

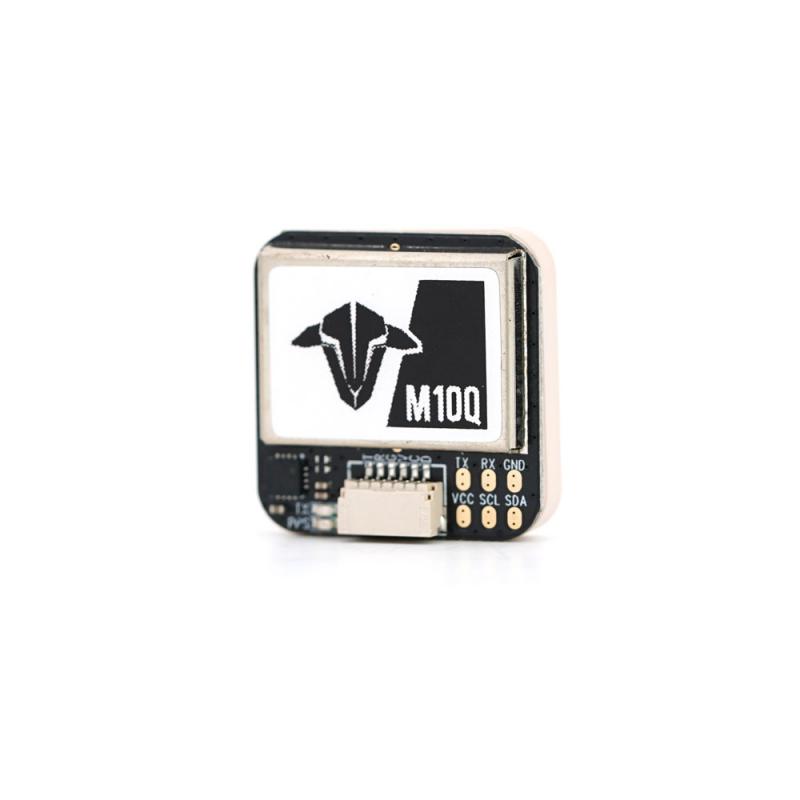

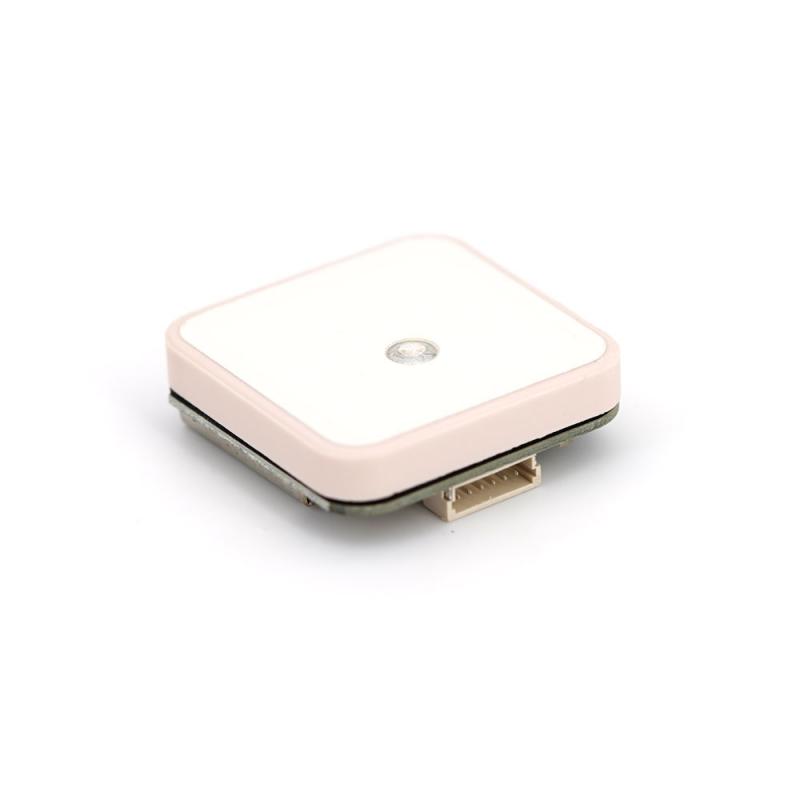

The TBS M10Q GPS Glonass Module ensures precision and portability with its ublox UBX-M10050 chipset, boasting swift cold starts at just 26 seconds and unbeatable sensitivity, guaranteeing unrivaled accuracy in navigation.

Specifications:

• Chipset – ublox UBX-M10050
• Flash memory for saving configuration.
• Frequency – L1, 1575.42MHz ; L2,1561.10MHZ；L3,1602.00MHZ
• Baud Rate – 4800bps-921600bps, default 115200bps
• Channel – N/a
• Sensitivity – (Tracking: -166dBm) | (Capture: -160dBm) | (Cold Start – 148dBm)
• Cold start – Average 26 seconds
• Warm start – Average 24 seconds
• Hot start – Average 1 second
• Accuracy – (HorizontalPosition:Autonomous<2m average) | (SBAS < 2.0m average) | (Timepulse signal: RMS 30 ns)
• Maximum height – 50000m
• Maximum speed – 500 m/s
• Maximum acceleration – ≦ 4G
• Refresh Rate – 0.25Hz-18Hz, default 1Hz
• Size – 25 x 25 x 7.7mm
• Weight – 13.5g
• Input Voltage – 5V
• Magnetometer: QMC5883
