Description

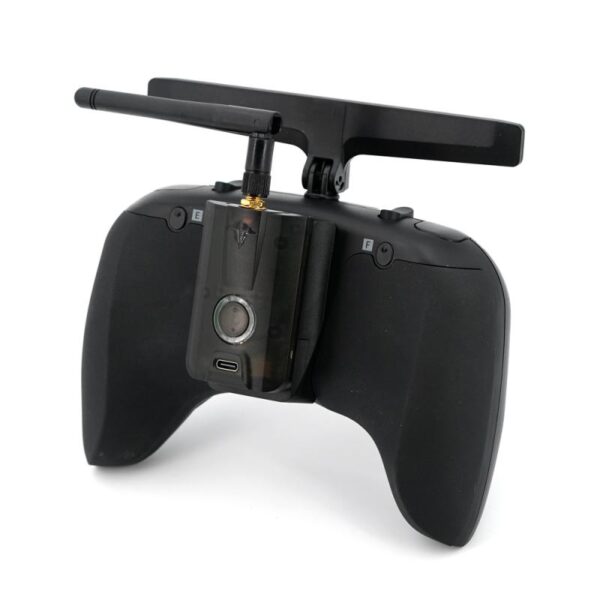

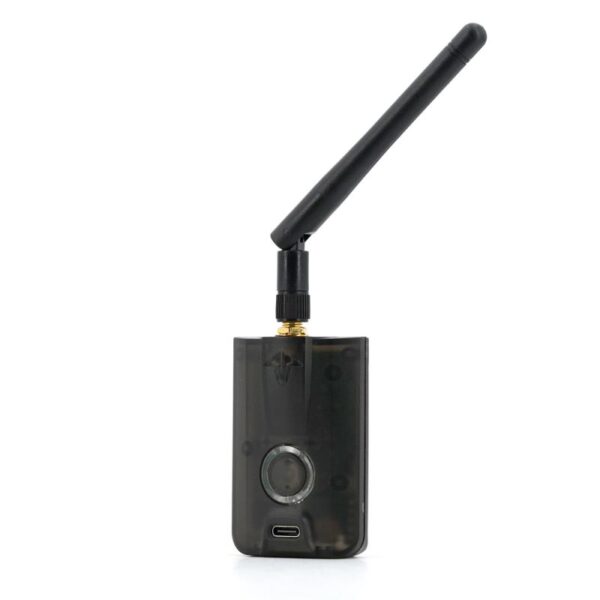

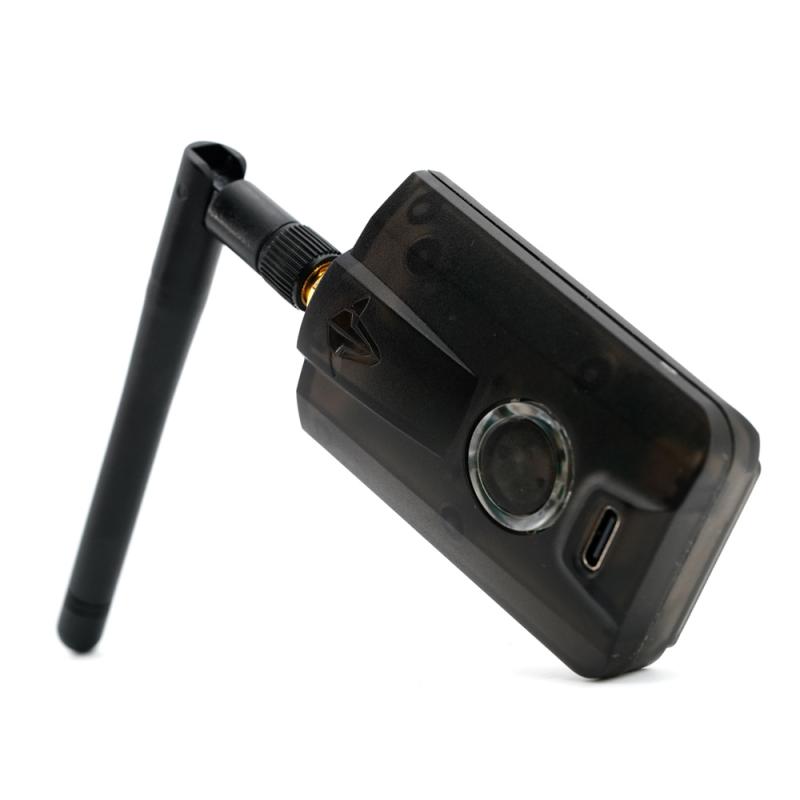

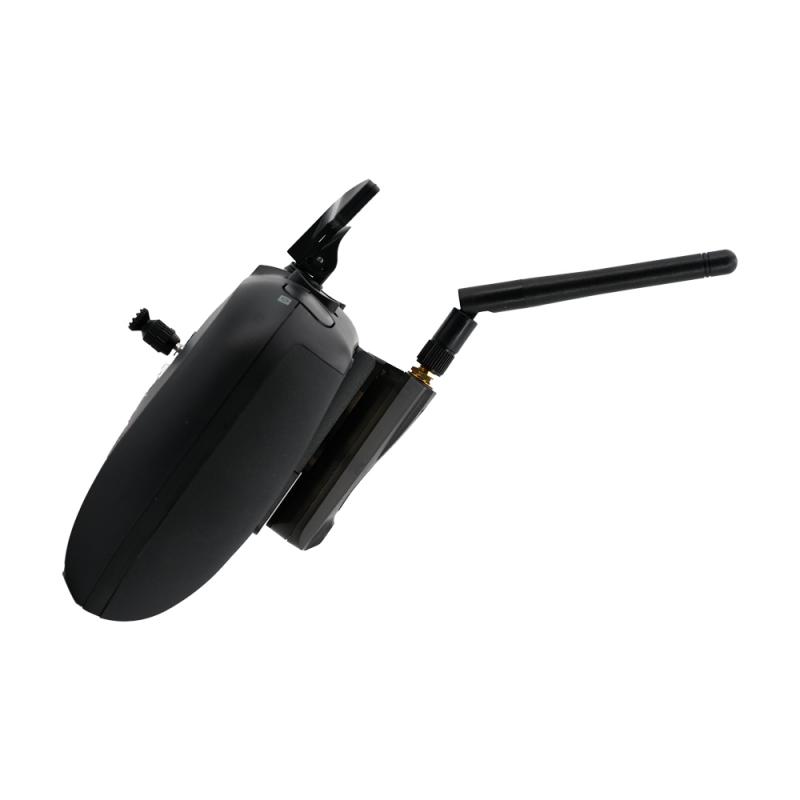

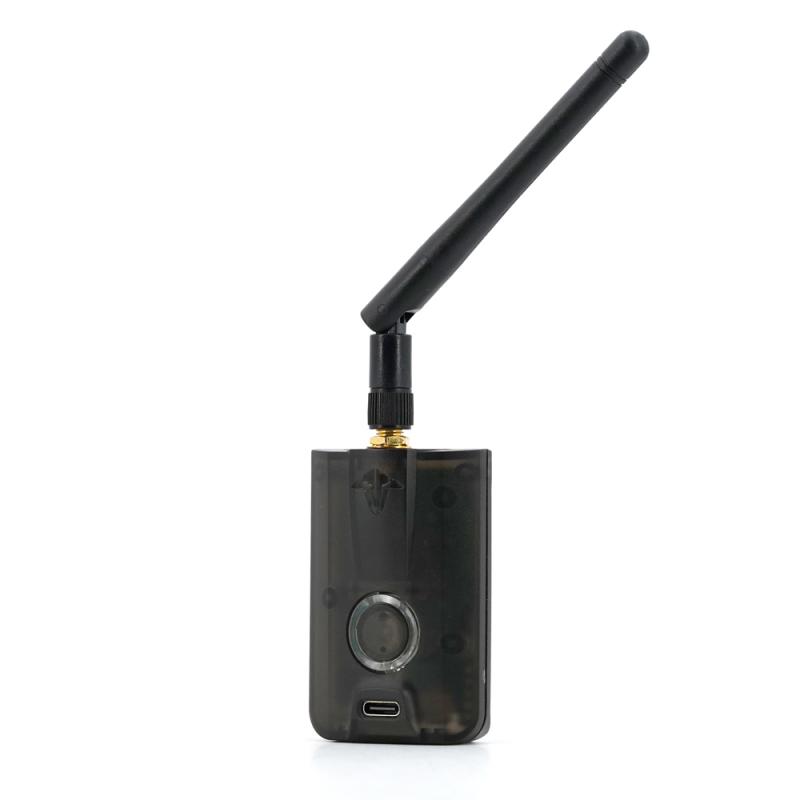

TBS Multi Protocol Module (MPM) Transmitter Module, compatible with OpenTX / FreedomTX for TBS Tango 2, X-Lite and X9 Lite (X9 lite needs adapter, sold separately below!)

The TBS MPM, designed in collaboration with RadioMaster, features the four main RF chipsets (CC2500, NRF24L01, A7105 and CYRF6936) all integrated in a single product. Thanks to OpenSource developers, compatibility with most common R/C protocols is provided through a single module, powered by OpenTX / FreedomTX. With an integrated RF amplifier, the module provides competitive range.

Firmware Upgrade

• [Download Link]
• Target: RadioMaster TX16S Internal Module (4-in-1)
• Module Type: STM32 4-in-1

Specifications:

• Input voltage: 6-9v
• Current: ~100mA
• Operating frequency: 2.4GHz ISM band
• RF power: +20DBM (100mW)
• Main Chipset: STM32
• Opensource Repo: Github
• Model compatibility: Alphabetical List (external)
• Firmware updatable via USB-C port
