Description

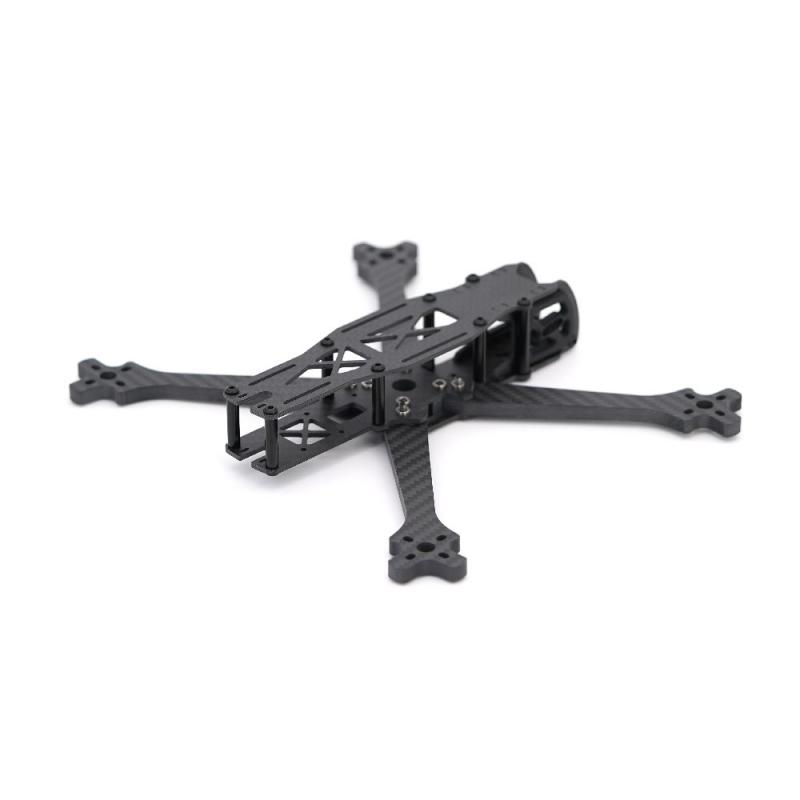

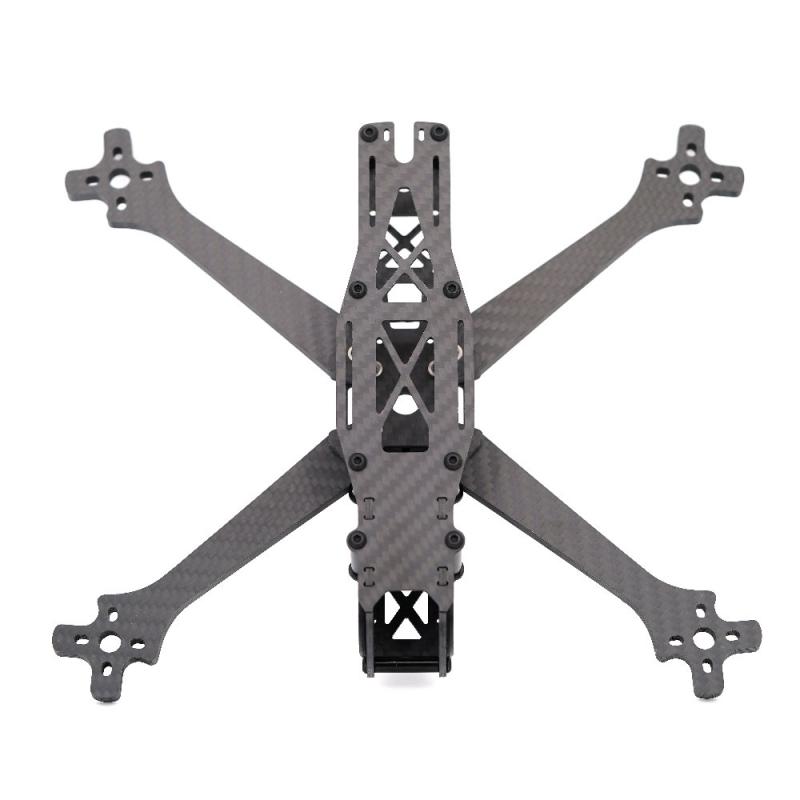

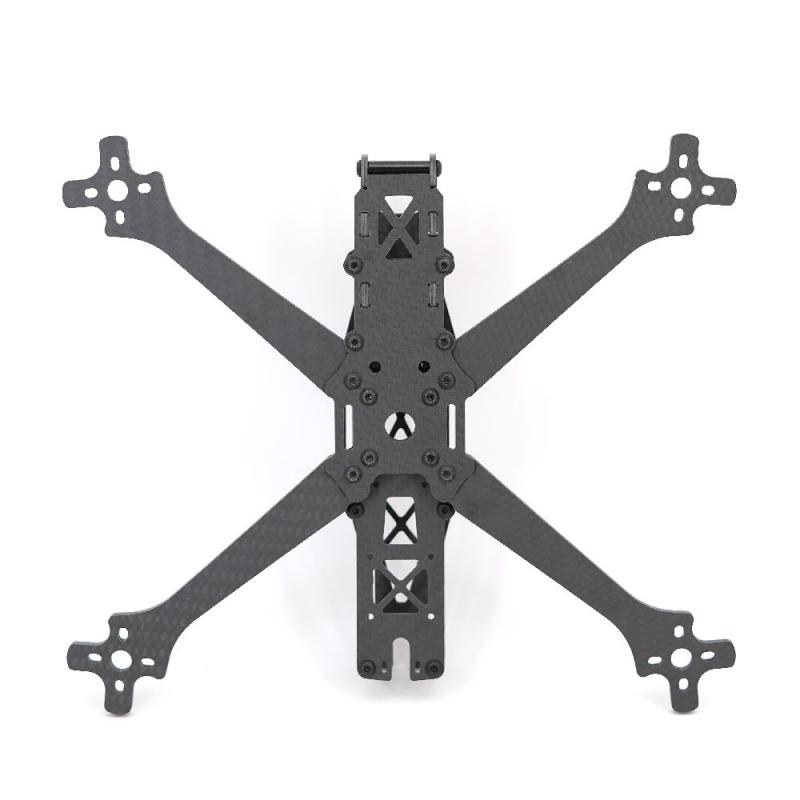

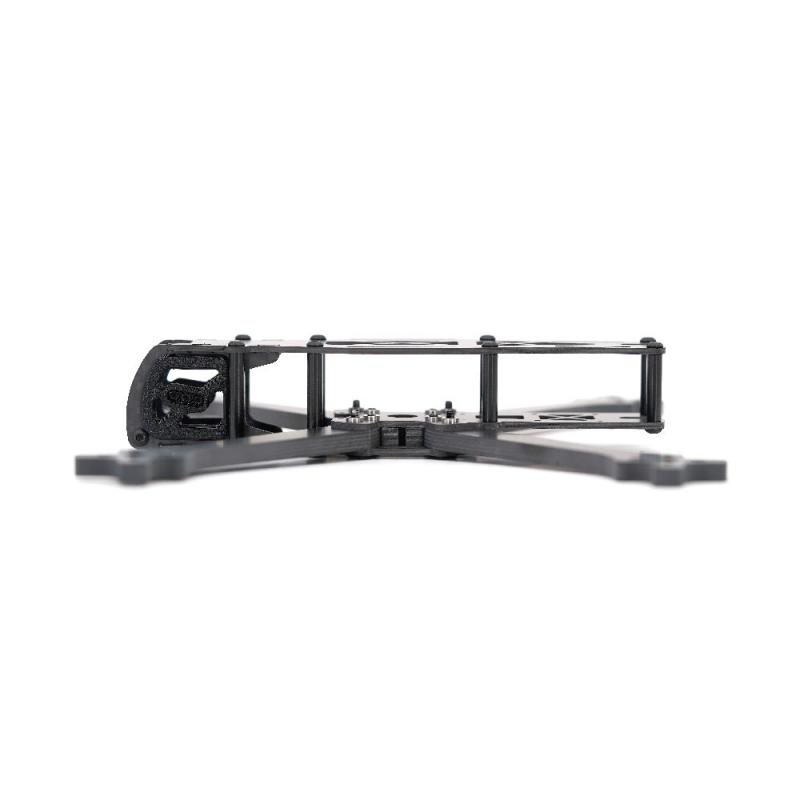

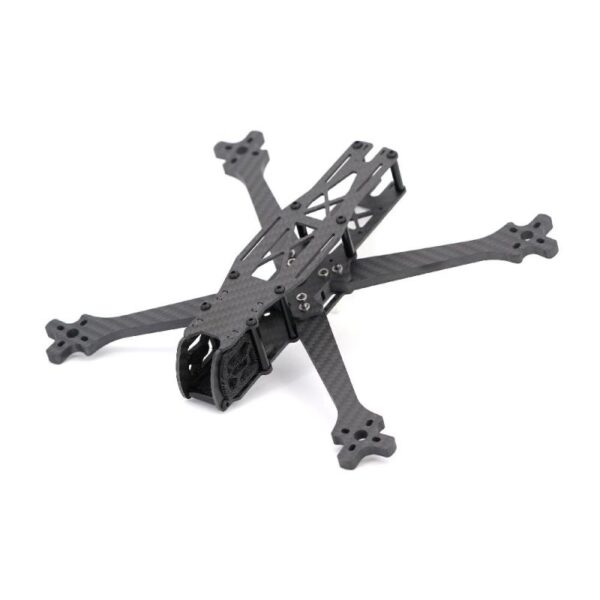

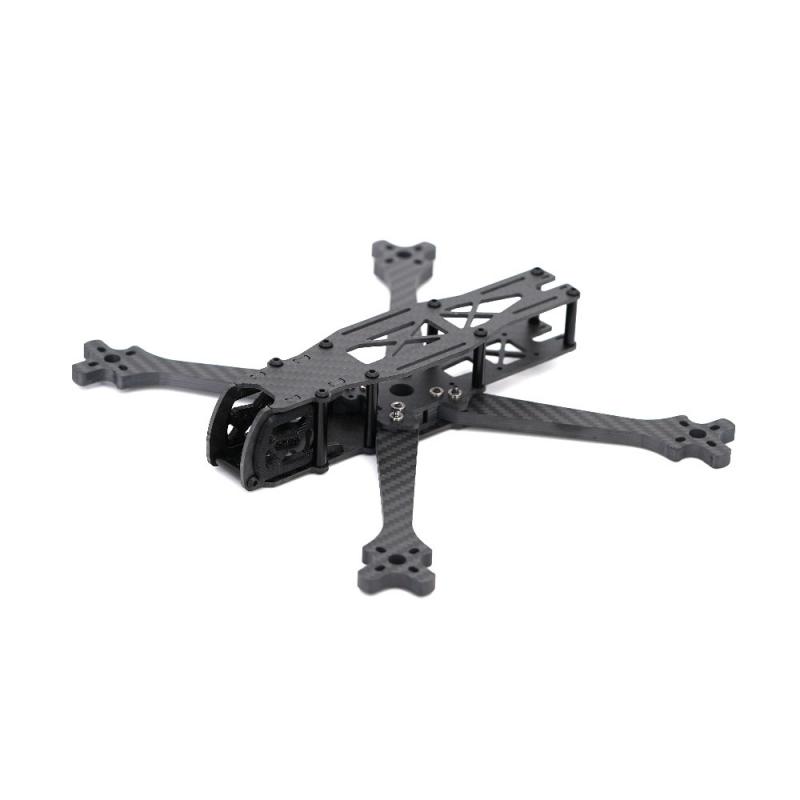

The TBS Source One V6 5inch is the ultimate community-driven FPV frame, combining durability, innovation, and versatility for freestyle and acrobatic flying. Built with a wide-stance X configuration, crash-resistant carbon fiber plates, and optimized lightweight design, it’s engineered to protect your components while delivering smooth flight performance. Whether you’re a beginner or an advanced pilot, this everyday workhorse offers unmatched reliability, creative freedom, and exceptional performance at an incredible value.
Specifications
- Wheelbase (5″): 240mm
- Top Plate: 2mm
- Middle Plate: 2mm
- Bottom Plate: 2.5mm
- Arms Spacer: 6mm
- Camera Plate: 2mm
- Standoff Height: 30mm & 22mm
- Arm Thickness (5″): 6mm
- Stack Mounting: 30.5 × 30.5mm & 20 × 20mm
- Weight (5″): 136.5g
Hardware
- 20X M3x10 allen screw
- 4X M3x12 allen screw
- 4X M3x14 allen screw
- 4X OD 5mm M3 30mm standoff
- 4X OD 5mm M3 22mm standoff
- 2X OD 5mm M3 22mm standoff
- 8x M3 press insert nut

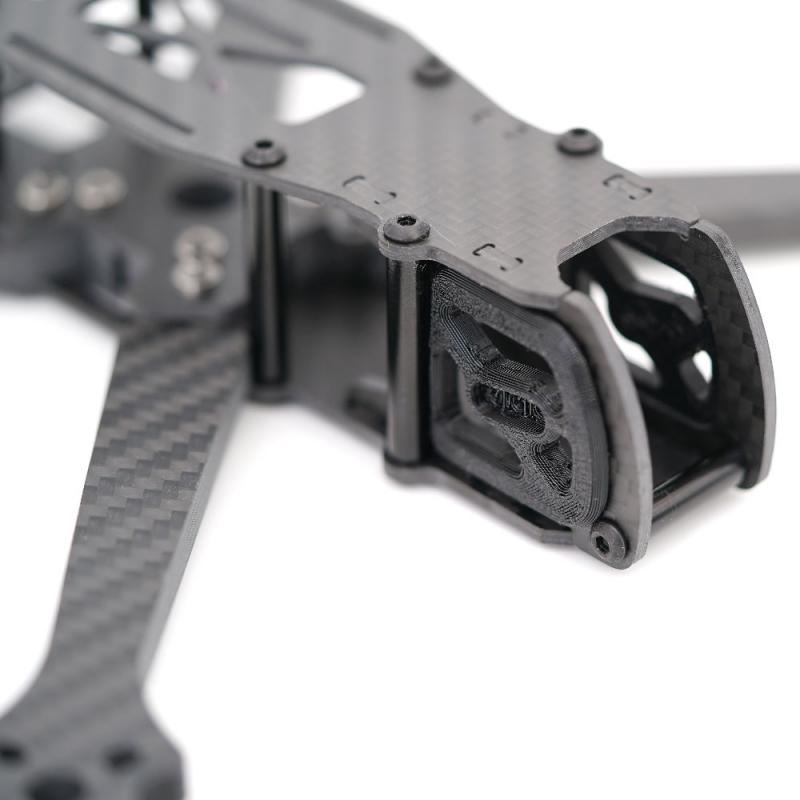

- TPU 3D Printed Camera Mount
Recommended Parts
The part recommendations are put together by our engineers and pilots. We strive for reliability and high quality in all of our selections, which may cost a bit extra but it allows you to enjoy the frame much more!
Package Includes
- 1x Frame (Top, Middle and Bottom. Brace and 2x Camera plate, 4x Arms, 1x arms spacer)
- 1x Screw & Standoff set
