Description

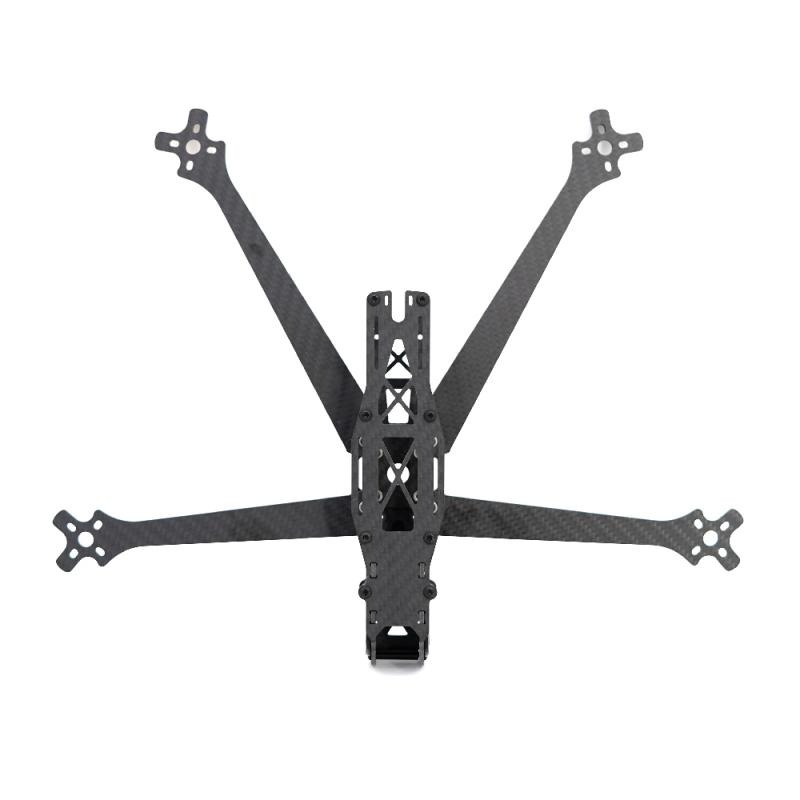

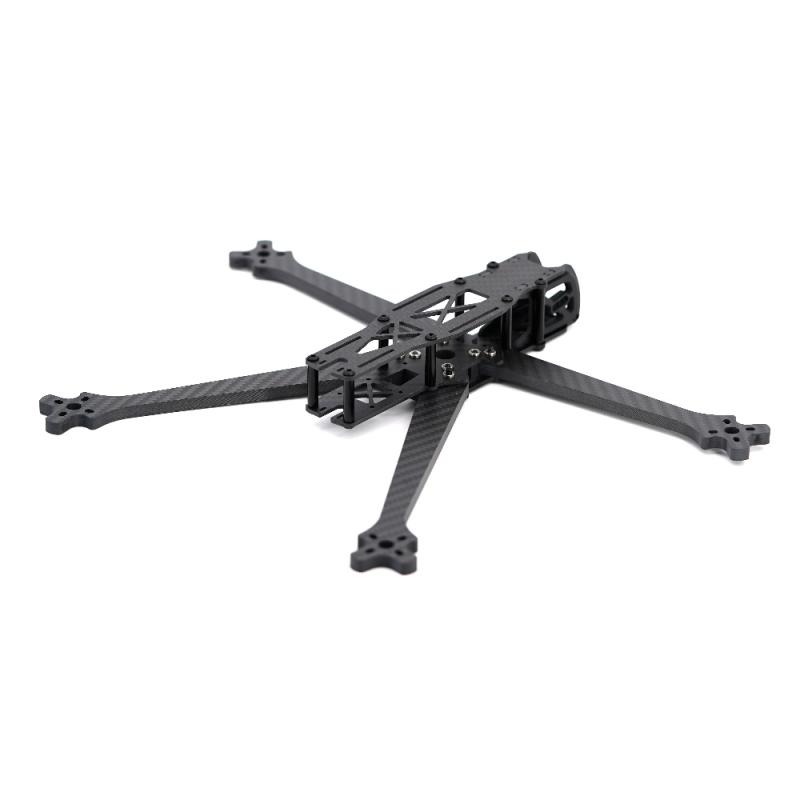

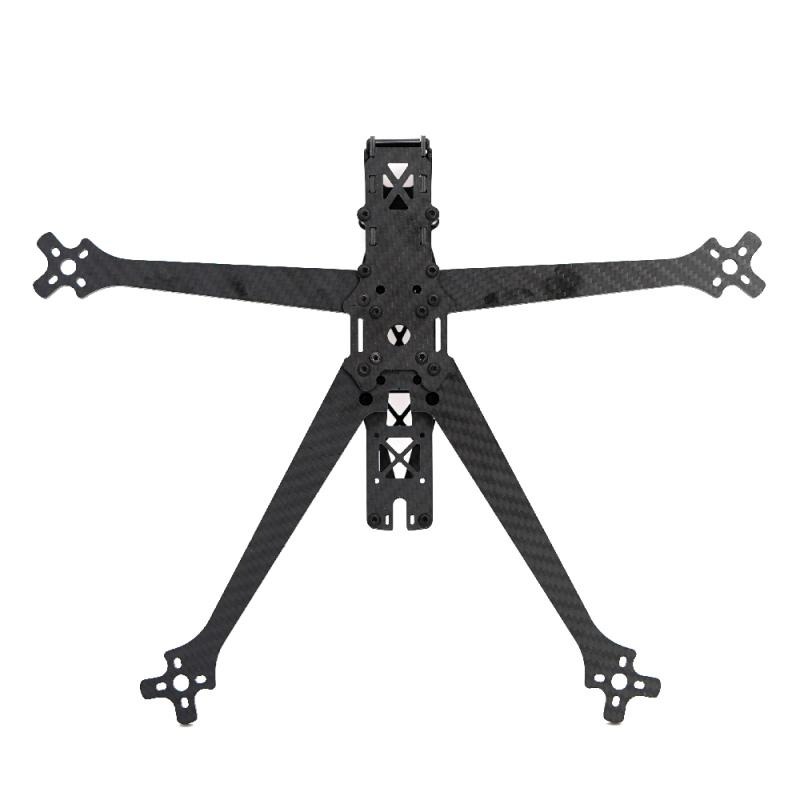

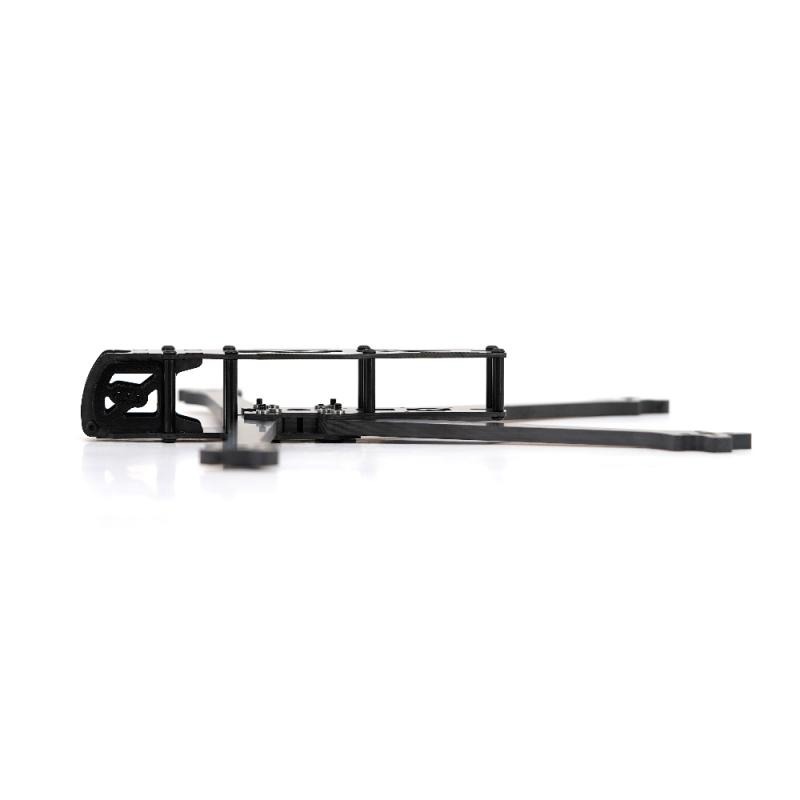

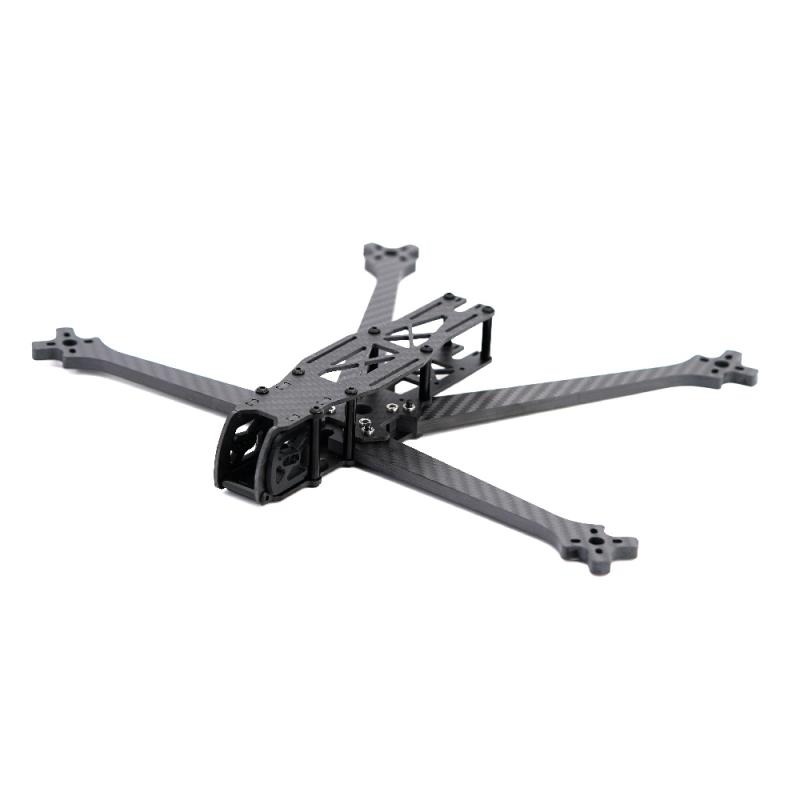

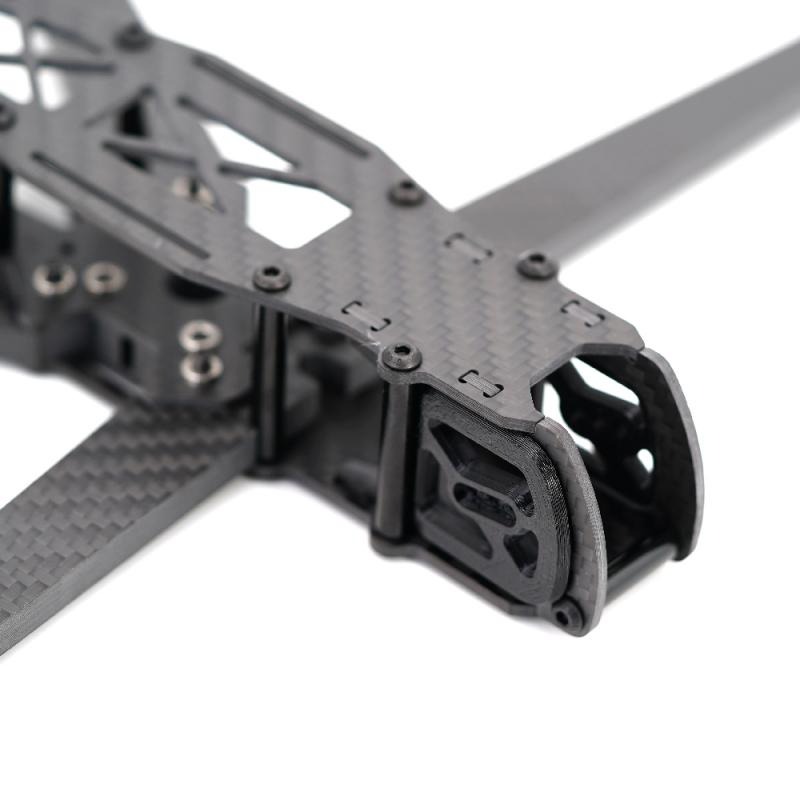

The TBS Source One V6 7inch DC is a rugged deadcat long range freestyle frame engineered for lightweight durability, component protection, and confident cruising across demanding environments with versatile mounting options. Built through Team BlackSheep’s open collaborative SOURCE ONE project, it delivers crash resilience, broad compatibility, excellent documentation, and exceptional value, empowering pilots, creators, and everyday flyers worldwide for modern FPV builds and community driven innovation for future upgrades globally.

Specifications

• Wheelbase 7″: 313mm
• Top Plate: 2mm
• Middle Plate:  2mm
• Bottom Plate: 2.5mm
• Arms Spacer: 6mm
• Camera plate: 2mm
• Standoff height: 30 and 22mm
• Arm thickness 7″: 6mm
• Stack Mounting: 30.5 × 30.5mm & 20 x 20
• Weight 7″ 173g

Hardware

• 16X M3x10 allen screw
• 4X M3x12 allen screw
• 4X M3x14 allen screw
• 4X OD 5mm M3 30mm standoff
• 4X OD 5mm M3 22mm standoff
• 2X OD 5mm M3 20mm standoff
• 8x M3 press insert nut
• 3D printed camera mount

Package Includes

• 1x Frame (Top, Middle and Bottom. Brace and 2x Camera plate, 4x Arms, 1x arms spacer)
• 1x Screw & Standoff set
