ToolKitRC Q4AC 100W AC/200W DC 5A 1-4S Smart Charger – XT60

Description

Features

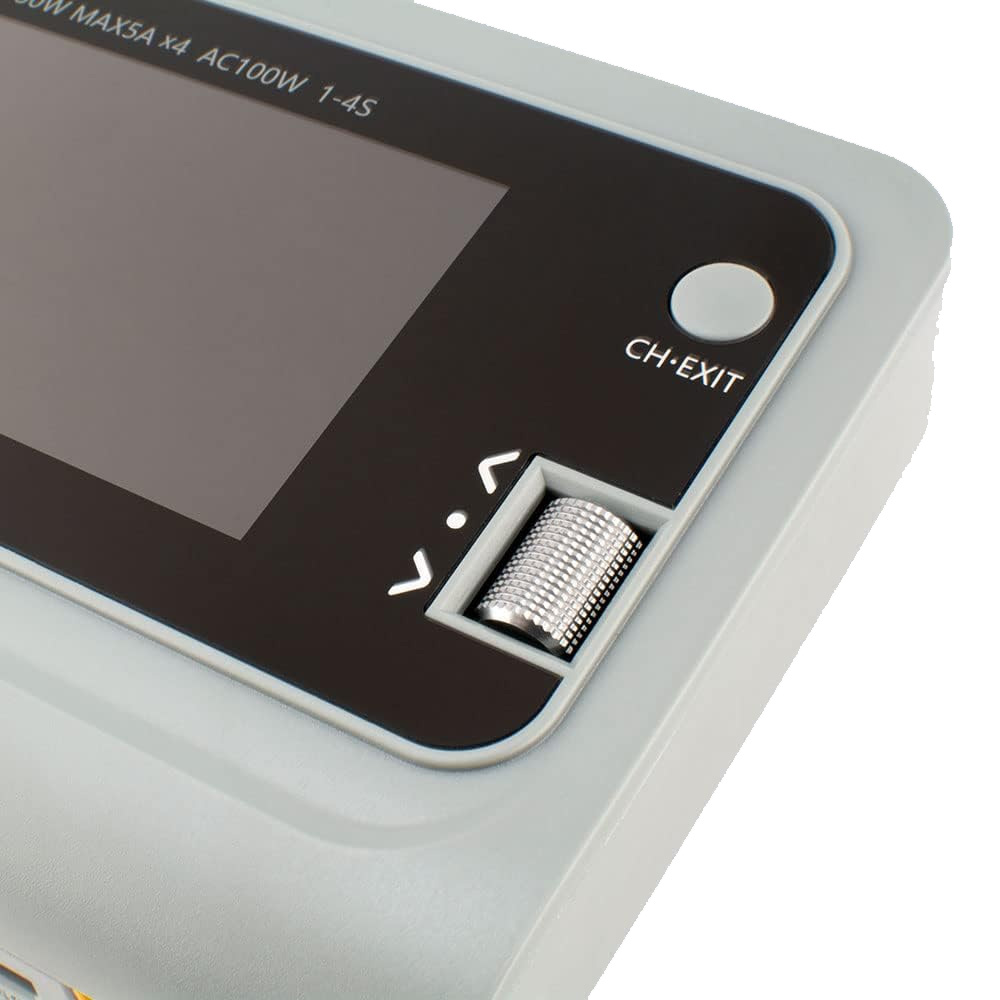

• Q4AC is a four-channel balanced charger product with IPS highlight display and scroll wheel encoder for more convenient operation.
• It can charge and discharge and balance management of LiPo, LiHV, LiFe Lion 1-4S, NiMh 1-10S, PB 1-8S batteries.
• The device is simulated as a U disk, and the upgrade file is copied to realize the product firmware upgrade.

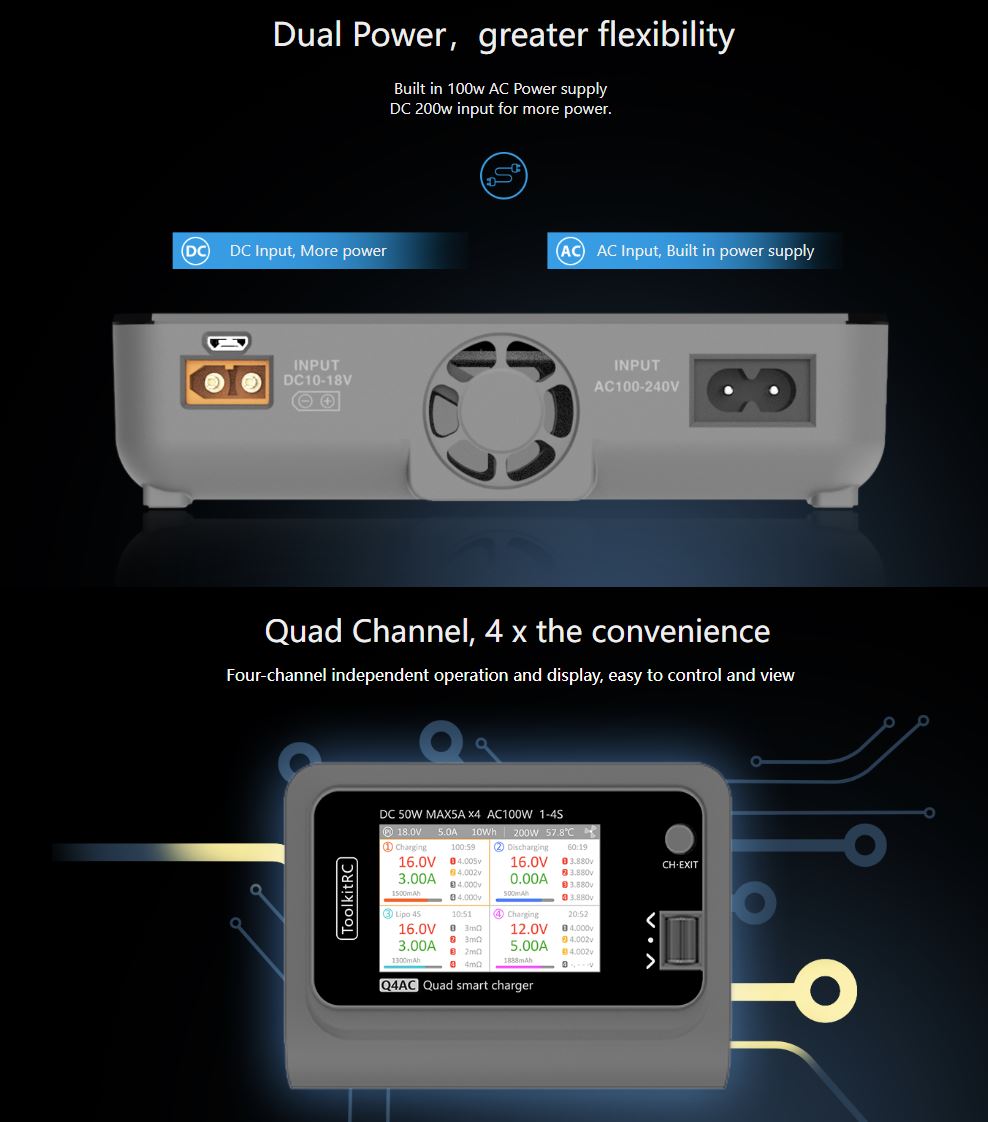

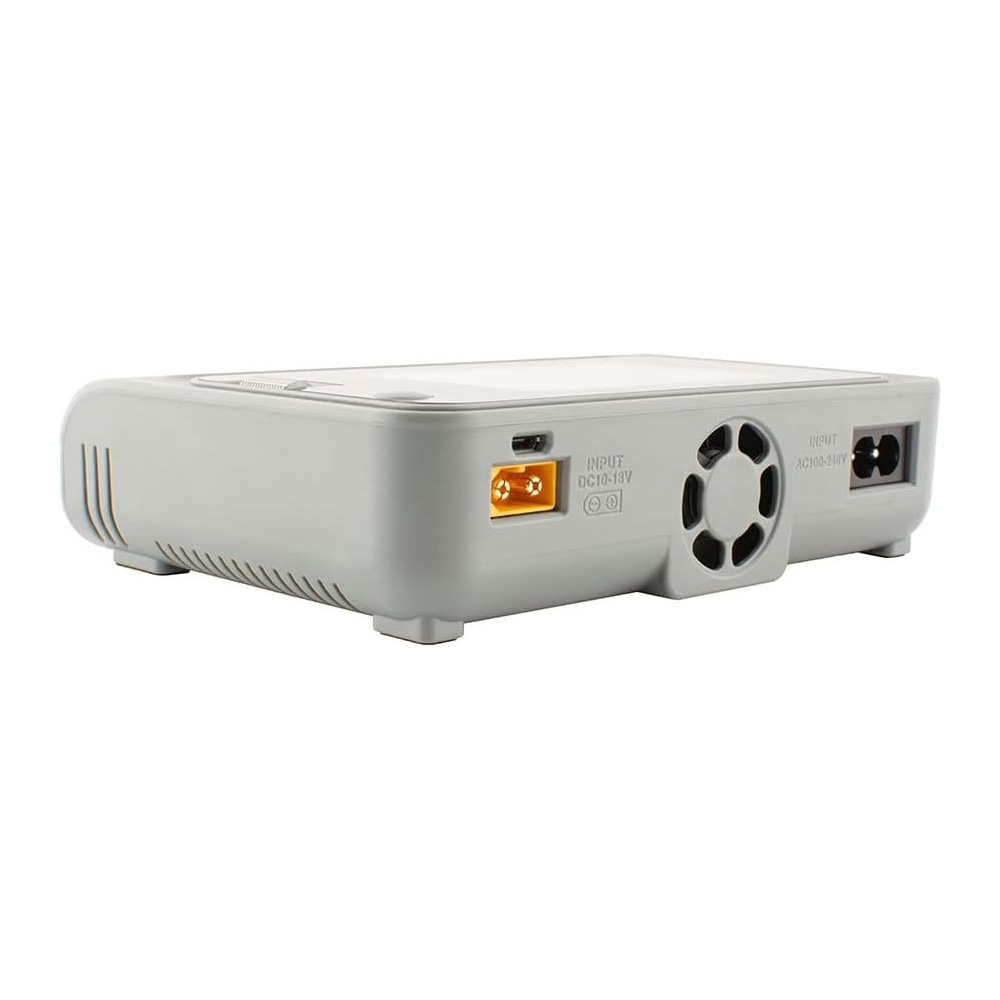

• AC, DC two power supply modes, AC 100-240V maximum 100W, DC 10-18V maximum 200W.
• It can record 3 groups of commonly used power sources, which is convenient for quick selection and translation.

Specifications

• Input voltage
  • [email protected]
  • DC10-18V@MAX20A
• Type of battery
  • LiPo LiHV LiFe Lion@1-4S
  • NiMh @1-10S Pb @1-8S
• Balance current 240mA @2-4S
• Balance accuracy < 0.005V
  Charge power
  • 0.1-5A@25W*4 AC IN
  • 0.1-5A@50W*2 AC IN
  • 0.1-5A@50W*4 DC IN
• Discharge power 0.1-2A@5W*4
• Voltage range 0.2V-5.0V @1-4S
• Internal resistance 1-100mR @1-4S
• MicroUSB [email protected]
• Product size 150*112*36.5mm
• Product weight 450g
• Pack size 160*160*46mm
• Pack wight 600g
• LCD IPS 3.5 寸480*320 pixel

Manual: Q4AC+Manual+V1.1
