Description

The ToolkitRC M6AC AC/DC Charger redefines charging with 100W AC and 300W DC power, delivering up to 15A for rapid, precise performance. Featuring dual input, a 1000mA balance current with <0.005V accuracy, and an intuitive 2.0″ IPS LCD, it ensures smart functionality and comprehensive safety. More than just a charger, it offers versatile auxiliary functions, making it an essential tool for enthusiasts who demand efficiency and reliability.

Features:

• AC100W，DC300W MAX 15A ；

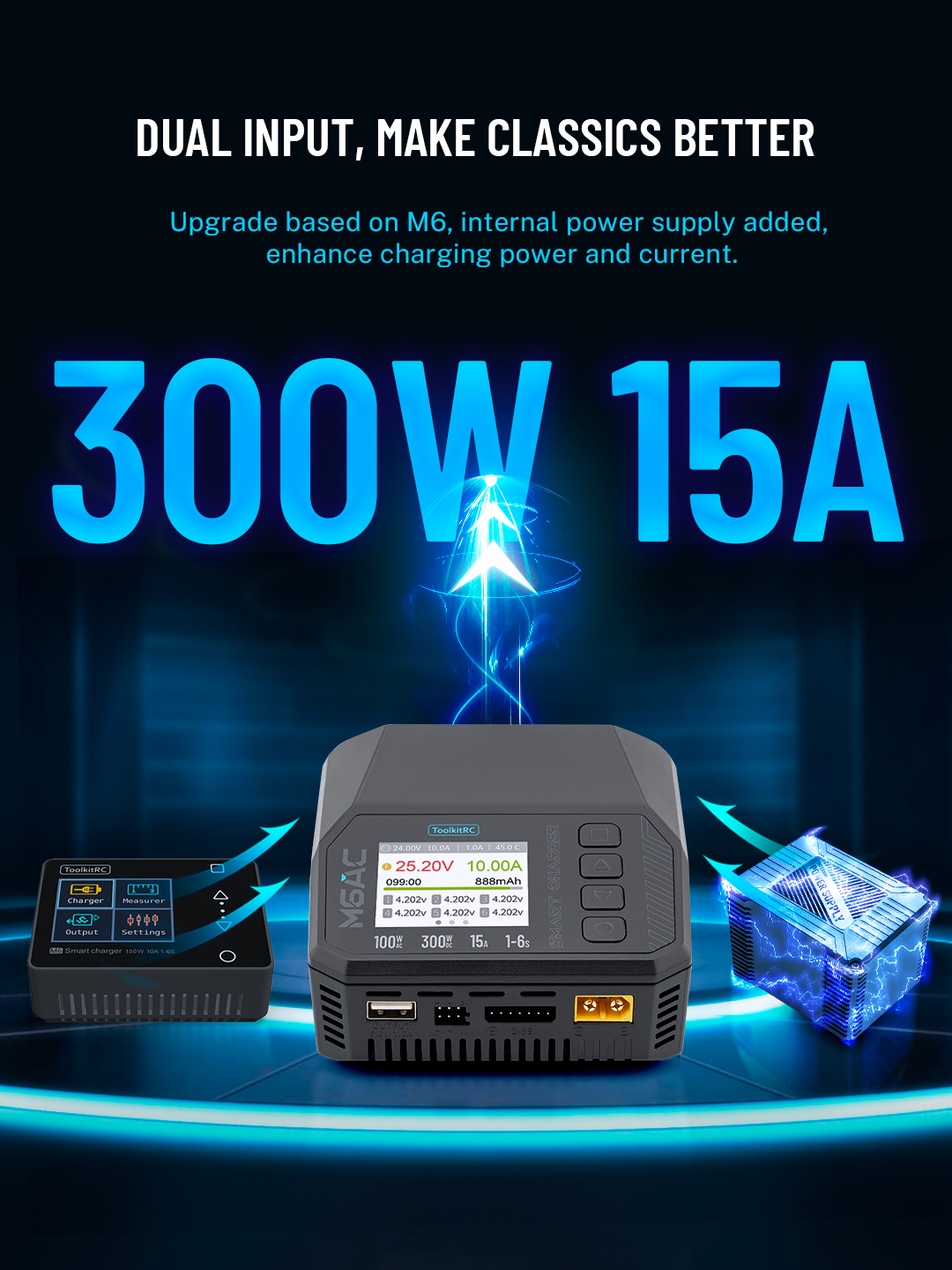

• DUAL INPUT, MAKE CLASSICS BETTER；
• 1000mA robust balance current&High balance accuracy <0.005V；
• Not only A charger, and many more auxiliary functions；
• Smart 2.0″ IPS LCD Display；

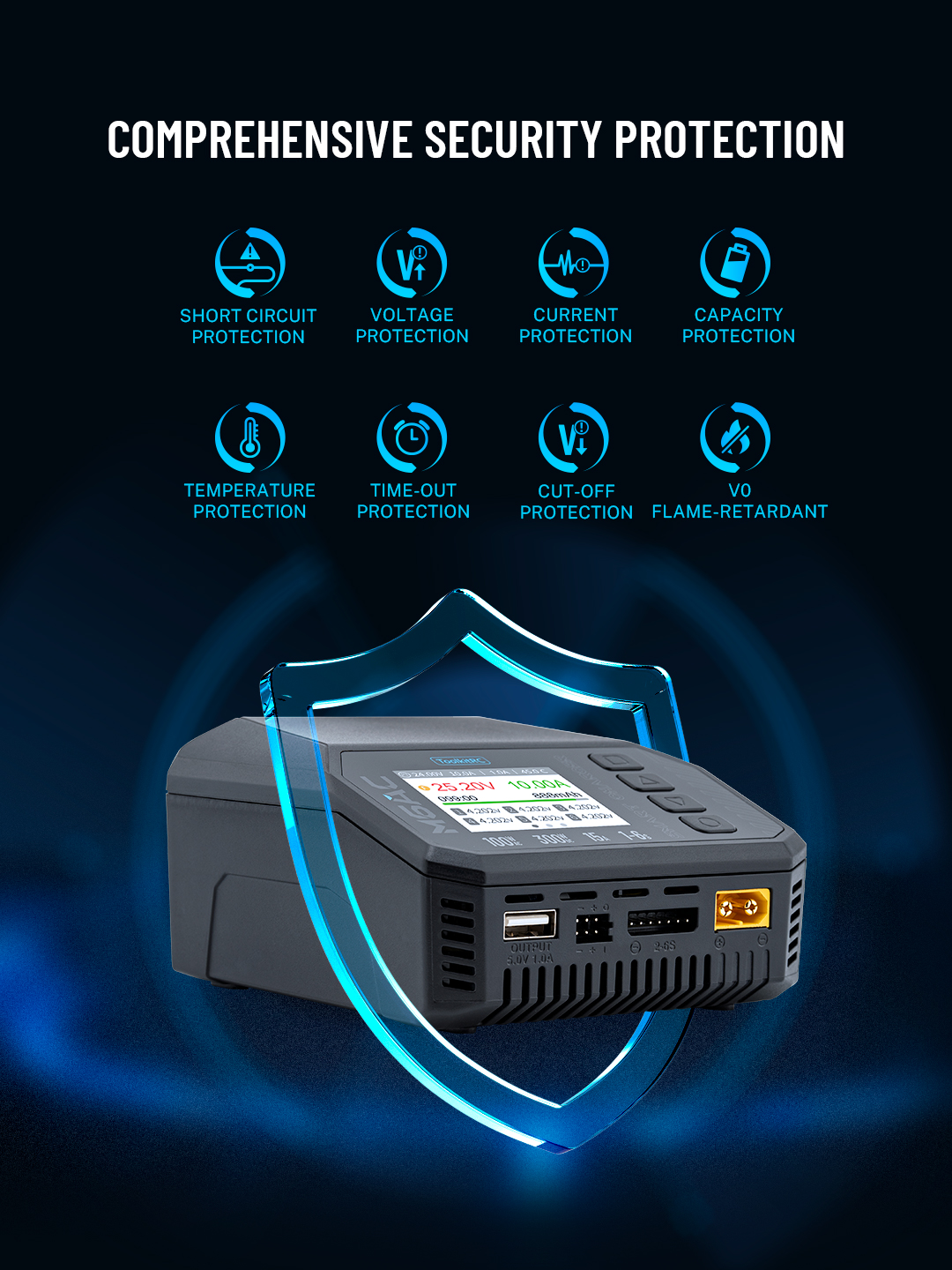

• Comprehensive security protection.

Specifications:

GENERAL

• Product size: 108×106×60mm
• Product weight: 350g
• Packing size: 144×158×63mm
• Packaging weight: 510g
• LCD: IPS 2.0″ LCD 320×240 px

CHARGER

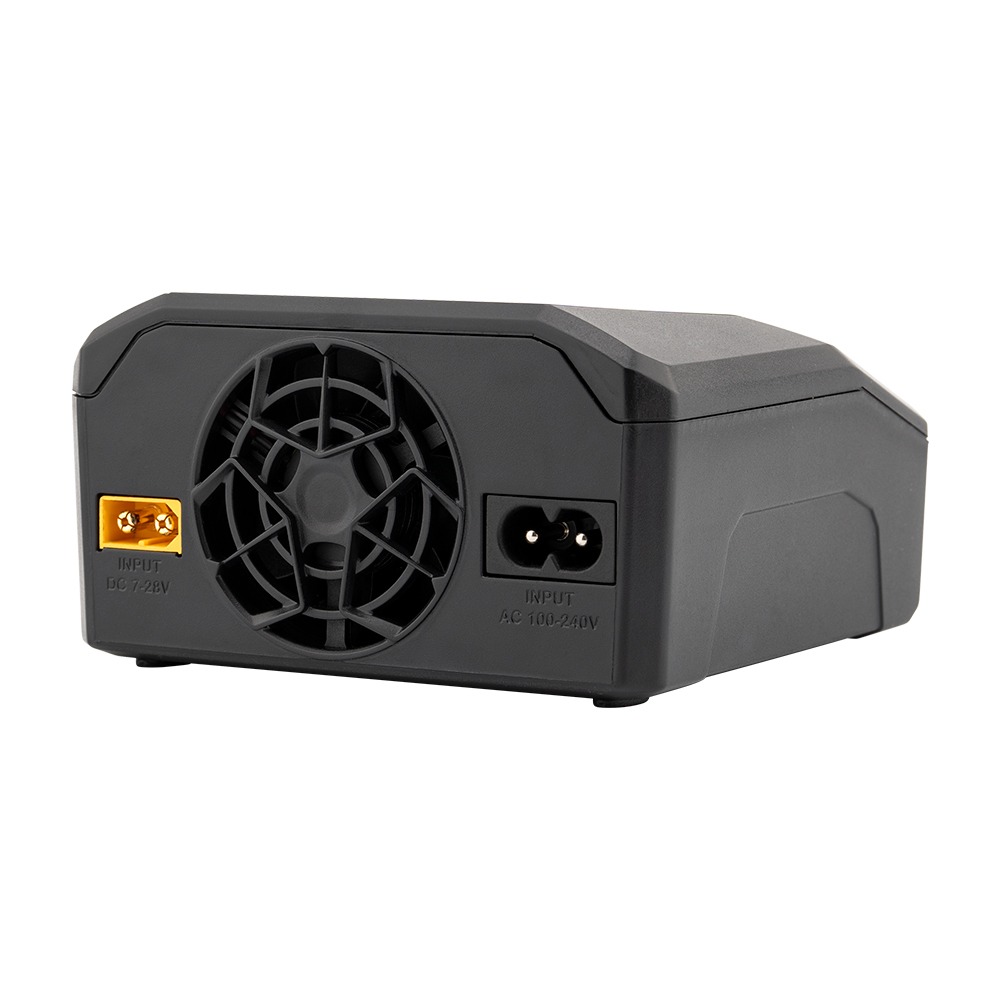

• Input voltage: AC 100-240V@MAX 120W, DC 7-35V@MAX 30A
• Battery type: LiPo LiHV LiFe Lilon LTO @1-6S, NiMH @1-16S Pb@1-10S
• Balance current: [email protected]
• Balance accuracy: <0.005V
• Charging power: 0.1-15A@300W
• Discharging power: 0.1-15A@300W Recycle Mode, 0.1-3A@15W Internal Mode
• USBA: 5.0V/1.0A @10W or upgrade
• Voltage: 1.0V-5.0V @1-6S
• Internal resistance: 0.1mΩ-99mΩ @1-6S

MEASURER

• PWM: 880us-2200us@20-400Hz
• PPM: 880us-2200us×8 CH@20-50Hz
• SBUS: 880us-2200us×16 CH@20-100Hz

OUTPUT

• PWM: 500us-2500us@20-1000Hz
• PPM: 880us-2200us×8 CH@50Hz
• SBUS: 880us-2200us×16 CH@74Hz
• Power: 0.5-15A@1-28V Mode: CC+CV

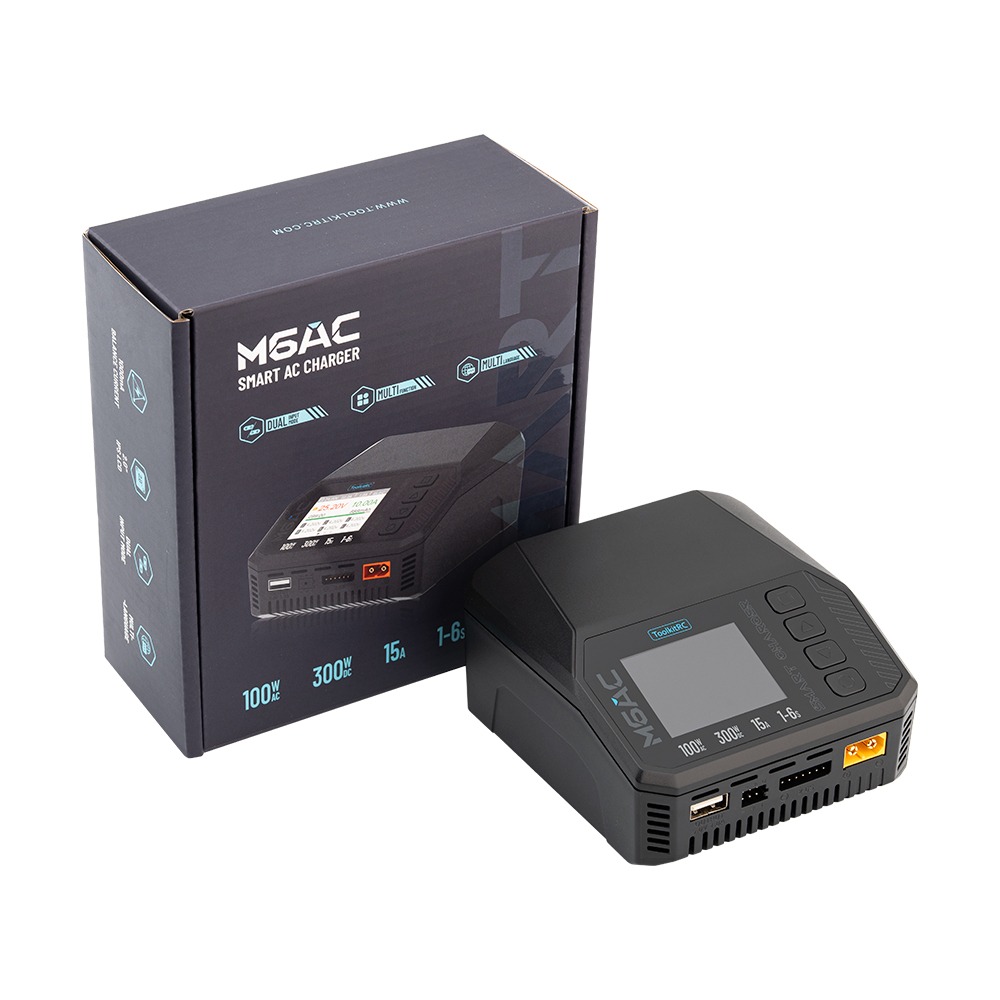

Package Includes:

• 1 x ToolkitRC M6AC AC/DC Charger
• 1 x AC Input Cable
• 1 x USB Cable
• 1 x Quick Manual
• 1 x Screen Protector
