Sale!

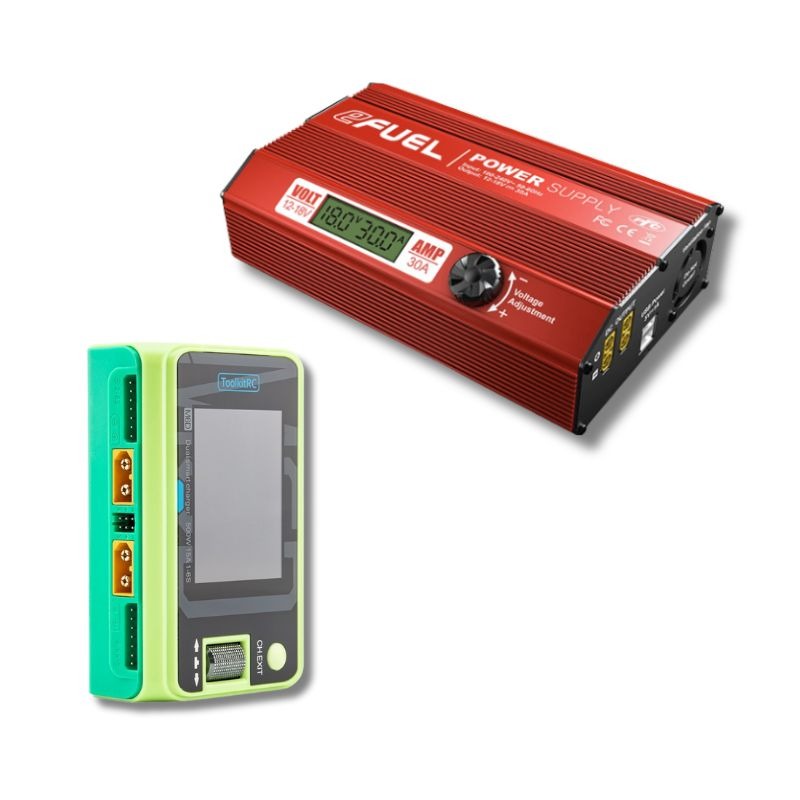

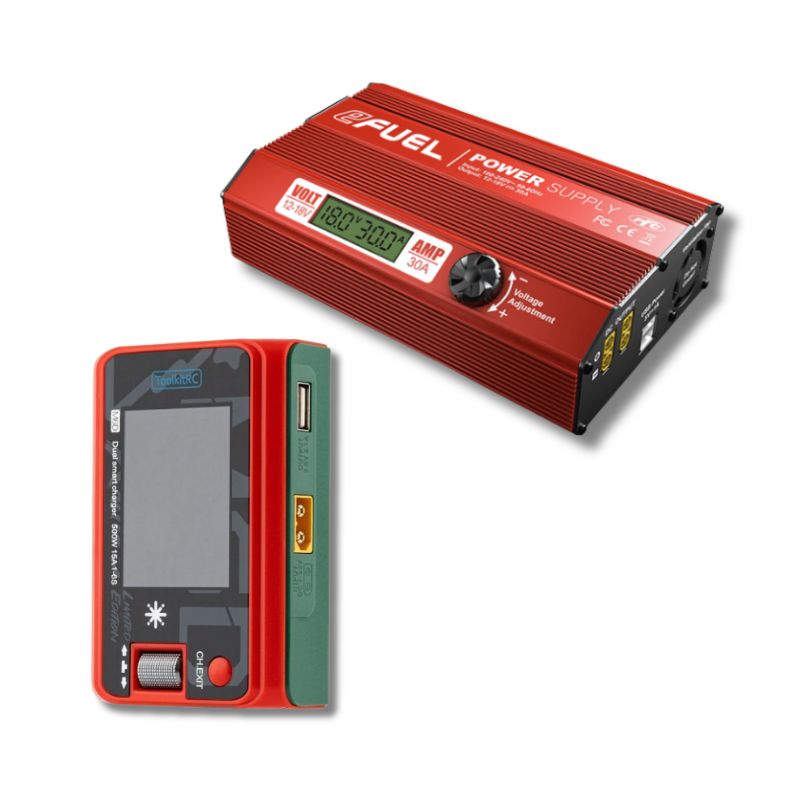

ToolkitRC M6D + SkyRC 540W Charging Combo

Name: ToolkitRC M6D + SkyRC 540W Charging Combo
SKU: 91451
Availability: InStock

We have put together a great bundle – a sturdy 540W power supply with a popular dual channel charger! Set yourself up for charging perception!

Original price was: $349.99.Current price is: $249.99.

Category: Plane Parts

Description

This is a KiwiQuads special combo includes the ToolkitRC M6D charger, along with the 540W SkyRC Powersupply, the ultimate charging kit!

The ToolkitRC M6D 500W 25A DC Charger delivers double-channel efficiency and maximum 500W output power. Compact yet powerful, it features an IPS display with a clean, intuitive UI and supports various battery types, from LiPo to NiMH. Its innovative heat-dissipating system ensures peak performance, while the integrated USB interface offers convenient phone charging. Lightweight and portable, this charger redefines convenience with unmatched functionality and a vibrant, user-friendly design in two stylish colors.

Features:

Double Channel, Double Convenience，Small volume, super high power density
The maximum output is 500W, and the output current is 15A per channel
Optimize Heat Dissipation, New heat dispersing system dissipating high power heat in time
IPS Display, Wide View, 650,000 full color, 240×320 resolution
New clean UI, Designed for charging, more intuitive and simple
Integrated USB Interface, 5V output for mobile phone charging, with M6D firmware upgrade

Specifications:

Input: 7.0-28.0V @MAX 30A
Battery type: LiPo LiHV LiFe Lilon@1-6S | NiMH @1-16S Pb @1-10S
Balance current: 800mA @2-6S
Balance accuracy: < 0.005V
Voltage range: 0.2-5.0V @1-6S
Internal resistance: 1-100mR @1-6S
Charge power: 500W @MAX 25A SYNC, 250W @MAX 15A×2 ASYC
Discharge power: 500W @MAX 15A Recycle, 12W @MAX 3A Normal
USB: 2.1A @5.0V [email protected]
Product size: 98*68*35 mm
Product weight: 220g
Pack size: 108×80×46 mm
Pack weight: 300g
LCD: IPS 2.4″ LCD 320×240 px

The eFUEL 540W/30A Regulated Power Supply is the ultimate in RC Hobby power supplies, provide plenty of power to all of your chargers!

Features:

Active PFC (power factor correction) consists of active PFC and negative PFC. Active PFC, which is integrated into SkyRC 1200W/50A regulated power supply, can provide higher power utilization. Active PFC is the use of power electronics to change the waveform of current drawn by a load to improve the power factor, thus achieving the purpose of higher efficiency. It’s capable of correction on AC input voltage and universal on a global basis.
Output Voltage Adjustable – selectable from 12V to 18V
Dual DC Power Outputs – It supports powering two DC equipments simultaneously.
