Description

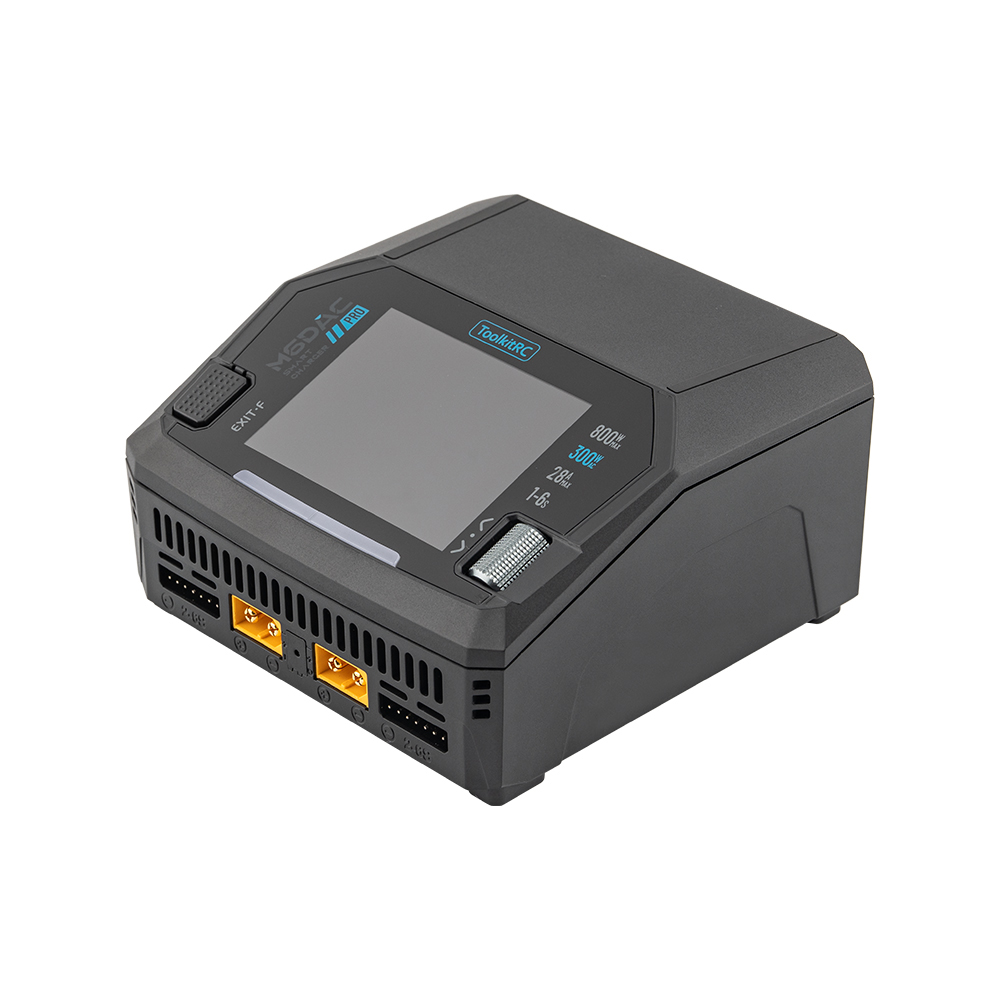

The ToolkitRC M6DAC PRO redefines intelligent charging with unmatched power, efficiency, and versatility. Delivering up to 800W total output and dual 16A channels, it effortlessly supports LiPo, LiHV, LiFe, LiIon, LTO, NiMH, and Pb batteries with precision balance accuracy. Featuring a vivid 2.8″ IPS display, wireless charging, and 65W super-fast USB-C output, it’s the compact powerhouse every RC enthusiast needs for smart, safe, and efficient charging performance.

Note that this is the M6DAC Pro with 300W AC power. For the M6DAC V2 with 200W AC power, please see link here: ToolkitRC M6DAC V2

Features

• Dual-channel 16A output with up to 800W total power
• Supports multiple battery types: LiPo, LiHV, LiFe, LiIon, LTO, NiMH, and Pb

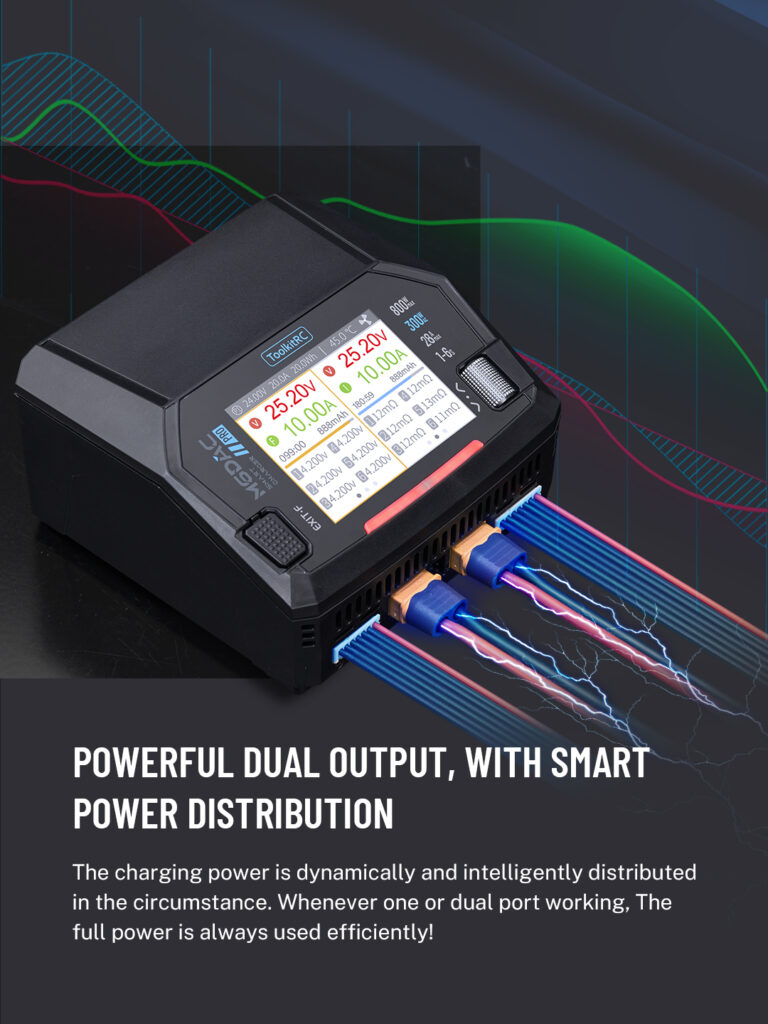

• Smart power distribution for efficient charging

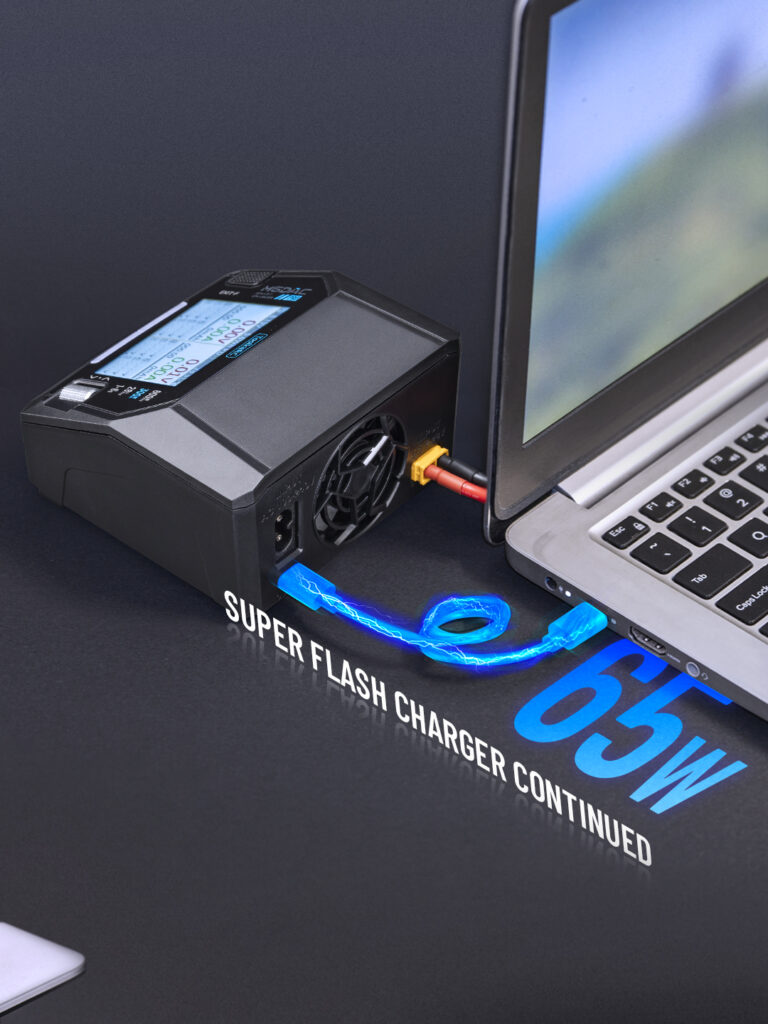

• Built-in 65W USB-C super fast charger
• New wireless charging capability

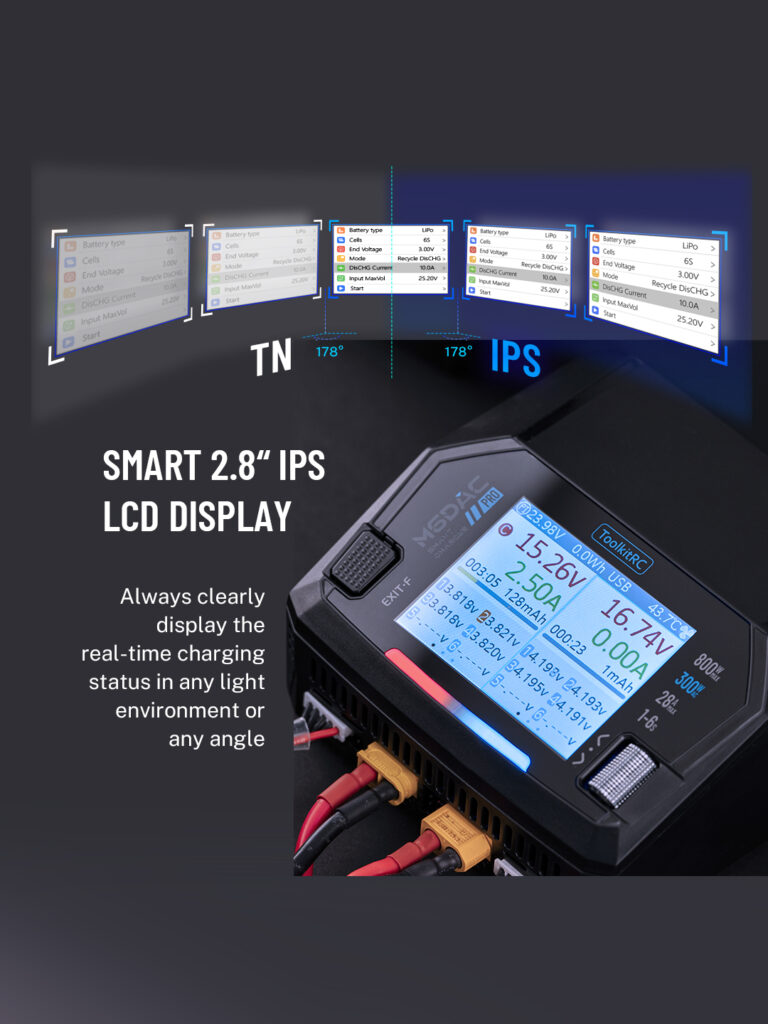

• 2.8″ IPS LCD display with smart interface

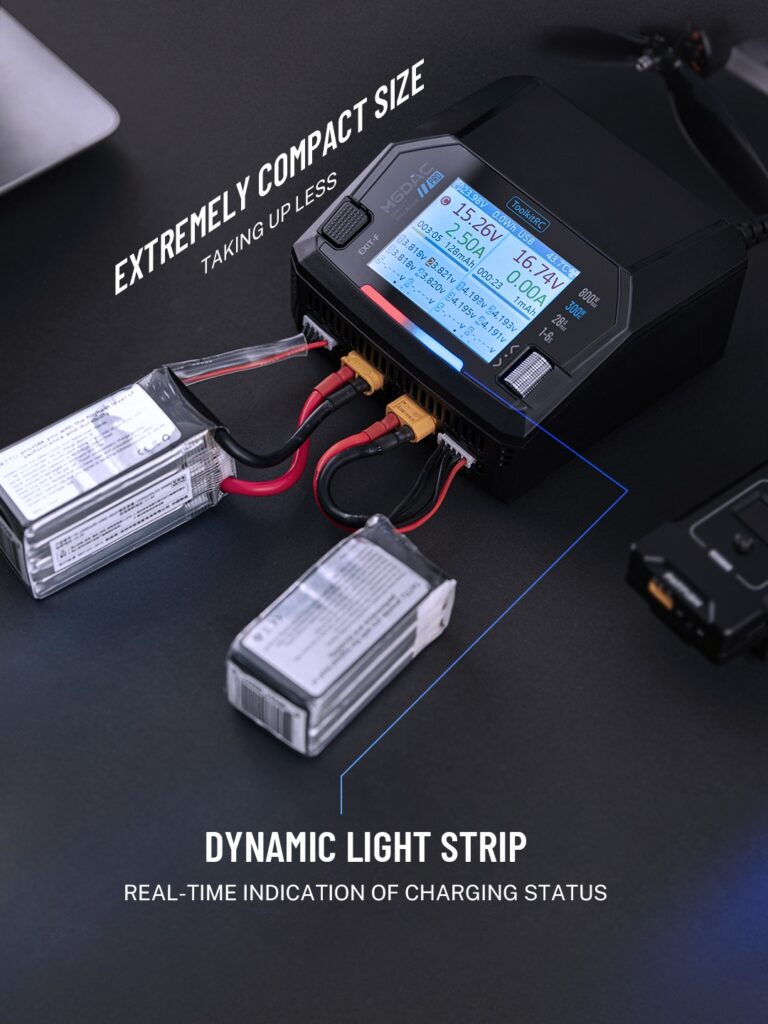

• Dynamic RGB light strip for status indication
• Compact and lightweight design

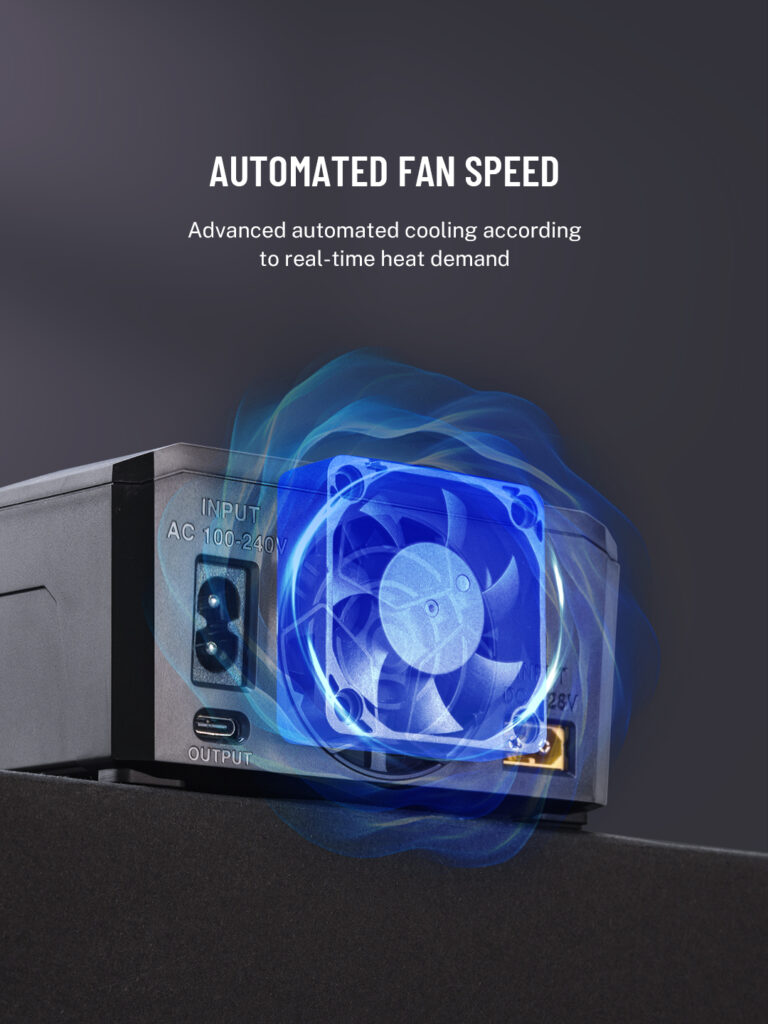

• Automated fan speed control for optimal cooling
• Comprehensive protection for voltage, temperature, and current

Specifications

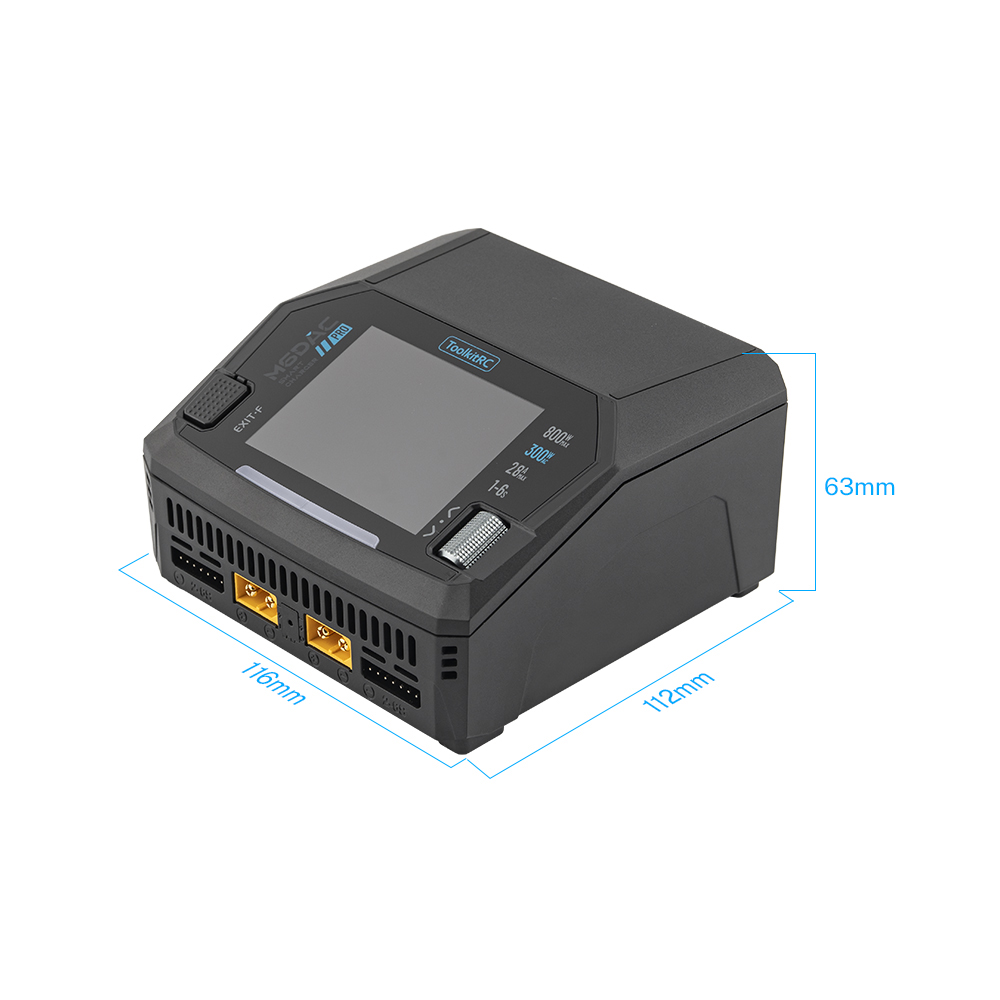

• Product Size: 116×112×63 mm
• Product Weight: 600 g
• Packing Size: 164×135×68 mm
• Packaging Weight: 730 g
• Display: 2.8″ IPS LCD, 320×240 px

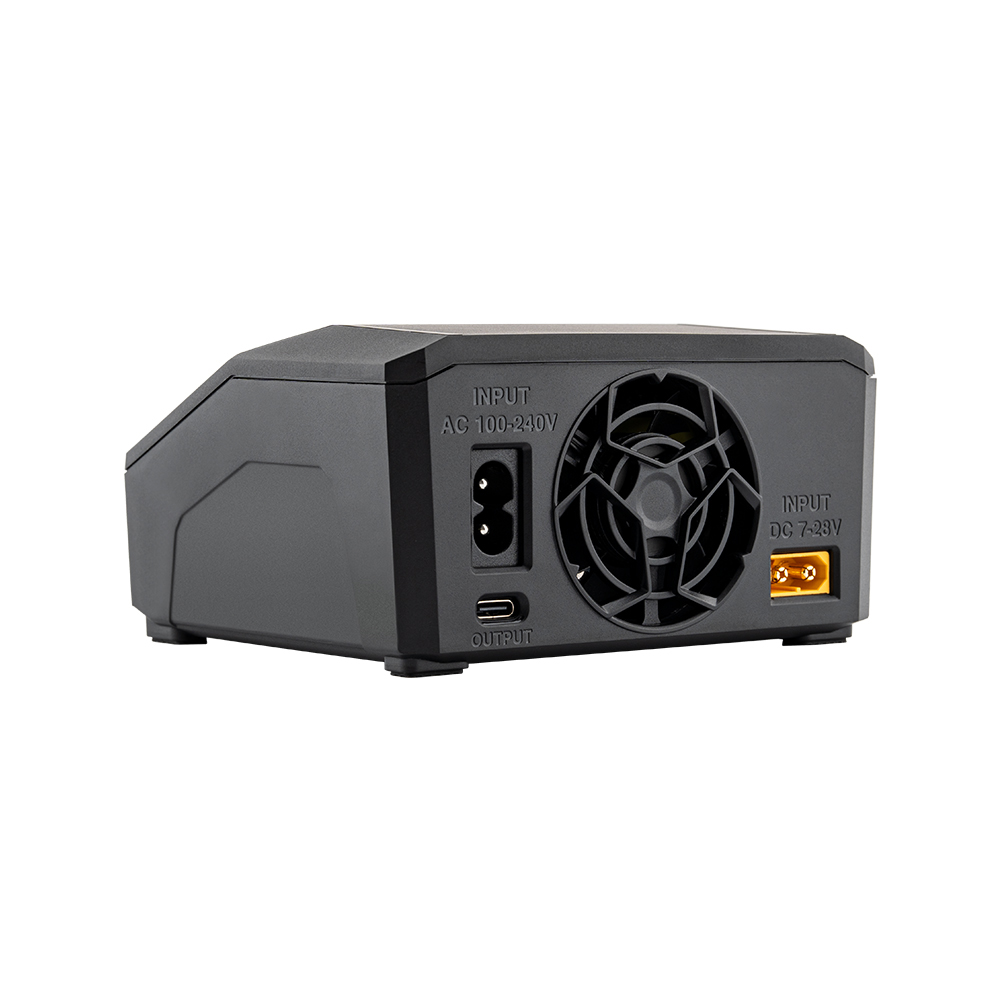

• Input Voltage: AC 100–240V @ Max 330W / DC 7–28V @ Max 32A
• Battery Types: LiPo/LiHV/LiFe/LiIon/LTO (1–6S), NiMH (1–16S), Pb (1–10S)
• Balance Current: 1000 mA (2–6S)
• Balance Accuracy: <0.005V
• Charging Power: 1.0–16.0A @ 400W/CH, 28A @ 700W SYNC
• Discharge Power: 400W Bridge / 400W Recycling / 15W Normal
• Output Power: 0.5–16.0A @ 1.0–28.0V (400W/CH)
• USB-C Output: 65W Max (20V 3.25A)
• USB Protocols: PD3.0, PD2.0, PPS, QC4, QC3.0, QC2.0, AFC, FCP, SCP, PE2.0, PE1.1, SFCP, VOOC
• Wireless Output: 10W

Package Includes

• 1 x ToolkitRC M6DAC PRO
