Description

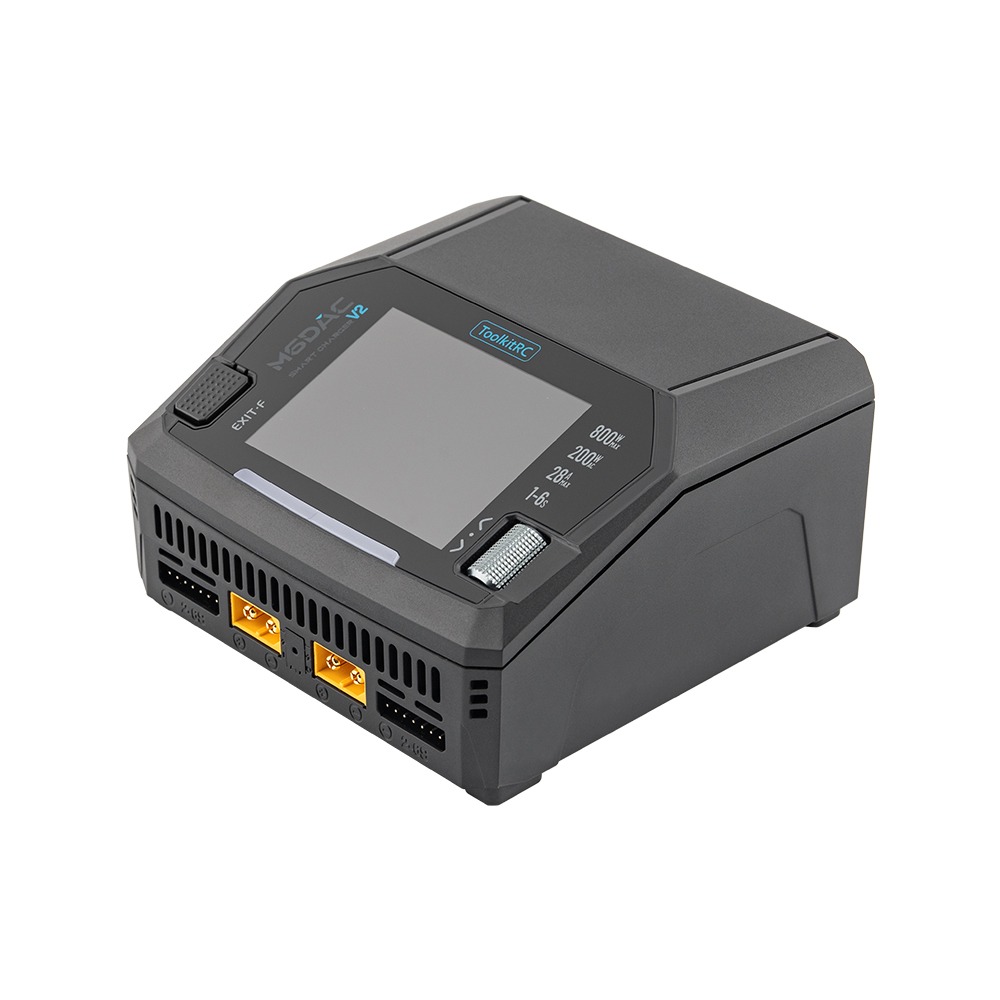

The ToolkitRC M6DAC V2 redefines intelligent charging with its ultra-powerful 800W dual-channel output and precision control. Designed for pros and hobbyists alike, it supports a vast range of battery types, delivers ultra-fast performance with 65W Type-C output, and features a vivid 2.8” IPS LCD for real-time data. Compact, efficient, and packed with safety protections, this is the all-in-one powerhouse every RC enthusiast deserves.

Note that this is the M6DAC V2 with 200W AC power. For the M6DAC Pro with 300W AC power, please see link here: ToolkitRC M6DAC PRO

Features

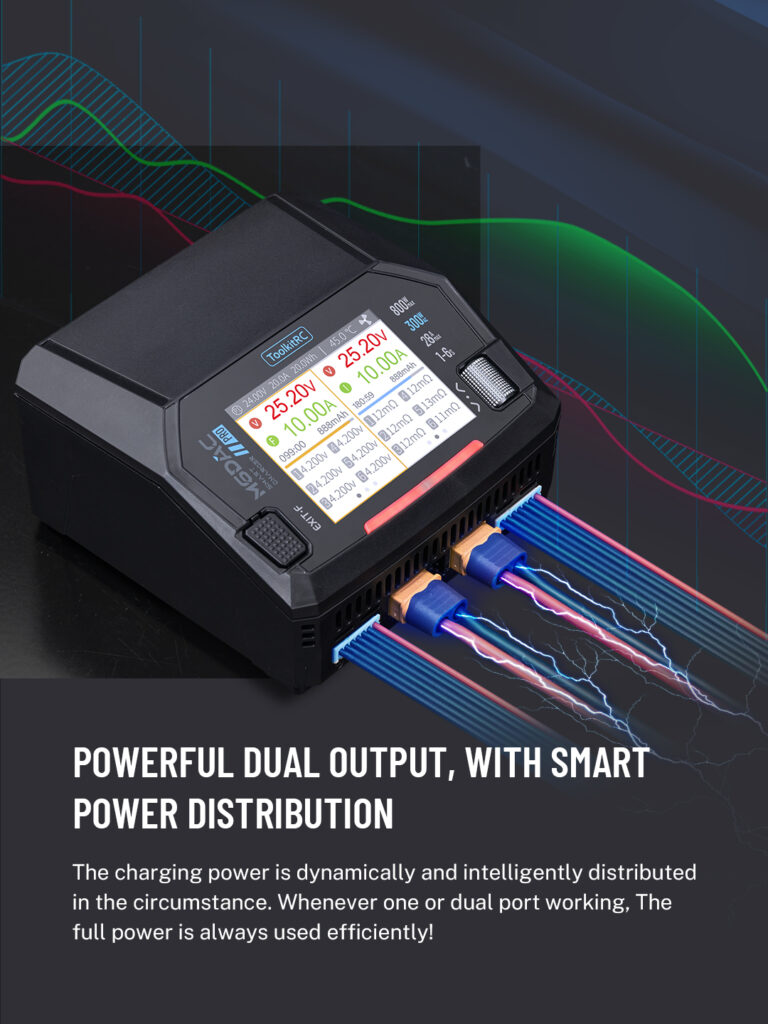

• Dual-channel 800W charging with intelligent power distribution
• Supports LiPo, LiHV, LiFe, LiIon, LTO, NiMH, NiCd, and Pb batteries

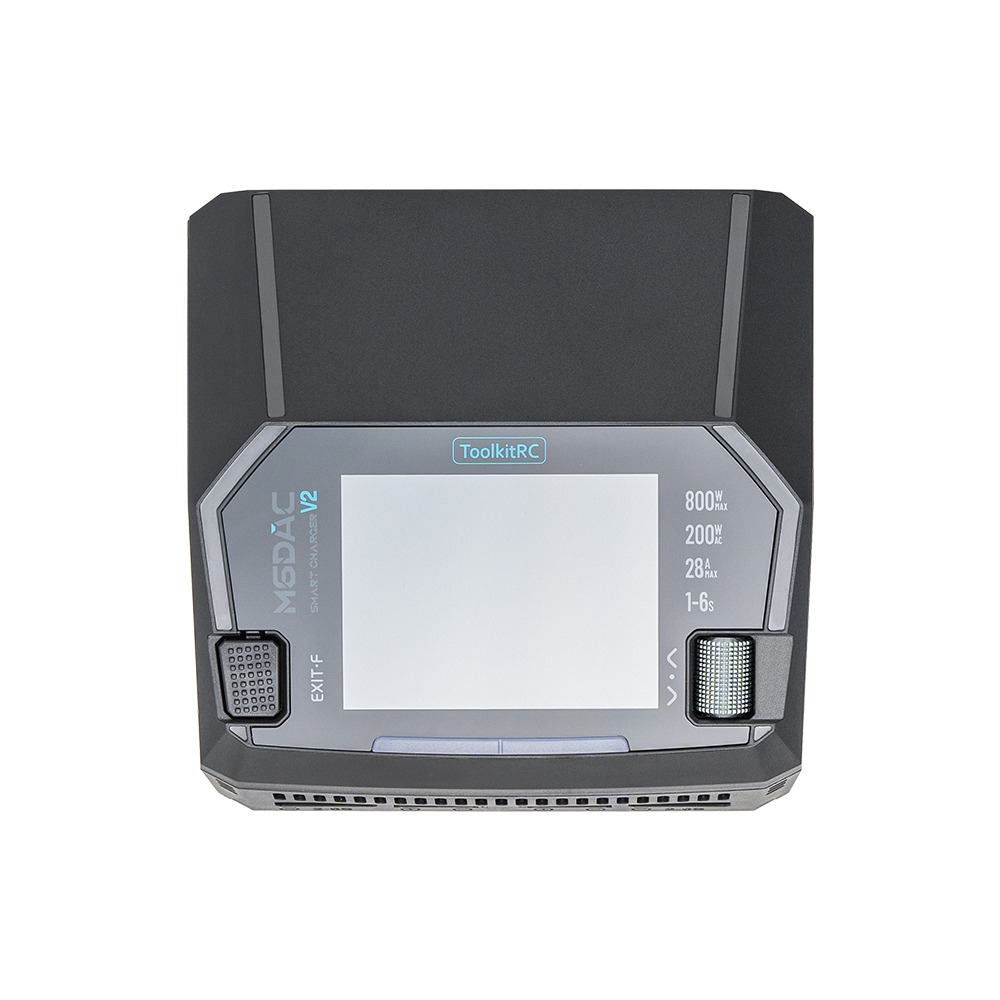

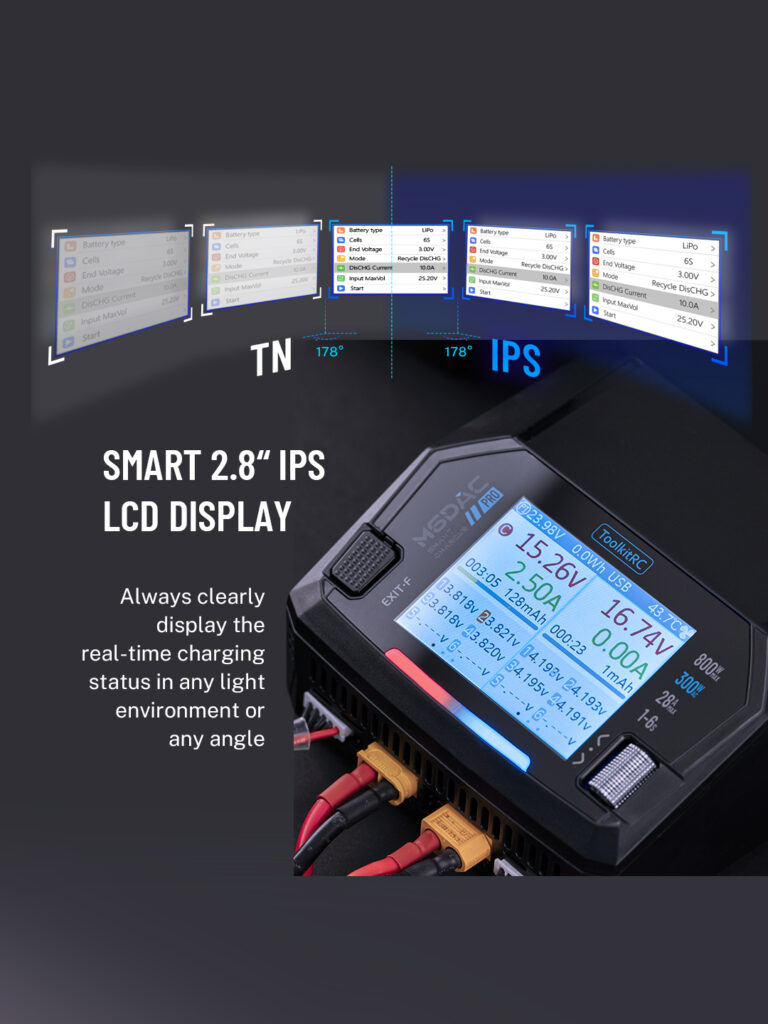

• 2.8″ IPS LCD screen with vivid display and smart interface

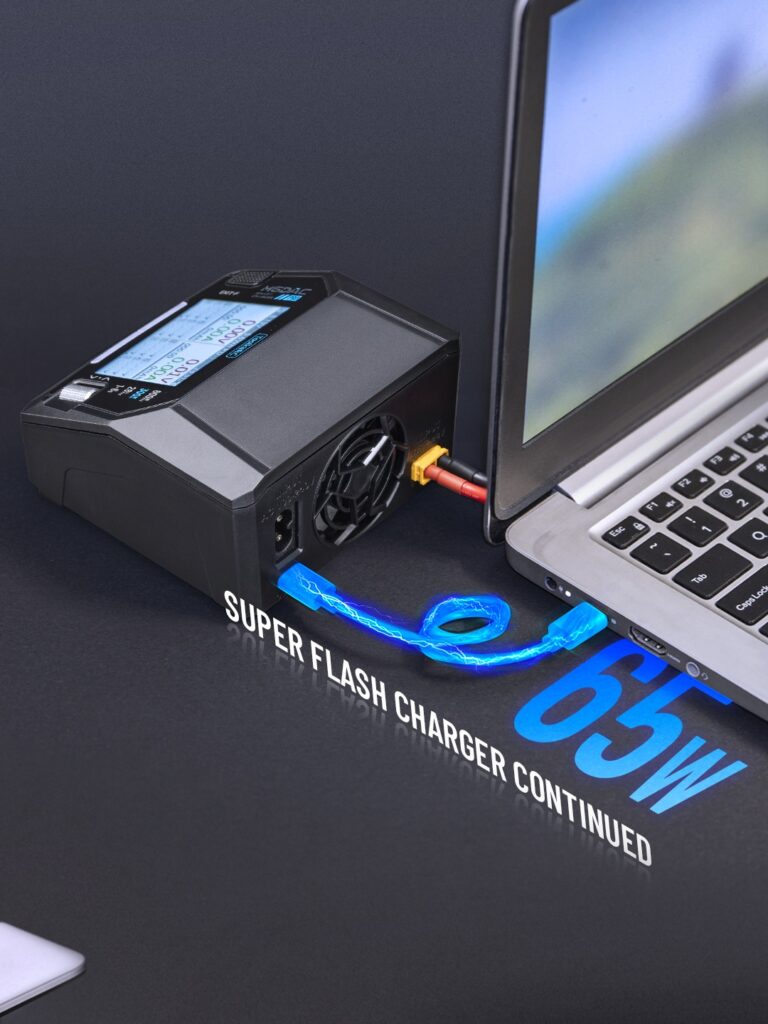

• Type-C 65W super-fast charging output
• Compact and portable design for easy use anywhere

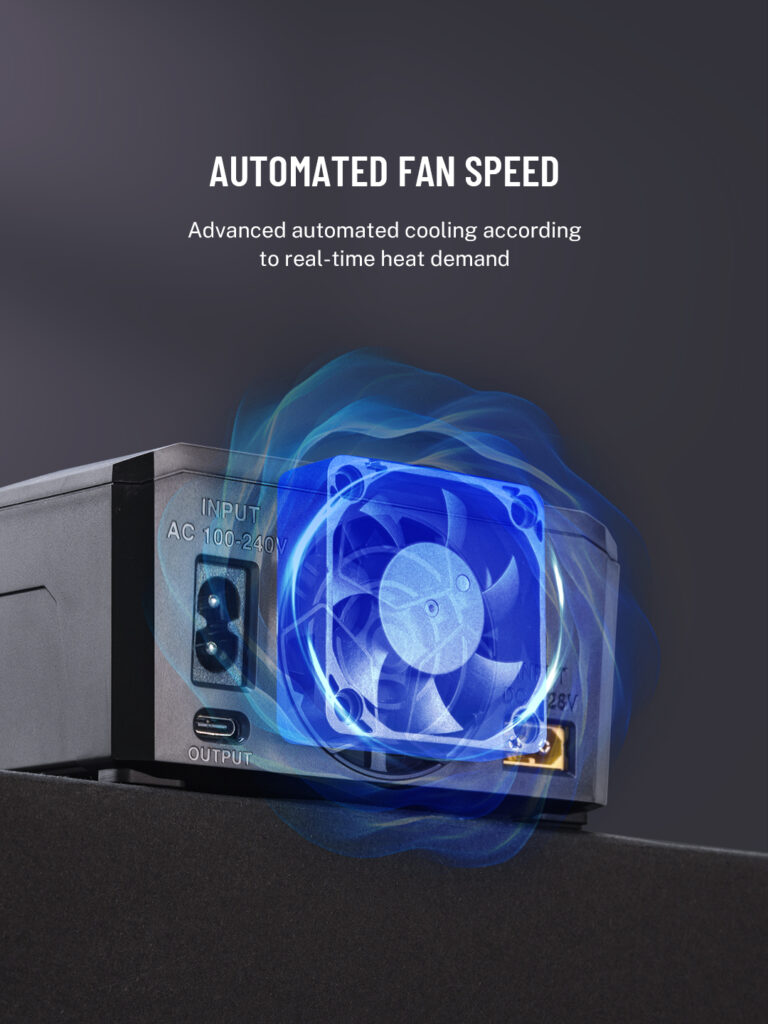

• Automated fan speed for efficient cooling

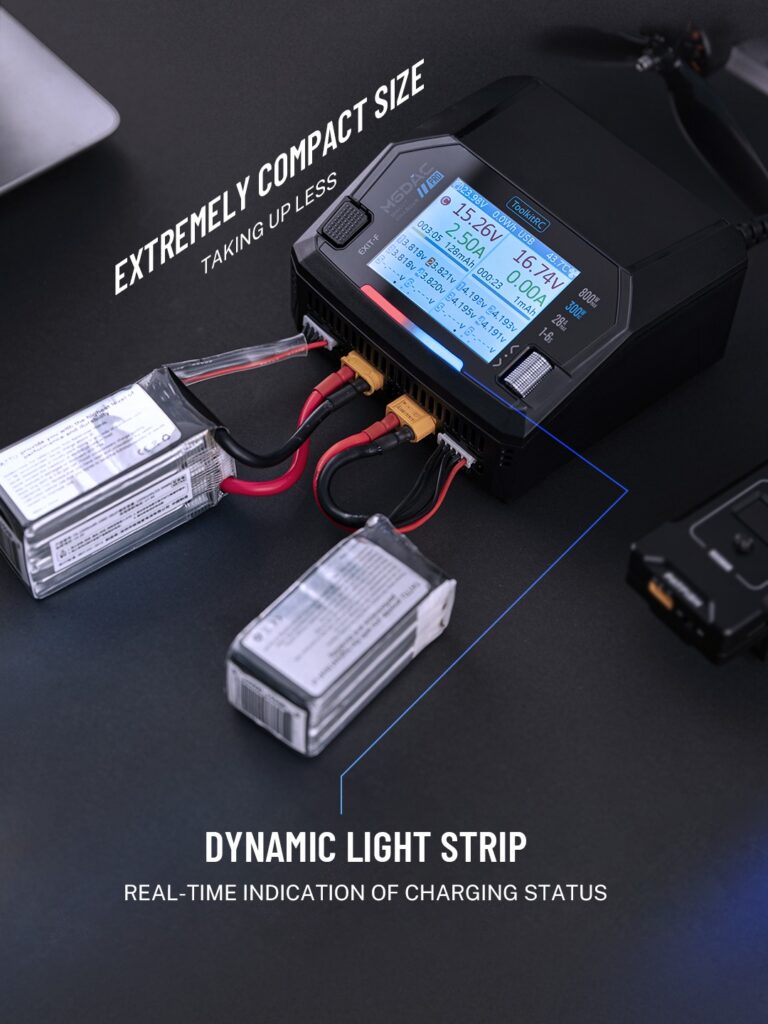

• Dynamic light strip for stylish operation feedback
• Comprehensive safety protection system

Specifications

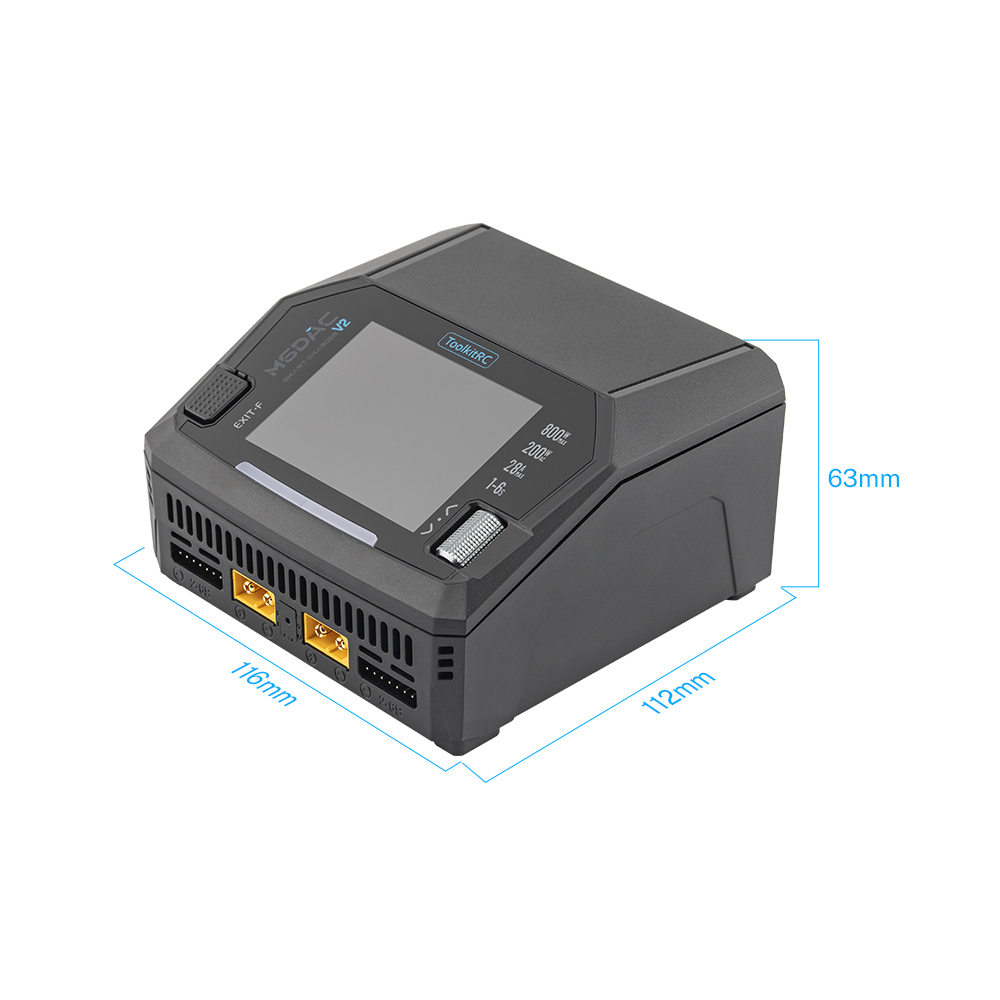

• Product Size: 116×112×63 mm
• Weight: 570 g
• Packaging Size: 164×135×68 mm
• Packaging Weight: 700 g
• Display: 2.8″ IPS LCD, 320×240 px

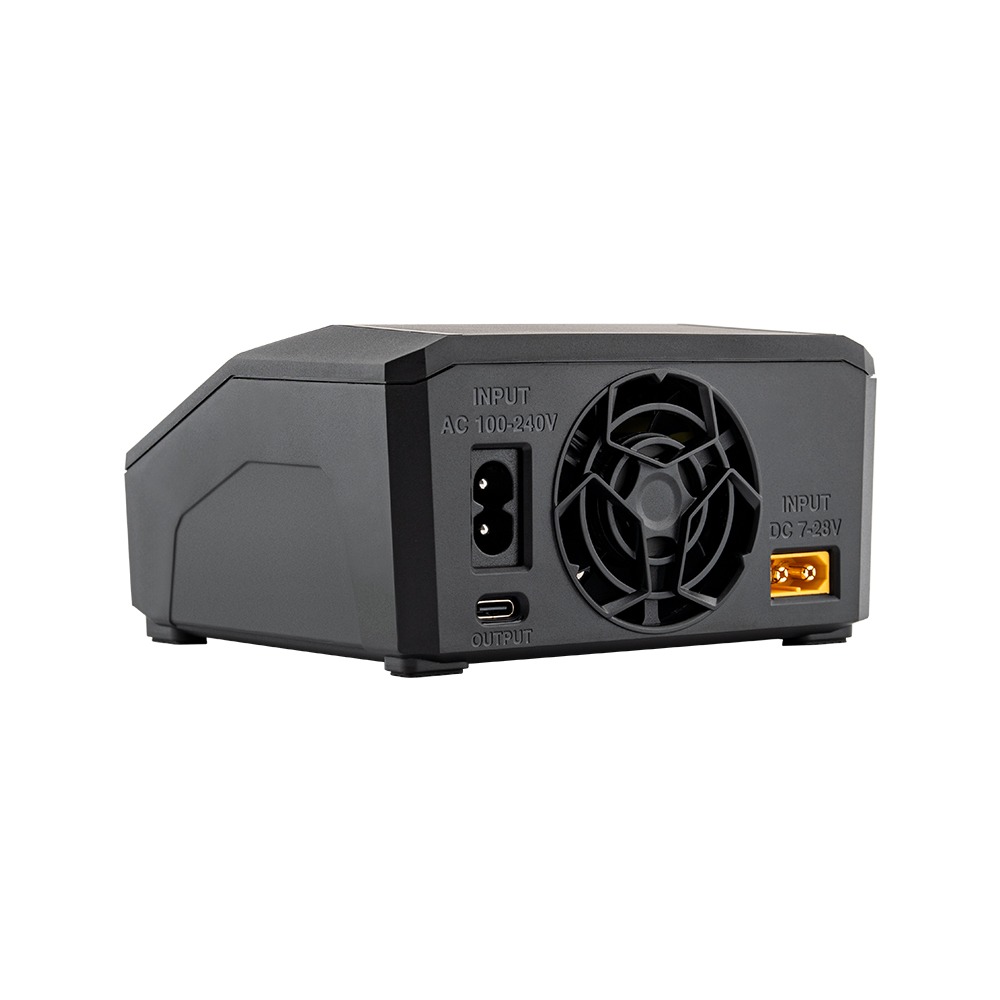

• Input Voltage: AC 100–240V @ Max 220W / DC 7–28V @ Max 32A
• Supported Batteries: LiPo/LiHV/LiFe/LiIon/LTO (1–6S), NiMH (1–16S), Pb (1–10S)
• Balance Current: 1000 mA @ 2–6S
• Balance Accuracy: <0.005V
• Charging Power: 1.0–16.0A @ 400W/CH, 28A @ 700W Sync
• Discharging Power: 1.0–16.0A @ 400W Bridge / 0.1–3.0A @ 15W/CH Normal
• Power Output: 0.5–16.0A @ 1.0–28.0V @ 400W/CH
• Type-C Output: 65W Max (20.0V/3.25A)
• USB Protocols: PD3.0/PD2.0/PPS/QC4/QC3.0/QC2.0/AFC/FCP/SCP/PE2.0/PE1.1/SFCP/VOOC

Package Includes

• 1 x ToolkitRC M6DAC V2
