Description

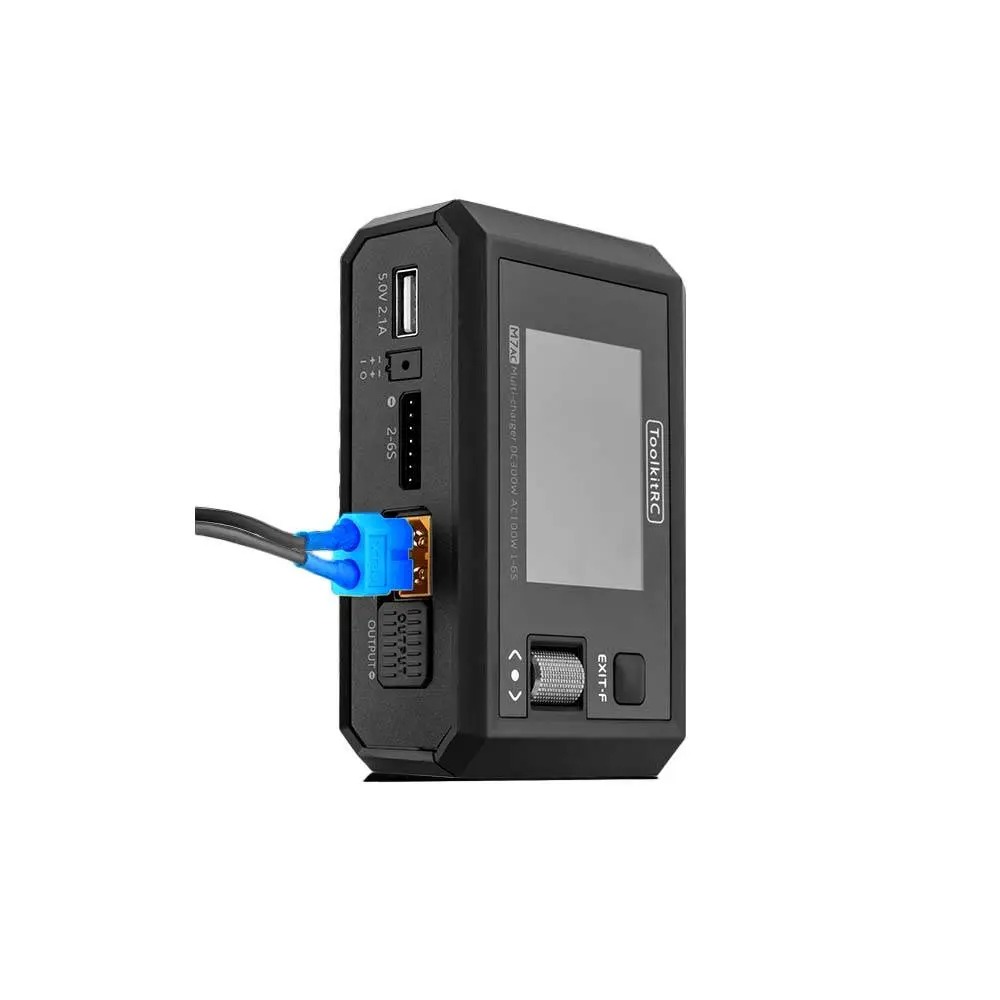

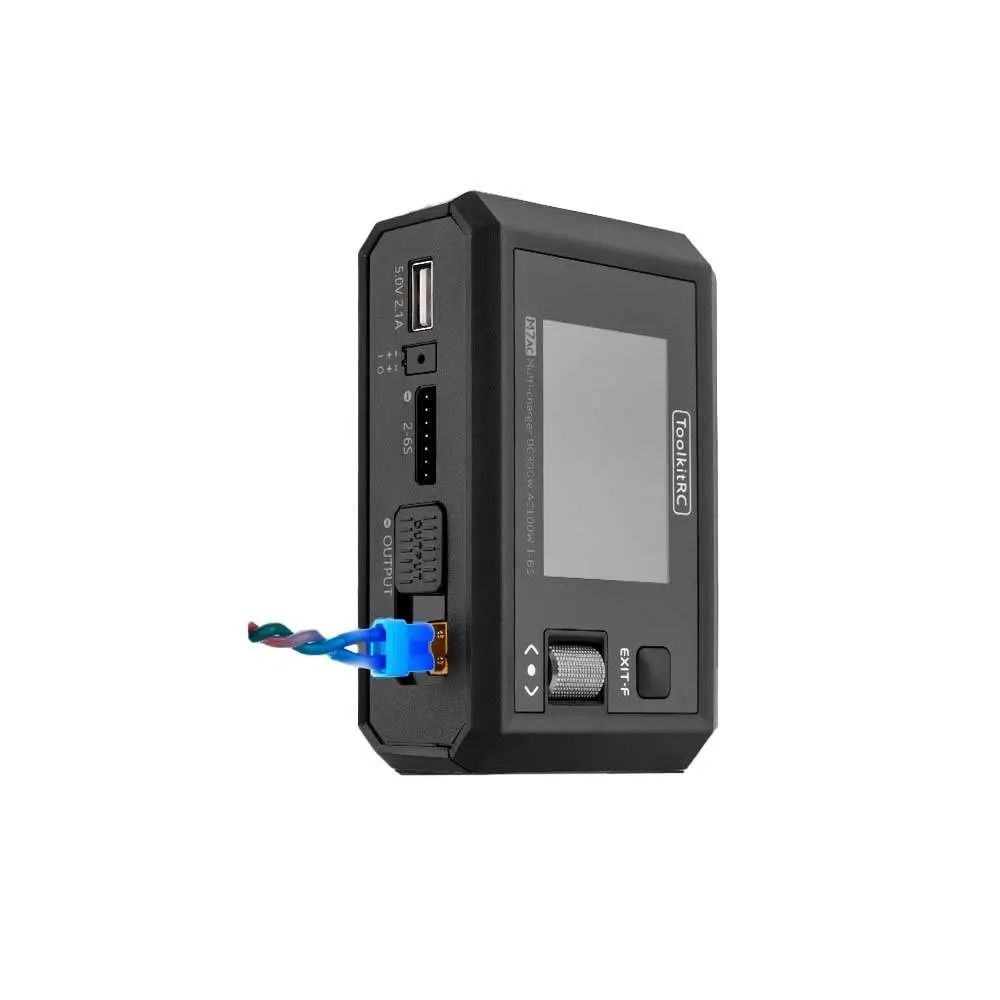

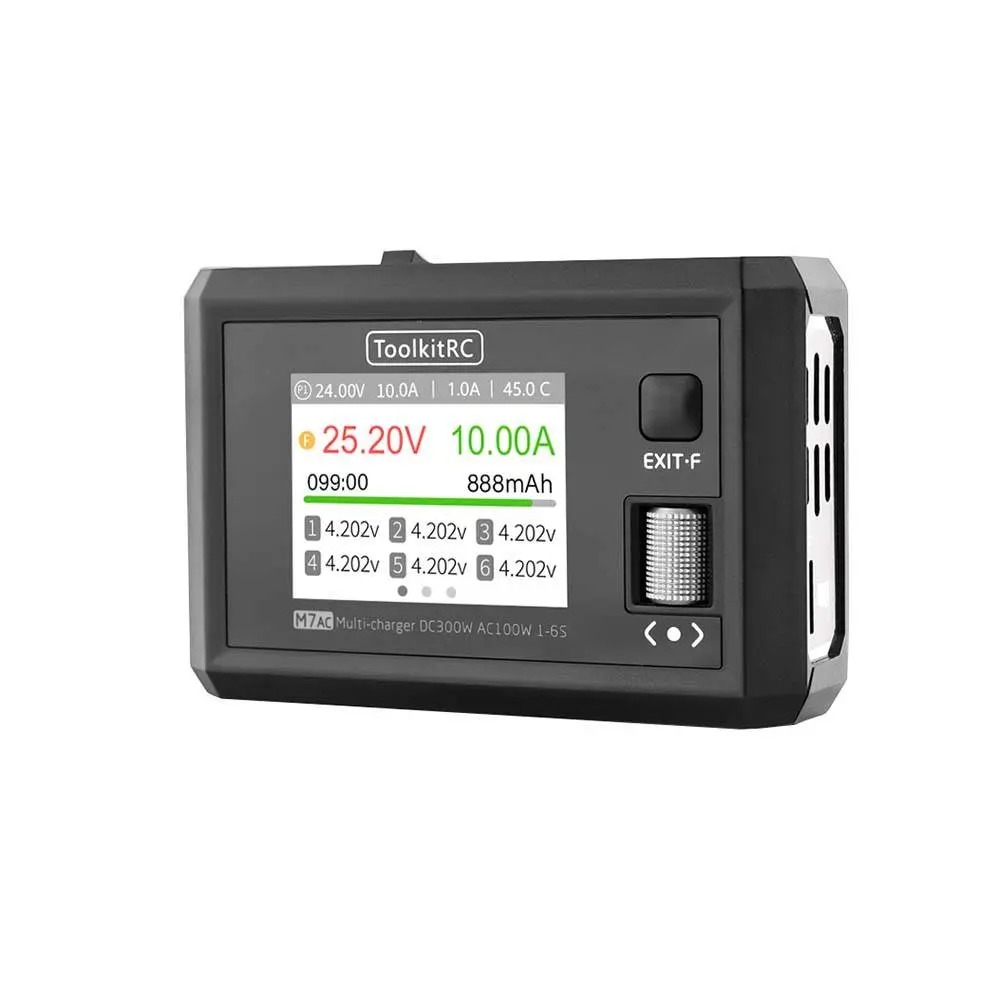

The ToolkitRC M7AC Multi-Function AC Smart Charger features Dual AC/DC Input, XT30/XT60 Output, and supports 2-6S. The Toolkit M7 isn’t just a charger, but a versatile tool kit too. It can be used as a power supply, multimeter, signal source, drone charger, and signal tester!

Features

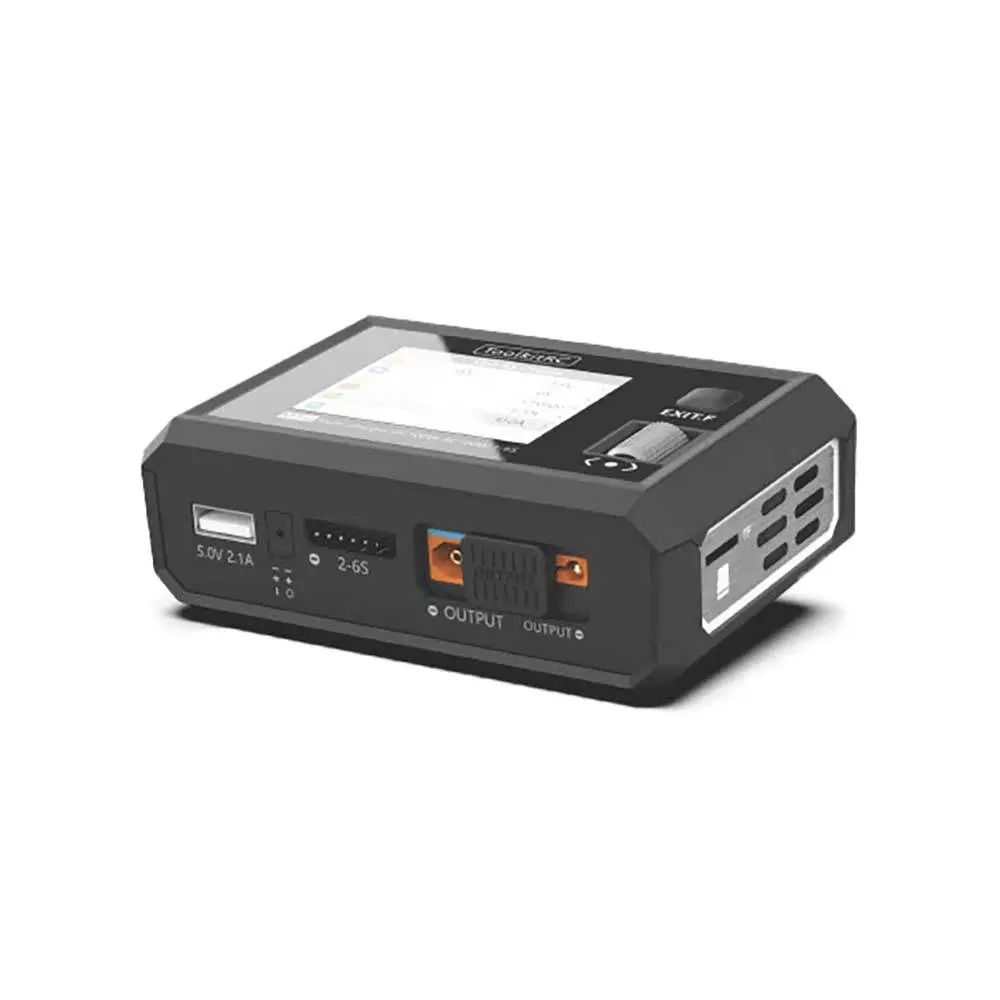

• XT30/XT60 Output
• Dual AC/DC Input
• Supports 2-6S
• Drone charger
• Power supply
• Signal source
• Signal tester
• Multimeter

Specifications

CHARGER

• Discharge Power: 300W @MAX 15A Recycle mode / 15W@3A Normal mode
• Input Voltage: AC 100-240V MAX 100W 1.5A / DC 7.0-28.0V @MAX 20A
• Battery Type: Lipo LiHV LiFe Lion LTO@1-6S / NiMh @1-16S Pb @1-10S
• Charging Power: 300W @MAX 15A
• Balance Current: 800mA @ 4.2V
• USBA: [email protected] or Upgrade

GENERAL

• LCD: IPS 2.4 inch LCD 320*240 resolution
• Packing Size: 144x125x43mm
• Product Size: 112x73x38mm
• Packaging Weight: 380g
• TF Card: 128MB-16GB
• Product Weight: 245g

MEASURE

• Internal Resistance: 0.1 mR-99mR @ 1-6S
• SBUS: 880-2200us * 16CH @ 20-100Hz
• PPM: 880-2200us * 8CH @ 20-50Hz
• PWM: 880-2200us @ 20-400Hz
• Voltage: 1.0-5.0V @ 1-6S
• ESC: 300W @ 15A

OUTPUT

• Power Supply: 1.0-28.0V @0.5-15A mode: CC CV

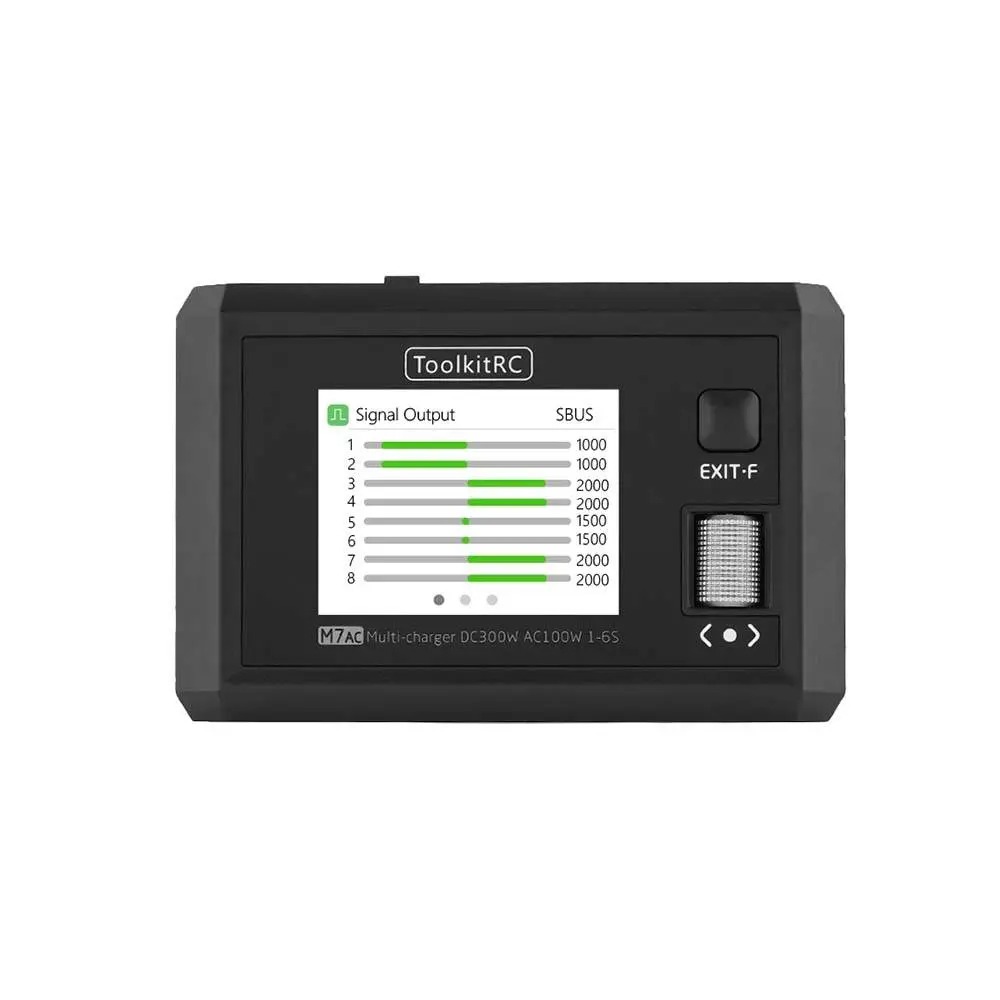

• SBUS: 880-2200us * 16CH @ 20-100Hz
• PPM: 880-2200us * 8CH @ 20-50Hz
• PWM: 500-2500us @ 20-1000Hz
• Overcurrent Response: <5ms

Manual: M7AC+Manual+V1.0
