Walksnail Avatar HD Kit V2 (8Gb/32Gb+GyroFlow)
The ultimate Walksnail Vtx Kit with 32G storage Gyroflow and the legendary Pro Camera
$274.99 – $294.99
Description
1080P 120fps compatibility
22ms low latency
Ranging Mode
4KM range
Light weight design
FOV160°
Built-in 8G/32G storage,
Support Gyroflow
GPS anti-jamming
6V-25.2V
The only native 4:3 high-definition sensor in the FPV industry

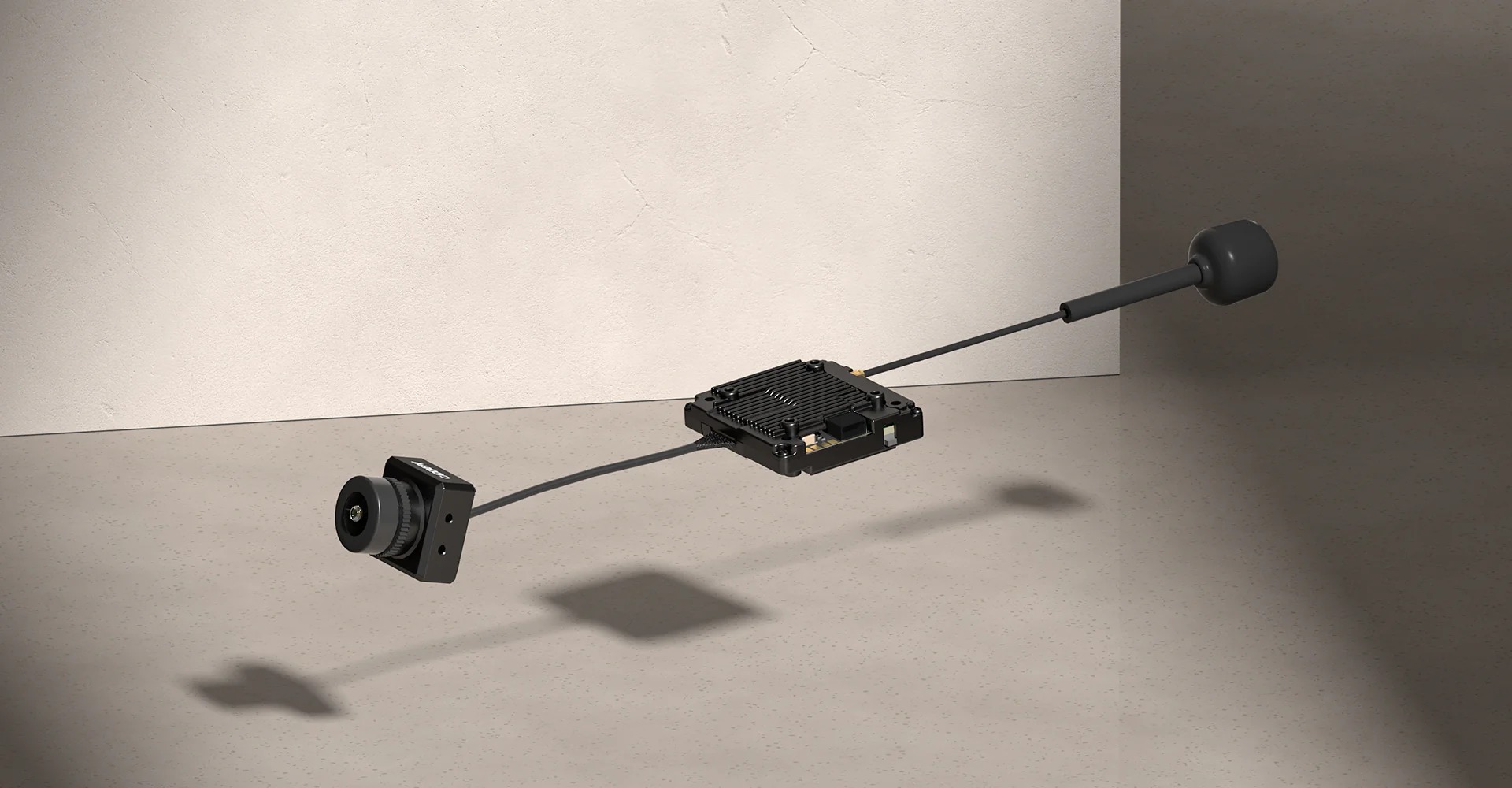

This kit Includes:
- Avatar HD V2 Camera
- Avatar V2 VTX – 32G with GyroFlow OR Avatar V2 VTX – 8G without GyroFlow
- Avatar V2 Antenna
Camera Features:
- Camera V2 with 2K pixels, 4:3 native sensor for better image quality and native 4:3 mode image ratio allows you to capture more of the surrounding scenery while flying the drone, resulting in more comprehensive and visually appealing images.Meanwhile, it’s better fit for regular FPV race as well.
V2 VTX Features:
- In addition to the original 25mm x 25mm mounting holes, the kit now includes 20mm x 20mm holes for greater compatibility with a wider range of FPV drone models.
Updated the design of PCB board and shell, improved the quality of VTX, more durable.
Optimized the installation place of the antenna, so as to better protect the VTX.
The position of the frequency binding button has been changed to make the frequency binding operation more convenient.
A spare pad is added to provide two power connection modes.
New VTX with enhanced TVS protection and support for up to 6S. With a wide input voltage the range of 6V to25.2V, our VTX delivers unmatched stability and resistance to GPS interference. Enjoy unparalleled performance and take your FPV adventures to new heights with our cutting-edge technology.
The Avatar VTX comes with 8g/32g built-in storage it can record 1080p or 720p HD flight videos without interference.32G built-in storage, recording video time increased by 4 times.
Specifications
Avatar V2 camera
- Image Sensor 1/3.2-Inch 4Mp 4:3sensor
- Resolution 1080P/60fps; 720P/100fps; 720P/60fps;1080P/120fps compatibility; 1080P/100fps compatibility;
- Ratio 4:3 native /16:9
- Lens 2.1mm
- FOV 160°
- Aperture F2.0
- Shutter Rolling shutter
- Min.Illumination 0.001Lux
- Weight 7.2g

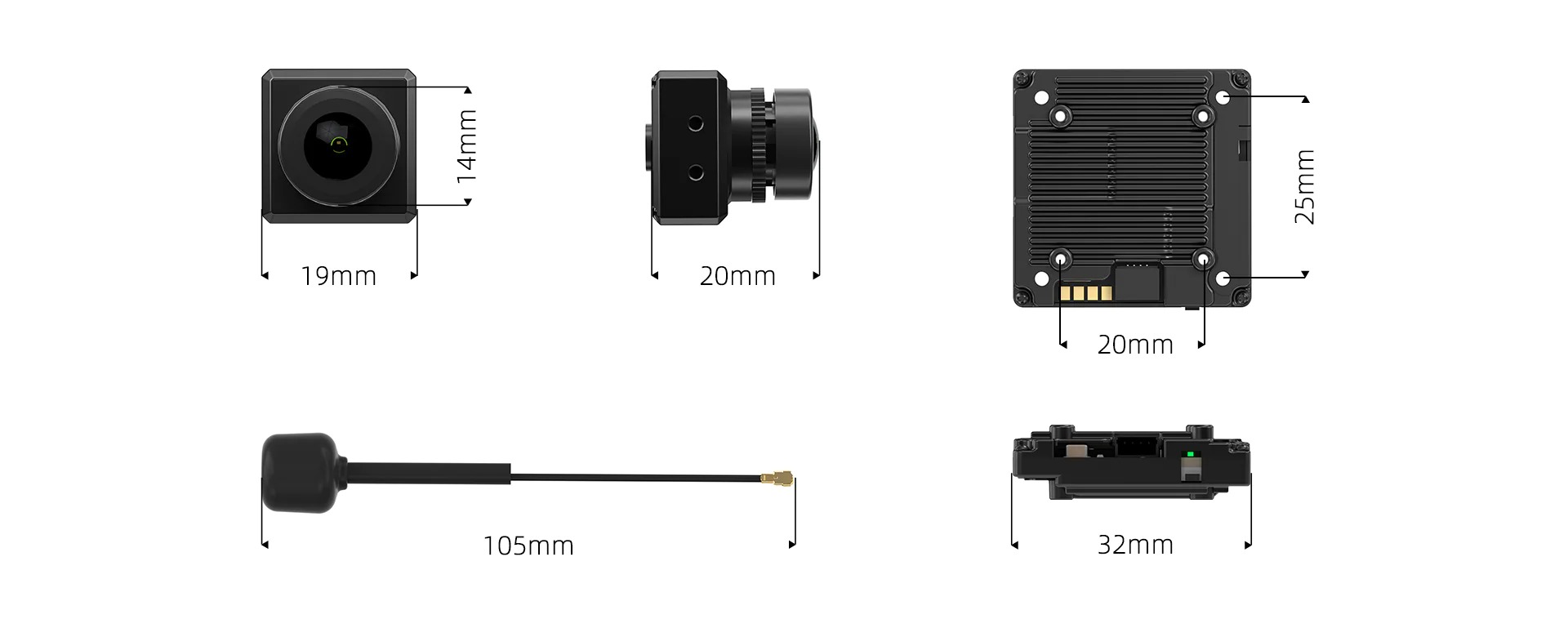

- Dimensions 19*19*22mm
- Coaxial Cable 140mm
- Gyroflow Only 32G VTX Supported
Avatar V2 Module
- Communication Frequency 5.725-5.850GHz
- Transmitter Power (EIRP) FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;
- MIC:<25dBm
- 1/O Interface JST1.0*4(Power in)JST0.8*6(USB)
- Mounting Holes 25.5*25.5mm; 20*20mm
- Dimensions 33.5*33.5*10.5mm
- Storage 8G/32G
- Recording 1080p/720p
- Weight 17.6g
- Operating Temperature -20-40℃
- Channels 8
- Wide Power Input 6V-25.2V
- Supported FC System Betaflight; Inav; Fettec; ArduPilot;Kiss
- OSD Canvas mode
- Latency Average delay 22ms
- Antenna 1(IPEX)
Avatar V2 Antenna
- Polarization LHCP
- Frequency range 5600MHz-6000MHz
- Gain 1.9dBi
- VSWR ≤1.5
- Input Impedance 50Ω
- Interface IPEX-1
- Size R15 X 45mm(without cable)
- Weight 2g
