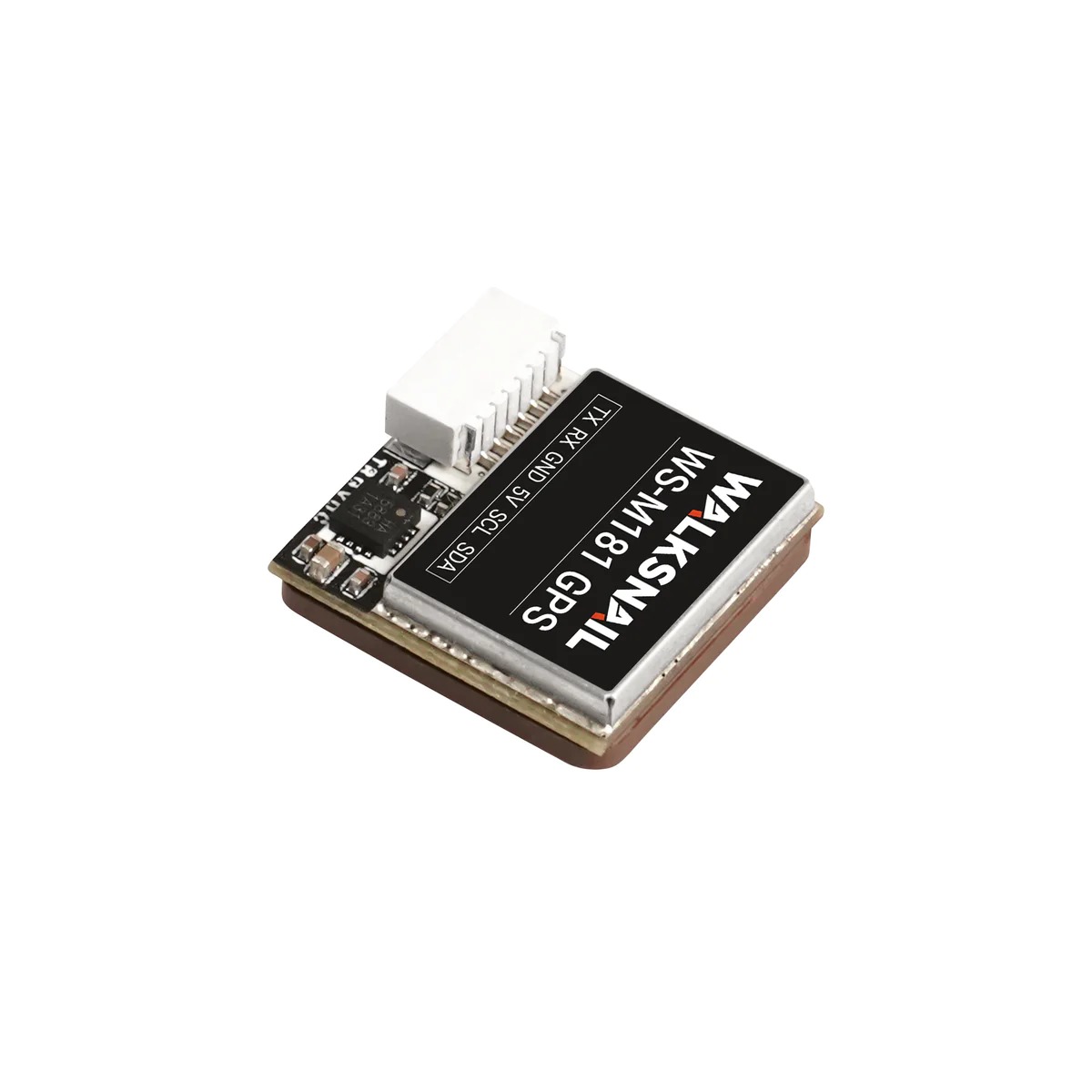

Walksnail WS-M181 GPS

Description

Featuring the u-blox M10 platform UBX-M10050 GNSS chipset and BUILT-IN QMC5883 MAG, the module offers stronger performance and more accurate positioning.

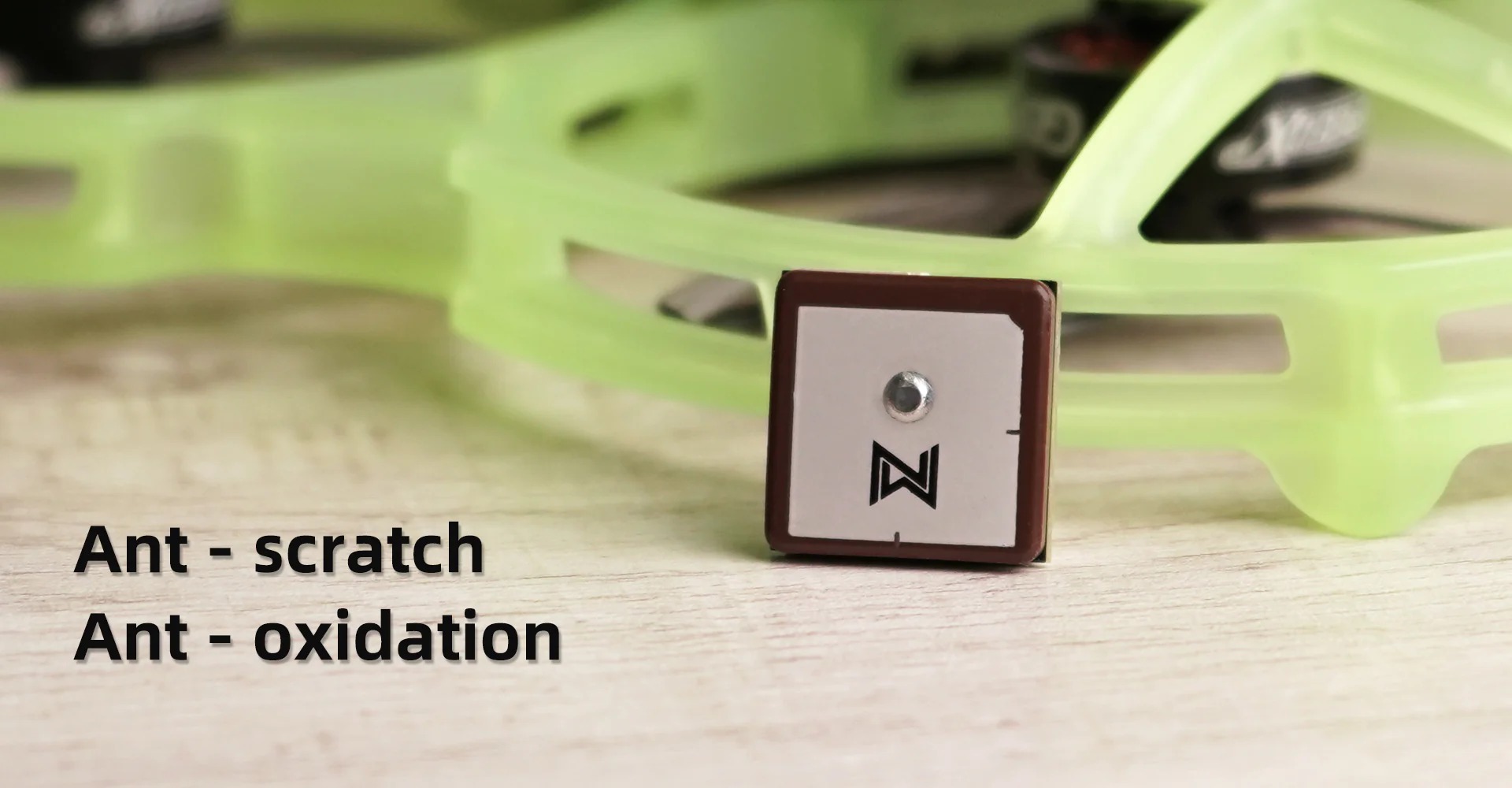

The ultra-thin ceramic antenna uses a special spray painting process to prevent oxidation and scratching, ensuring consistent positioning performance.

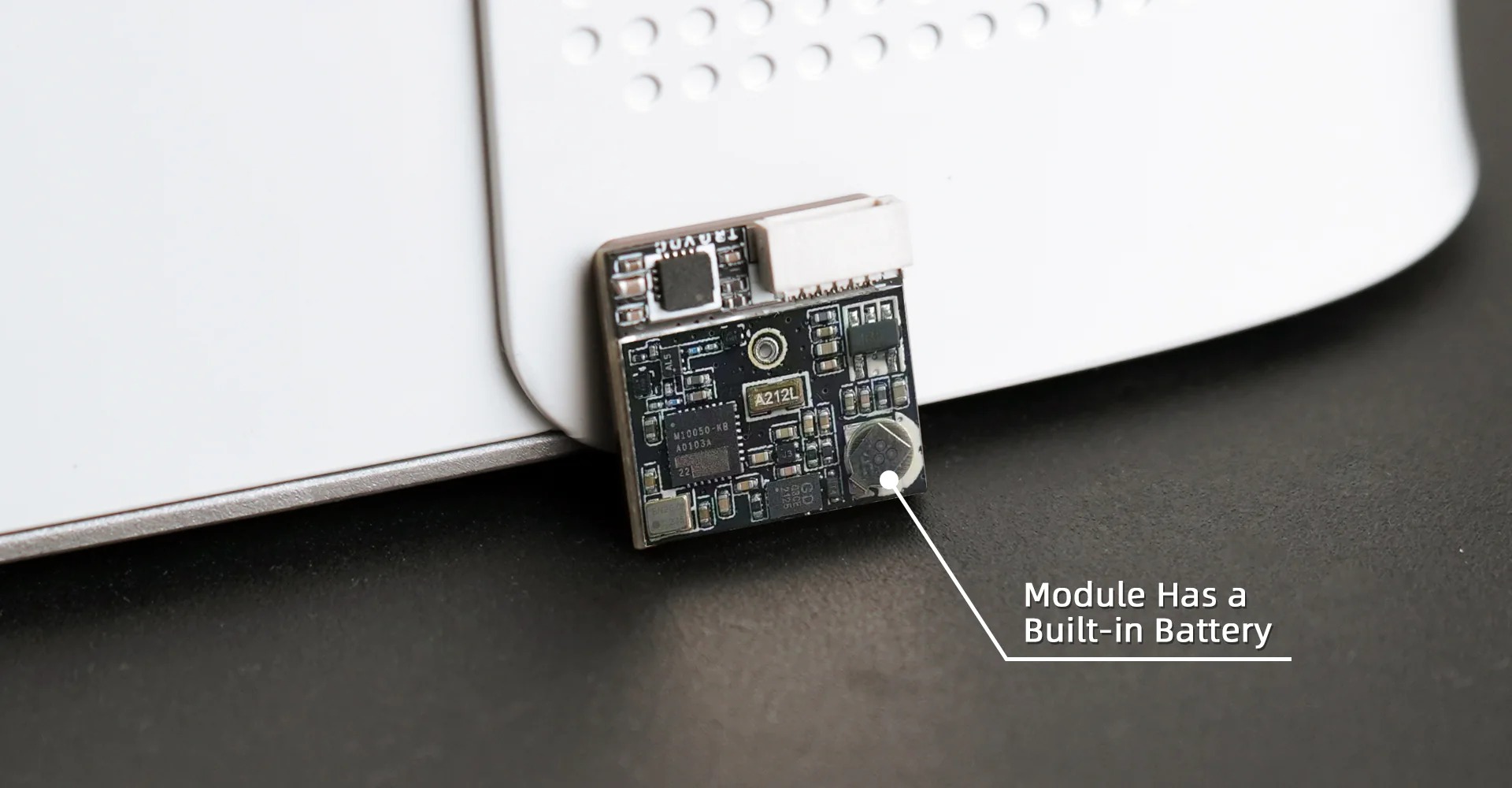

The built-in battery can realize hot start and realize positioning quickly.

It offers six positioning modes, providing more flexible combinations (default GPS + GLONASS + BDS multi-mode positioning).The measured maximum number of search sats can cover 32pcs.

Specification

• Name Walksnail WS-M181GPS
• Chip: M10 (ten generation chip)
• Frequency: GPS L1,GLONASS L1,BDSB1,GALILEO E1,SBAS L1.QZSS L1
• Power: 5V
• Size: 18mm*18mm*4.6mm

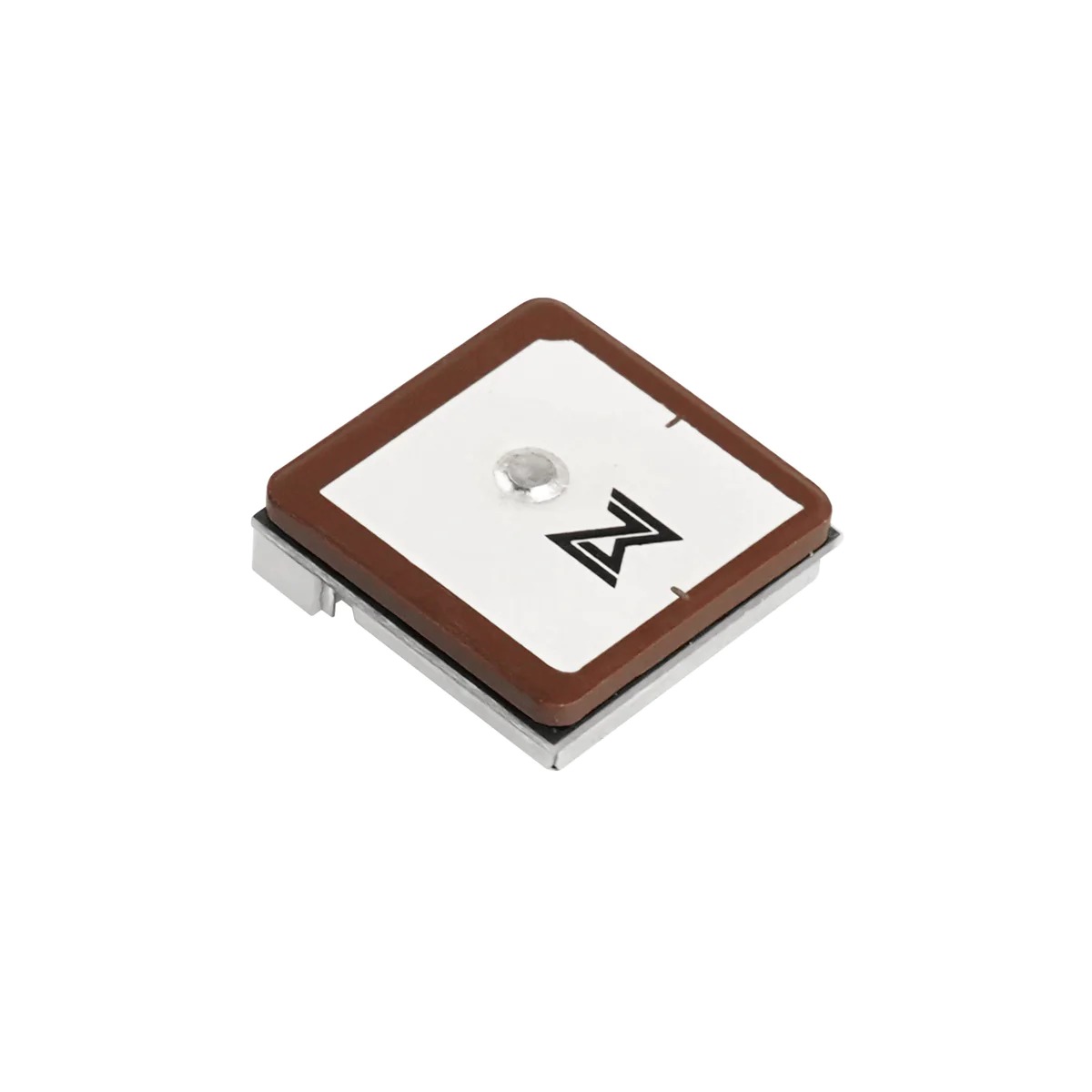

• Antenna: ceramic antenna (oil spraying process, prevent scratching and oxidation)
• Receiving channels: 72 search channels
• Compass： QMC5883
• Baud rate: 115200dps
• Output protocol: NMEA UBLOX (dual protocol)
• Output frequency: 1Hz-10Hz, Default 10Hz
• Speed accuracy: 0.05m/s
• Horizontal positioning accuracy: 2D ACC1.5m(open air)
• Receiving sensitivity:
• Trace-162dBm
• Capture -160dBm
• Dynamic characteristics:
• Altitude: 50000m
• Speed: 500m/s
• Acceleration: 4G
• Operating temperature: -40℃-+85℃
• Storage temperature: -40℃-+105℃
